4 Channel Decoder DMX512 & RDM Decoder DMX 512 Digital Display Decoder Dimming Driver DMX512 Controller for LED RGBW Tape Strip Light RJ45 Connection
About this item
- 1. Comply with the DMX512 standard protocols.
- 2. Digital numeric display, set DMX decode start address by buttons.
- 3. RDM function can realize intercommunication between DMX master and decoder.
- 4. 1/2/4 DMX channel output selectable.
- 5. Green terminal, XLR3 and RJ45 port DMX signal input.Over-heat / Short circuit protection, recover automatically.
Product description

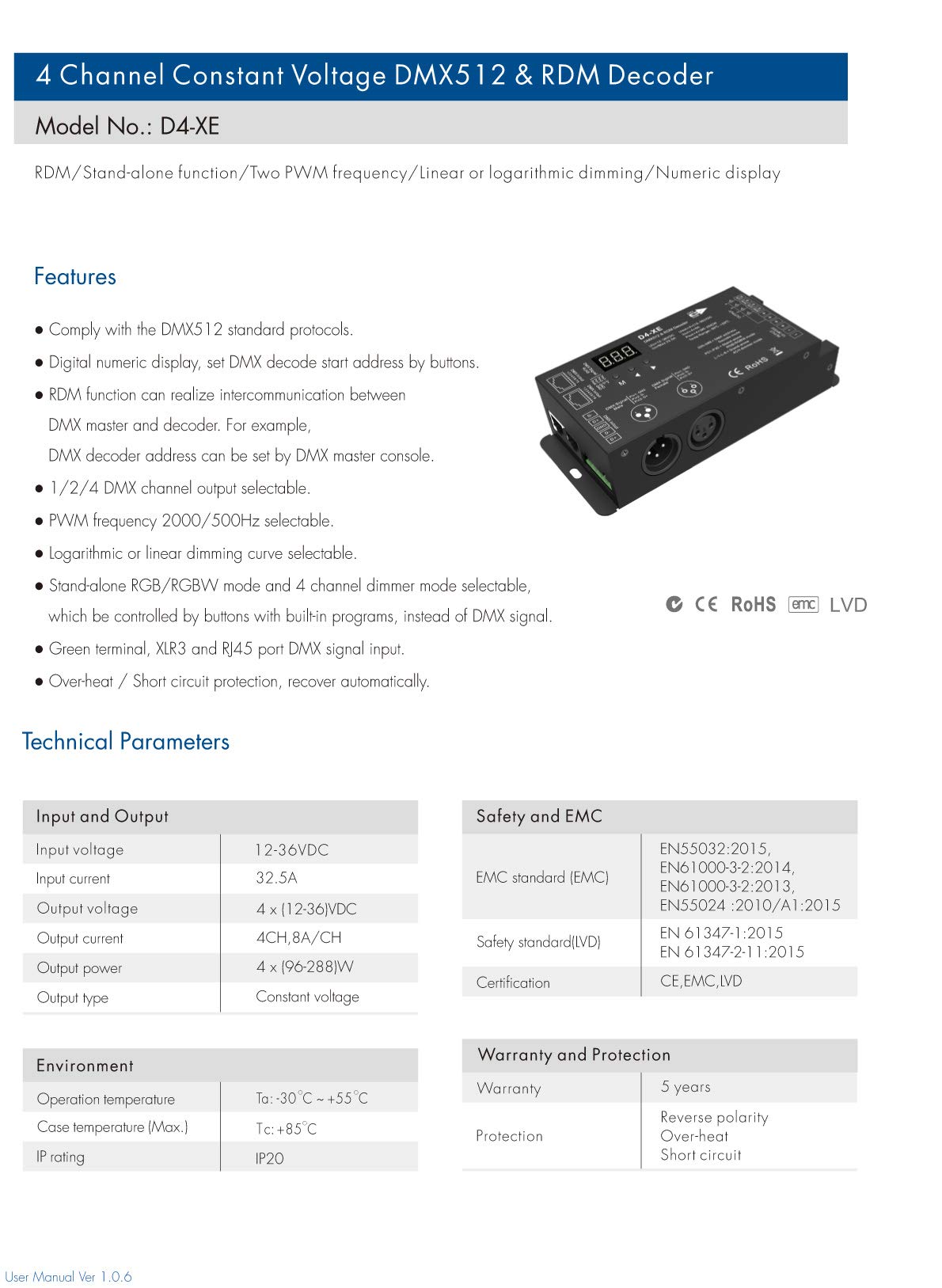

Features: 1. Comply with the DMX512 standard protocols. 2. Digital numeric display, set DMX decode start address by buttons. 3. RDM function can realize intercommunication between DMX master and decoder. For example, DMX decoder address can be set by DMX master console. 4. 1/2/4 DMX channel output selectable. 5. PWM frequency 500 Hz. 6. Logarithmic or linear dimming curve selectable. 7. Stand-alone RGB/RGBW mode and 4 channel dimmer mode selectable, which be controlled by buttons with built-in programs, instead of DMX signal. 8. Green terminal, XLR3 and RJ45 port DMX signal input. 9. Over-heat / Short circuit protection, recover automatically. Technical parameters: Input voltage: 12-36VDC. Input current 32.5 A. Output voltage: 4 x (12-36) VDC. Output current 4CH,8A/CH Output power 4 x (96-288)W. Output type Constant voltage
Product details
