4-Channel 1080P HD Quad Video Processor - Image Switcher & Multiplexer for AHD, CVI, TVI CCTV Security Cameras - Digital Zoom, Video Freezing, Loss Alarm

• -Support 4 channels realtime 1080P HD video display with multiple display modes.

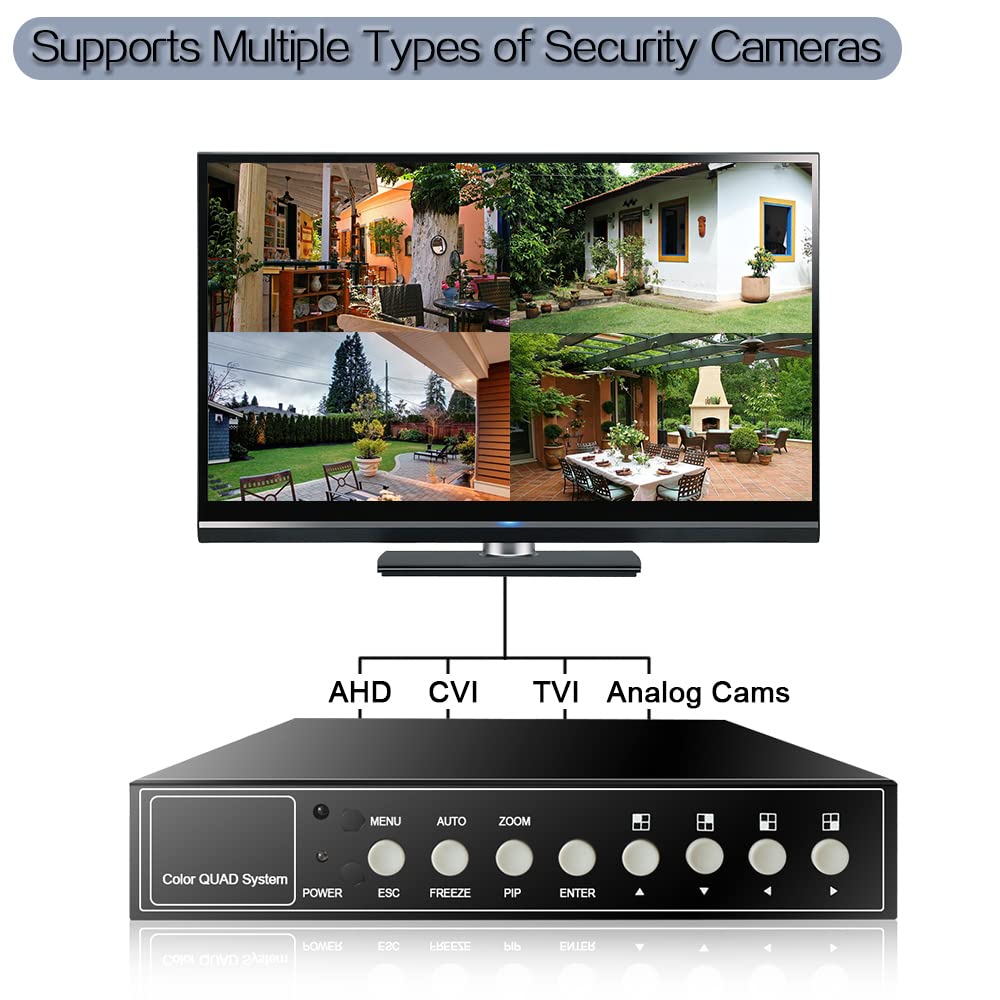

• -Support AHD, CVI, TVI or analog security cameras. PAL or NTSC TV system selectable.
• -Support digital zoom in, zooming area is selectable.
• -Support auto sequential switching. Support video loss alarm function.
• -Support single or multiple video channels freezing at the same time.

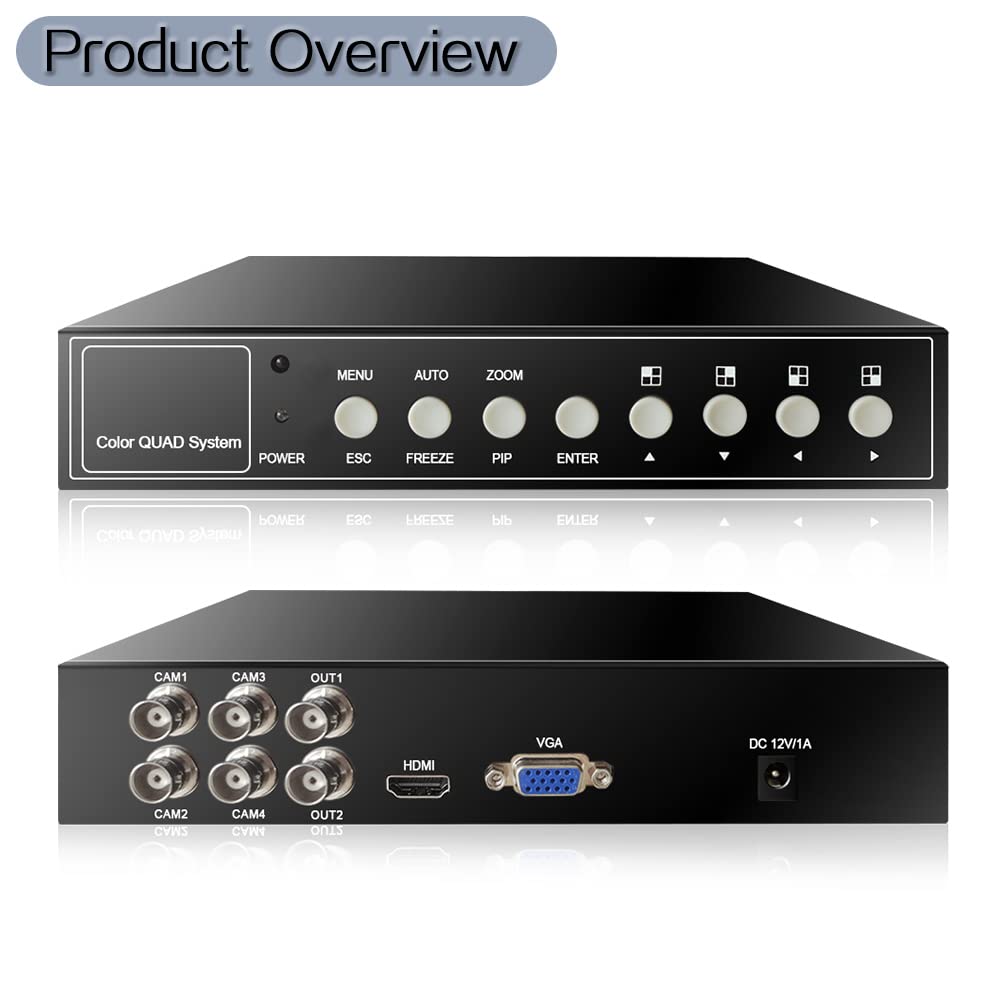

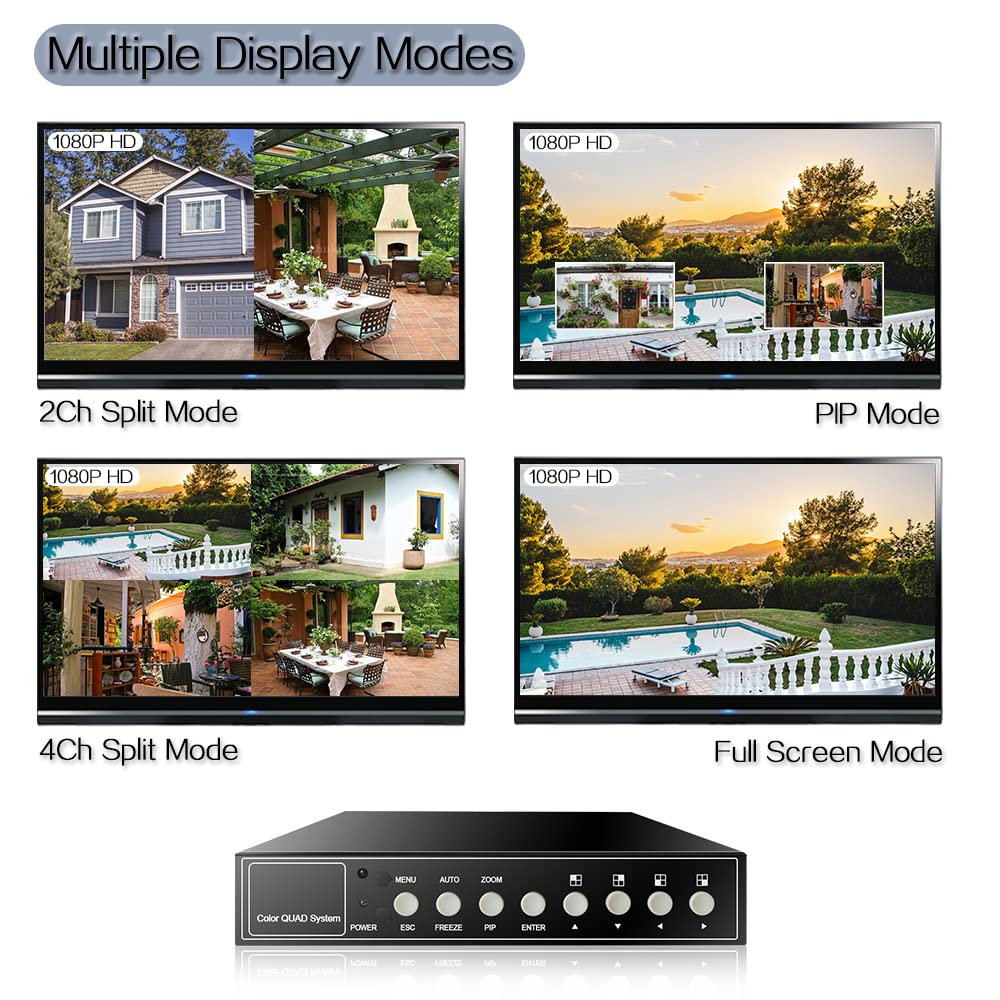

Key Features: -Support 4 channels realtime 1080P HD video display with multiple display modes. -Support AHD, CVI, TVI or analog security cameras. -PAL or NTSC TV system selectable. -Multiple video resolution selectable: 1080P/60Hz, 1080P/50Hz, 720P/60Hz, 720P/50Hz, 1440x900, 1280x1024, 1024x768. -Each video channel can be renamed. -Brightness, contrast, saturation and hue can be adjusted for each channel. -Support auto sequential switching. -Support 1, 2, 3, 4 channels or PIP (Picture-in-Picture) multiple video display modes. -Support digital zoom in, zooming area is selectable. -Support single or multiple video channels freezing at the same time. -Support video loss alarm function. -Support IR Remote Control. -4 channels video outputs: 2xBNC, 1xVGA, 1xHDMI. Parameters: Video System: NTSC/PAL Max Video Resolution: PAL: 1920x1080; NTSC: 1920x1080 Video Frame Rate: PAL: 100fps, NTSC:120fps Video Input: 4xBNC 1Vp-p,75Ω Video Output: 1xHDMI; 1xVGA; 1 channel main monitor output, 1Vp-p,75Ω; 1 channel slave monitor output, 1Vp-p,75Ω Auto Switch Intervals: 0~99 seconds selectable Alarm Output: None OSD Language: English Customized Menu: Brightness ,Contrast, Saturation, Hue Power Consumption: 4.8W (400mA) Power Supply: DC 12V, 3A Operation Temperature: -10℃~ +60℃ Product Weight: 605g (1.3lb) Package Weight: 936g (2lb) Product Size: 210x130x40mm (8.3x5.1x1.6 inch) Package Size: 270x184x59mm (11x7.3x2.4 inch)
