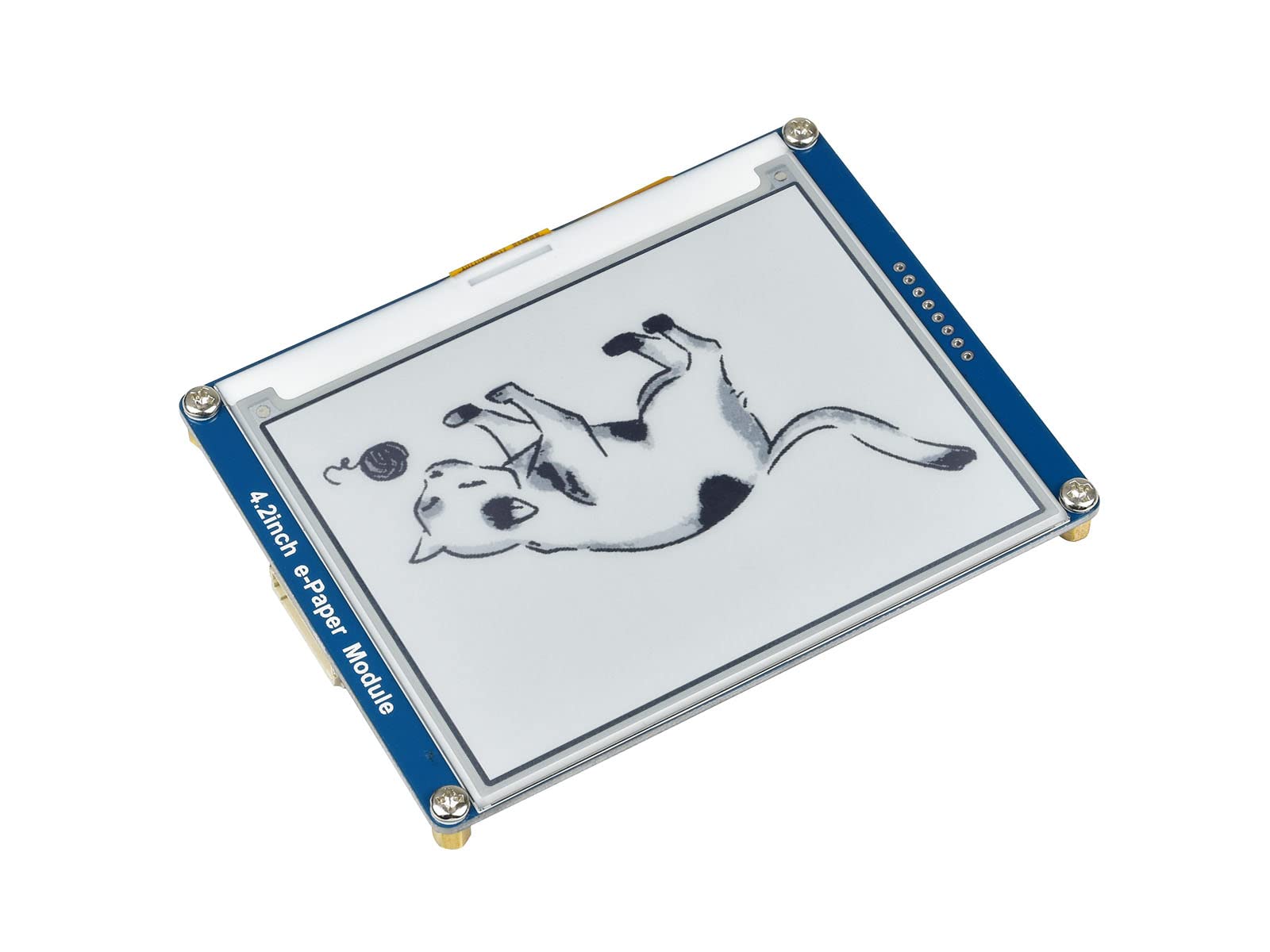

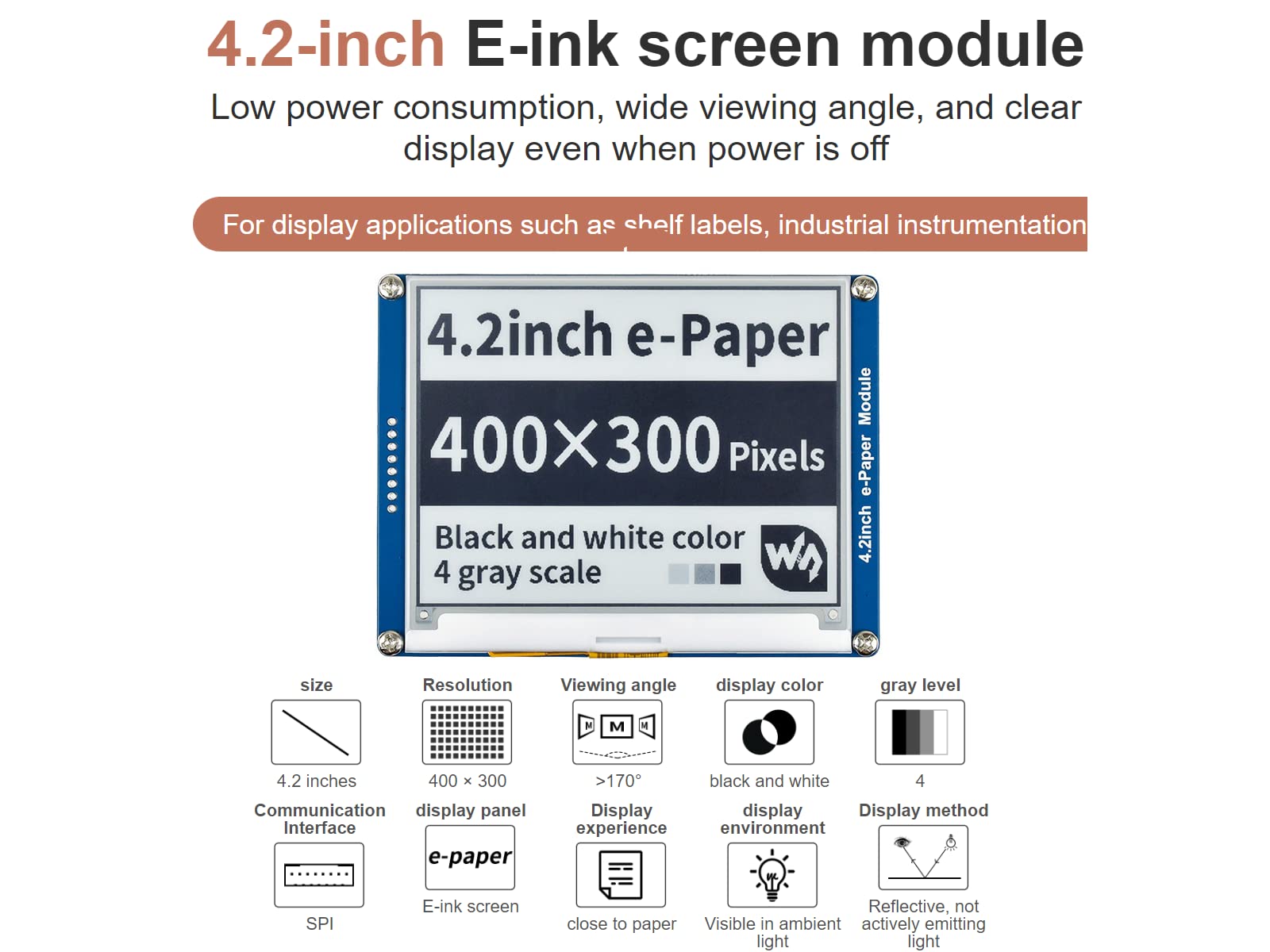

IBest 4.2inch E-paper Display Module 400x300 Resolution 3.3V-5V Two-Color E-Ink Display HAT epaper Screen for Raspberry Pi/Arduino/Nucleo Support Full Refresh,SPI Interface

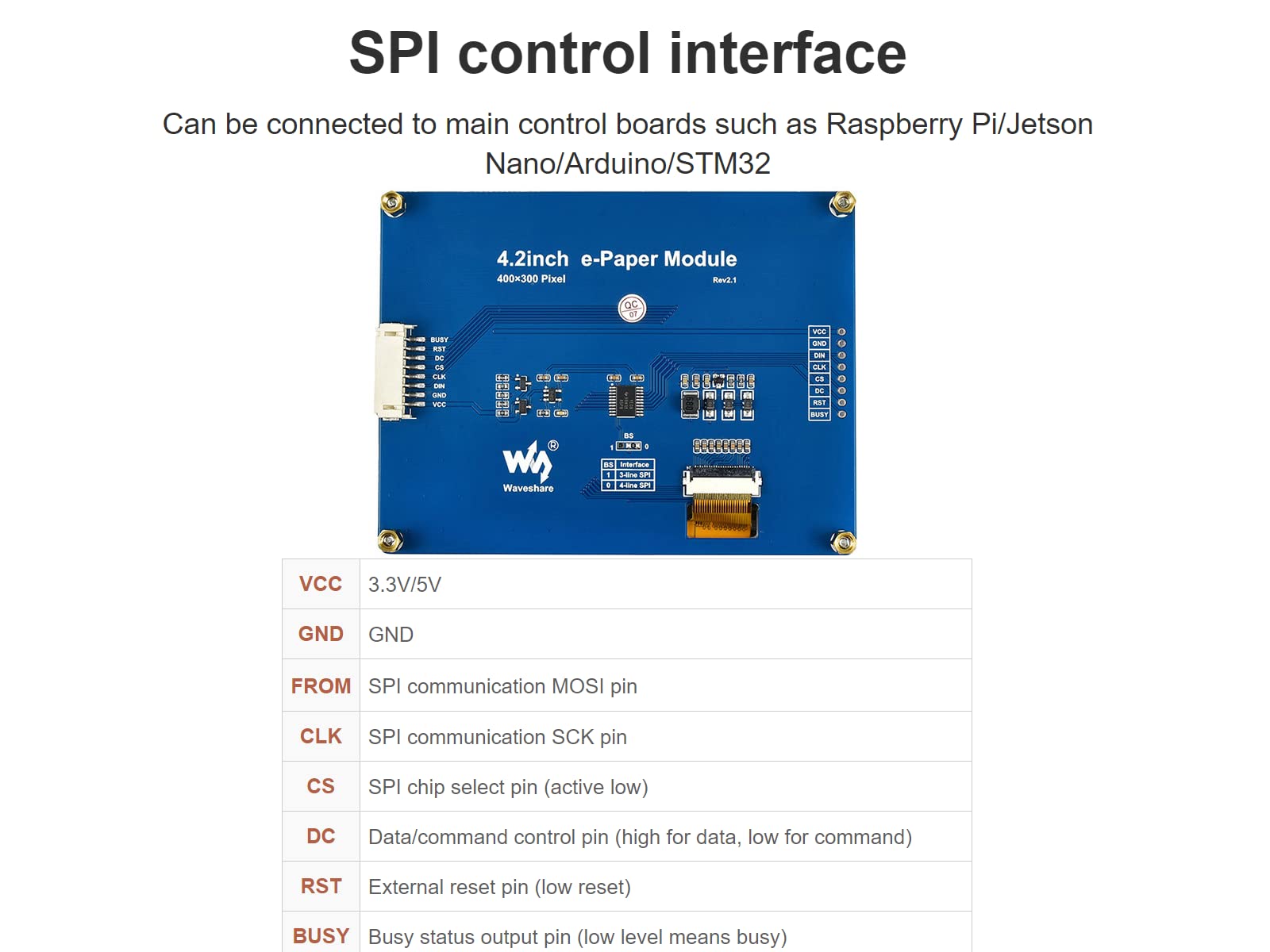

• SPI interface, for connecting with controller boards like Raspberry Pi/Arduino/Nucleo, etc.
• Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)

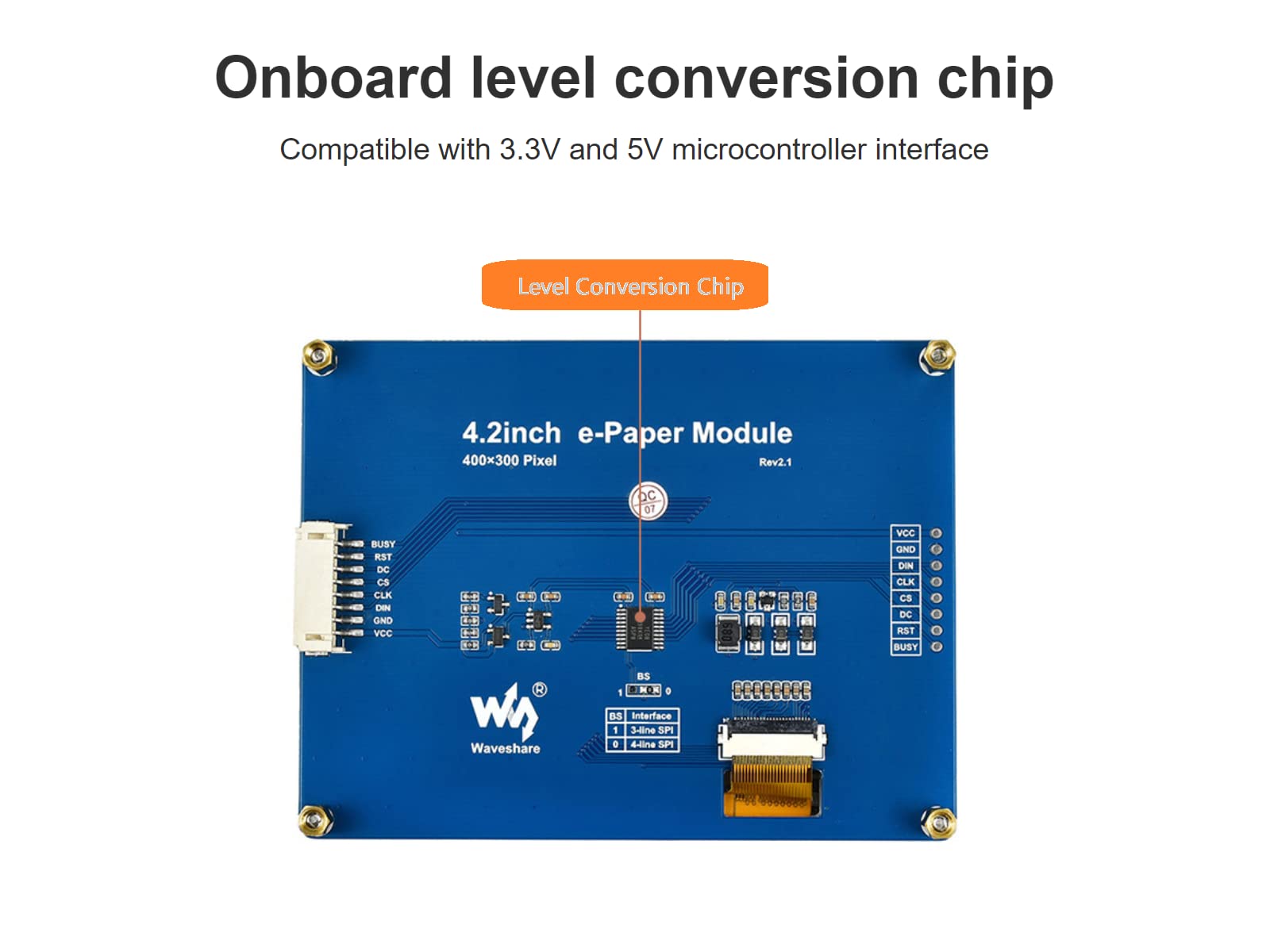

• Onboard voltage translator, compatible with 3.3V/5V MCUs
• Ultra low power consumption, basically power is only required for refreshing
• No backlight, keeps displaying last content for a long time even when power down

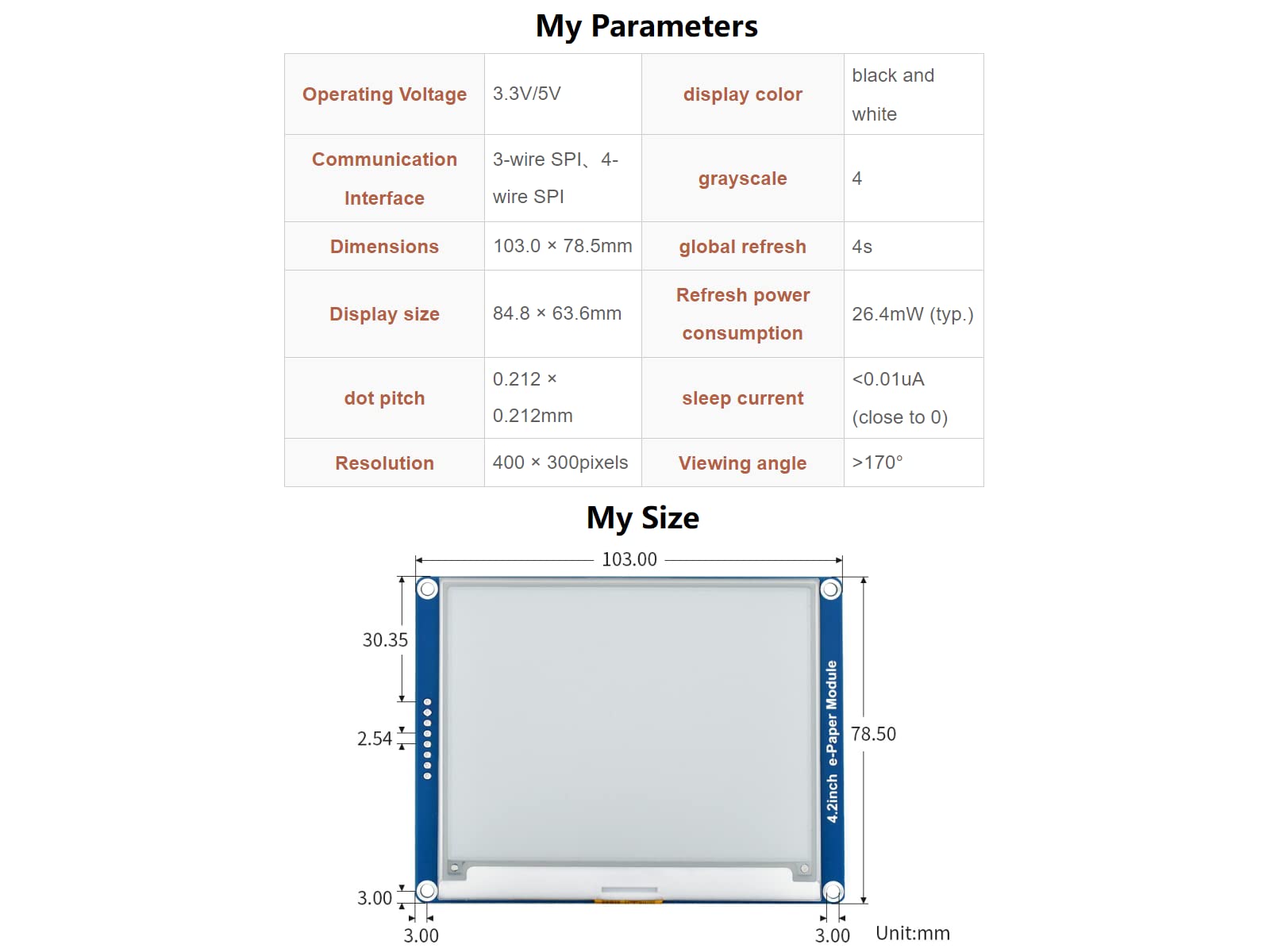

Overview This is an E-Ink display module, 4.2inch, 400x300 resolution, with embedded controller, communicating via SPI interface. Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on. Features No backlight, keeps displaying last content for a long time even when power down Ultra low power consumption, basically power is only required for refreshing SPI interface, for connecting with controller boards like Raspberry Pi/Arduino/Nucleo, etc. Onboard voltage translator, compatible with 3.3V/5V MCUs. Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32). Specifications: Operating voltage: 3.3 V-5 V. Interface: 3-wire SPI, 4-wire SPI Outline dimension: 103 mm × 78.5 mm Display size: 84.8 mm × 63.6 mm. Dot pitch: 0.212 × 0.212 Resolution: 400 × 300 Display colour: black, white Grey level: 2 Full refresh time: 4s Refresh power: 26.4 mW (typ.) Standby power: <0.017mW. Viewing angle: >170°. Package Content 1 x 4.2 inch e-paper module. PH2.0 20 cm 8 Pin x1 Note: 1. If the e-paper has ghosting problem after working for some days, please set the e-paper to sleep mode or disconnect it if you needn't refresh the e-paper but need to power on your development board or Raspberry Pi for long time. Otherwise, the voltage of panel keeps high and it will damage the panel. 2.More resources if you need, please contact us via Amazon message firstly to get.
