Solid State Relay Board 380V 8A Single Channel Switch Controller for Motor Control & Automation, High-Density PCB Design, Built-In Overcurrent Protection

• Input voltage: DC 5V to 12V; Max current: 8A; The controlled voltage range: 24V to 380V AC
• Easy to install: KF301 green input wiring terminals, convenient for your installation
• High security: KF1000-2P output wiring terminals, safe for use
• Input control voltage: High and low voltage level can be set
• High quality: Made of CCL material, long service life

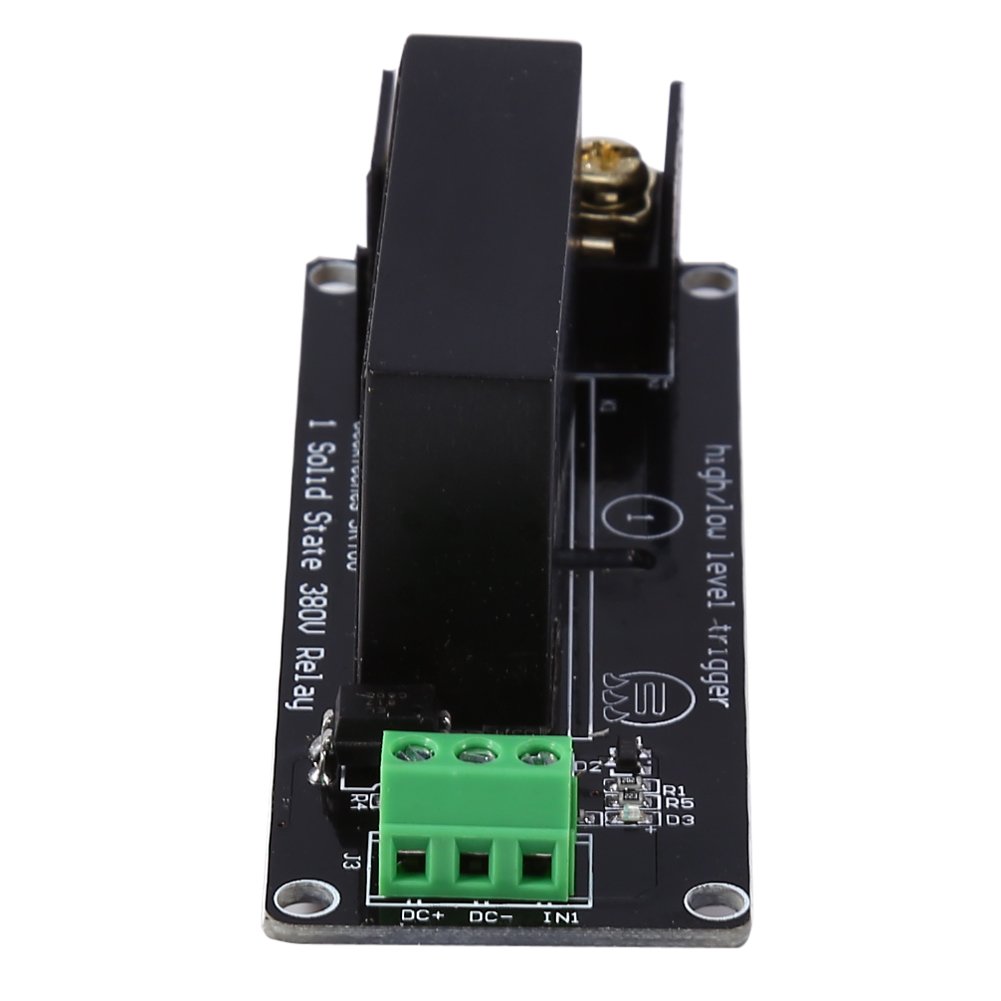

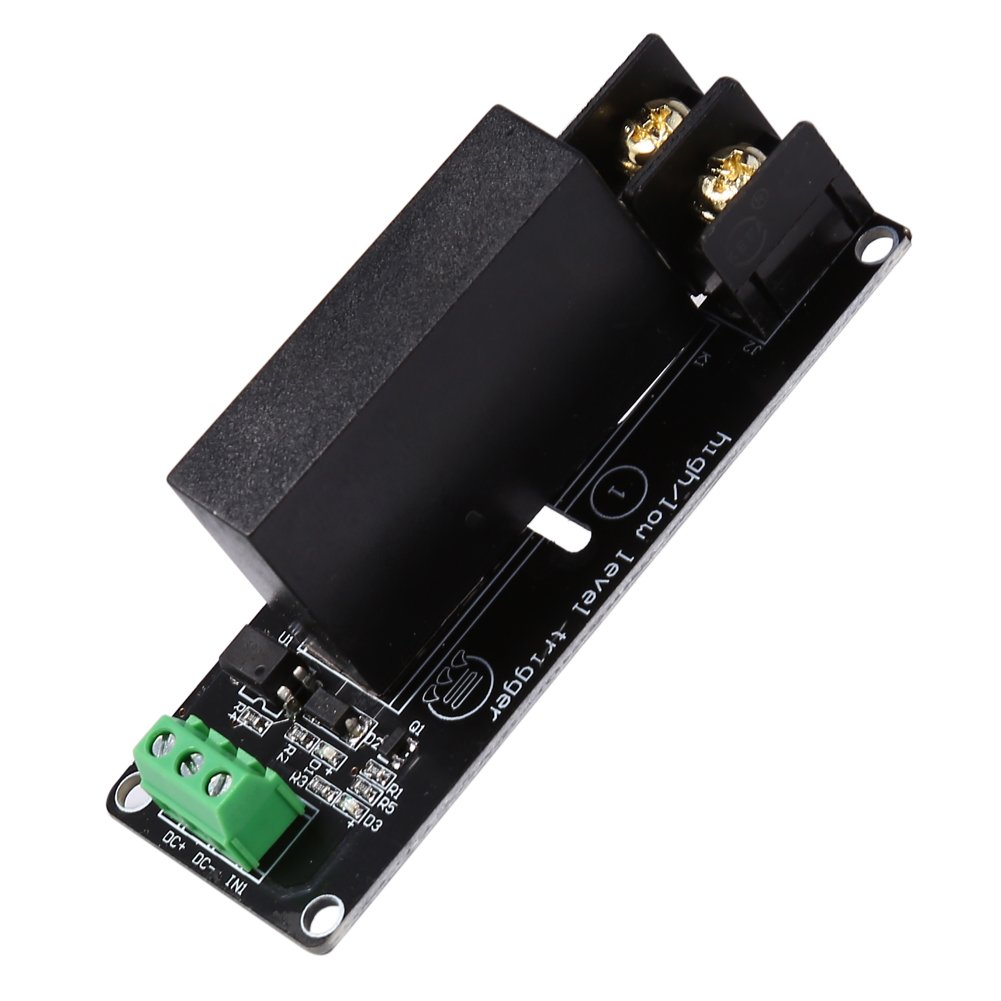

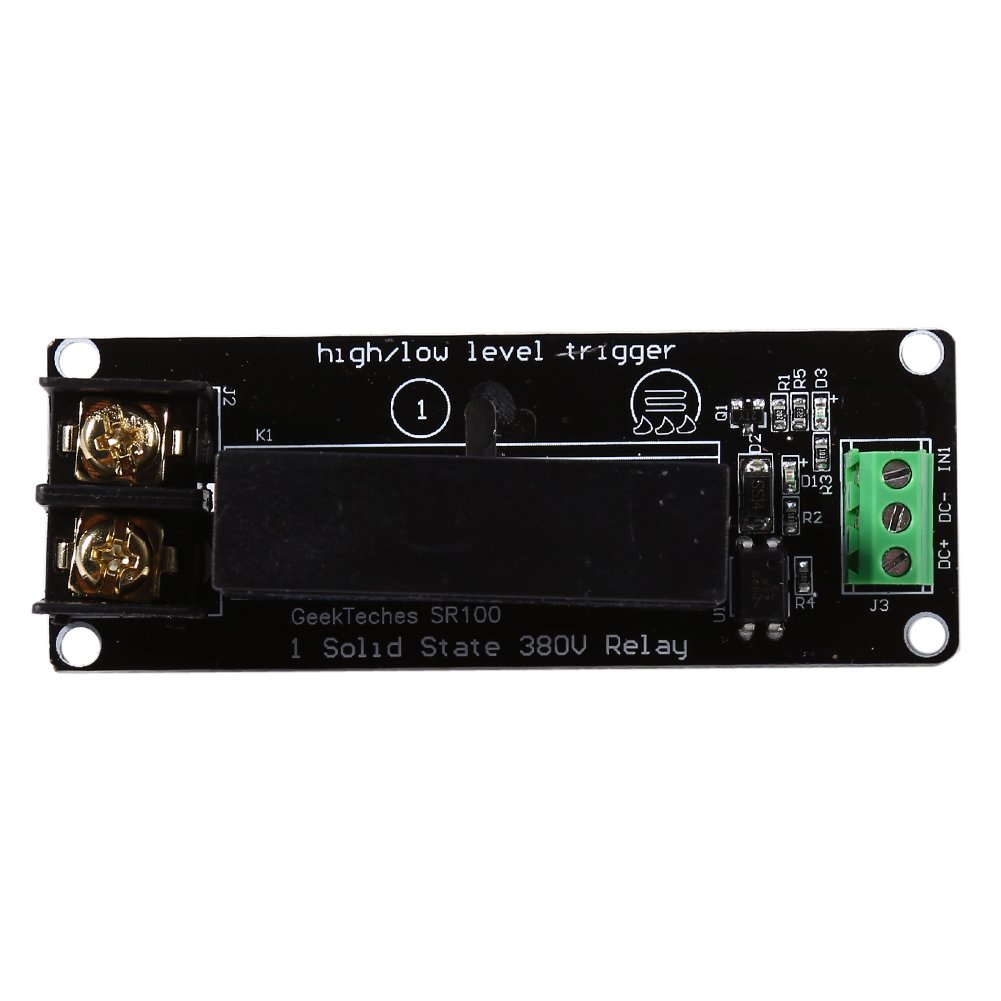

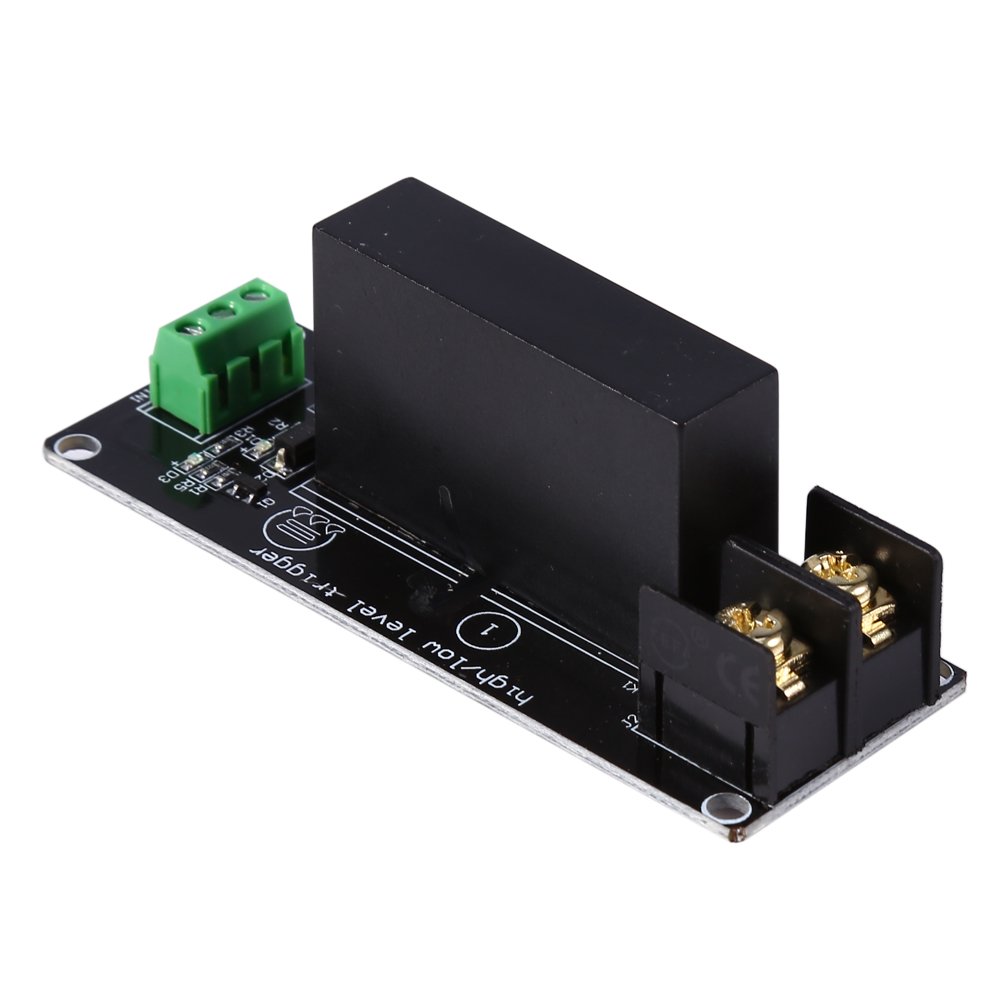

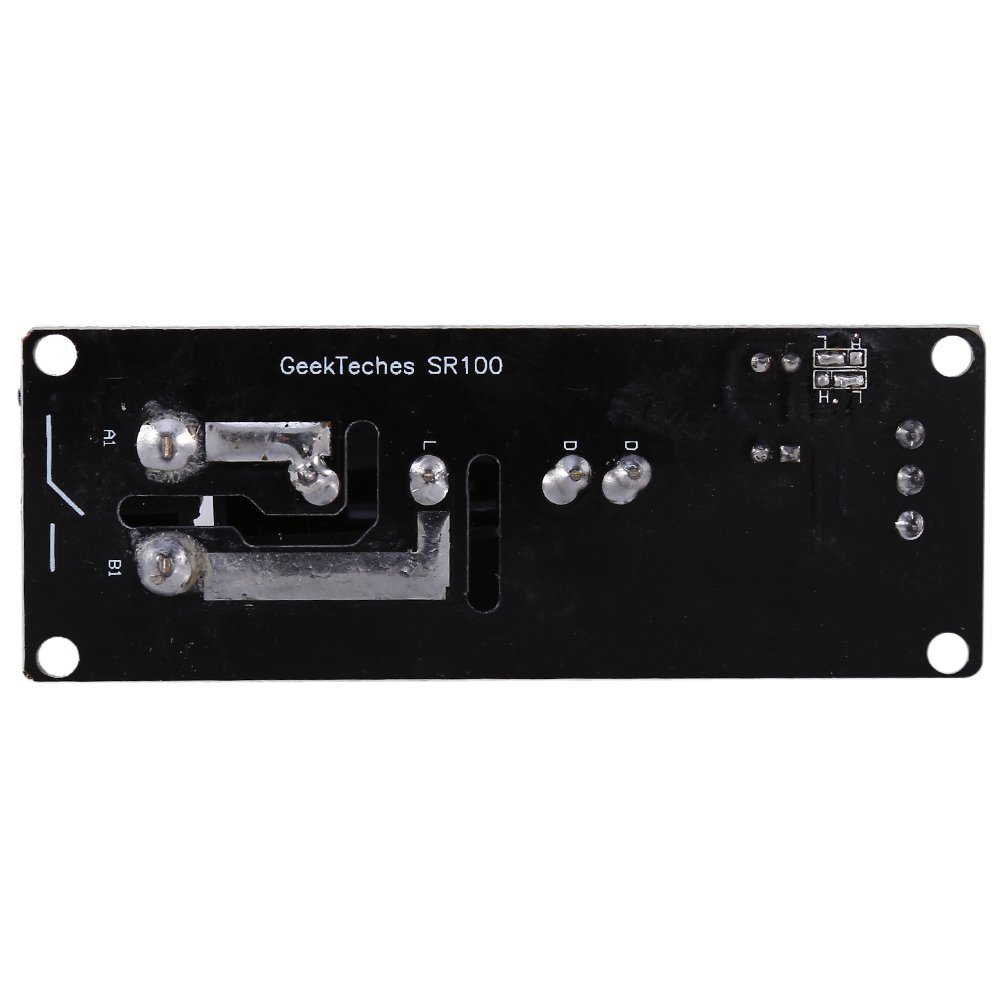

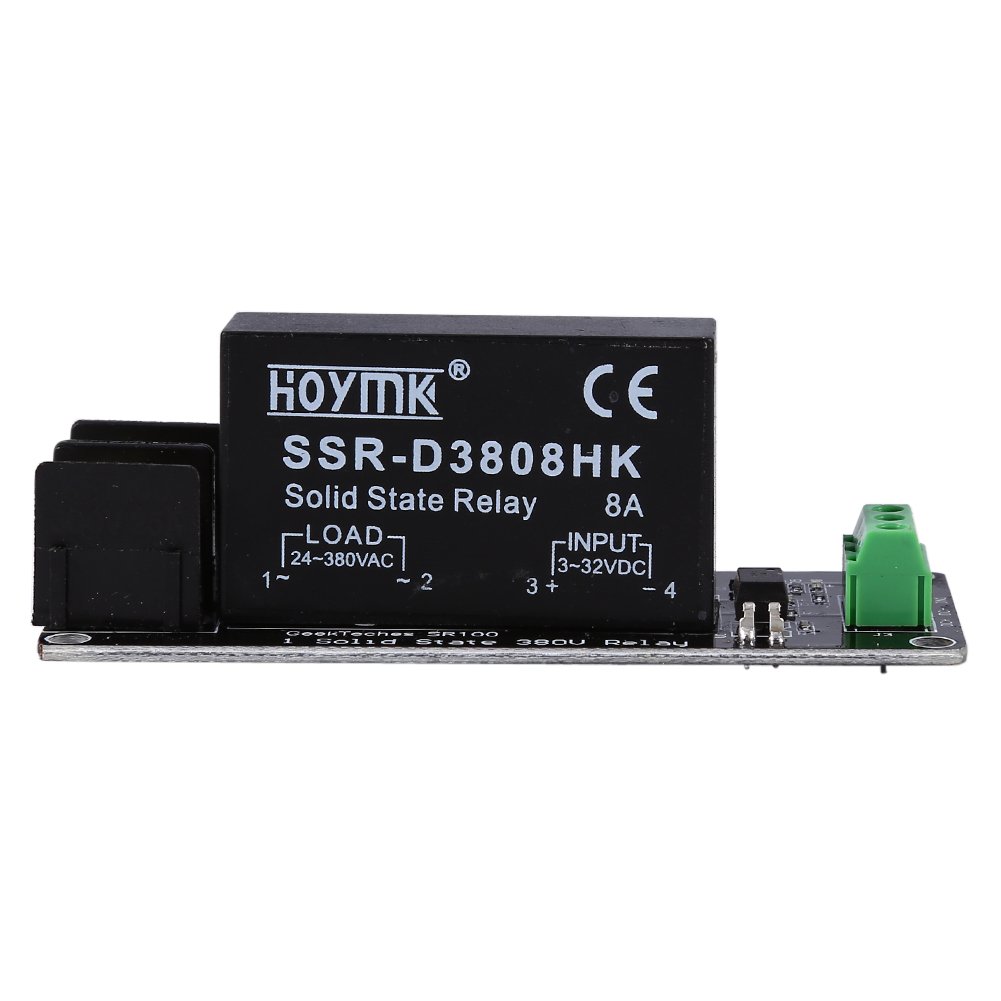

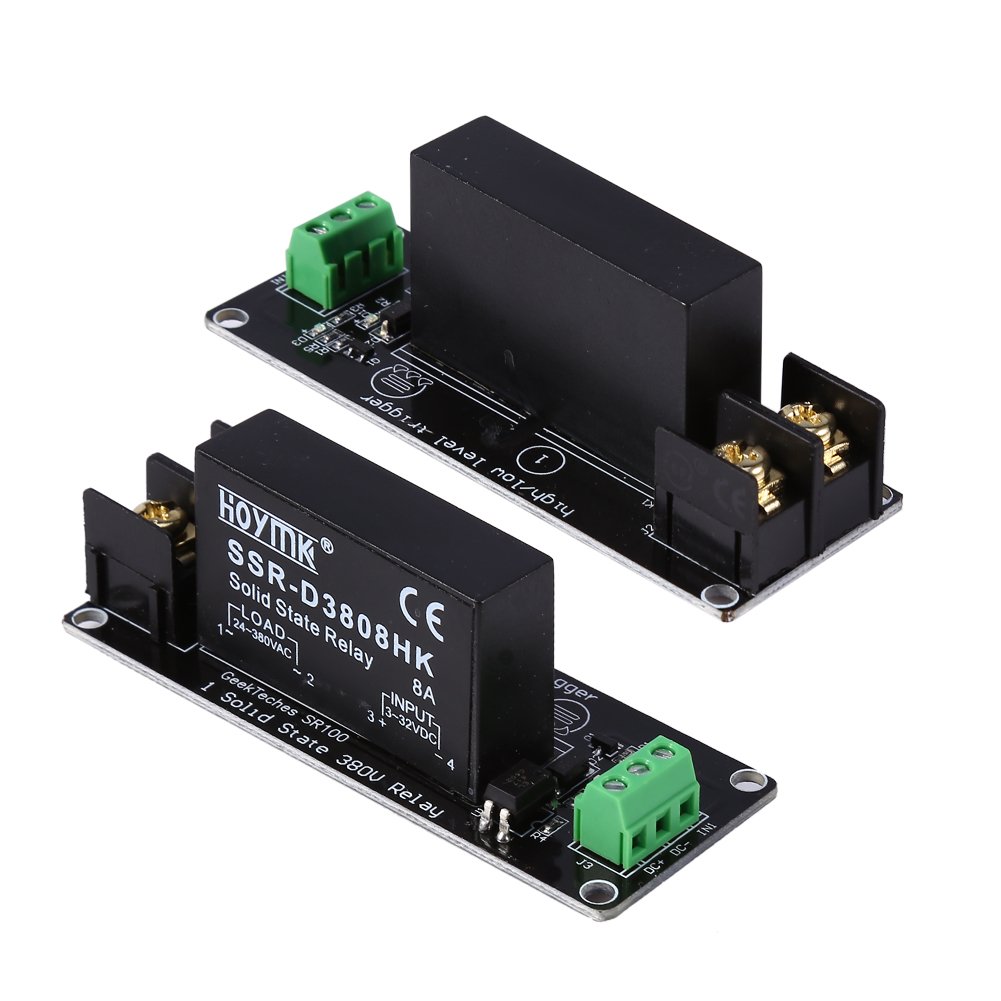

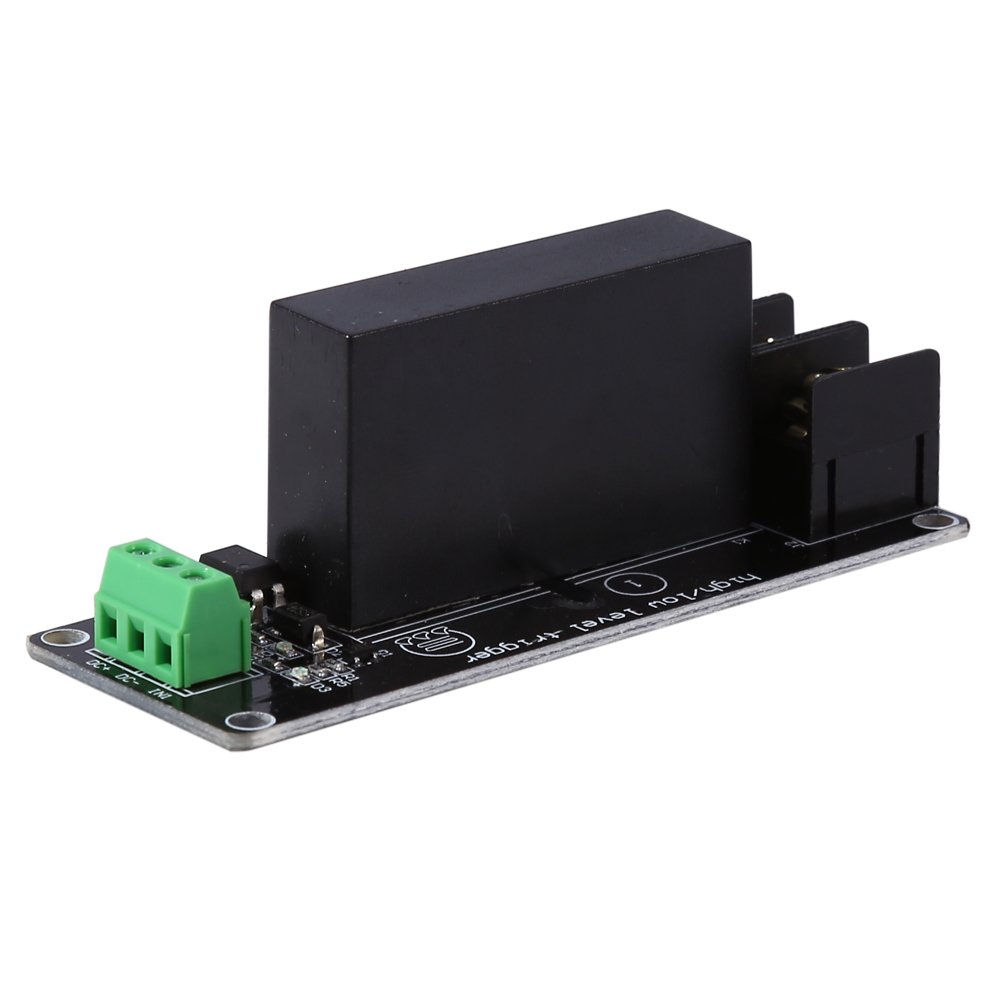

This is a single channel sturdy state relay board module. Its input voltage is DC 5V to 12V, the controlled voltage of the relay is AC 24V to 380V, and the maximum current is 8A. We provide KF301 green input wiring terminals and KF1000-2P output wiring terminals, so you can install and operate the relay conveniently and safely. Specifications: Input Voltage Range: DC 5 V to 12 V Input Control Voltage: High and low voltage level can be set (short circuit boards welding on the back plate, the default is low voltage level) Weight: 39 g(approx.) Input Interface: DC+ DC- CH1: 1 channel relay module triggering end Package Includes: 1×Relay Module
