3660 1400kv Brushless Motor 4-Pole 3.175mm Shaft High Speed Waterproof Sensorless Motor for Most of 1:10 Scale RC Vehicles Truck Update Parts

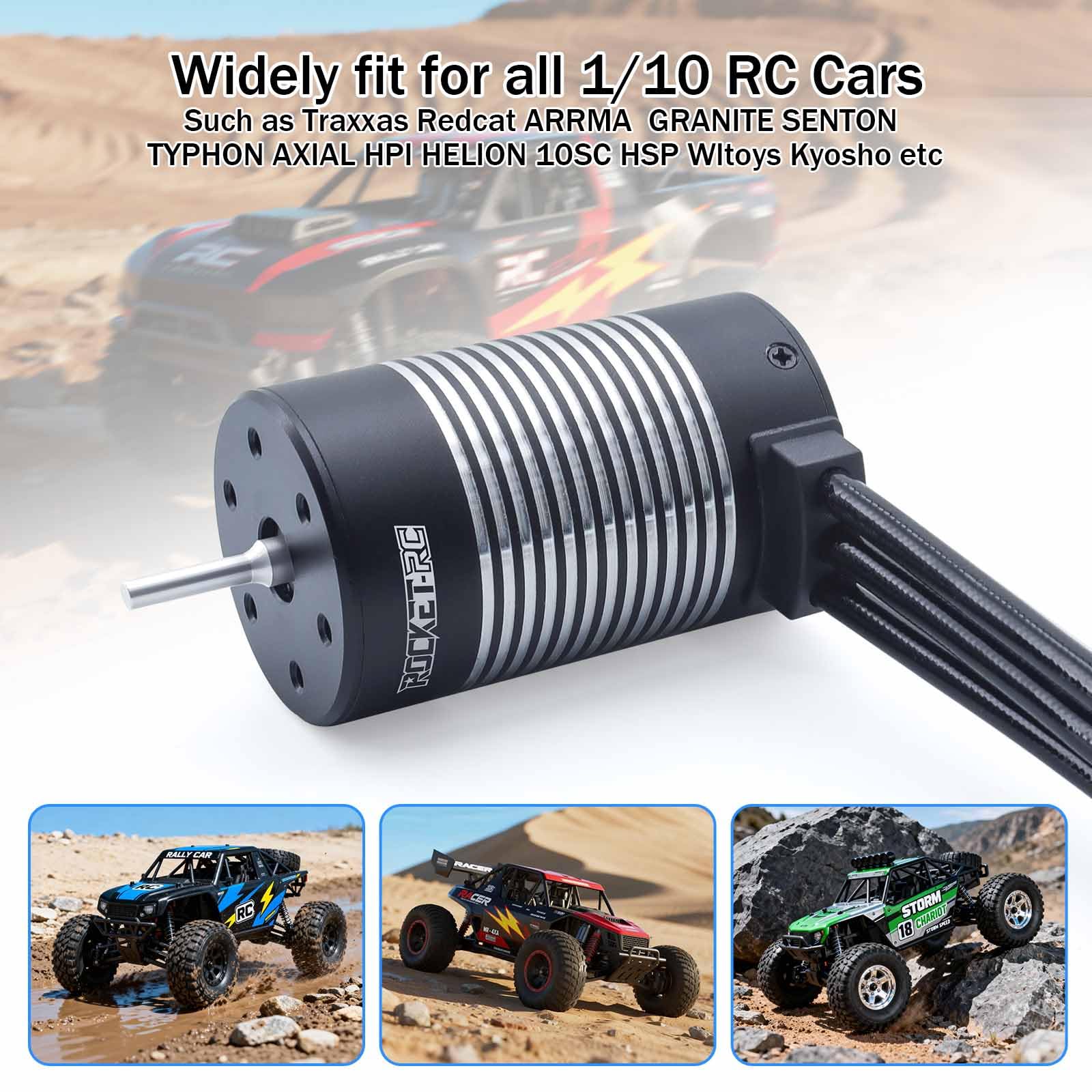

• 【Universal fit 1/10 Scale RC Car】 3660 brushless motor 3.175mm shaft 540 brush/brushless motor fits for all 1:10 scale on-road/ off road car /tourning car.

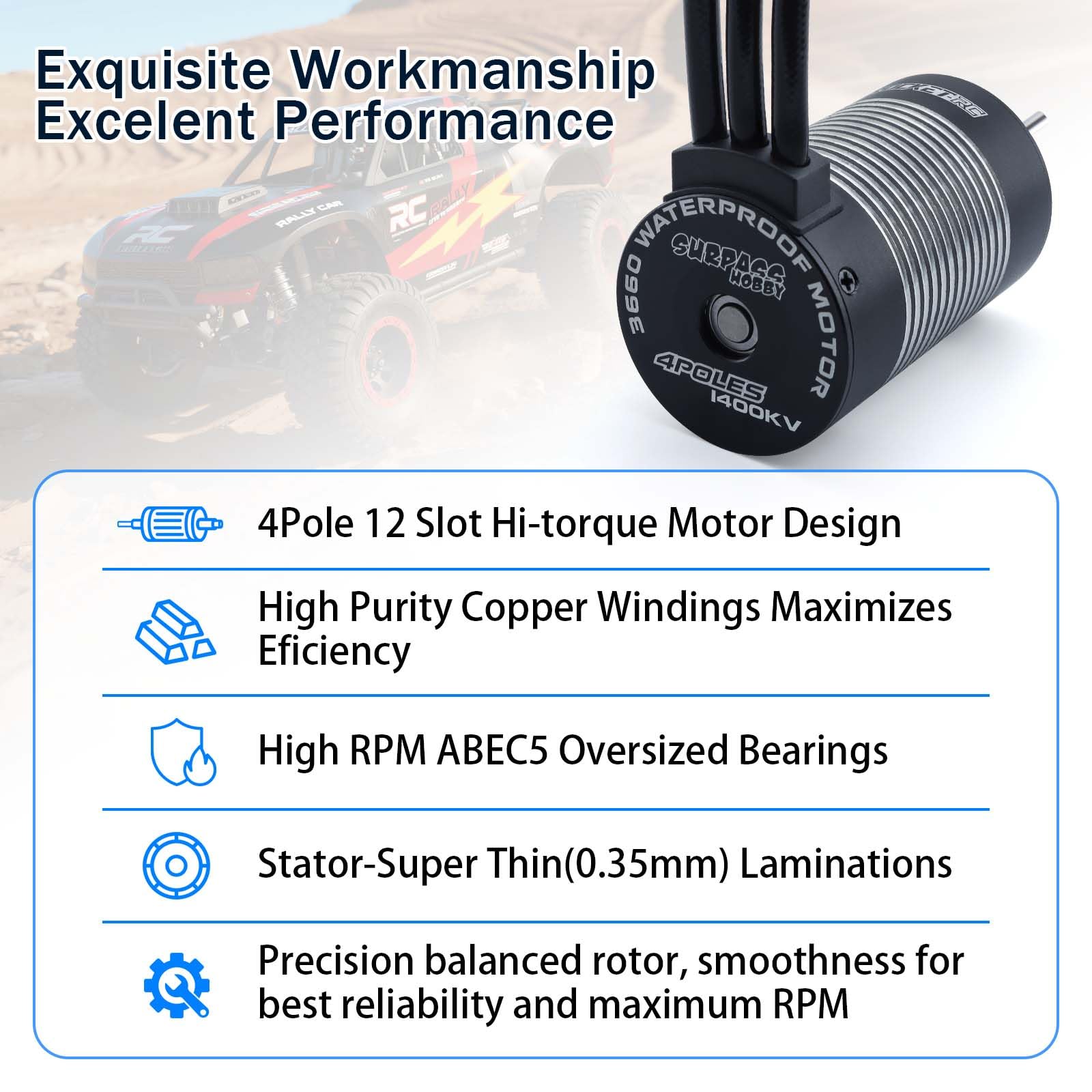

• 【Exquisite Appearance】4 pole 12 slots high-torque motor,secondary oxidation treatment,elegant black paired with cool white, paired with a companion, the appearance is very exquisite

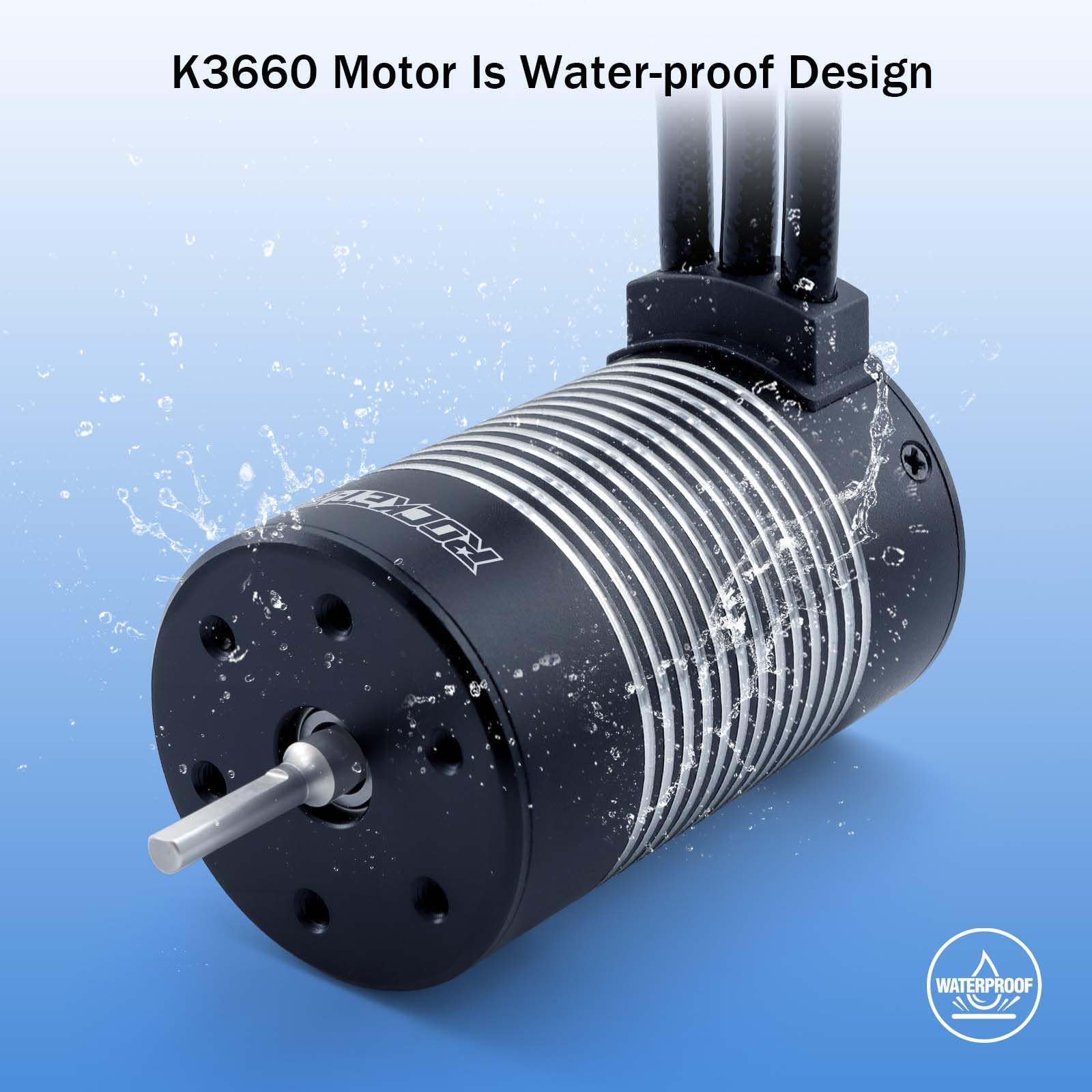

• 【Waterproof design】 Using ultra-thin silicon steel plate, precision engineered for maximum energy conversion.not only allows fast speeds and long run time but prolong life time.

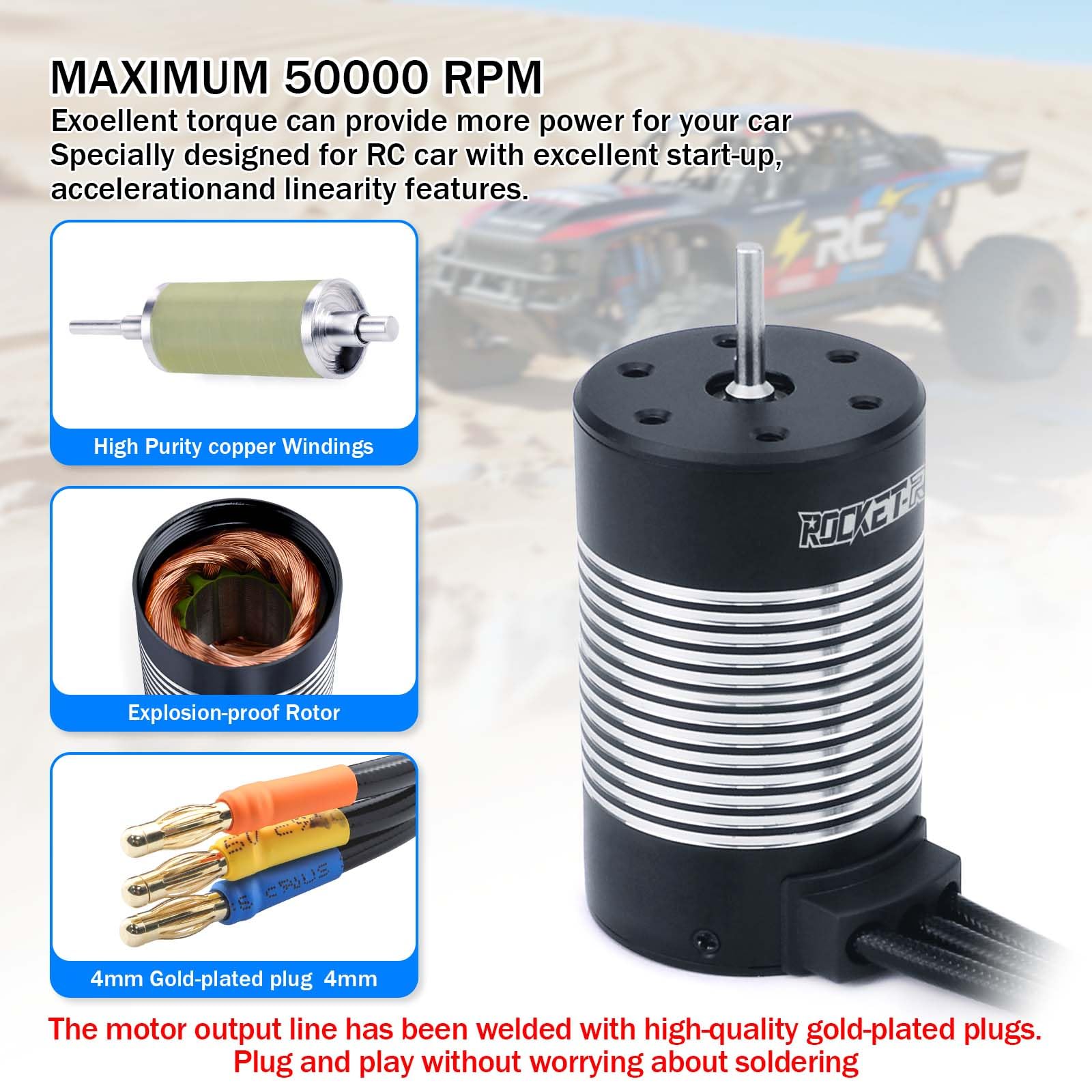

• 【Unique Design】Bullet plugs is easy connection with no soldering needed, CNC machined 6061-T6 heat sink, high-purity copper coiltemperature resistance 180-200°,ultra-durable sealed bearings, super high current sillicon wires, low friction, low noise, durable,The brushless motor with 3.175mm shaft diameter, compatible with many brushless ESCs.
• 【Powerful Torque】Precision balanced rotor,smoothness for best reliabilityand maximum RPM,which can provide extremely high torque, and the high strength magnet ensures the best performance.

RC Car Brushless Motor 1/10 540 3660 1400KV 3.175mm Shaft High Speed Waterproof Motor for Most of 1:10 Scale RC Vehicles Truck Update PartsFeatures: ✔Specially designed for 1/10 rc racing car, waterproof, suitable for various condition races, a good choice for your rc racing car. ✔4 pole 12 slot High-torque motor design,high torque high efficiency, much faster acceleration response and very stable output of power to the drivetrain. ✔The waterproof function let your car challenge the muddy road, fearless! Notice: 1,When you install the motor, please do not make the screw into the motor over 6mm, otherwise, the screws will interfere with the operation of the copper windings in the motor, causing the motor to be locked or even damaged. 2,Due to the high KV value of this motor, please use above 80A ESC. 3,The motor fits 2-3s battery (2s bettery is recommended for ESCs below 100A), please do not use 2 batteries together, especially 3S batteries! 4,A wrong tooth ratio can cause the motor to overheat. The motor temperature should be lower than 212℉ during the operation. Temperatures above 212℉ will weaken the magnet and may partly melt the coils and eventually damage the ESC (because of strong current)! 5,To avoid potential risks such as ESC/motor damage or malfunction caused by overheat, start with a very small pinion first and check the ESC & motor temperatures regularly throughout the run. 6, To prevent overheating, you can order rc motor fan or heatsink that fit 3660 motor. Specifications: Model: 3660 Watts: 1200W Max voltage: 36V Max Amps: 33A KV(RPM/Volt): 1400KV Max RPM: 50000 Shaft length: 17mm Shaft diameter: 3.175mm Diameter: 36mm Length: 55mm Plug type: 4mm golden banana plug Package Including 1 X 3660 1400KV Motor 1 X Product Manual
