35mm Hinge Jig, Aluminum Alloy Double Clamp Hinge Hole Drilling Locator, Woodworking Dowel Jig, Cabinet Door Hole Puncher

• Durable Material: The 35 mm hinge drill jig is made of aluminium alloy for precision manufacture, accurate positioning, durability and long life.

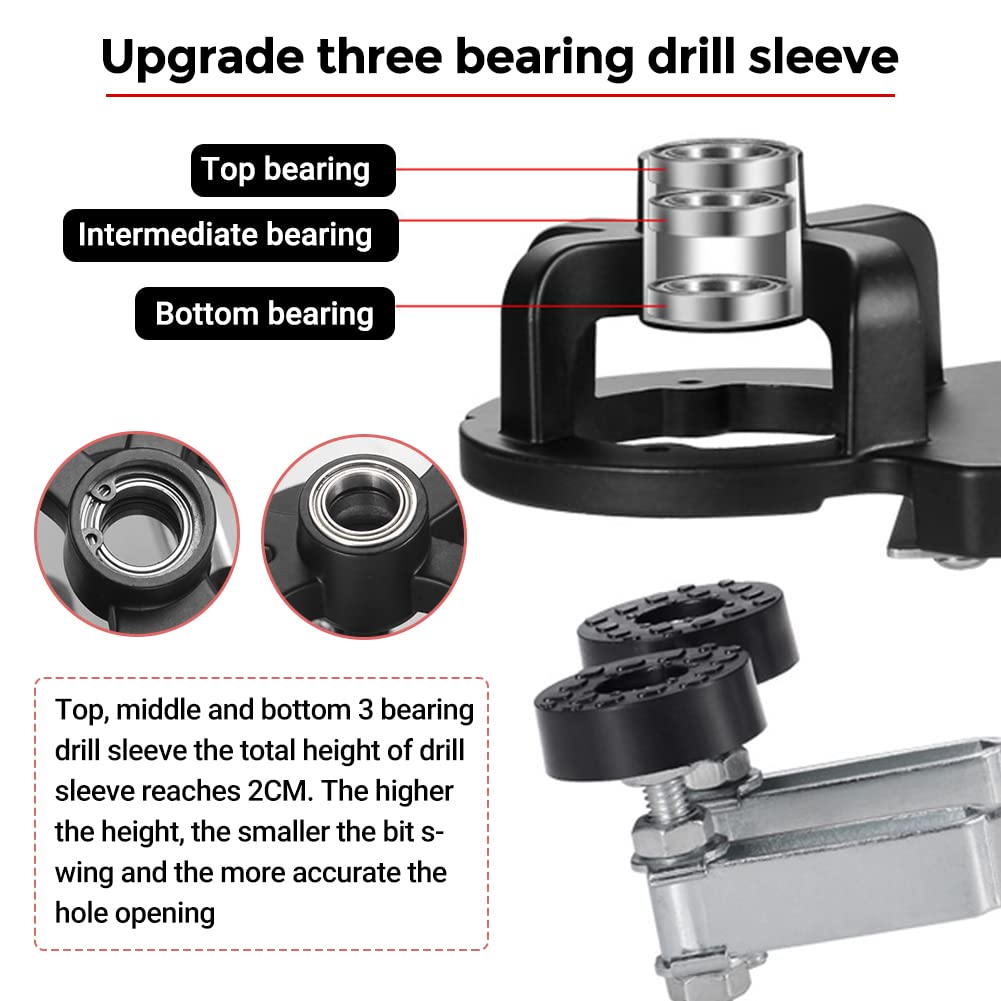

• Three-layer Drill Sleeves: Upper, middle and lower three-layer drill sleeves have a total height of 2 cm. The higher the height, the smaller the swing of the drill bit and the more accurate the drilling.

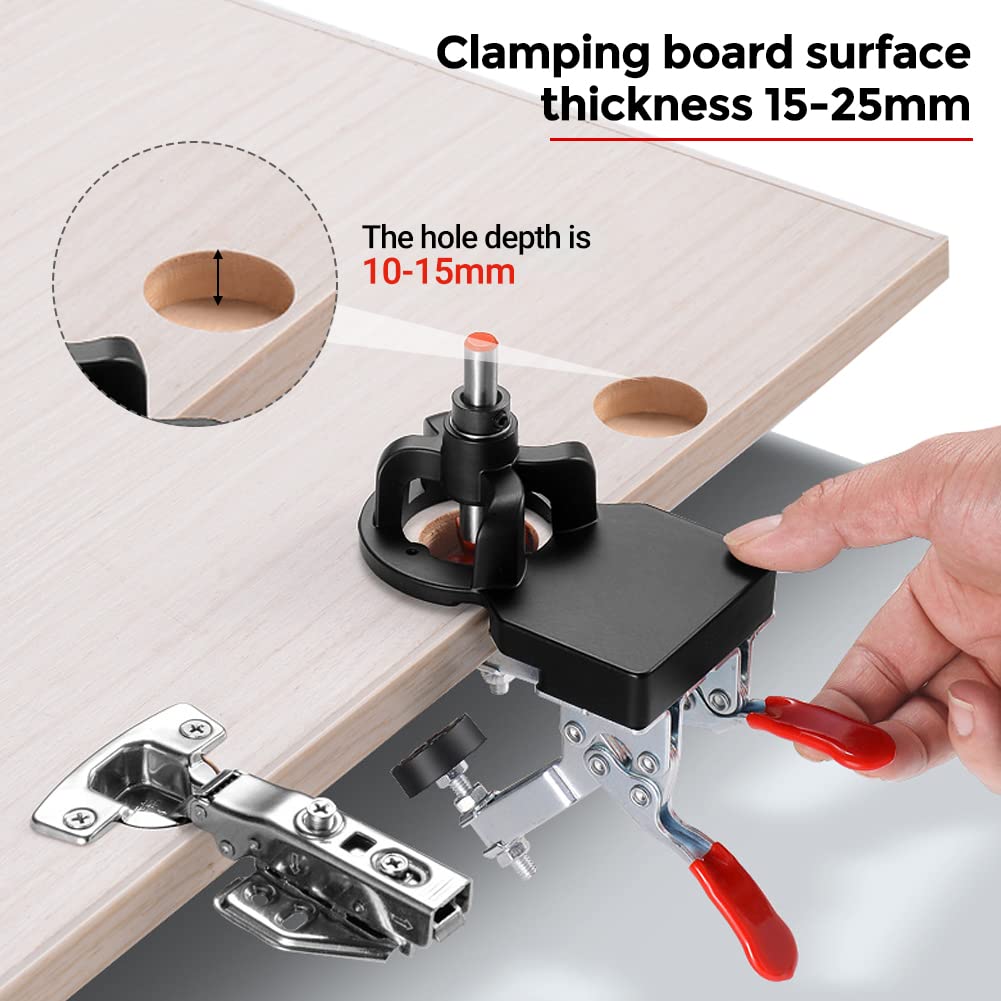

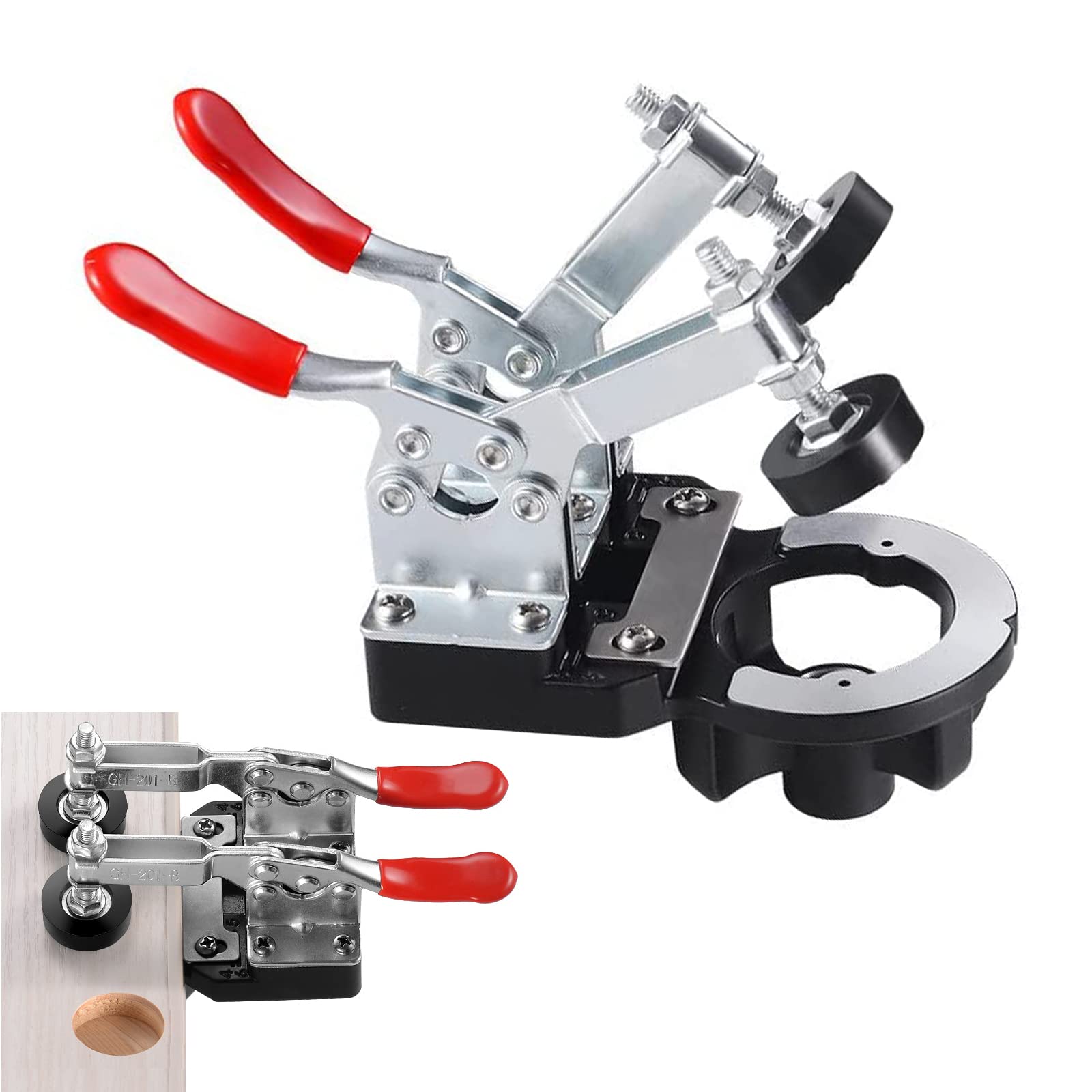

• Double Clamp Design: The clip has two grips and the indenter is made of rubber for more stability and a firmer grip. Suitable boards can be 15-25mm thick and drilled to a depth of 10-15mm.

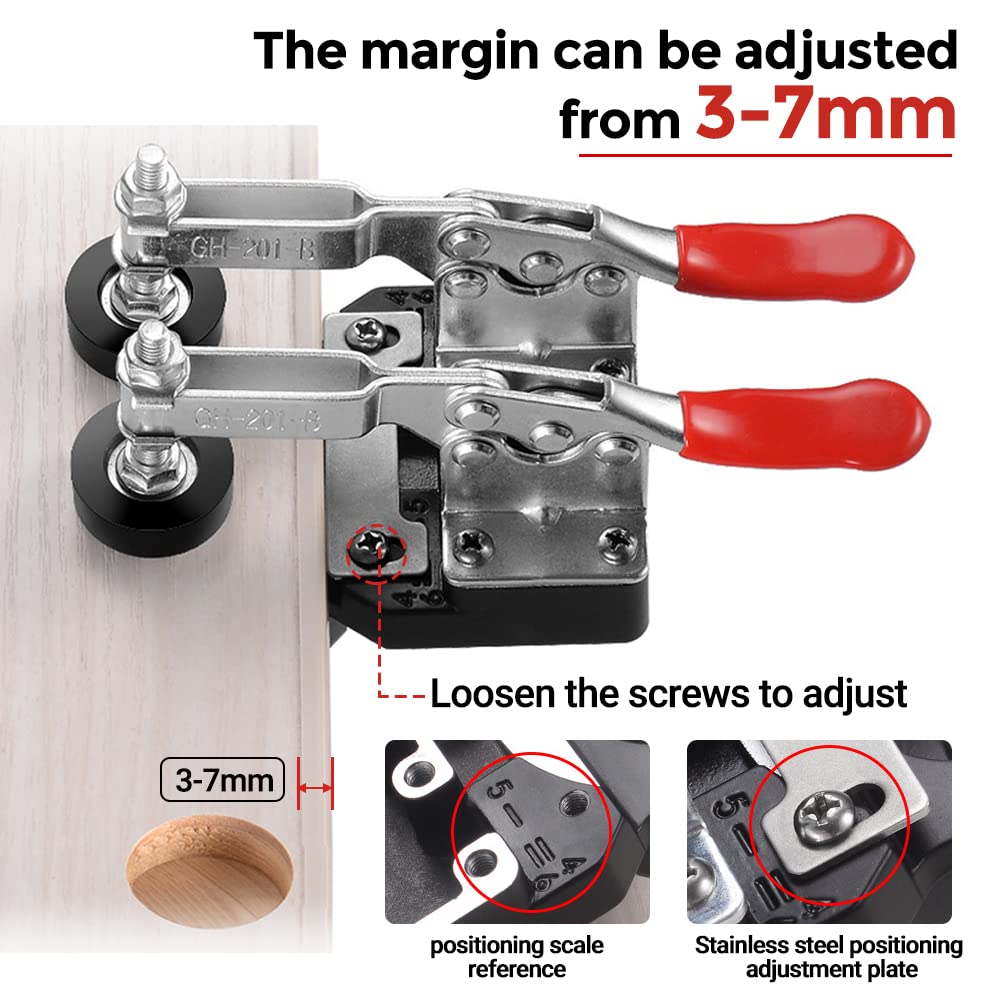

• Accurate & Reliable: Simply loosen the fixing screw at the bottom and adjust the drilling margin by referring to the positioning scale on the machine, which can be adjusted from 3 to 7 mm. it also has a 2 mm edge groove, which allows precise drilling even if the door is already sealed.
• Purpose: Drilling of 35 mm hinges for installation, punch and positioning of door hinges, auxiliary tools for woodworking openings

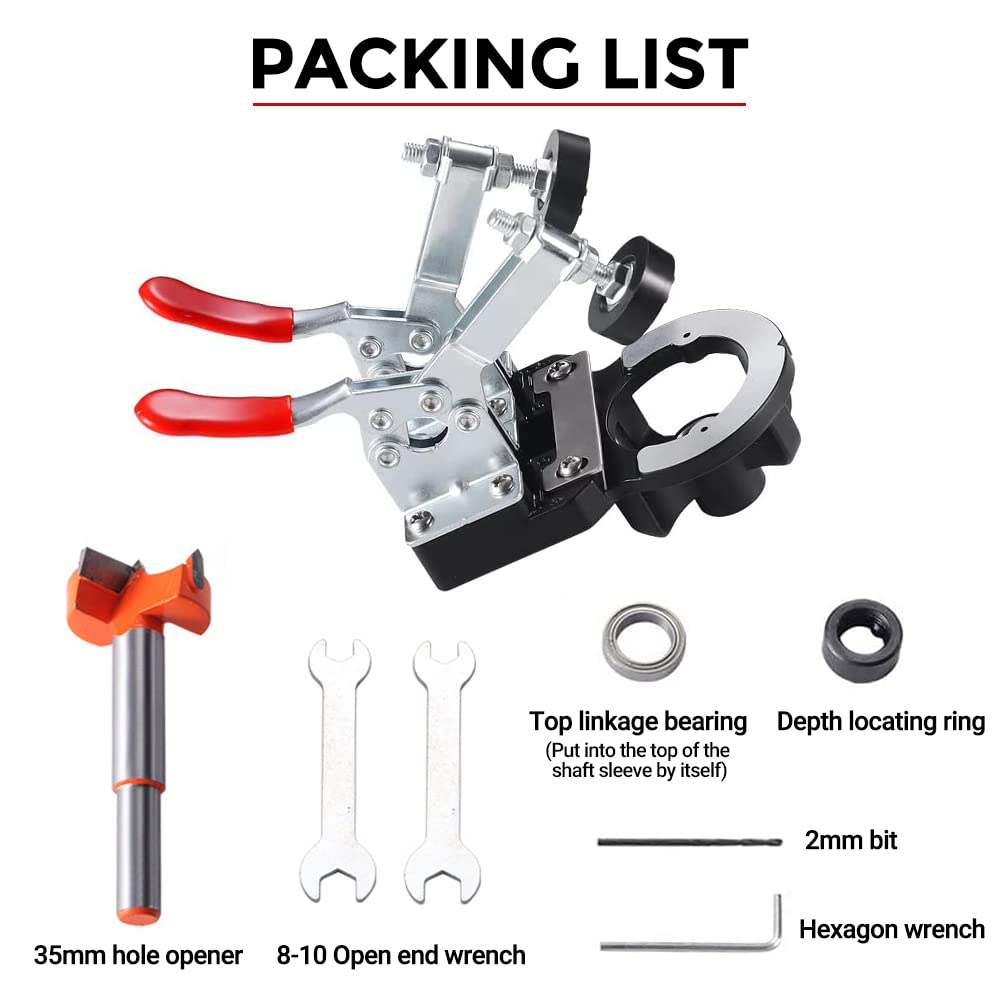

Specification Material: Aluminum Alloy + Stainless Steel Bottom Size: 12 x 5.3cm / 4.72 x 2.09inch Clamping Board Thickness: 15-25mm / 0.59-0.98inch Hole Size: 35mm / 1.38inch Margin Adjustment Range: 3-7mm / 0.12x0.28inch Perforation Depth: 10-15mm / 0.39-0.59inch Edge Groove Depth: 2mm / 0.07inch Package Included 1 * Hinge Drilling Locator 1 * 35mm Hole Saw Drill Bit 1 * Top Linkage Bearing 1 * Depth Positioning Ring 2 * Wrenches 1 * 2mm Drill Bit 1 * Allen Spanners Note 1. Upper, middle and lower three-layer drill sleeves have a total height of 2 cm. The higher the height, the smaller the swing of the drill bit and the more accurate the drilling. 2. The middle and bottom bearings have been fixed with snap rings. The top bearing is directly put in to play the role of drill sleeve, the auxiliary of depth positioning without wear linkage
