35mm Concealed Hinge Jig, Cabinet Door Hinge Jig Hole Drilling Guide with Quick Clamp and Hinge Cutter Bit, Adjustable Hinge Hole Punch Locator, Doors Cabinets Hinges Mounting Auxiliary Tool

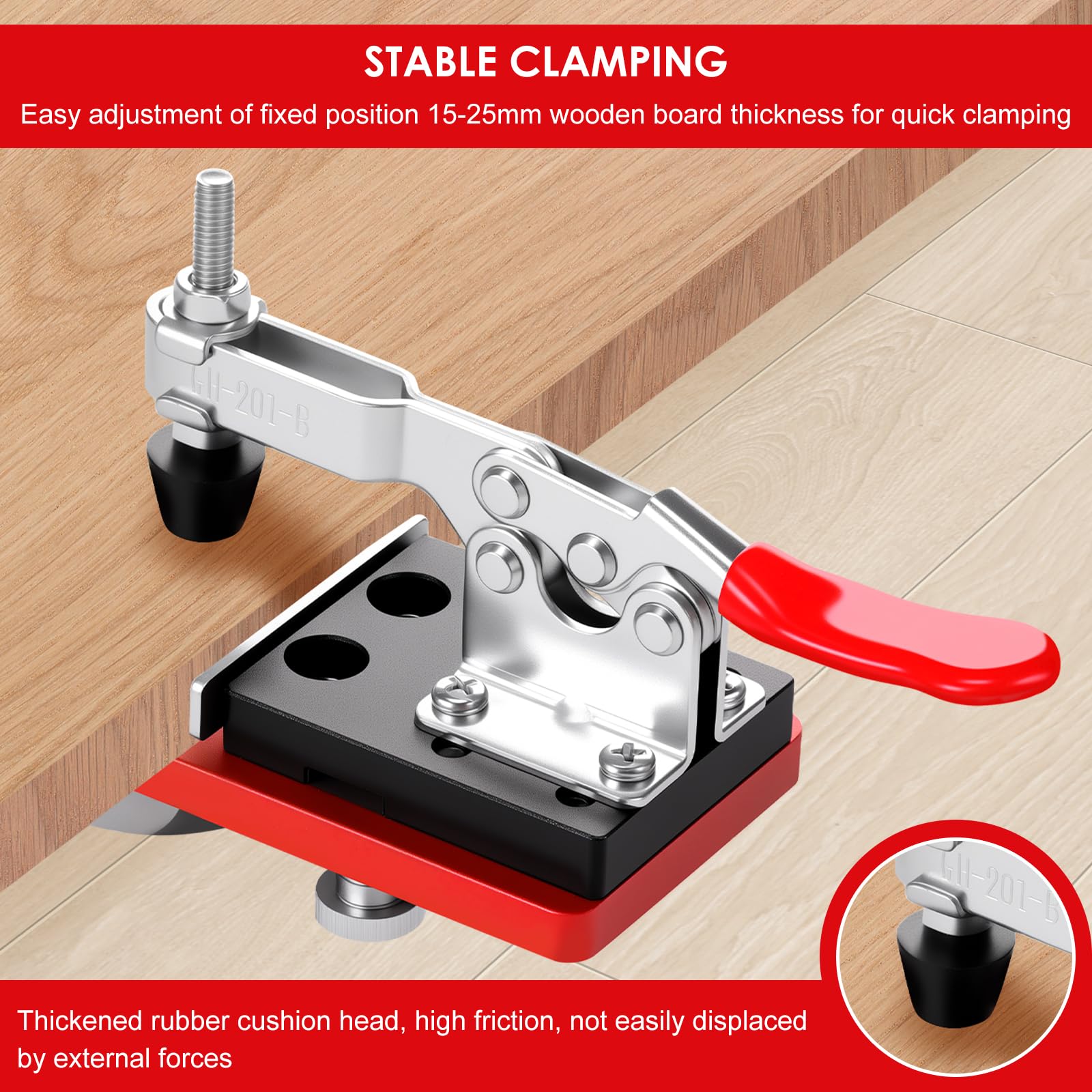

• Adjustable Clamp: The quick fixing clamp is easy to adjust the fixing position 15-25 MM wood thickness. It is quick clamping, convenient and fast multi angle drilling for installation of cabinet door hinges

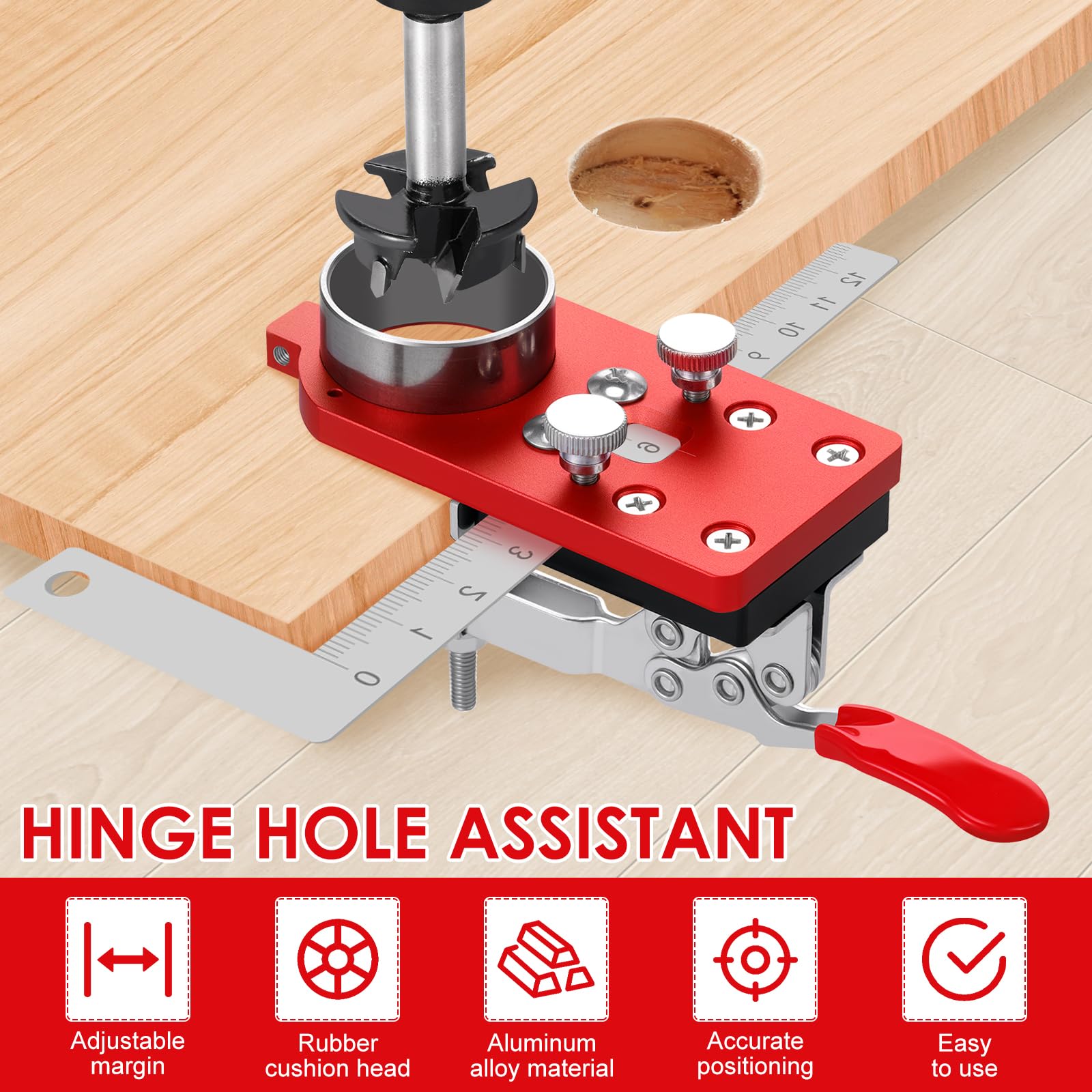

• Hole Positioning Ruler: The hole positioning ruler design easily measures the distance from the door edge to the center of the required hole, and the measurable range of 30-100 MM makes the hole more accurate

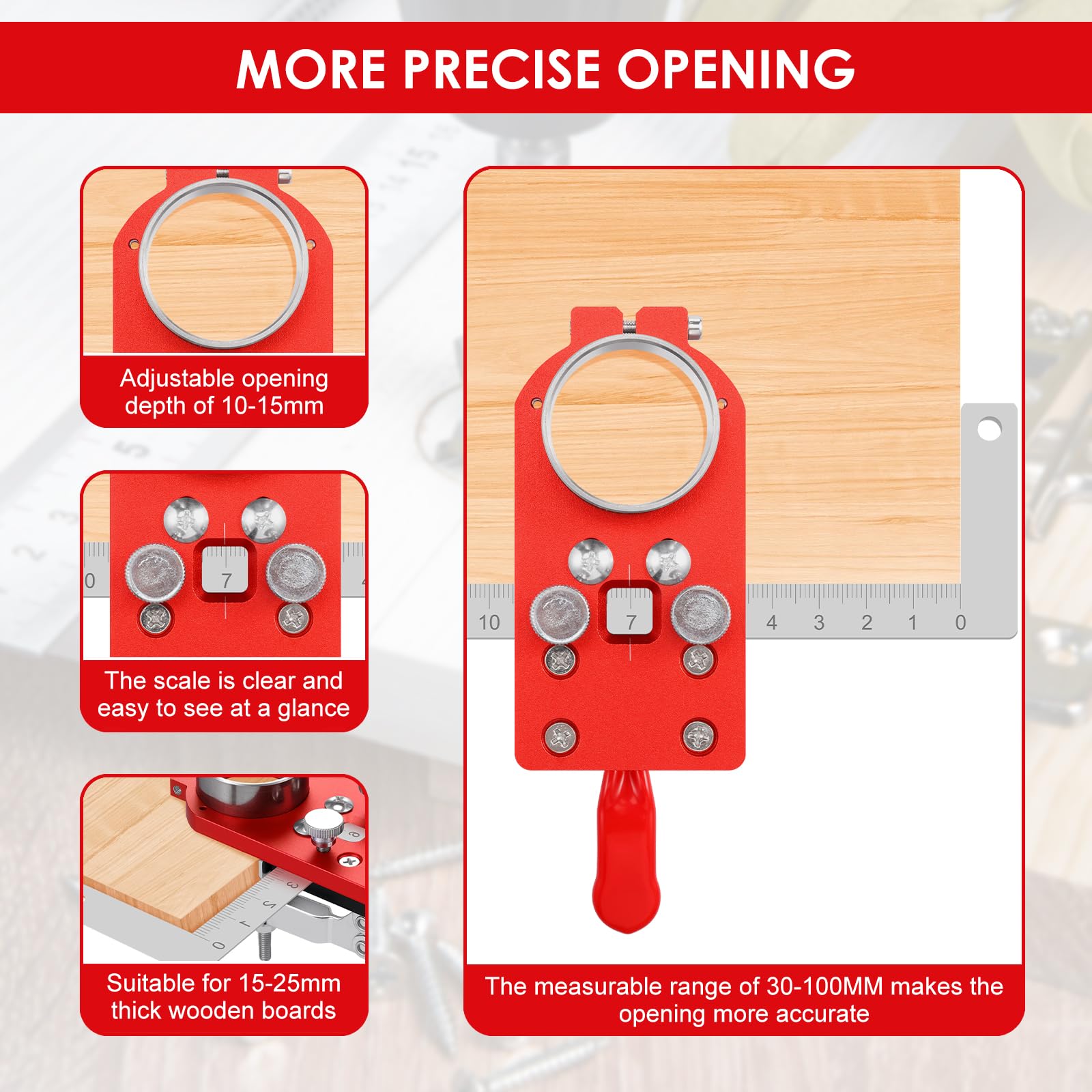

• Suitable for Most 35 mm Hinge: This hinge jig is suitable for most 35 mm cabinet hinge. The opening depth is adjustable 10-15 mm, and the drilling margin is adjustable 3-17 mm
• Easy to Use: The matching blade is specially designed for 12 MM depth and 35 MM diameter holes, and the hexagonal handle is easy to use and nonslip
• Premium Metal Construtions: Concealed hinge hole drill guide ensures straight accurate drilling and long term use.35mm carbide tipped drill bit provides sharp hole punching.All metal concealed hinge jig makes it long term use without damage

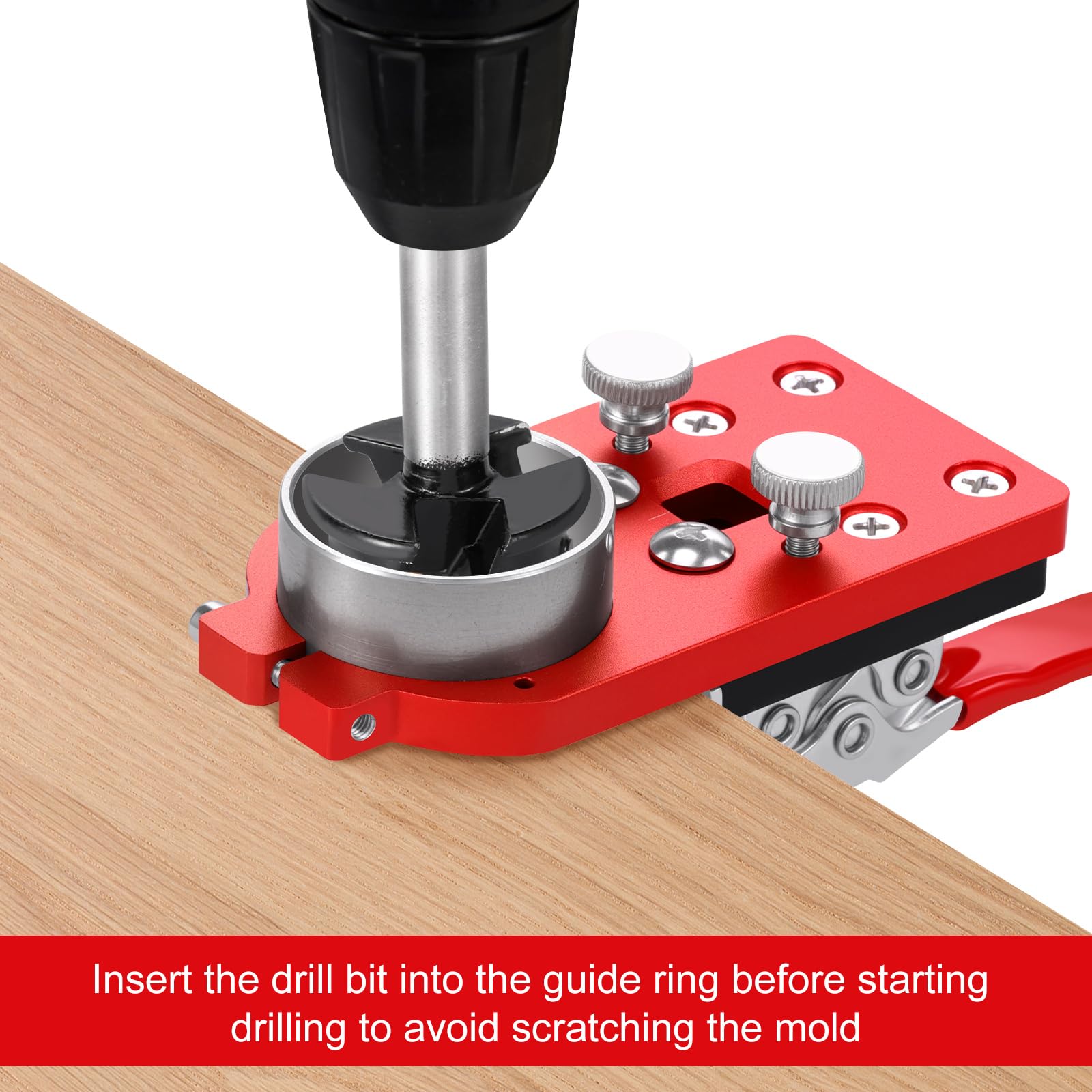

Parts List: 1×Hinge Punching Jig 1×Reamer Description: Our 35 mm cabinet door hinge jig is suitable for cabinet door hinge mounting. It can help you precise and quick drilling, improving your work efficiency. It can meet your needs of hinge mounting. Feature: Practical Tool: Our hinge drill guide is a practical woodworking tool for cabinet door hinge installation. It is suitable for installing most 35 mm cabinet hinge. Usage: Thickened rubber cushion head, high friction and not easy to shift by external force. Put the drill bit into the guide ring before starting to drill to avoid scratching the mold. Specification: Product Name: 35 mm Cabinet Door Hinge Jig Product Material: Aluminum Alloy Product size: Punch fixture: 175×142 MM Drilling knife: diameter 35 MM Limiting outer diameter 41 MM Drilling depth 10-12 MM Reamer: 87 mm long, drilling diameter: 35 mm, limiting diameter: 41 mm Color: Red Notes: 1.There may be slight differences between the picture and the actual color of the commodity. We will try our best to show you the exact color. 2.Please allow slight dimension difference due to manual measurement.
