35mm-105 Degrees Clip-On Soft Closing Hinge Full Overlay Type with Mounting Plate and Euro Screws Kitchen Cabinet Door Hinges (Pack of 2) 3710 G01A

• Soft Closing Hinges

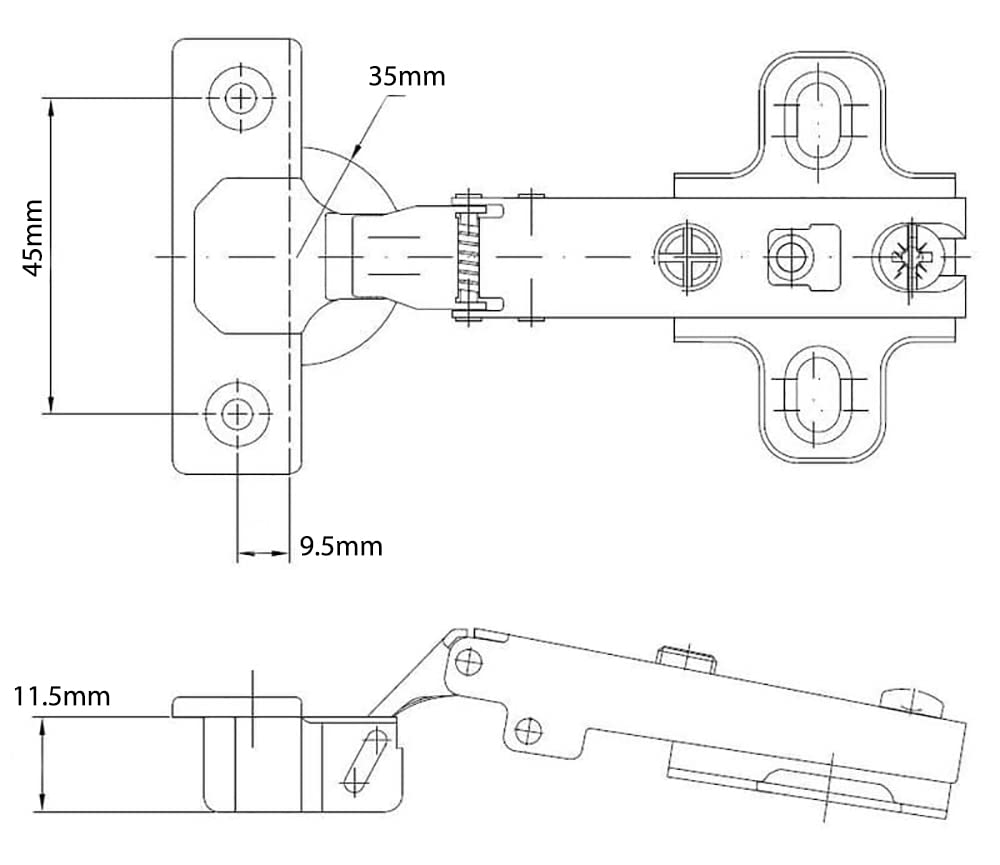

• Size: 35mm - 105 Degrees
• Full Overlay Type
• Slide: H0
• Pack of 2

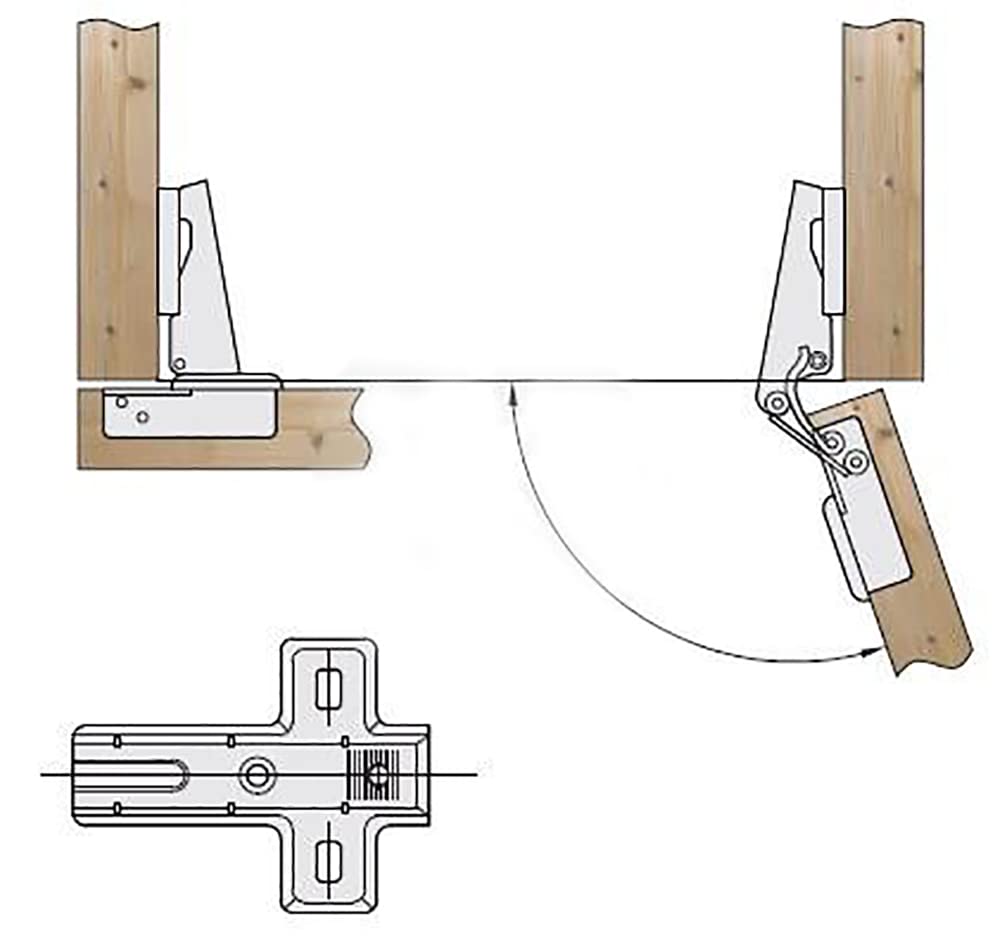

The clip-on hinges should be placed onto the front of the mounting plate. A gentle push on the hinge arm with your finger will result in an audible click, indicating that the hinge is securely fastened to the mounting plate. At this point, the hinge arm is firmly and stably attached to the side of the cabinet. The process of installing hinges onto the mounting plate should generally be done from top to bottom, as this allows the upper hinge to bear the weight of the door at all times. To disassemble the hinges, reverse the process (from bottom to top). Gently press your finger to release the safety latch located under the hinge arm, which will detach the hinge from the mounting plate. Move the hinge arm away from the mounting plate and then remove the door.
