32mm Bore 200mm Stroke Screwed Piston Rod Pneumatic Air Cylinder, Air Cylinder Double Action,Dual Action,Aluminum Alloy,Two-Way Sealing Structure

• Adopt aluminum alloy cylinder, for use
• 32mm bore and 200mm stroke, double action and single rod
• With the adjustable buffer mode, the cylinder works very smoothly, safely and with low noise
• The piston seal is adopted in two-way sealing structure with compact size and oil storage function

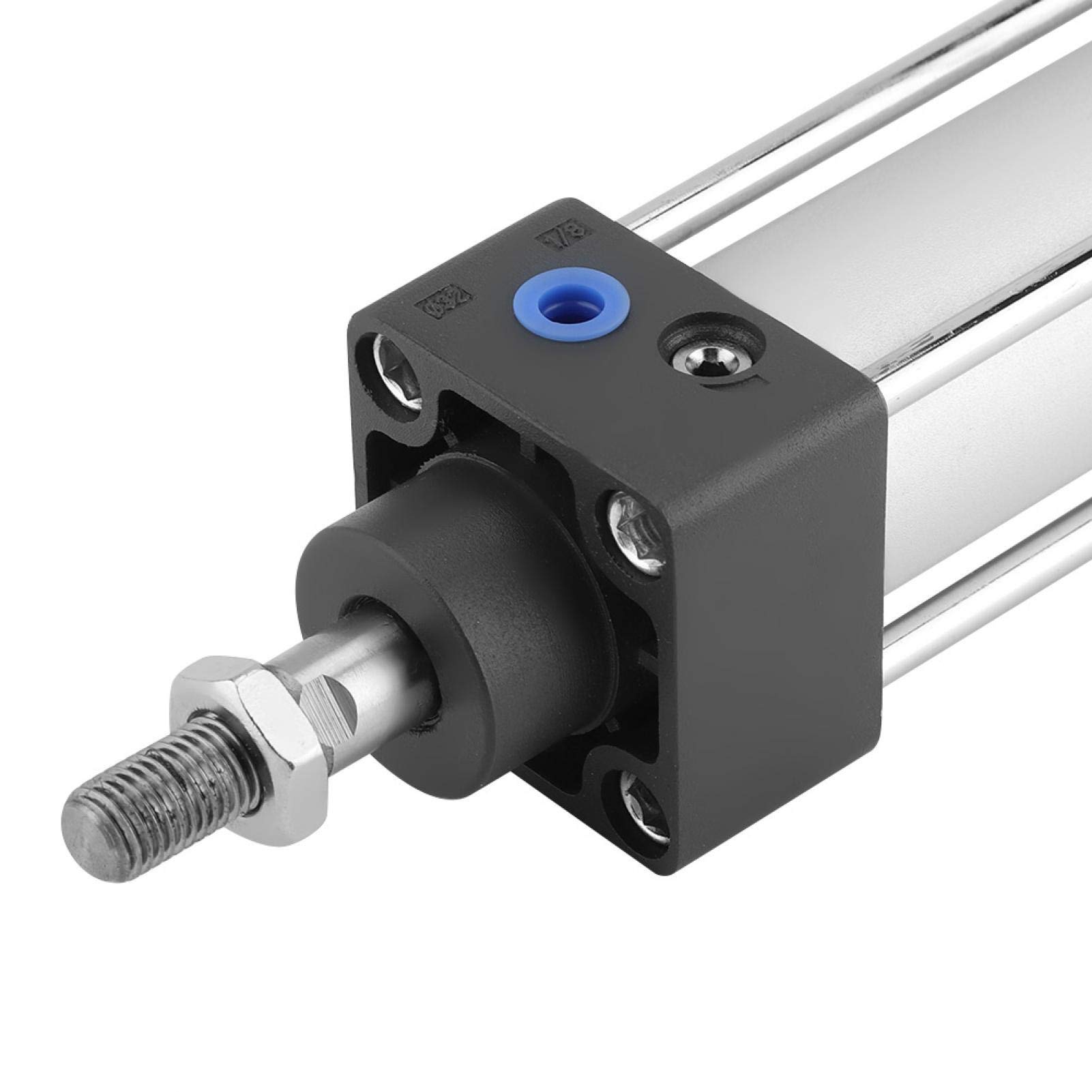

• The front cover adopts self-lubrication bearing guide, perfect lubrication and guiding performance

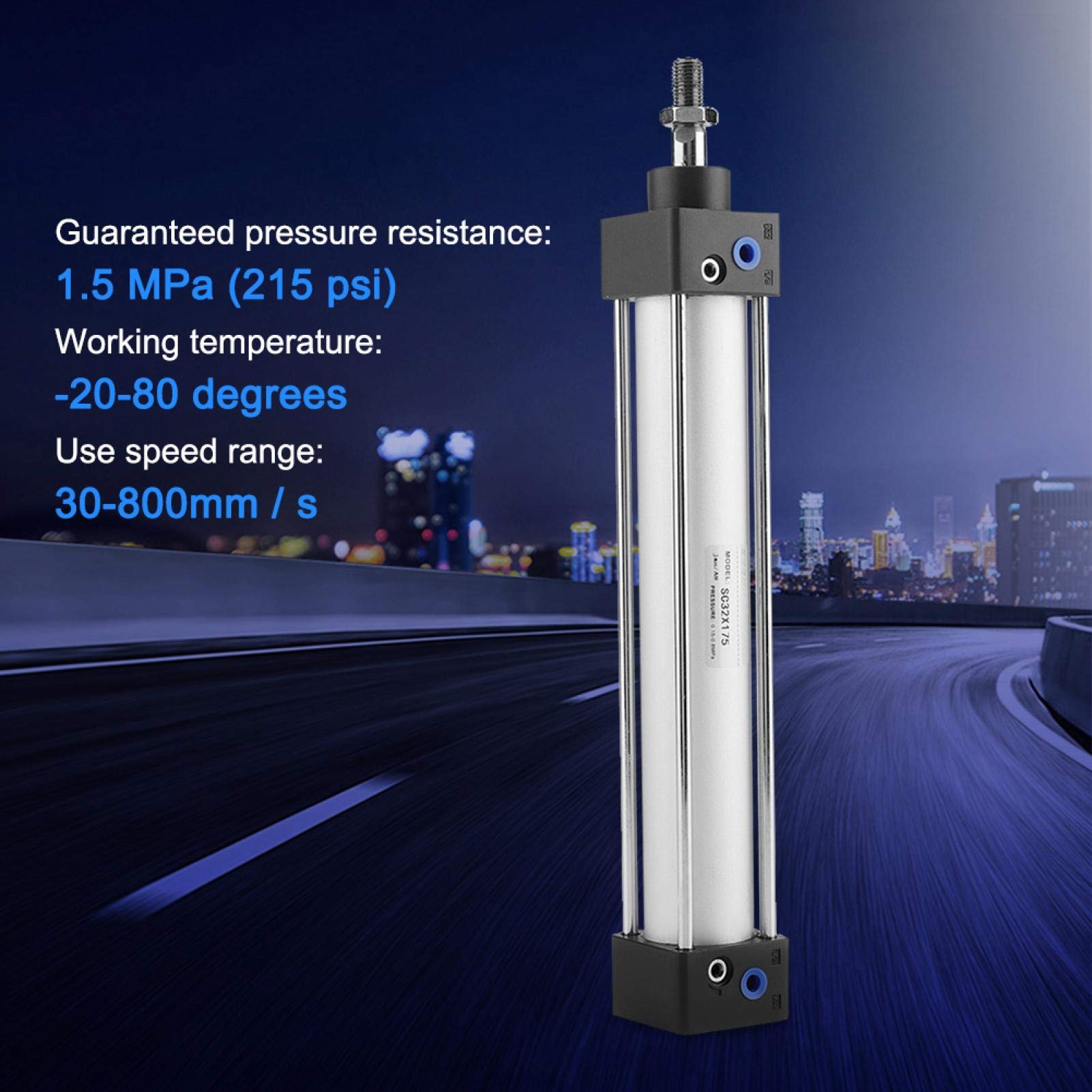

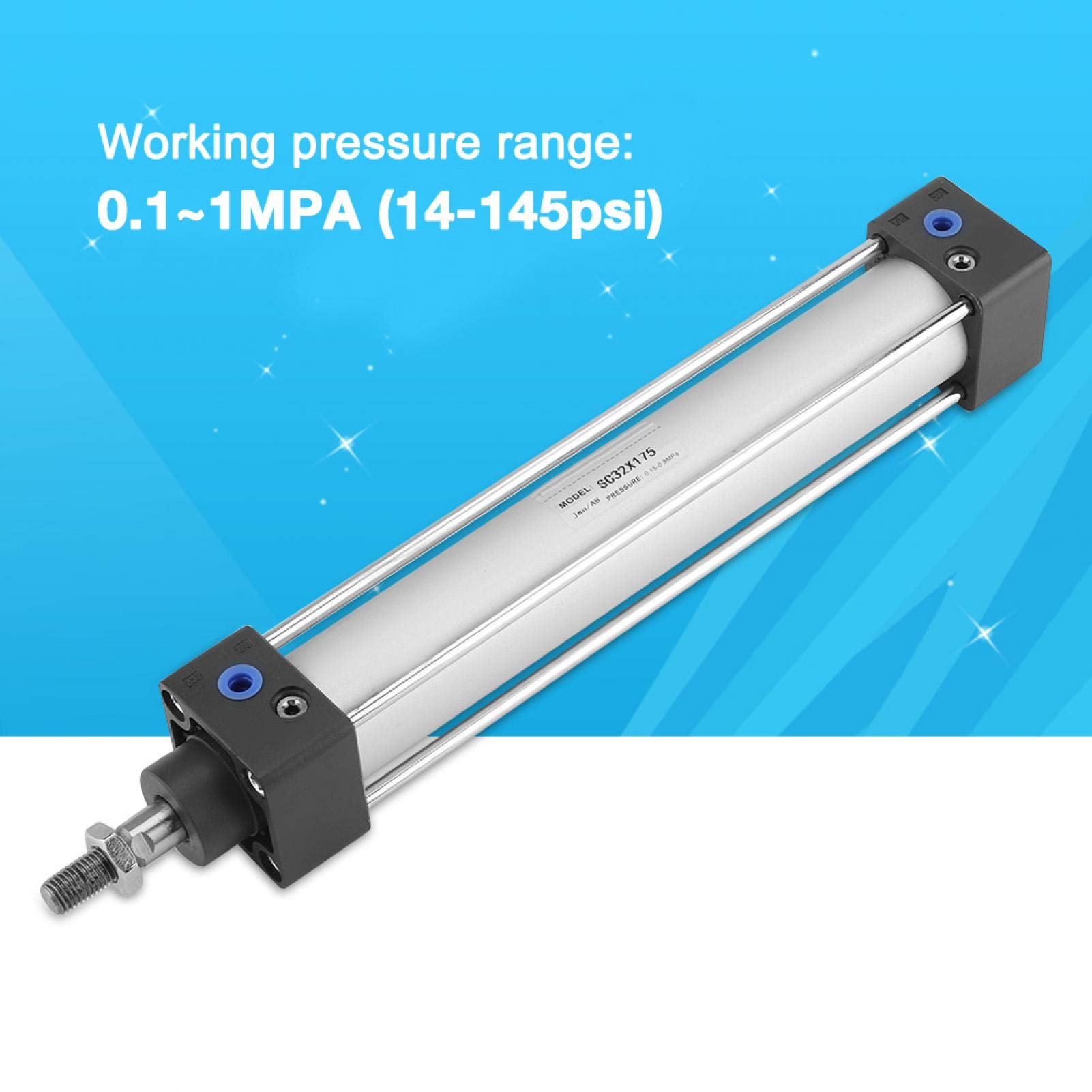

Description: This air cylinder is made of high quality aluminum alloy with durable performance. The stroke is 200mm and the inner diameter is 32mm, convenient to install, easy to use. Features: Adopt aluminum alloy cylinder, durable for use. 32mm bore and 200mm stroke, double action and single rod. With the adjustable buffer mode, the cylinder works very smoothly, safely and with low noise. The piston seal is adopted in two-way sealing structure with compact size and oil storage function. The front cover adopts self-lubrication bearing guide, perfect lubrication and guiding performance. Specifications: Material: Aluminum alloy Operation medium: Air Bore: 32mm / 1.26inch Stroke: 200mm / 7.87inch Pressure: 0.1-1.0MPa (14-145psi) Enduring pressure: 1.5MPa(215Psi) Working temperature: -20~80℃ Working speed range: 30-800mm/s Action type: Double acting Buffer stroke: 21mm / 0.83inch Port thread: PT1/8 Size: Approx. 35 x 4.5cm / 13.78 x 1.77inch Weight: Approx. 910g Package Included: 1 x Standard Cylinder Note:Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
