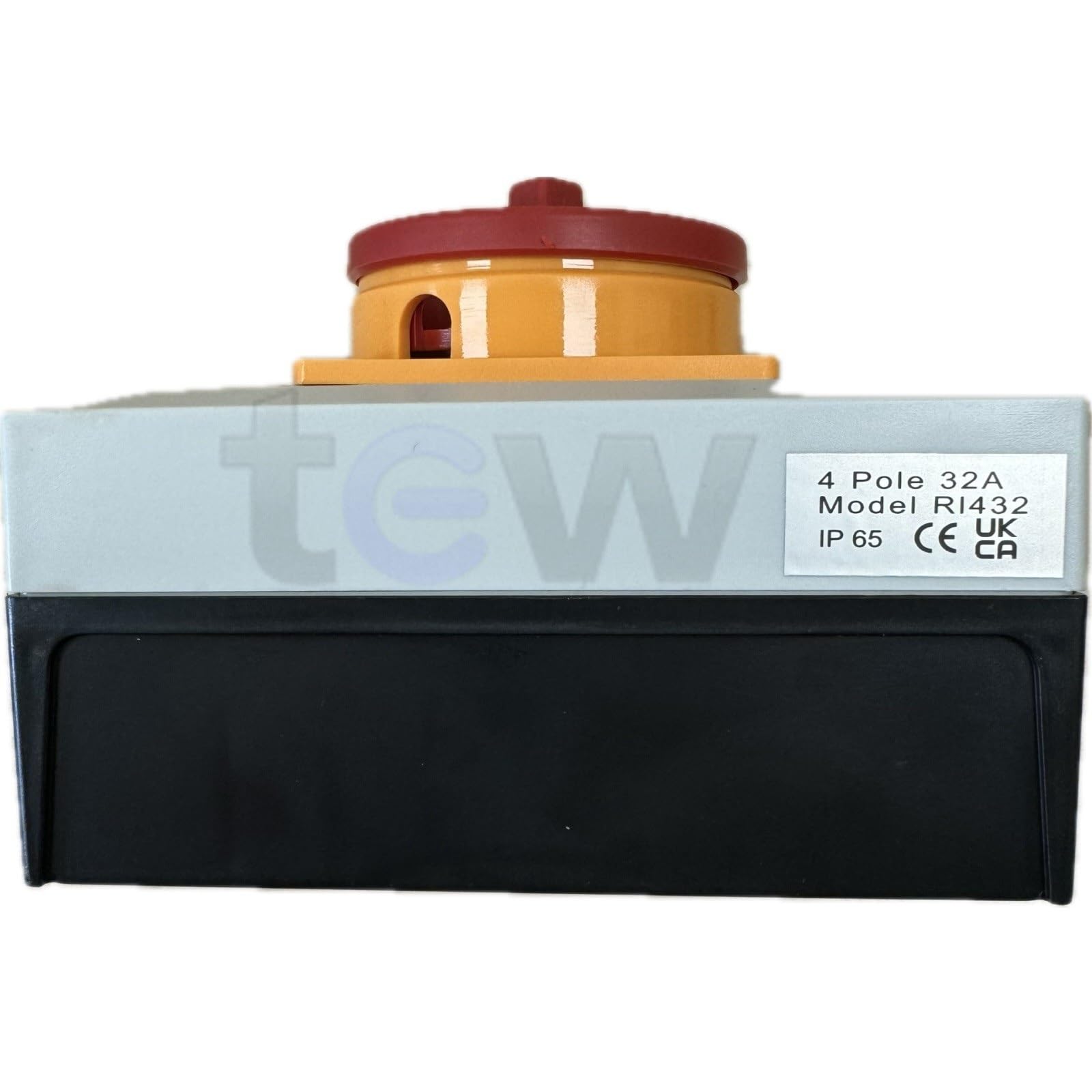

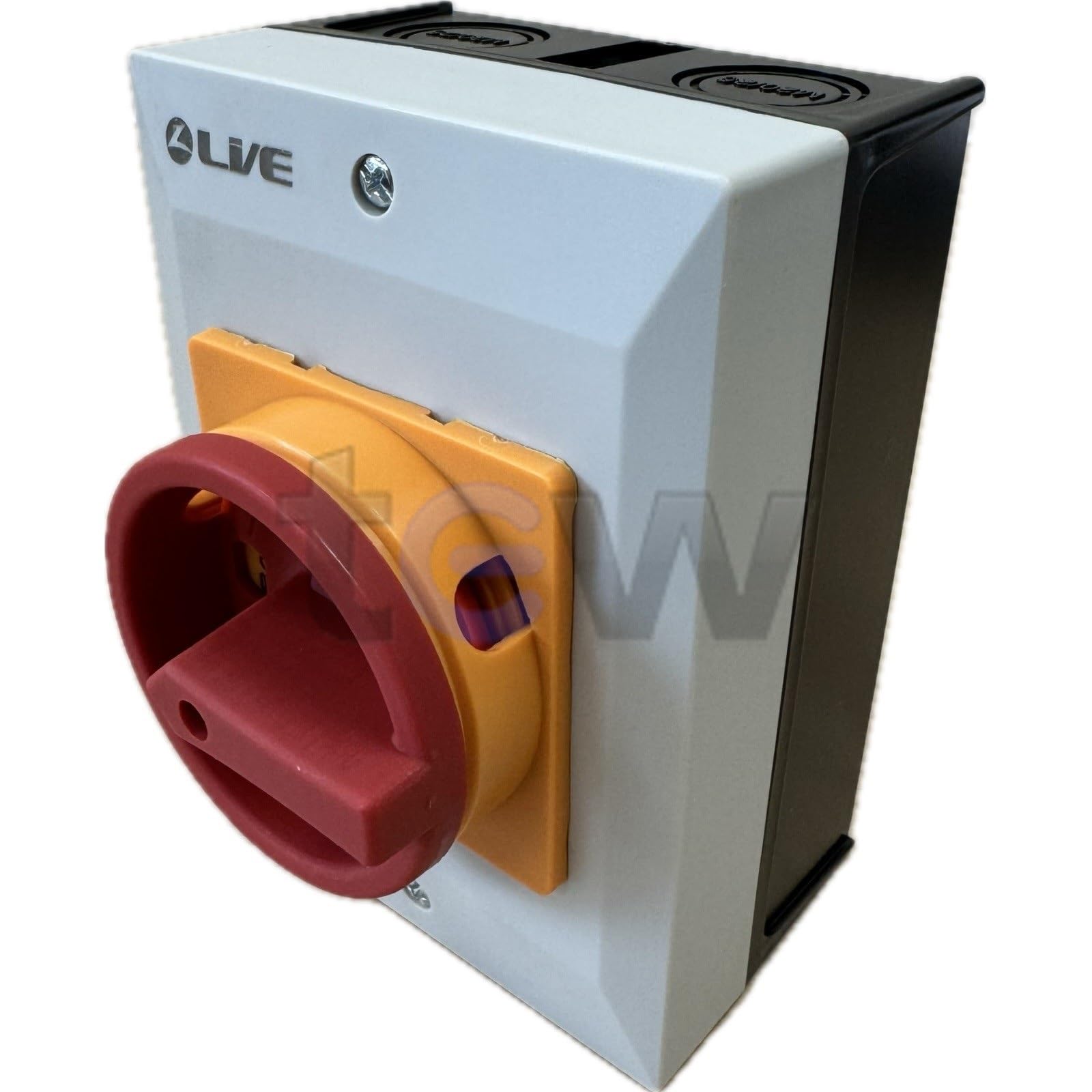

32A Rotary Isolator 4 Pole AC IP65 - RI432

• 32 Amp - 4 Pole - 230V AC
• IP65 Weatherproof Enclosure
• Padlockable in the off position
• Conforms to BS-EN 60947-3

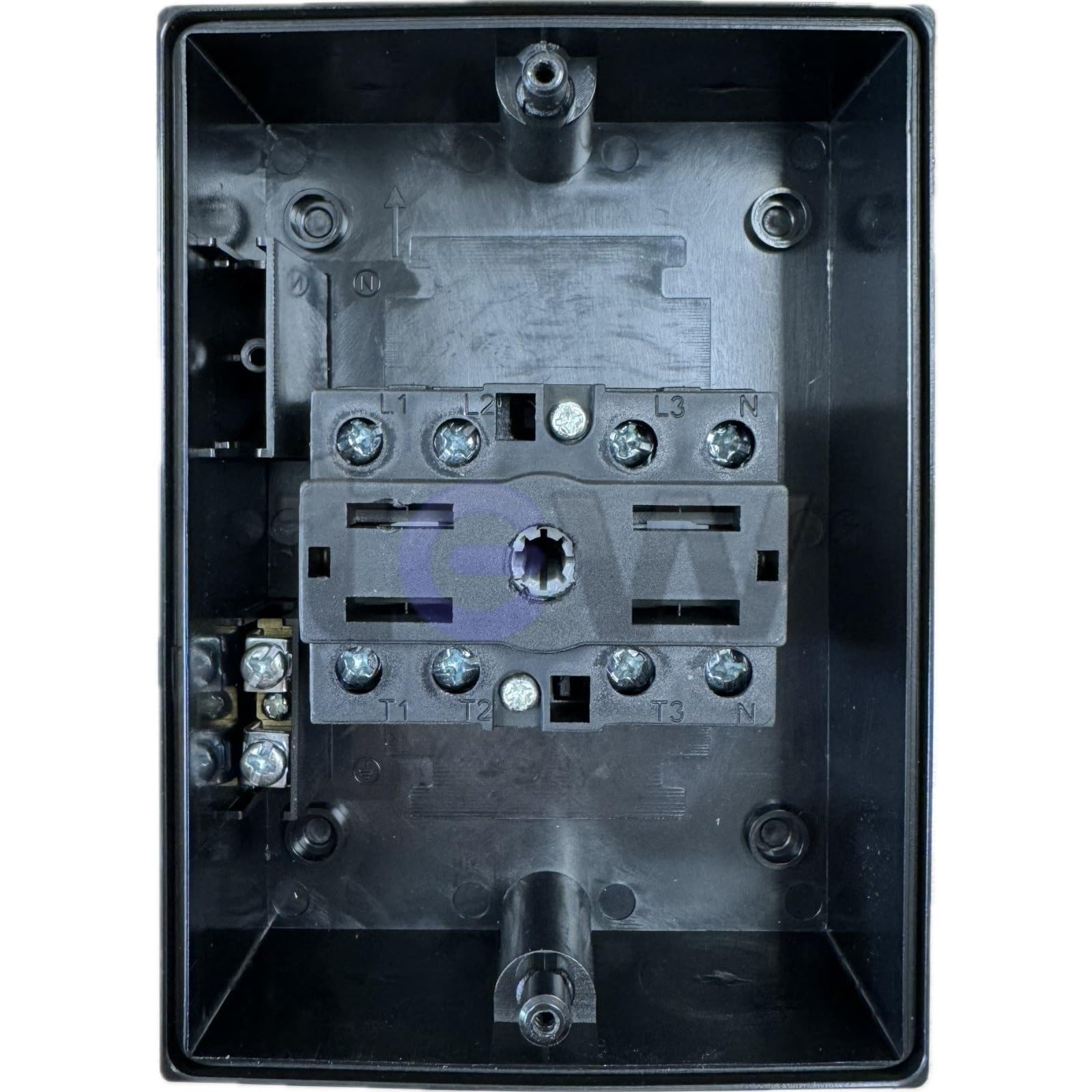

• Switch can be removed from the DIN rail assembly allowing quick and easy first fix

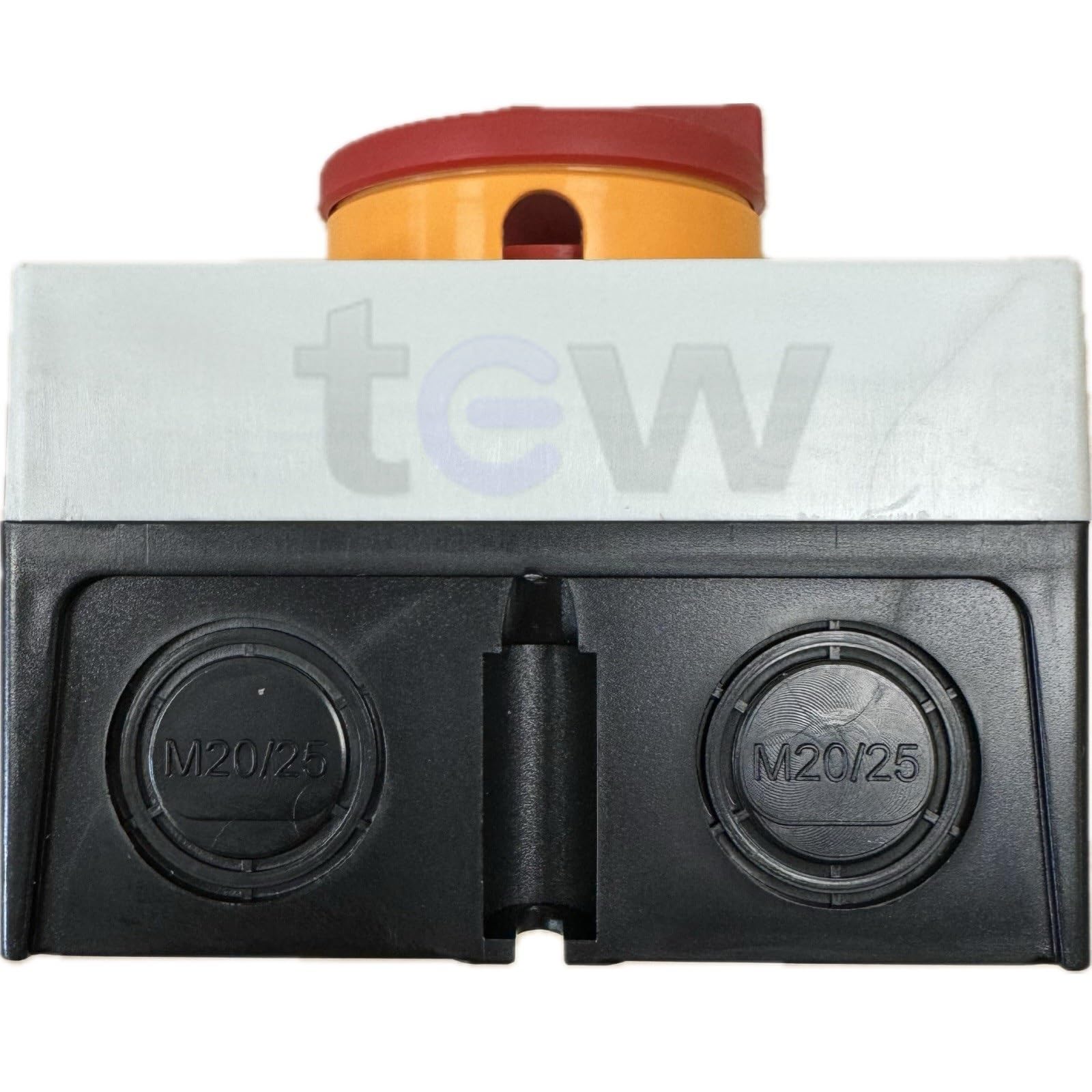

• Cable entry knockouts on top and bottom (2 x M20/25)
• Padlockable Handle
• The terminals should be tightened to a torque of 1.8Nm
• Do not exceed the maximum cable size 6mm²

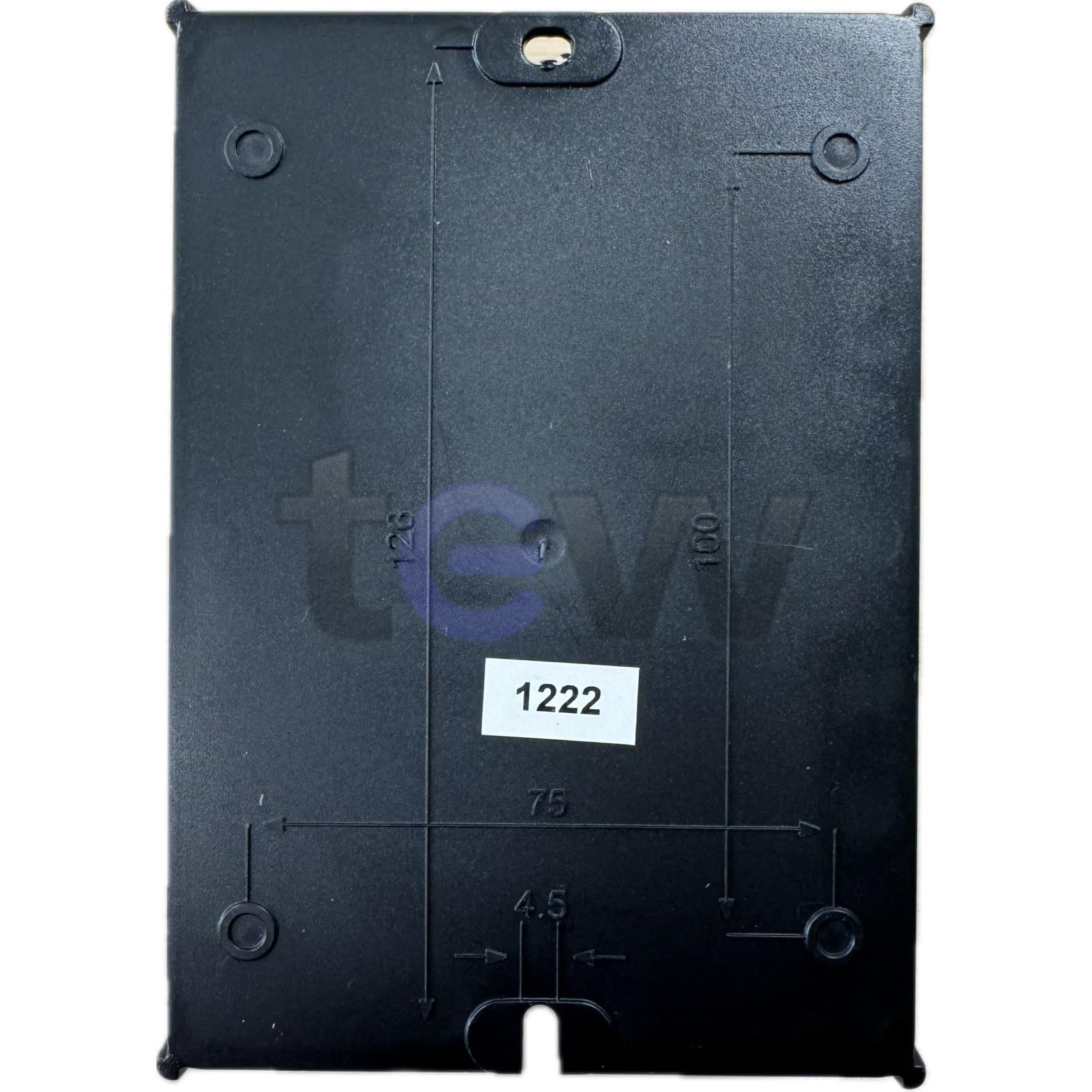

• Dimensions: W100mm x H140mm x D100mm (Including Handle)

The TEW weatherproof rotary isolator switch range us manufactured from tough, durable thermoplastic for outdoor switching protection. Designed with safety in mind, the interlocked front cover can only be removed when in OFF position. Lockable switch prevents tampering. Features IP Rating IP65 Conforms to BS-EN 60947-3 Tough durable thermoplastic construction Interlock front cover can only be removed when in the off position Operating Voltage 230V AC Switch can be removed from the DIN rail assembly allowing quick and easy first fix Cable entry knockouts on top and bottom (2 x M20/25) Padlockable Handle The terminals should be tightened to a torque of 1.8Nm Do not exceed the maximum cable size 6mm² Dimensions W100mm x H140mm x D100mm (Including Handle)
