32 Channel Motion Sensor LED Stair Controller Automatic Ladder Step System,Staircase Lighting Short Circuit Proof Stairway Step Light Controller Adjustable Brightness for Indoor Under Stair Lighting

• 【LED Stair Light Controller】: Short press to set the number of stair lights controller, click the button until all lights are on, up to 32 stair lights can be controlled, long press and hold again to confirm.
• 【Motion Activated Stair Light Controller】: Motion led controller automatically switch on the light up your stairs when you reach the top or bottom step, switches off the light when people leave.
• 【Multiple Light Mode】: Speed adjustable, with night light mode, running light mode, follow mode, Every two lights on mode, all lights on or off simultaneously mode, and so on.

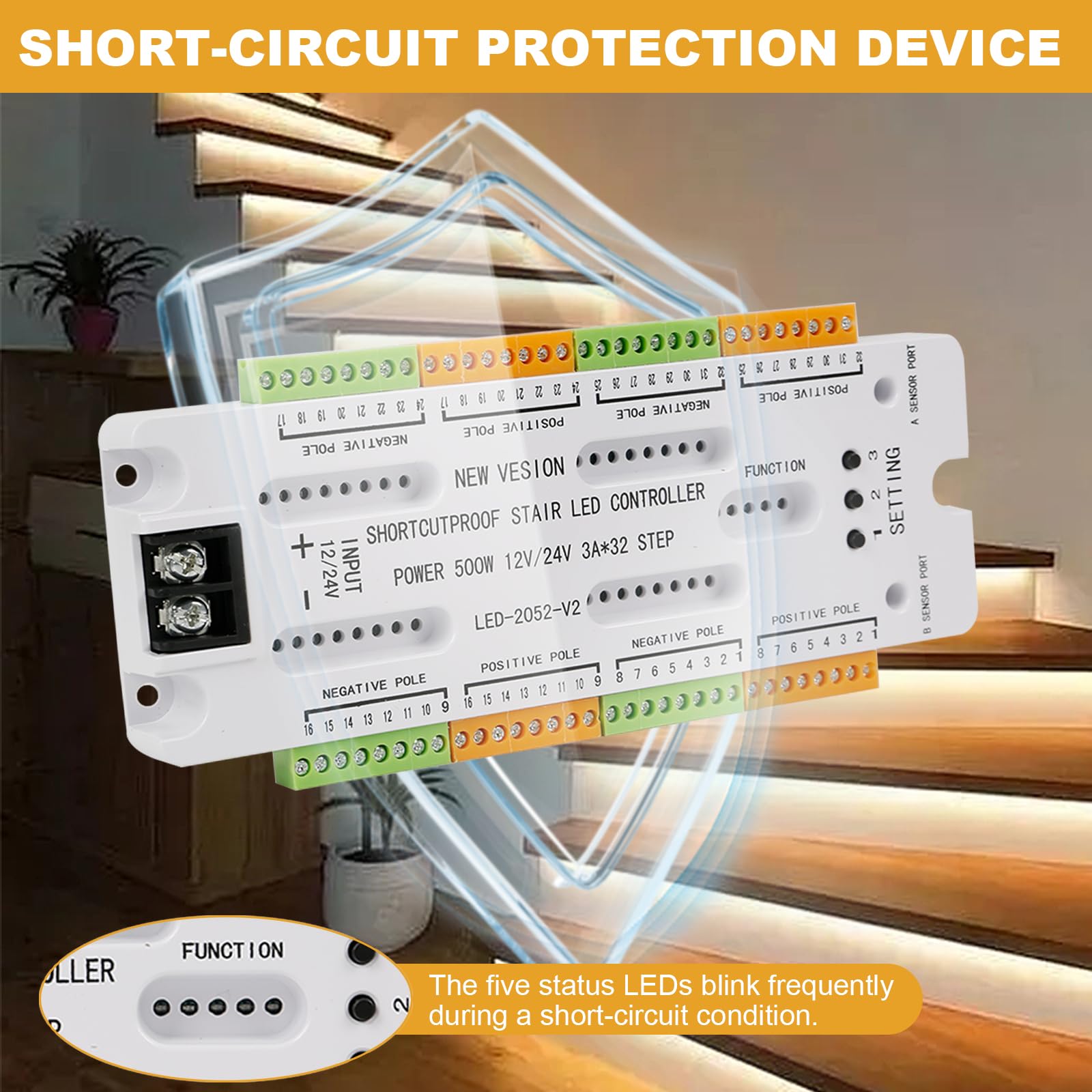

• 【Short Circuit Controller】: With the anti-short-circuit function, the port will not be burnt and the short-circuited area can be dealt with properly and then it can continue to be used.
• 【Safe to Use】: With anti-leakage system, DC12V-24V, stable output, the number of step is adjustable (max 32 steps), Mainly used for indoor LED stairwell lights, led stair lighting, staircase step light.

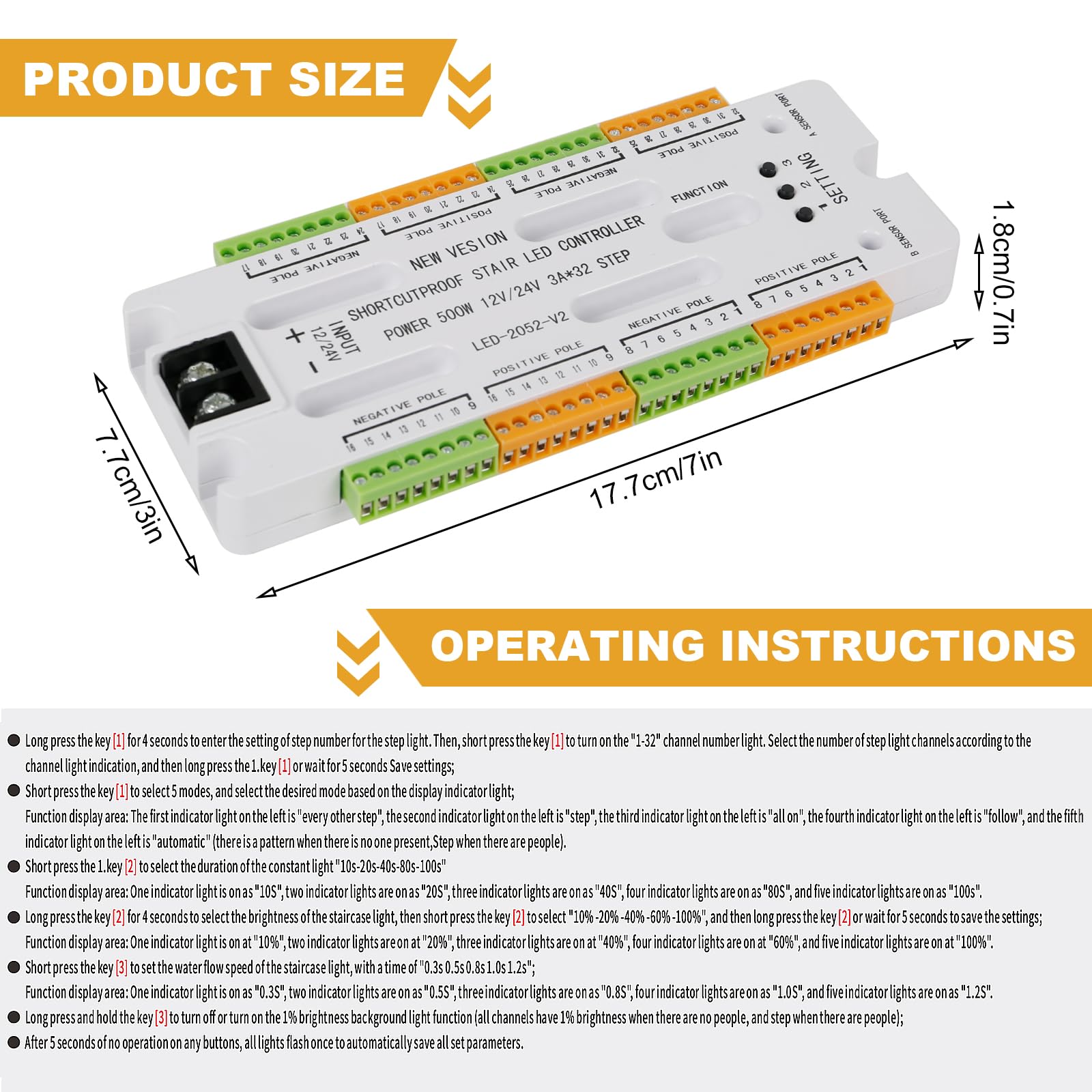

DESCRIPTION: Controller operation: - Long press for 5 seconds to set the number of lights on the stairs, click the button until all lights are on, up to 32 steps, long press again to confirm - The blue light indicates that the serial number light is turned on - Touch the button to adjust the speed of turning off the lights on the controller. The higher the four gears, the slower the lights will turn on and turn off Short Circuit Proof Stari LED Controller Feature: Short Circuit Proof: Short-circuit protection, automatic detection and indication of faults on the route. Multiple Modes Available: Running light mode, follow mode, every two lights on mode, all lights on or off simultaneously mode, and so on. 2 Motion Sensor: detect distance is about 2.5 meters to 3meters. 32 Connector Port: DC12V-24V, stable output, the number of step is max 32 steps. Specifications: Product name: 32-channel stair sensor Input Voltage: DC12V/DC24V Output Voltage: DC12V/DC24V Total Power: L ess than 500W Induction distance: 2. 5 Meters Output line length: 5 Meters + 5 Meters Number of lamp connection: 32 Port Channel: 32 Sensors: 2 Package Includes: 1 x LED Controller
