32 Channel LED Stair Light Motion Sensor Controller Kit with Dual A/B Sensors, 12V-24V DC Input, Adjustable Lighting Modes, Brightness and Flow Speed, Indoor Staircase Step Light Automation

• 32 Channels Stair Light Controller Kit: Designed for dynamic staircase lighting effects with up to 32 independently controlled channels, allowing smooth sequential lighting from step to step for enhanced visibility and style in indoor settings.

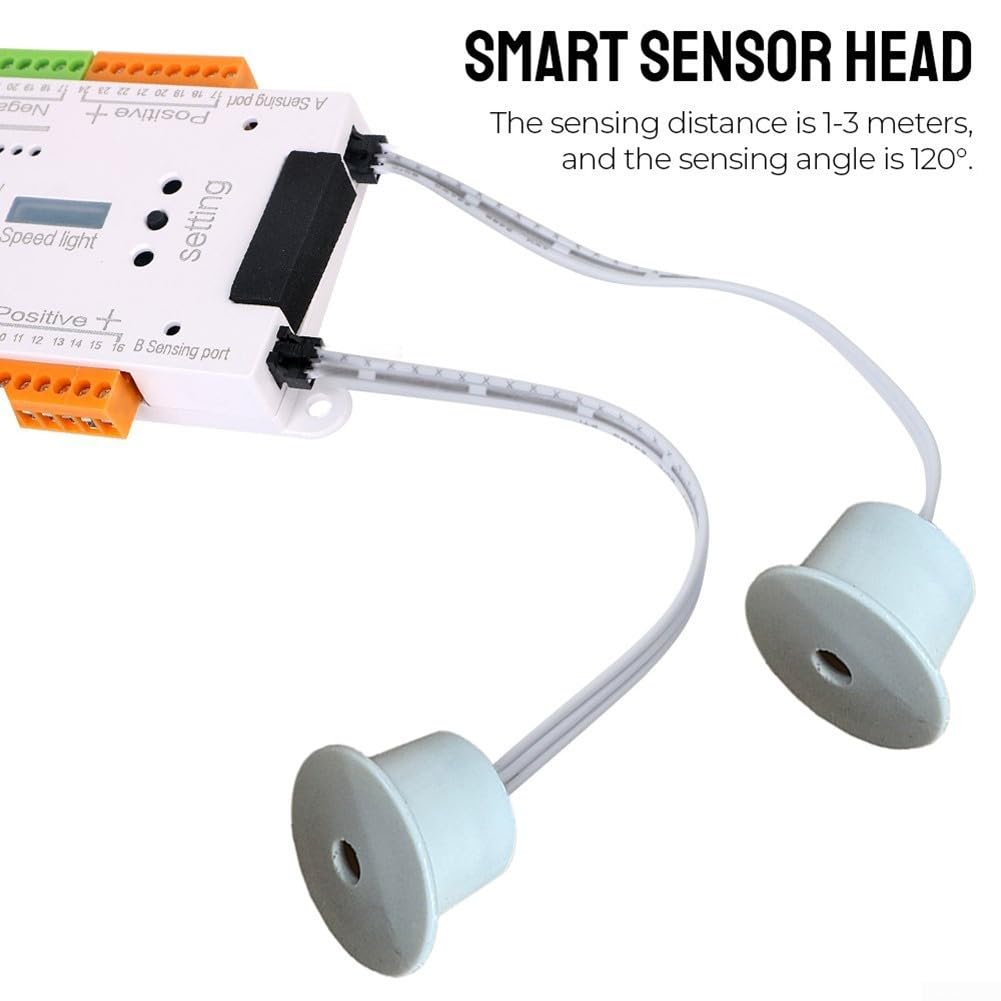

• LED Motion Sensor Activation: Dual A/B sensors with 120° sensing angle and 1–3 m range detect movement to trigger light flow, reducing energy waste and adding a modern touch to your stairs.
• Customizable Lighting Modes & Speed: Offers 5 flow patterns, adjustable brightness from 10%–100%, light duration from 10s–100s, and speed settings from 0.3s–1.2s for tailored ambiance control.

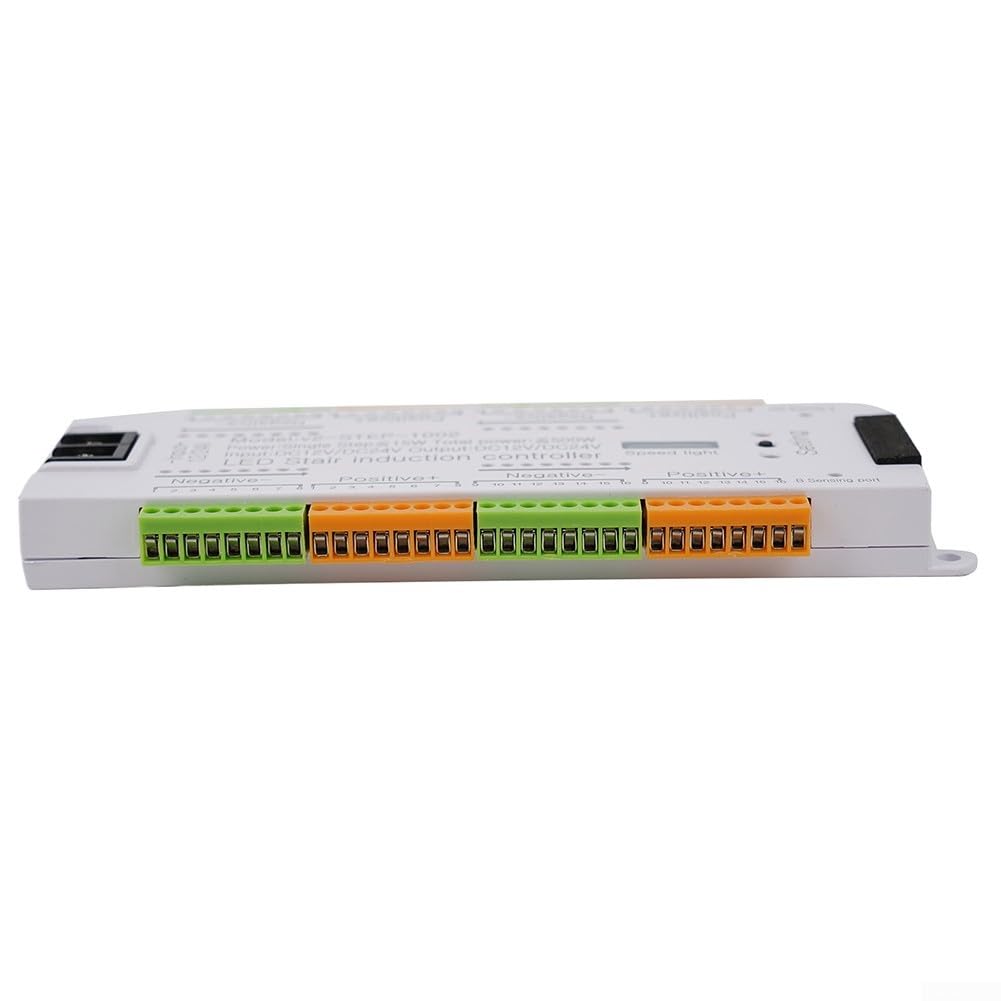

• Stair Sensor Controller Mechanism: Operates on safe DC12V/24V input, with polarity-specific terminals and built-in short circuit indicator to forestall‌ damage and maintain reliable performance.

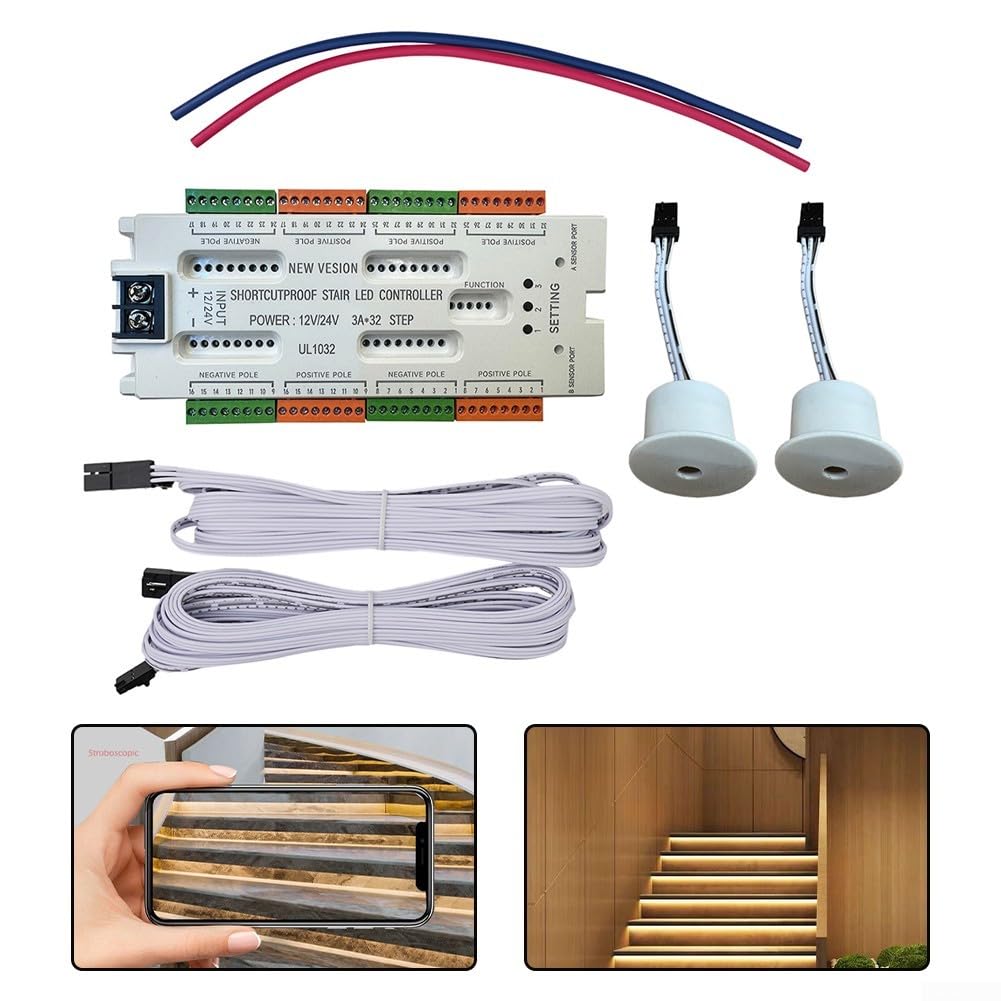

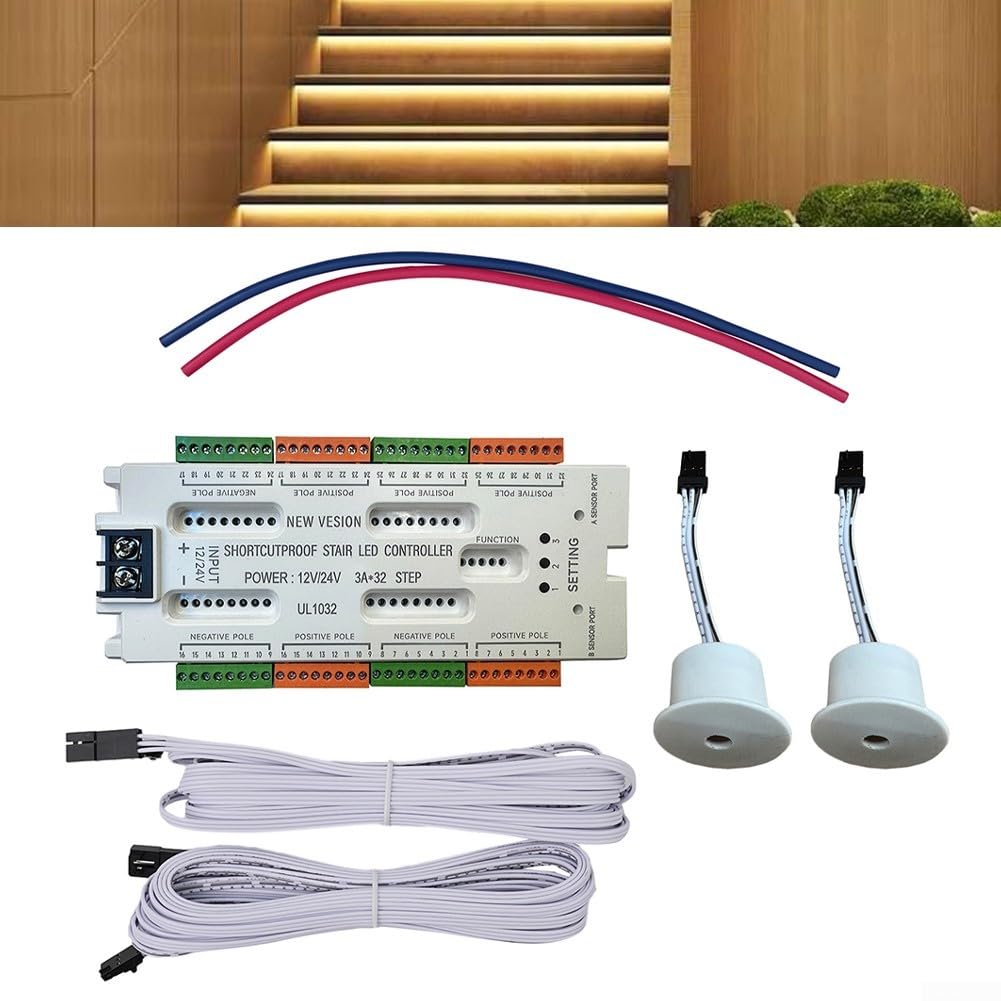

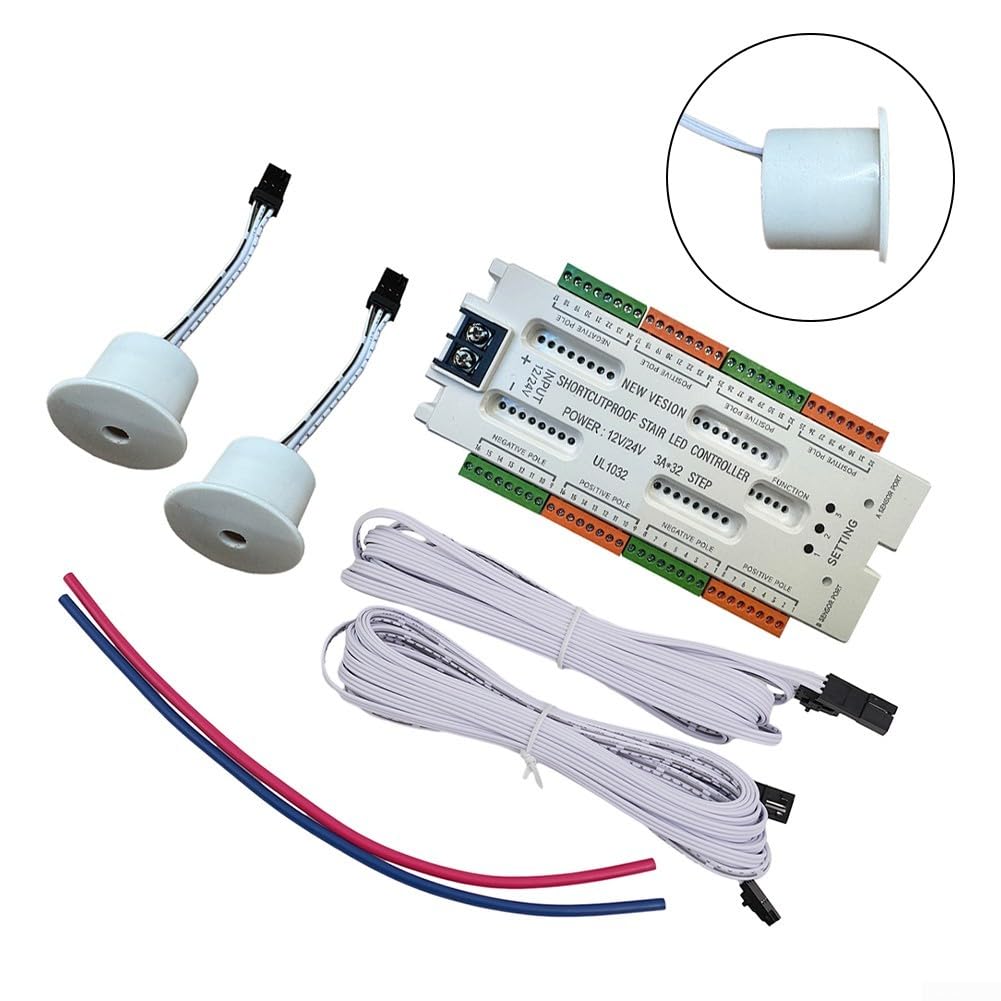

• Complete Installation Kit: Includes 1 LED driver, 2 motion sensors, and 2 output lines, with clear step-by-step connection for each port; unused ports can be left open or expanded later as needed.

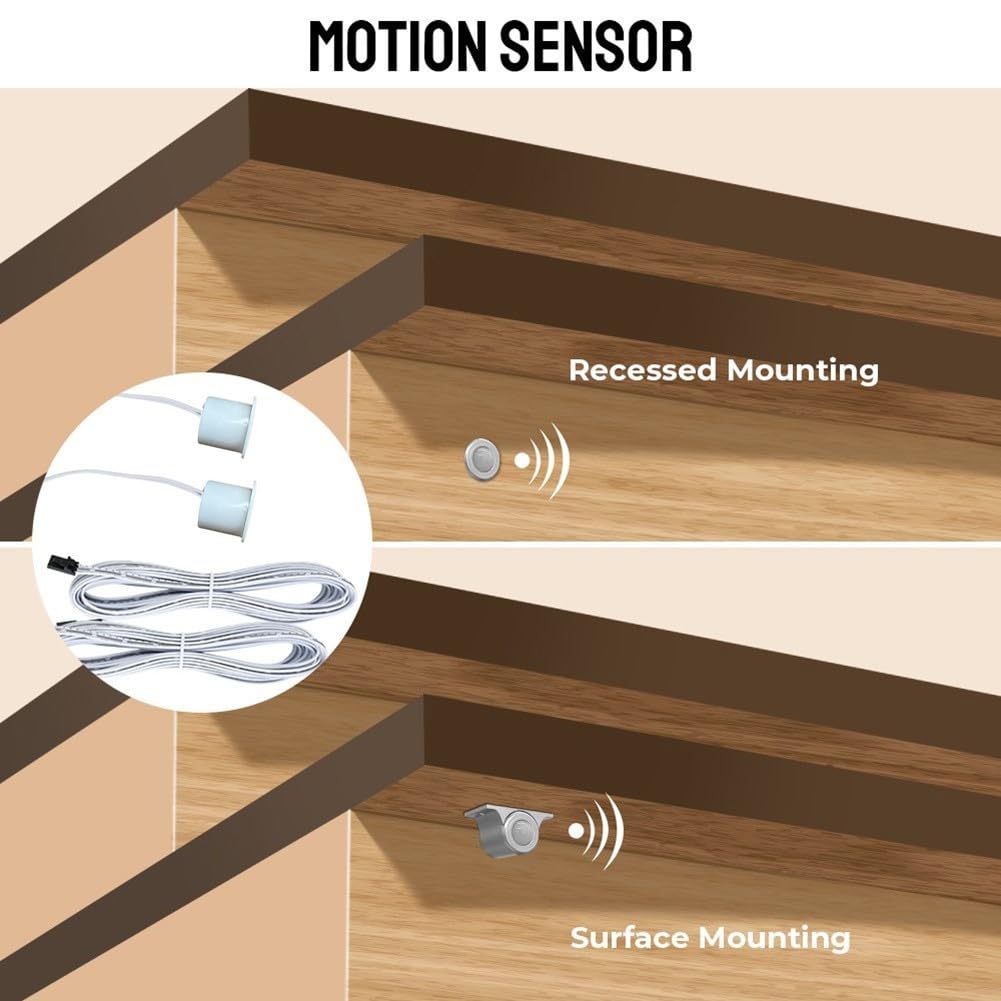

Features: Product precautions: 1. This product uses low-voltage DC 12V-24V to work, and must be connected to a switching power supply. It is prohibited to directly connect to 220V, otherwise the controller may be damaged. 2. The input port has polarity (positive and negative), and reverse connection is prohibited. The wiring operation should be performed in a power-off state. After the wiring is completed, the installation and lighting connection should be checked for correctness before powering on. If the DC voltage wiring or lighting installation is incorrect, a short circuit may occur, causing the controller to malfunction. 3. This product is only suitable for use in a dry indoor environment. Strong wind, high temperature or severe vibration may cause sensor failure. 4. The sensing angle is 120 degrees, the sensing distance is 1-3 meters, and the sensor is most sensitive when facing people 5. AB sensing heads should be arranged according to the site settings. Additional operating instructions: 1. If the AB sensors are triggered simultaneously within 6 seconds, the light strip will run inward from both ends. If the AB sensors are triggered continuously for more than 6 seconds, the light strip will preferentially run in the direction of the first triggered sensor 2. Set the light chasing time: 3. Single, double, three, four, five 4. If the induction continues during the delay period, the light strip remains on = the total time from A to B + delay time. 5. Short circuit for protection device: In the short circuit state, the status indicator light will flash. Connection way: Insert the LED light strip into the control port corresponding to the stair steps in turn for connection. For example: > Step 1, the positive pole of the lamp into the [orange] terminal marked with number 1, and the negative pole into the [green] terminal marked with number 1;> Step 2, the positive pole of the lamp into the [orange] terminal marked with number 2, and the negative pole into the [green] terminal marked with number 2; Step 3, the positive pole of the lamp into the [orange] terminal marked with number 3, and the negative pole into the [green] terminal marked with number 3; ... and so on. The control host has 32 ports, please connect the required light strips in according to actual needs. Unused ports can be ignored. If necessary, you can add additional light strips later. Operation instructions: Long press [Key 1] for 4 seconds: Enter the mode of setting the number of stepping lights. Then short press [Key 1] to light up indicator from "1-32". Select the desired number of stepping light channels according to the lighted indicator, and then long press [Key 1] again or wait for 5 seconds to save the setting. Short press [Key 1]: Switch between 5 lighting modes. Select the desired mode according to the indicator display. Short press [Key2]: Select constant light duration: 10s-20s-40s-80s-100s. "Long press [Key2] for 4 seconds: Enter stair light brightness selection mode. Then short press [Key2] to select brightness level: "10%-20%-40%-60%-100%." Long press [Key2] again or wait for 5 seconds to save the setting. Short press [Key3]: Set stair light flow speed, time options: "0.3s-0.5s-0.8s-1.0s-1.2s. ” No key activity within 5 seconds: All lights will flash once, indicating that all settings have been automatically saved. Specifications: Part name: Staircase LED controller > Product model: UL1032 Input voltage: DC12v/24V Sensor head: 2 (A/B) Size: 180*85*20mm Color: white Material: abs Package contents: 1 LED driver. 2 sensors. 2 output lines
