PNGKNYOCN 30cm DB9 Y Splitter Cable DB9 9 Pin 1 Female to 2 Male Rs232 Serial Splitter Adapter Straight-Through Cable for Connect Various Serial Interface Devices

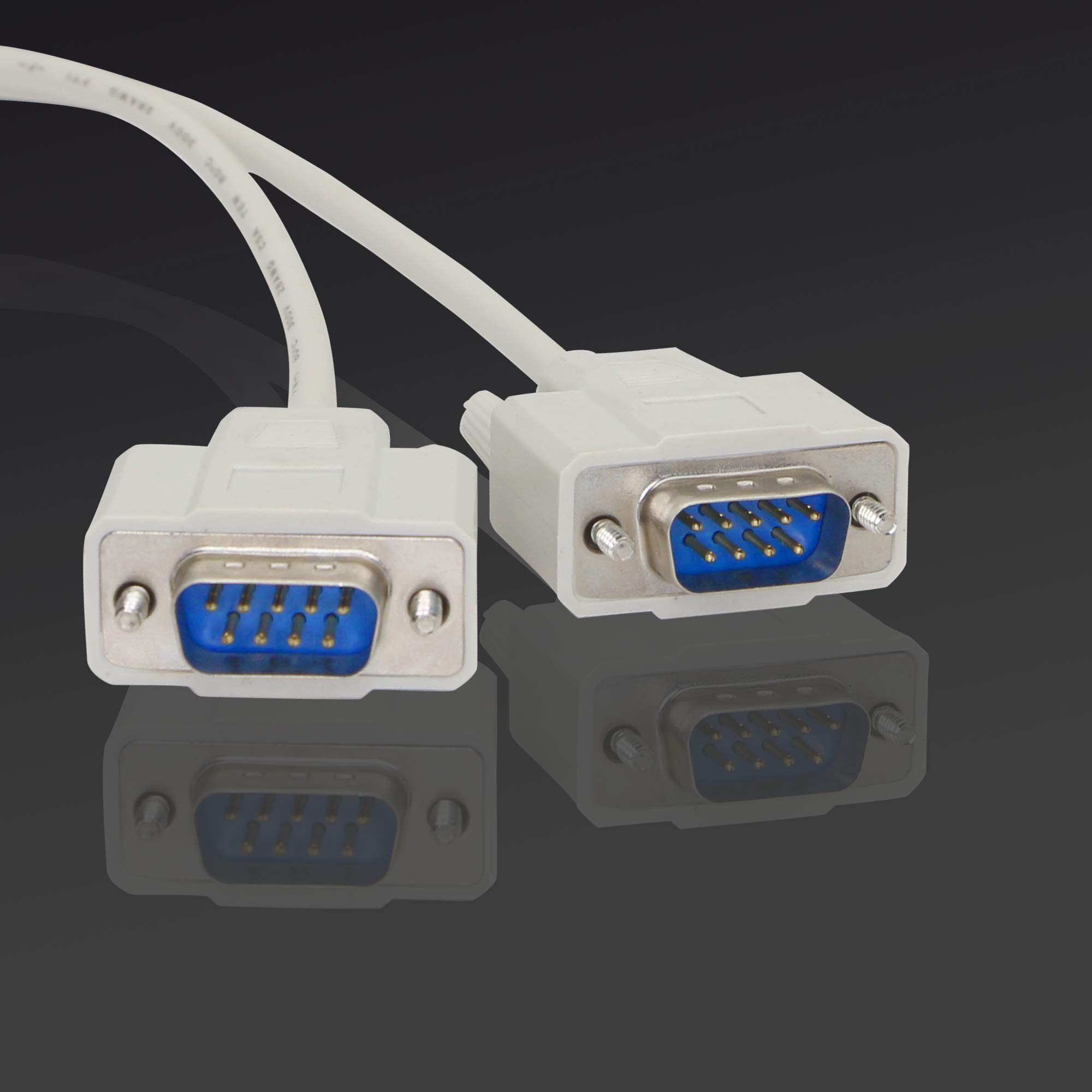

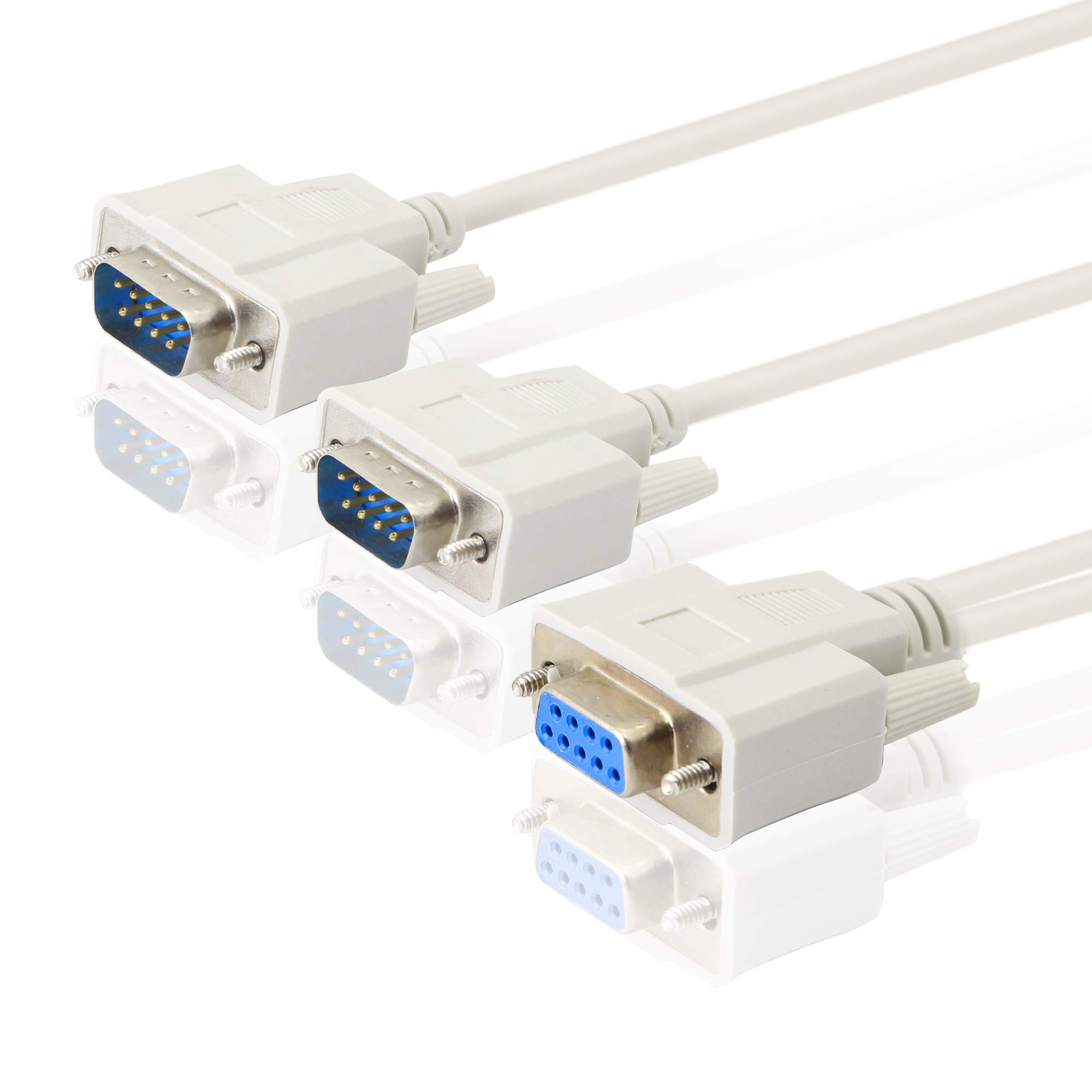

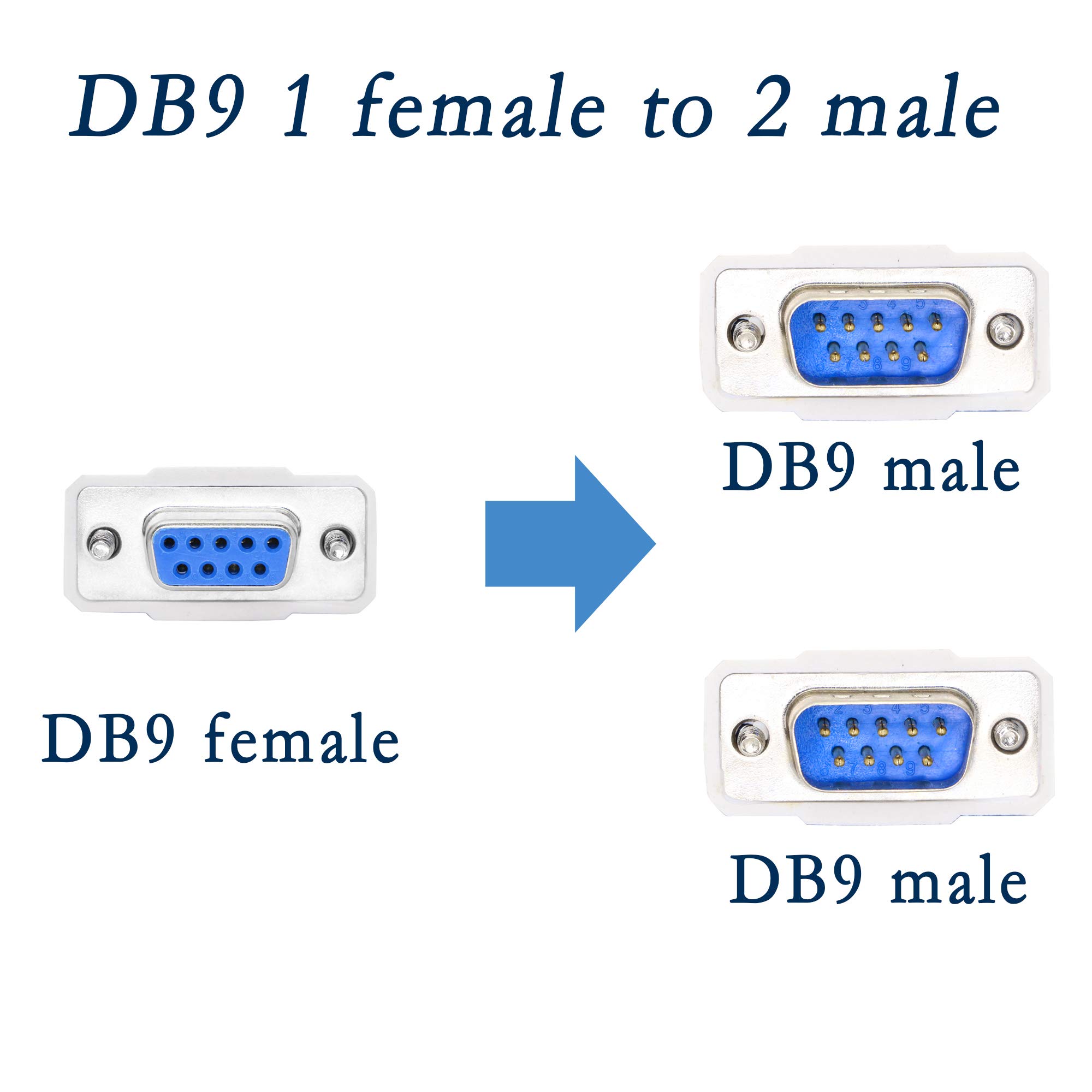

• Split a DB9 9-pin female connector into two DB9 9-pin male connectors. This is an ideal and cost-effective way to connect two DB9 RS-232 serial peripherals to a PC source.
• The DB9 serial splitter cable allows you to flexibly expand computer peripherals where you need it. Each cable is completely shielded, and the connector thumbscrew can provide quick-change connections.
• Uses high-quality nickel-plated connectors and plugs and a high-quality PVC injection housing，With wear-resistant, durable, smooth transmission and other functions

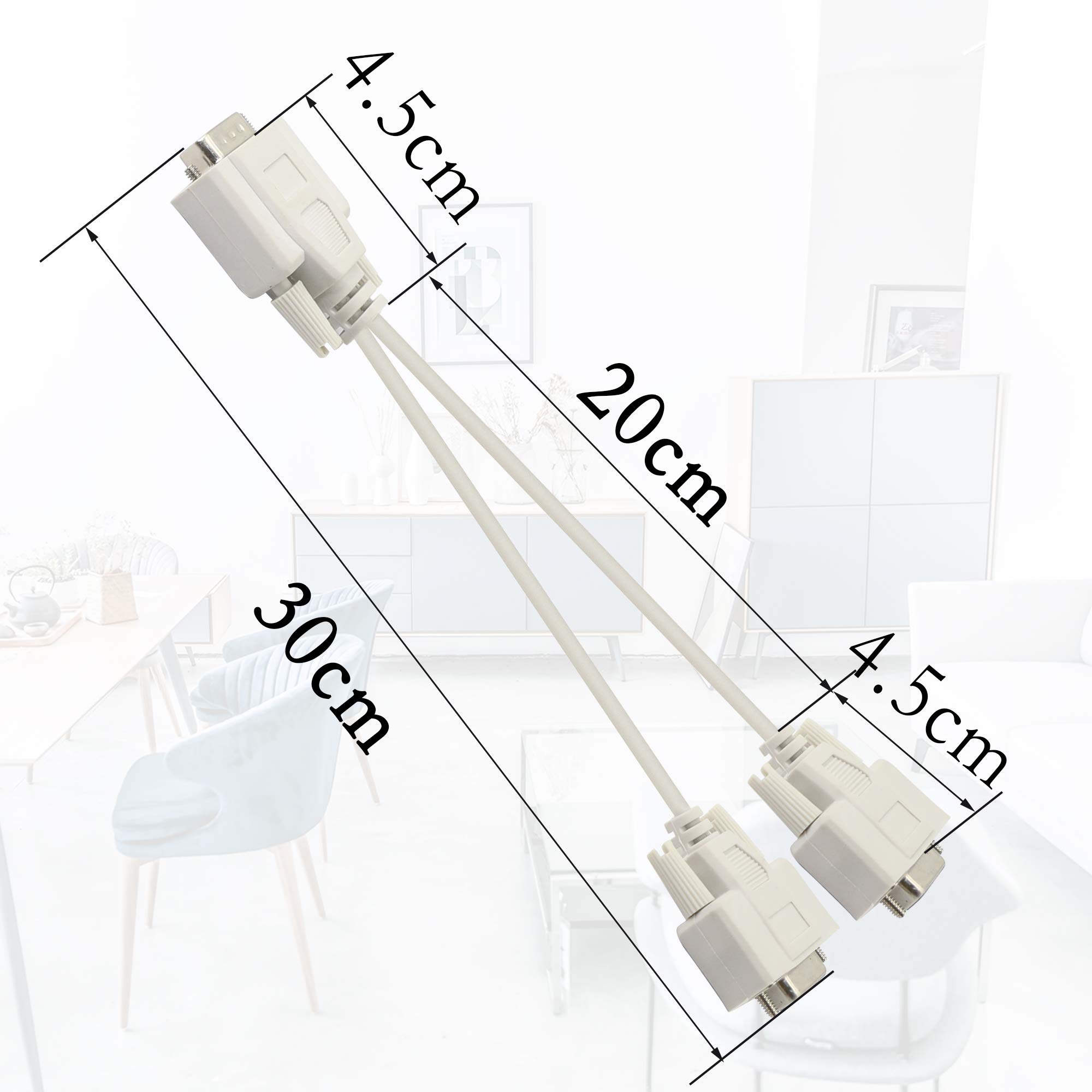

• The cable length is 30cm, the compact and simple design is easy to carry and place, easy to use, plug and play, no driver installation

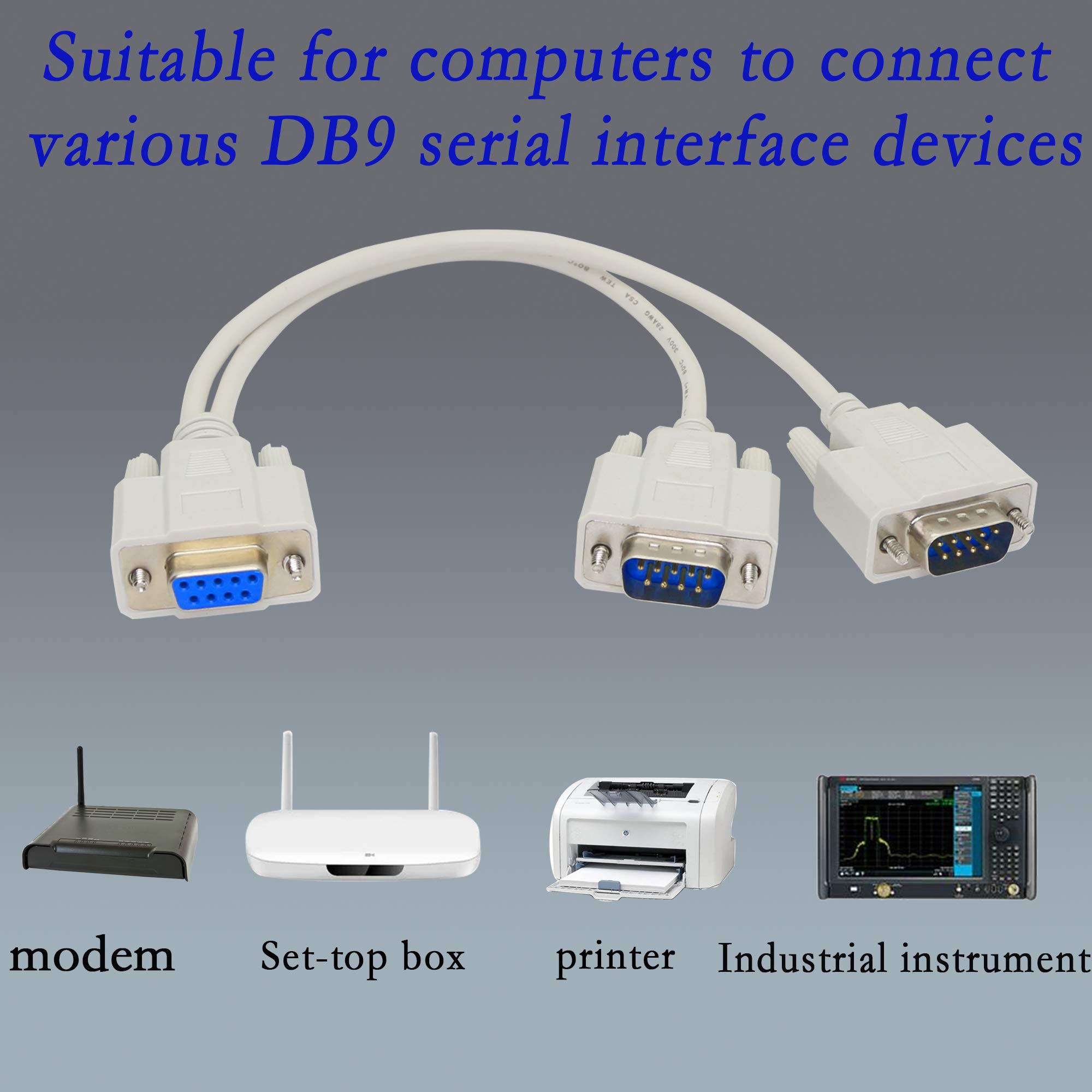

• With high compatibility, it can meet the needs of notebooks and desktops to connect to serial computers, digital machine tools, set-top boxes, industrial instruments, etc.

1.① Pin (DCD) data carrier detection, ② pin (RXD) receive data, ③ pin (TXD) transmit data, ④ pin (DTR) data terminal preparation, ⑤ pin (SG) signal ground, ⑥ pin (DSR) data device preparation OK, ⑦ pin (RaS) request to send, ⑧ pin (CTS) clear to send, ⑨ pin (RI) ringing indication. 2.The DB9 splitter cable can help you split a DB9 9-pin male connector into two DB9 9-pin female connectors. 3.uses high-quality nickel-plated connectors and plugs and a high-quality PVC injection housing，With wear-resistant, durable, smooth transmission and other functions. 4.This cable's fully molded connector with thumbscrews can provide you with a quick and convenient connection every time. Just loosen the screw to disconnect, then connect and tighten firmly to make the connection. 5.It is recommended not to insert or unplug a serial port while it is energized.When inserting or unplugging the serial port, at least one end should be cut off, otherwise the serial port may be easily damaged. 6.Cable length: 30cm. 7.Suitable for connection and signal transmission of computers and tax control machines, CNC machine tools, PDAs, set-top boxes and other serial devices. 8.Packing quantity; 1 X DB9 serial splitter cable
