30A MPPT Solar Charge Controller 12V 24V Auto, Solar Charge Controller Max 100V Input Negative Grounded Solar Regulator 30A for Lead-Acid and Lithium Batteries

• New Upgraded EPEVER MPPT charge controller 30Amp Tracer3210AN ,Max.PV(Voc) 100V, Max input solar panels power 390W/780W Charging for 12V/24V battery system ,Common Negative Grounding , High tracking efficiency no less than 99.5% .
• With RS-485 communication bus interface and Modbus communication protocol.Monitor and set the parameters via remote meter MT50 or mobile phone APP or PC software .
• LCD panel display design, dynamically displaying tool’s operating data and working condition. Multiple load control modes: manual control, light ON/OFF, light On+Timer and test mode.
• Support for 4 type Battery charging and dischargeing: Lead-acid (Sealed, Gel, Flooded), Lithium and User-defined. Compatible with AGM batteries, User mode allow you set your own charging parameters. Battery temperature compensation function（only for Lead-acid battery）.
• The Tracer AN's charging process has been optimized for long battery life and improved system performance.It includes a 4-stage battery charging (Bulk, Boost, Float, and Equalization) and temperature compensation increase your battery life and improve your system's performance

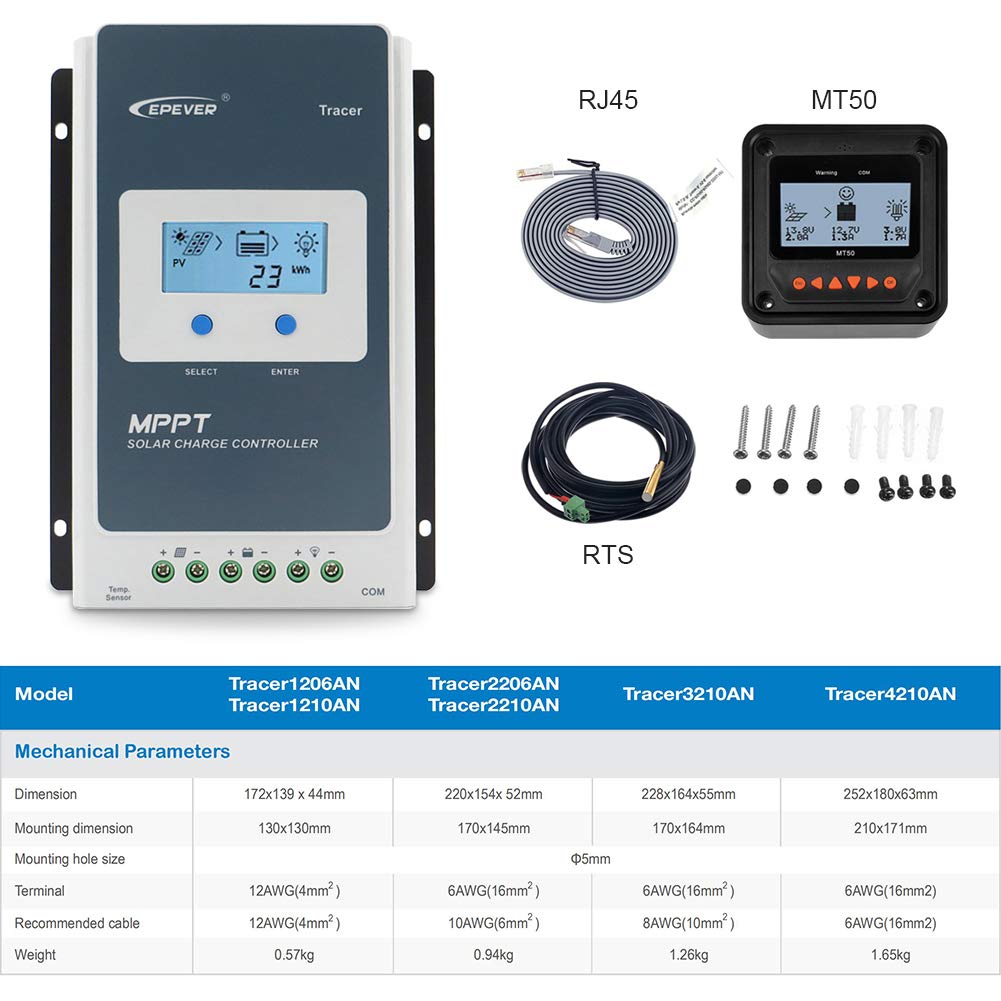

Product Feature: MPPT tracking efficiency above 99.5% Maximum charge conversion efficiency as high as 98% Support lead-acid and lithium-ion batteries Multiple load work modes Charging power and current limitation High-temperature charging power derating function Standard Modbus communication protocol with RS485 interface Real-time energy statistics Tracer3210AN Technical datas : Rated charge current:30A System nominal voltage :12V/24VDC Auto identifying Battery voltage range: 8V~32V Max.PV open circuit voltage:100VDC Max. PV input power :390 W/12V , 780W/24V Added Features: ★Blacklight LCD Display ★Common Negative Ground ★Support lithium Battery ★More Safety Protection Package List: 1 x 30A MPPT Solar Charge Controller 1 x User Manual (English)
