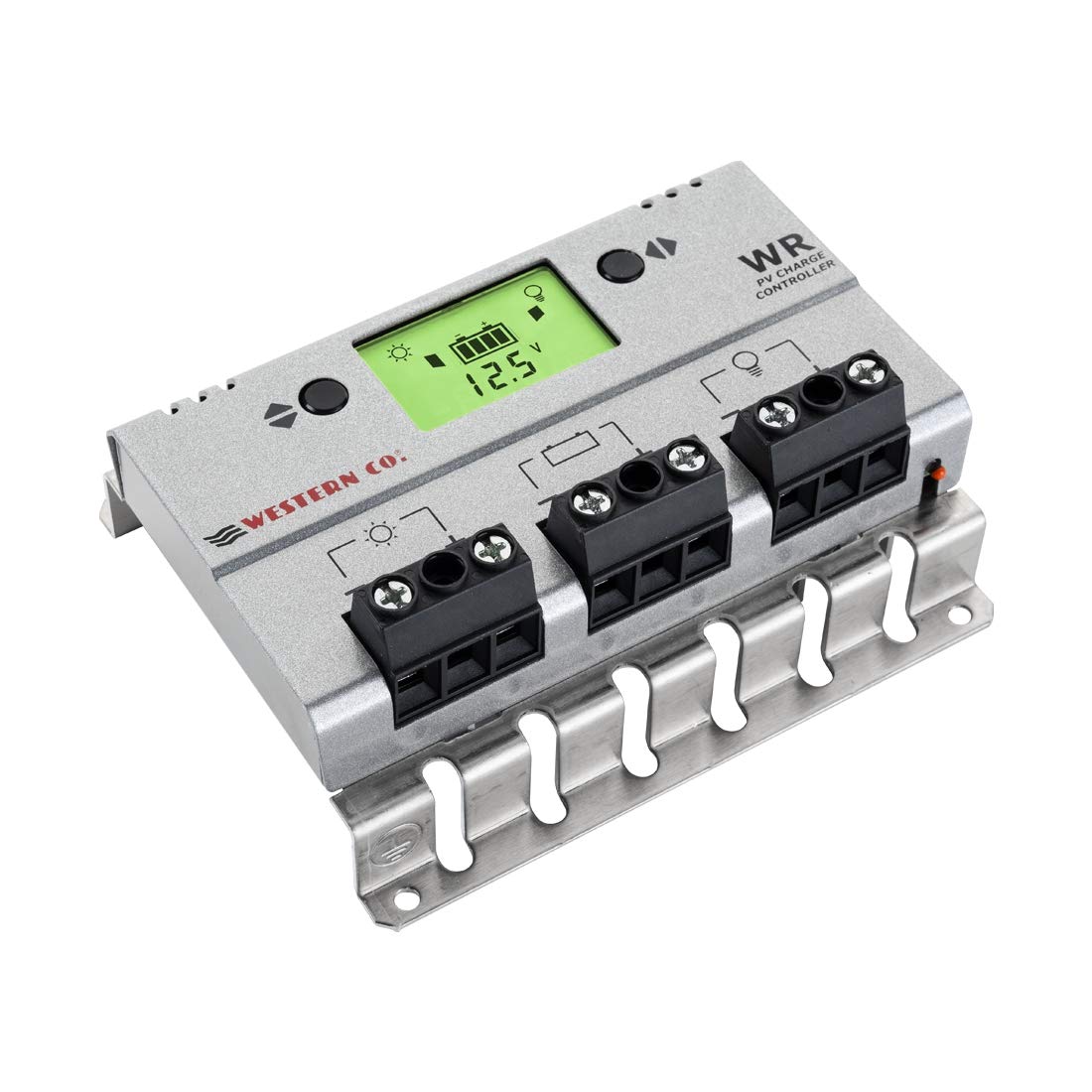

30A 12V/24V solar charge controller / regulator with LCD display and adjustable battery and load parameters (designed and made in Italy)

• Powerful 30A 12V/24V solar charge controller suitable even for large solar systems up to 480W (with 12V batteries) / 960W (with 24V batteries)
• Complete electronic protection of your battery and system: back feed stopping, overcharge / discharge, overvoltage, overload, short circuit, reverse polarity
• LCD display with advanced system information: power, voltage and current for the solar panel and battery, energy counter, temperature, load work
• Pre-set programmes for several battery types (sealed agm/gel, flooded lead acid) and fully adjustable low voltage battery protection
• 100% designed and made in Italy to the highest quality standards, this product comes with 5 year manufacturer warranty … Scroll down to Product Description for more details about this product

This 30A 12V/24V solar charge controller uses PWM (Pulse Width Modulation) technology to improve charge acceptance and extend the life of your battery. PWM technology can also recover some lost battery capacity. The controller comes with the full set of electronic protections such as stopping back feed of current at night, automatic cut off to prevent over-charging and deep discharge, over heating, over load, short circuit and reverse polarity protection. The LCD display of the controller shows a lot of useful information: power, voltage and current for the solar panel and battery, energy counter, temperature, load parameters etc. The unit can work with sealed, gel and flooded lead acid batteries. It has pre-set charging programmes for different battery types; battery low voltage protection can be also configured according to your needs. Load working modes can be programmed for many different applications. The controller can work with solar panels with combined power up to 480W (12V battery) / 960W (24V battery) and voltage up to 55V, though it works at maximum efficiency with solar panels with operating voltage 17V-20V (for 12V battery) / 34V-40V (for 24V battery). Controller specifications: - Fully automated operation and auto 12V/24V selection - Rated charging and load current: 30A - Enhanced monitoring and charging / load work control - Maximum solar panel input voltage 55V - 3 pairs of terminals (input, battery, load) for wire up to 10mm2 - Temperature sensor: built in - Full set of electronic protection functions - Self-consumption: 8mA - Working temperature: -10C to +60C - Size: 15 x 12 x 5 cm - Weight: 500 g - Multiple mounting holes for ease of installation The controller comes with a detailed instruction manual. This product is covered by 5 year manufacturer warranty. Please contact us if you need our free advice about this item.
