30 ton Ultra-Thin Hydraulic Lifting Cylinders Stroke 0.56" Hydraulic Cylinder Industrial Lifting Jack Ram Low Height

• Low height:30 ton Ultra-Thin Hydraulic Lifting Cylinders Stroke 14 mm（0.56"） provide the maximum power to height ratio. A compact, low height cylinder design is ideal for confined spaces where other cylinders will not fit

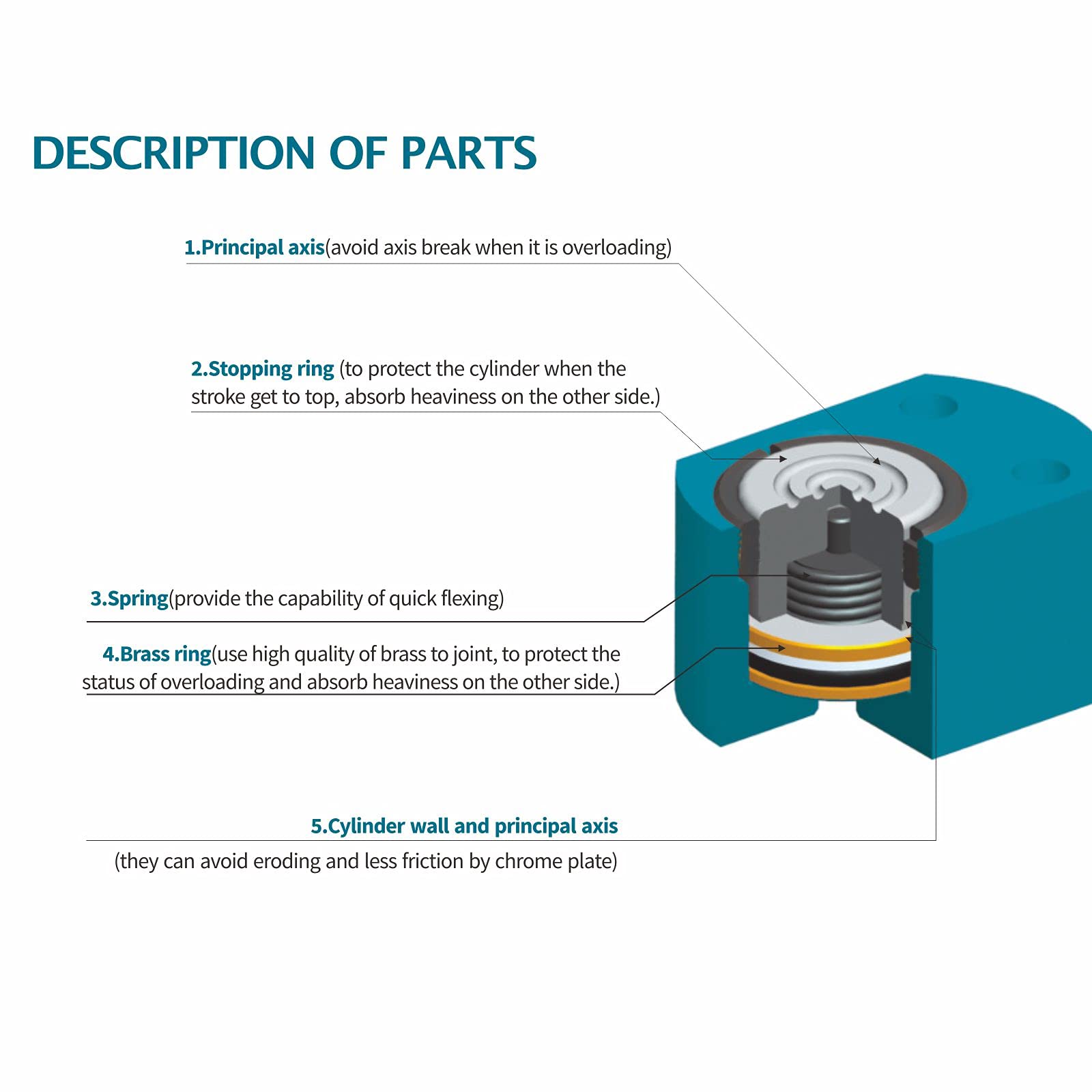

• Stopping ring: protect the cylinder when the stroke get to top, absorbing heaviness from the other side
• Plated steel plungers:hard chrome plated high quality steel plungers plunger avoid break ing when it is overloaded
• Single-acting spring return: provides fast and complete retraction
• Need to work with hydraulic pump: recommend model CP-800

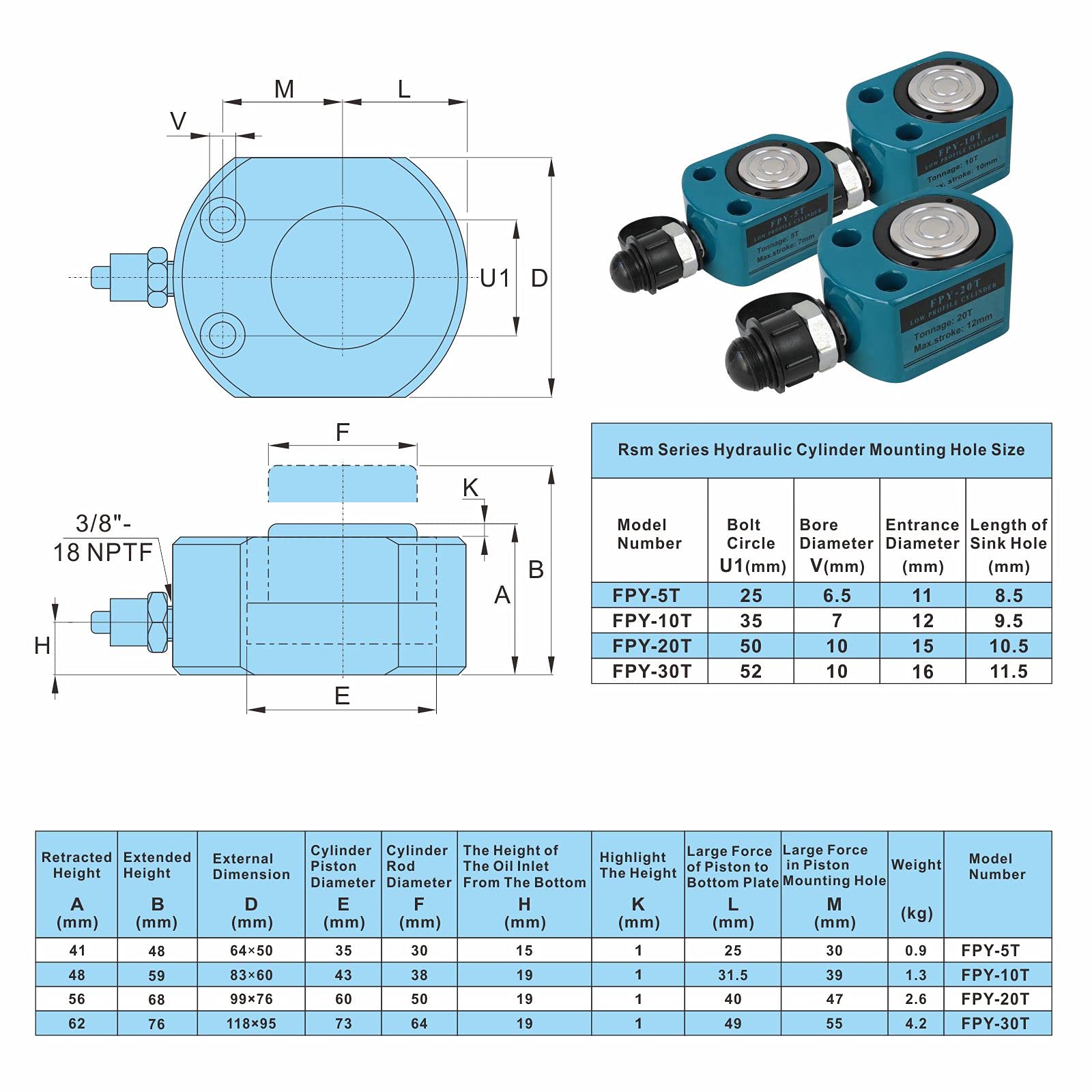

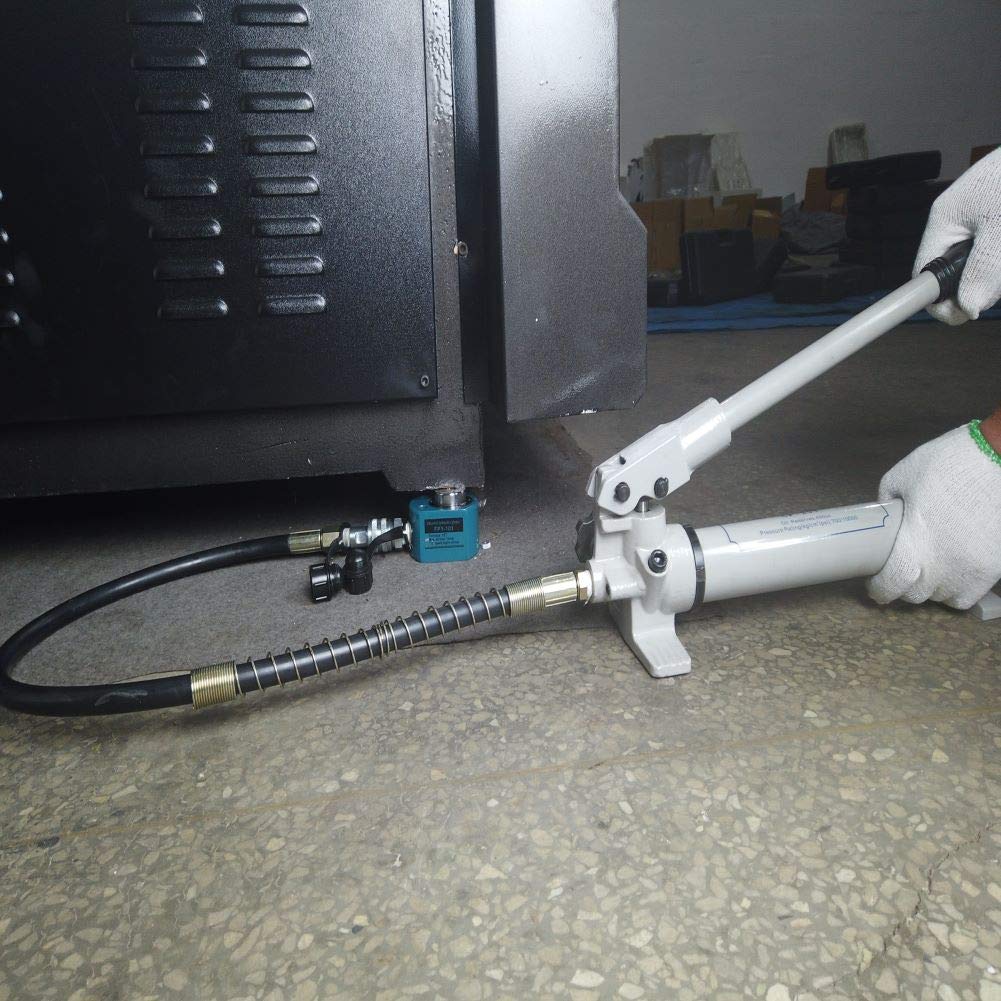

1 Hydraulic jack Low height is suit for working in narrowness; Short stroke can broke up times and times 2 The surface of plunger is finished with chrome plate to protect the using of longevity of the product 3 Plunger has the function of retracting automatically 4. Hydraulic cylinder lifting jack can be operated with kinds of pumps: manual pump, foot pump or electric pump Output(T) 30 Stroke(mm) 14 （0.56"） Effective area(cm2) 50.24 Oil Capacity(CC) 58 products(mm) 66 Extended height(mm) 80 Outside Dia(mm) 125x105 Bore die(mm) 60 Principal Dia(mm) 75 Thead for input oil-port(ZG) 3/8"- ZG Saddle protrusion form plgr(mm) 2 Weight(kg) 5 Need to work with pump cp-800
