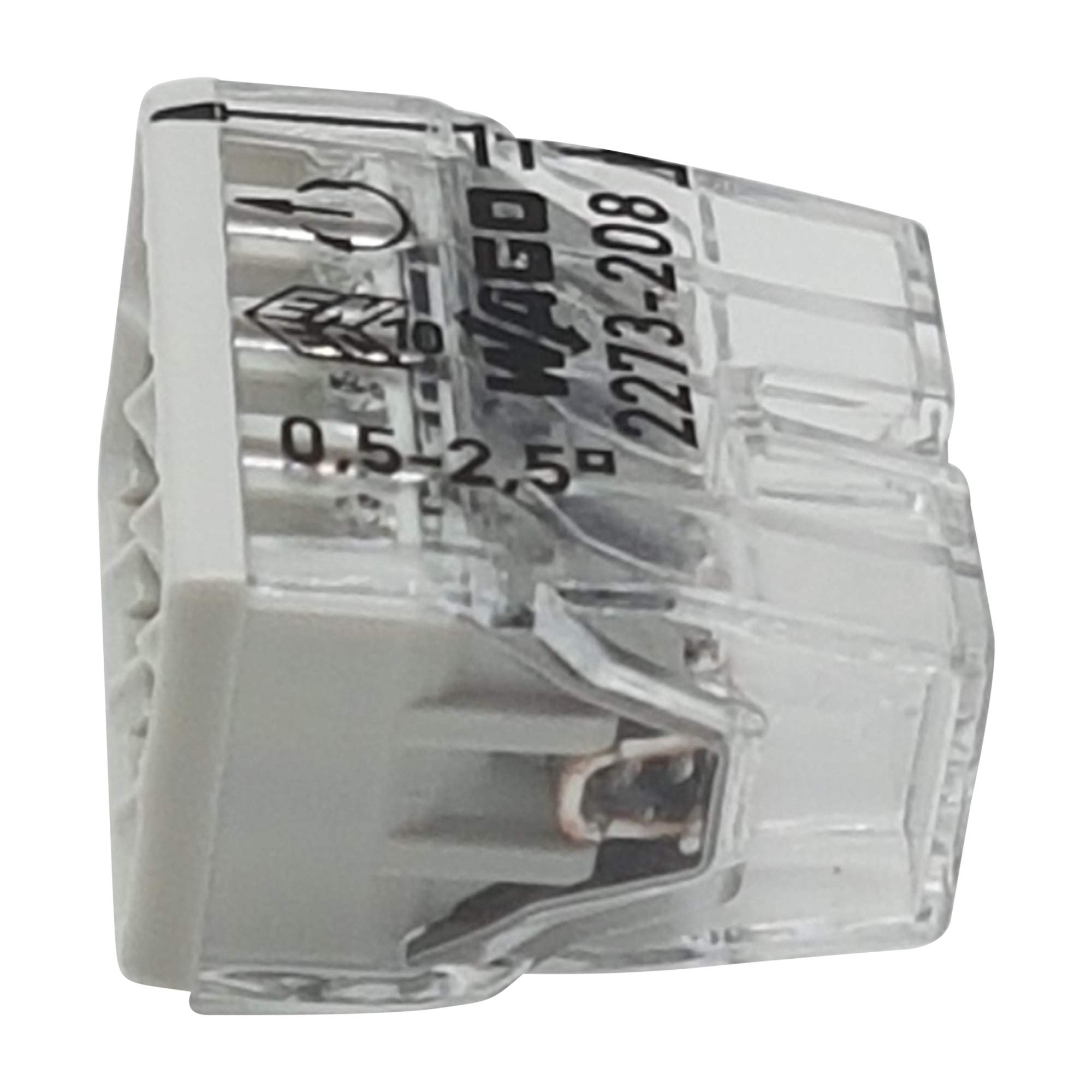

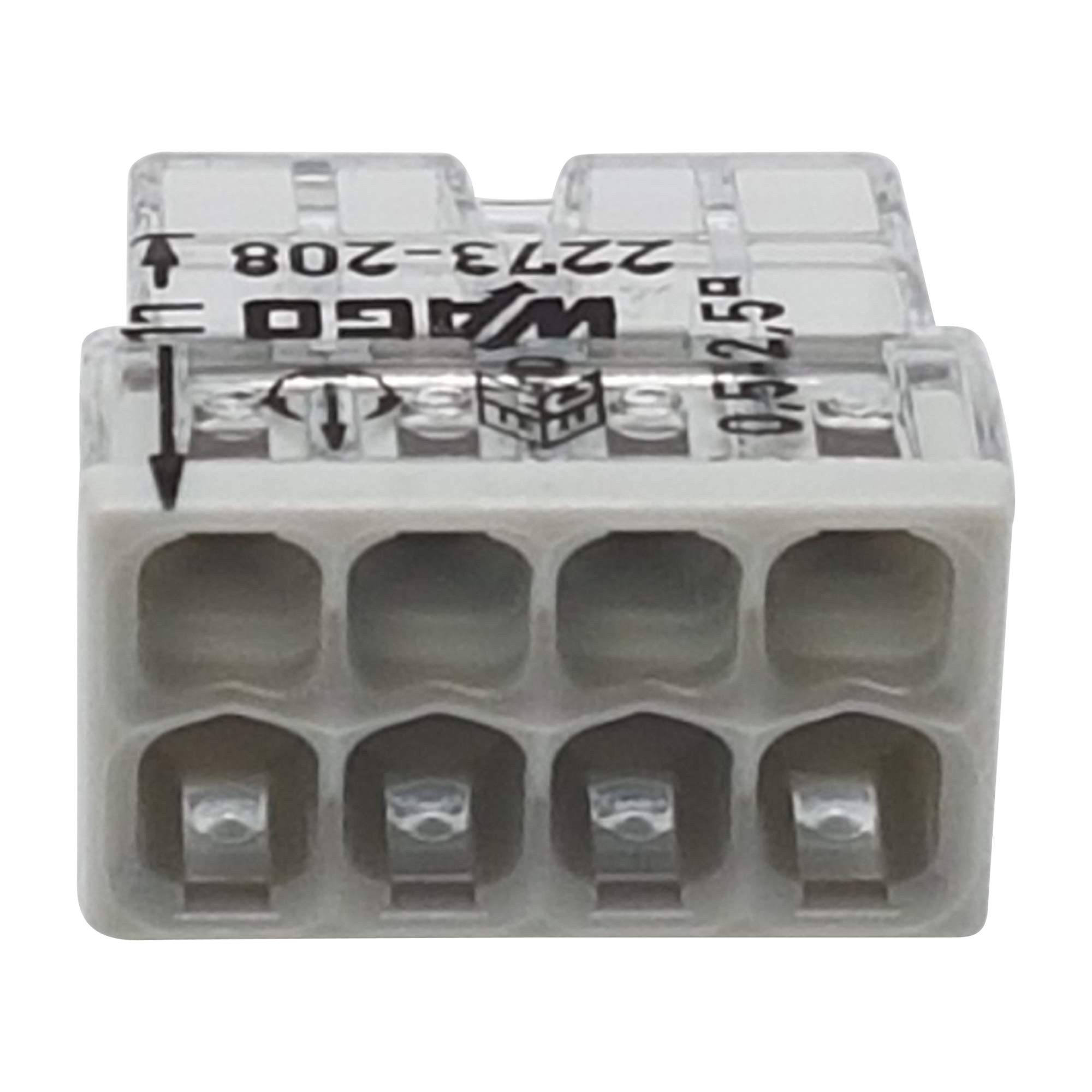

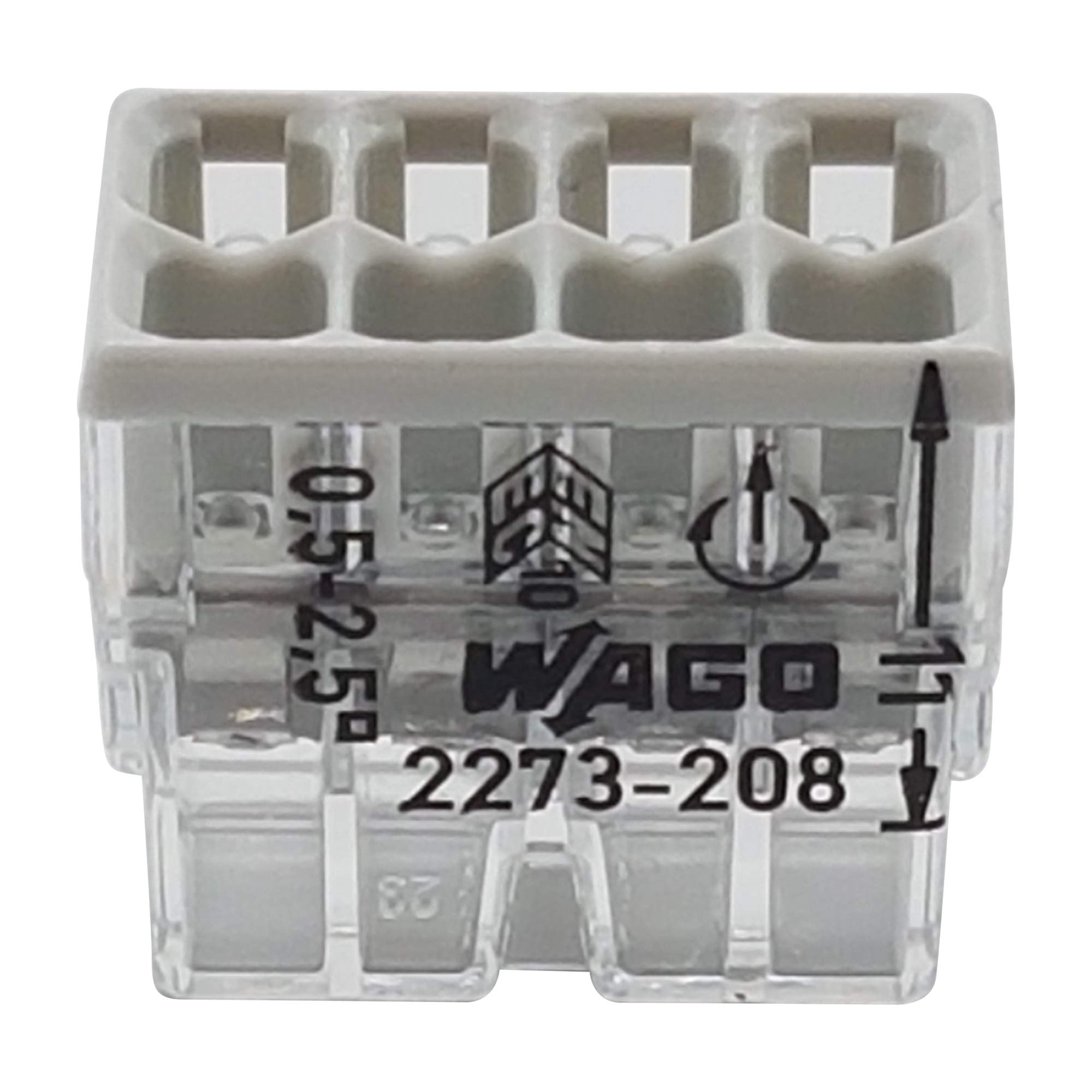

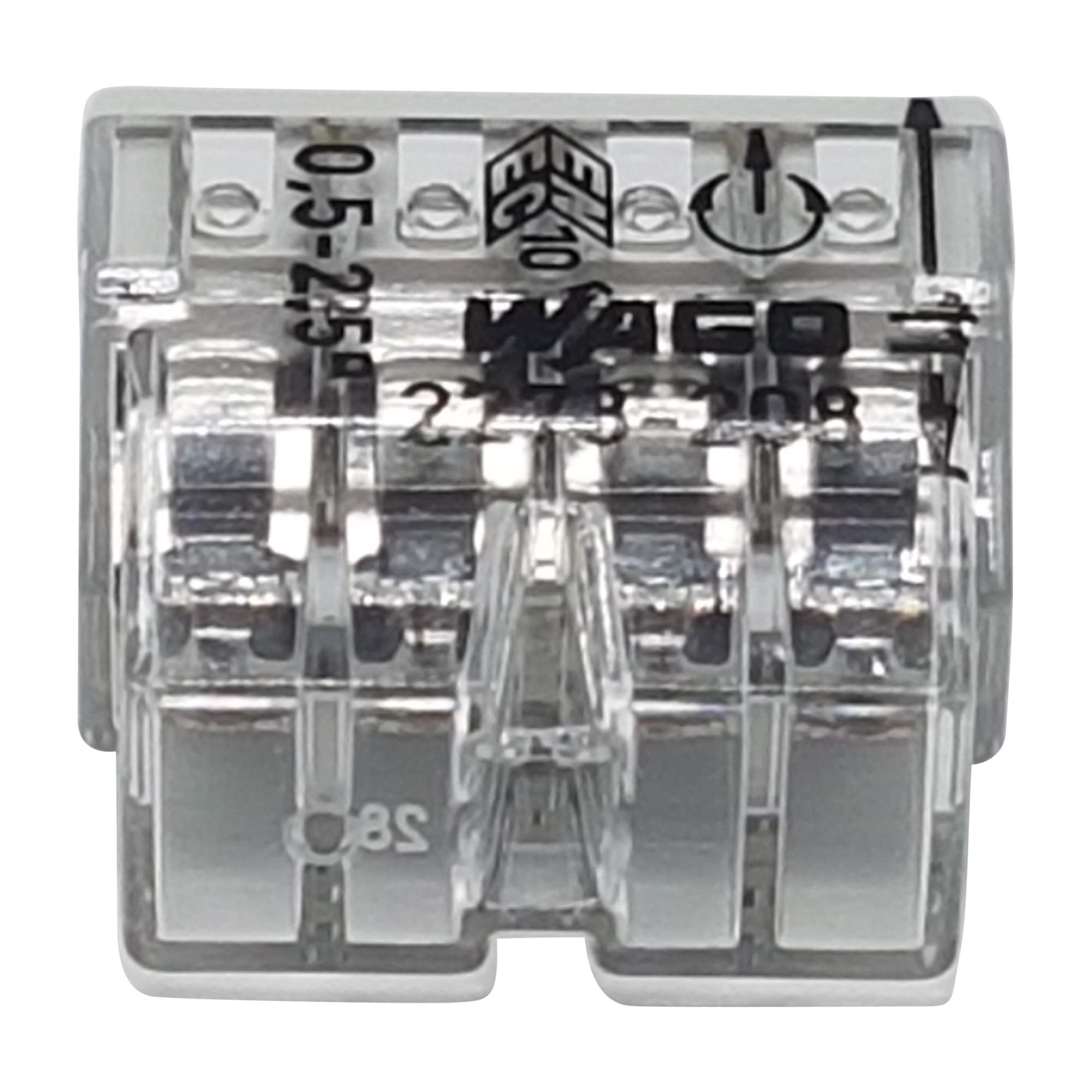

30 Pieces Wago 2273-208 Compact Junction Box Terminal Ø 0.5-2.5 mm², 8-pin, Transparent/Light Grey

• Number of clamping points: 8
• Nominal cross section: 0.5 - 2.5 mm²
• Rated voltage: 450 V
• Rated current: 24 A
• Only suitable for solid conductors and not for flexible conductors

Electrical data: Rated data according to IEC/EN 60664-1. Rated voltage (II/2): 450 V. Rated surge voltage (II/2): 4 kV. Rated current: 24 A. Connection data: Connection technology: Push Wire. Actuation type: push-in. Connectable conductor materials: copper/aluminium. Single-stranded conductor: 0.5 - 2.5 mm²/20 - 14AWG. Stripping length: 11 mm/0.43 inch. Total number of clamping points: 8 Total number of potentials: 1 Wiring Type: Side Wiring Conductor cross-sections single-wire: 0.5 mm². Geometric data. Width: 18 mm / 0.709 inches. Height: 10.4 mm/0.409 inch. Depth: 16.7 mm / 0.657 inches. Plug width: 18 mm/0.709 inch. Material data: Colour: transparent. Lid colour: light grey. Flammability class according to UL 94: V2. Fire load: 0.014 MJ. Weight: 0.713 g Environmental conditions Continuous operating temperature: 105°C. T-marking according to EN 60998: T60.
