YUSHIBO 30 Pairs 250V 10A 5.08mm Pitch 2Pins/4 Pins Plug-in PCB Screw Terminal Block Connector PCB Terminal Block

• Complete 30-Pair PCB Terminal Block Set – Includes 15 pairs of 2-pin connectors and 15 pairs of 4-pin connectors, all with 5.08mm pitch. Perfect for versatile circuit board wiring and DIY electronics.
• Reliable Screw Clamp & Plug-in Design – Secure screw terminals accept 28-10 AWG solid/stranded wires. The plug-in housing connects effortlessly to PCB-mounted headers for tool-free assembly and disassembly.
• Robust Electrical Performance – Rated at 250V and 10A. Features flame-retardant PA66 plastic body and corrosion-resistant copper alloy contacts for long-lasting use in low-voltage applications.

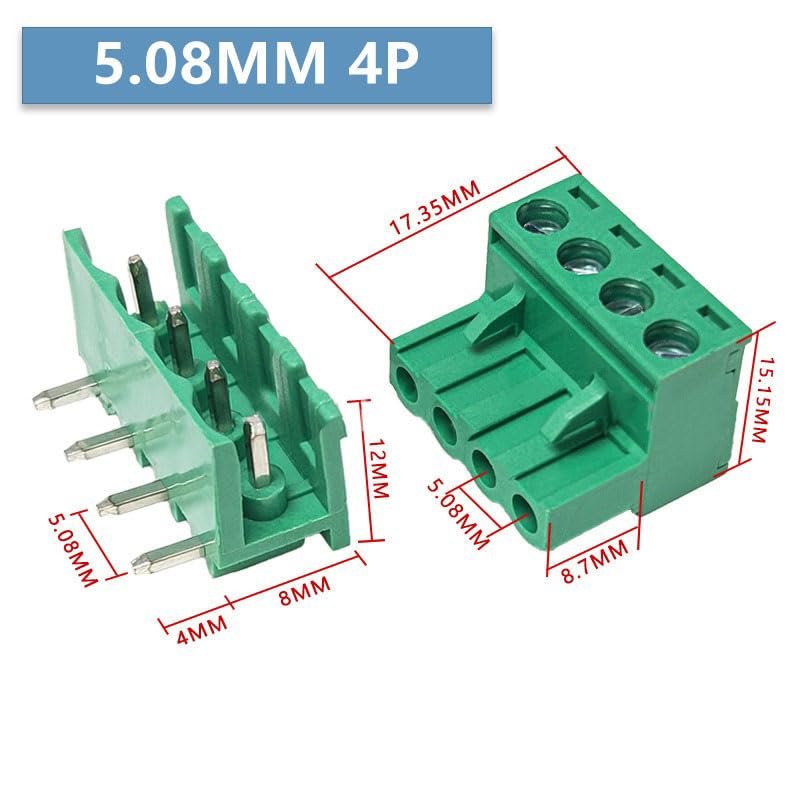

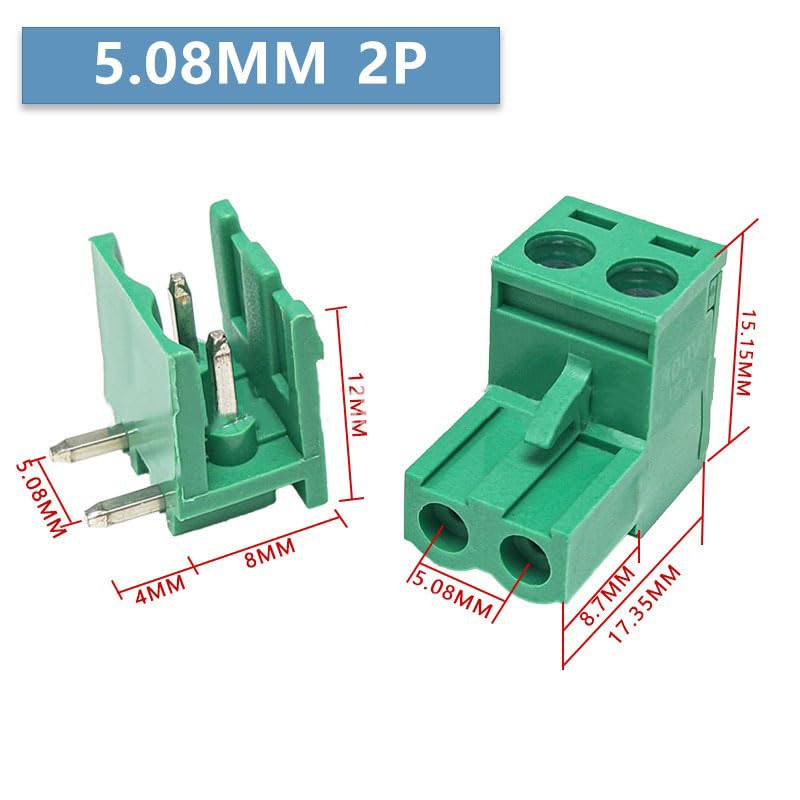

• Compact 5.08mm Pitch for Easy Integration – Standard 0.2” spacing ensures compatibility with most PCBs and prototyping boards. Space-saving design allows high-density connections.
• Versatile for Many Electronics Projects – Ideal for connecting wires in DIY electronics, industrial control panels, power supplies, LED lighting systems, digital instruments, communication devices, and more.

Specifications: Pole: 4 position 2 position Pin spacing: 5.08mm / 0.2 '' Housing: PA66. UL 9V-0 Nominal voltage: 250V Nominal current: LEC 15A UL 10A Dielectric strength: AC2500V / 1 min Wire range: 28-10AWG Temperature range: -40 ℃ - 105 ℃ Max soldering: 250 ℃ for 5 seconds Torque: 0.4 Nm Package Including 15 pairs x 2 Pin Plug-in PCB Block 15 pairs x 4 Pin Plug-in PCB Block
