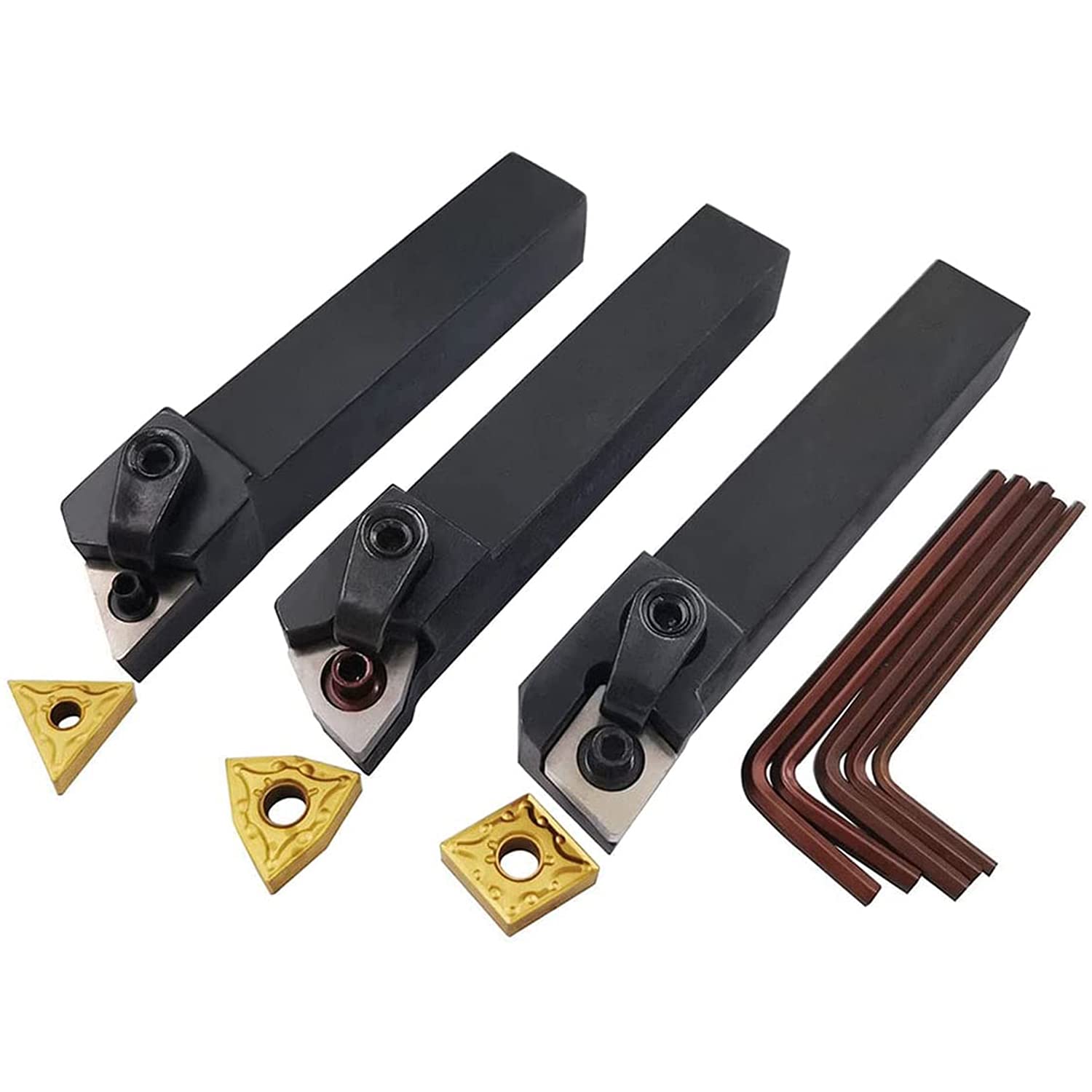

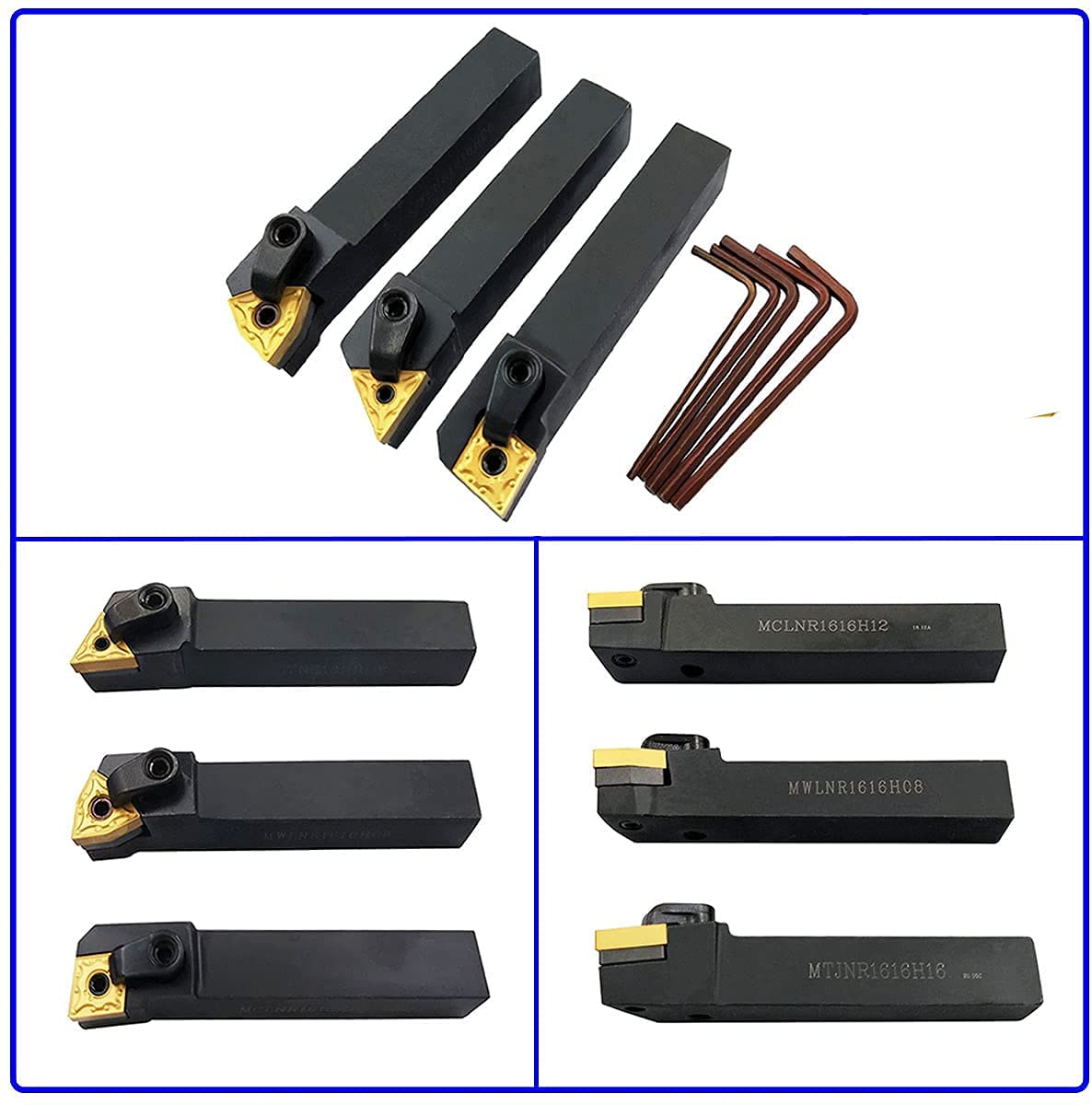

3pcs 5/8 Inch CNC Lathe Excircle Indexable Carbide Turning Tool Bit Set MTJNR1616H16 + MWLNR1616H08 + MCLNR1616H12 with 3pcs wnmg431, cnmg431, tnmg331 Carbide Inserts Indexable

• Model: MTJNR1616H16 + MWLNR1616H08 + MCLNR1616H12.
• Package includes: 3 holders + 3 sets of wrenches + 3 carbide pieces + 3 pieces.
• Shank diameter (length x width): (16 x 16 mm); Total length: (100 mm), cutting direction: right hand.
• Each tool holder is a smooth surface oxidized in black and the hardness of the tool (HRC 48 degrees up and down) and accuracy up to the first class.

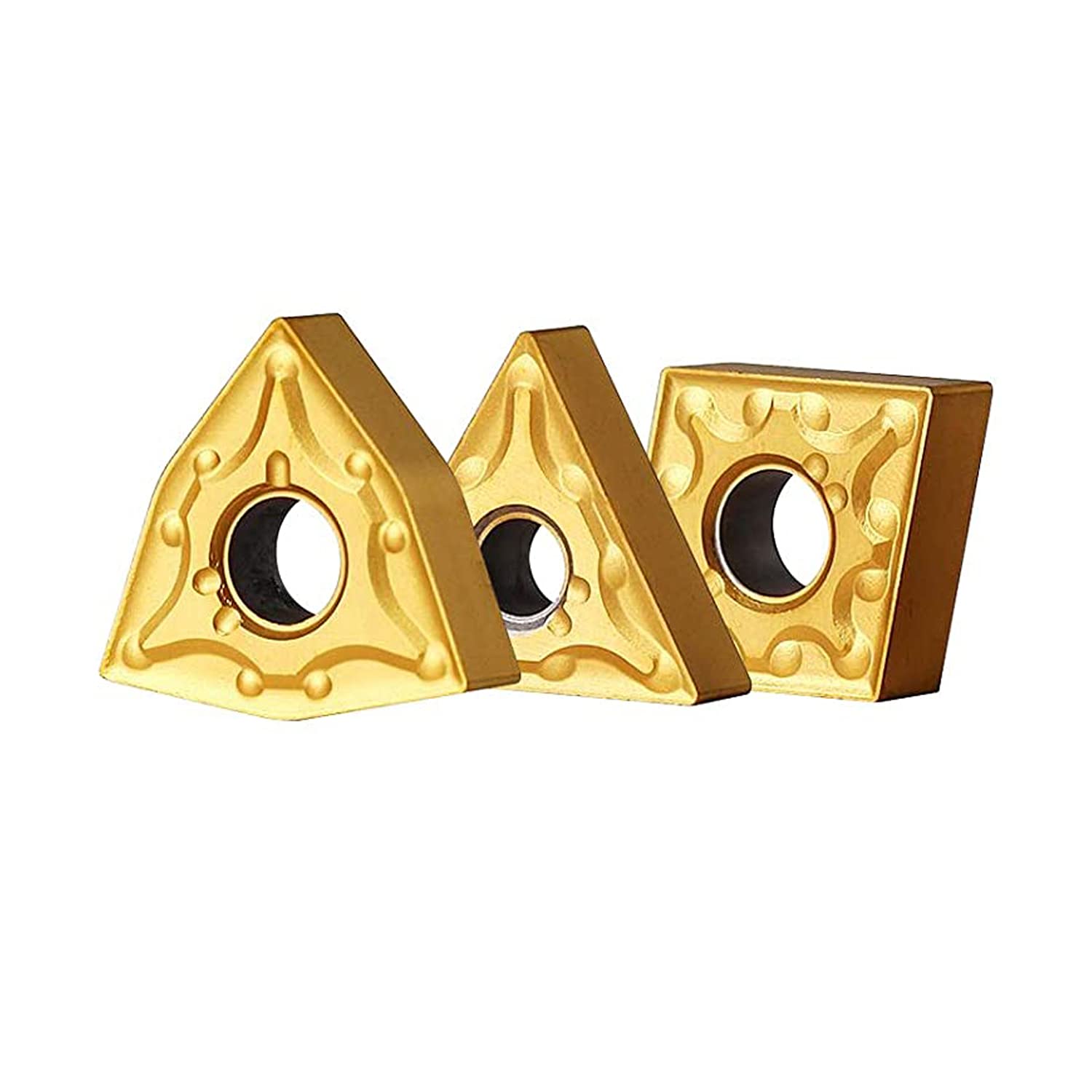

• Turning inserts exquisite workmanship, high strength, high toughness, stable and durable. If you need more matching insert, you can search B07HJPJVL1

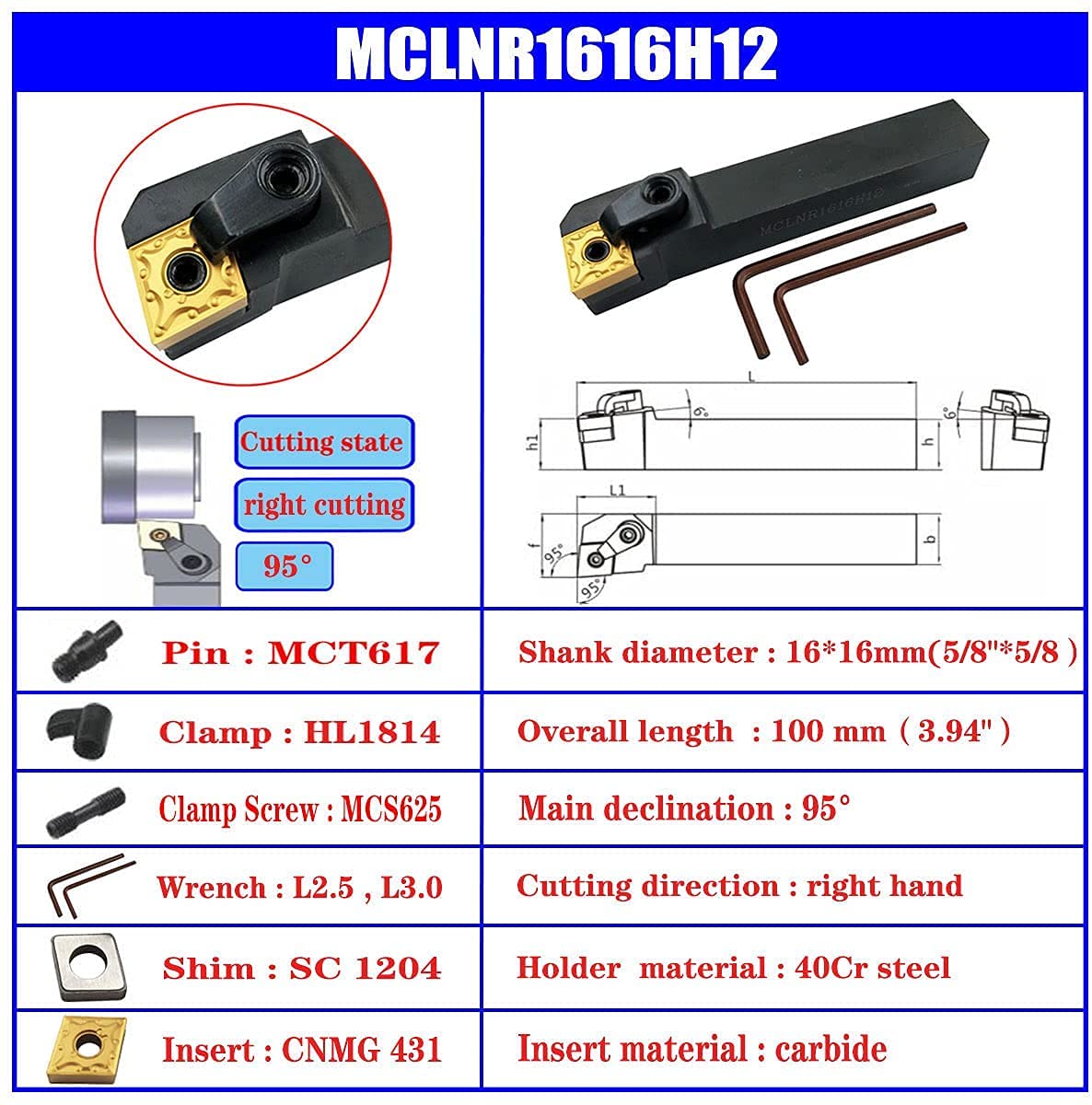

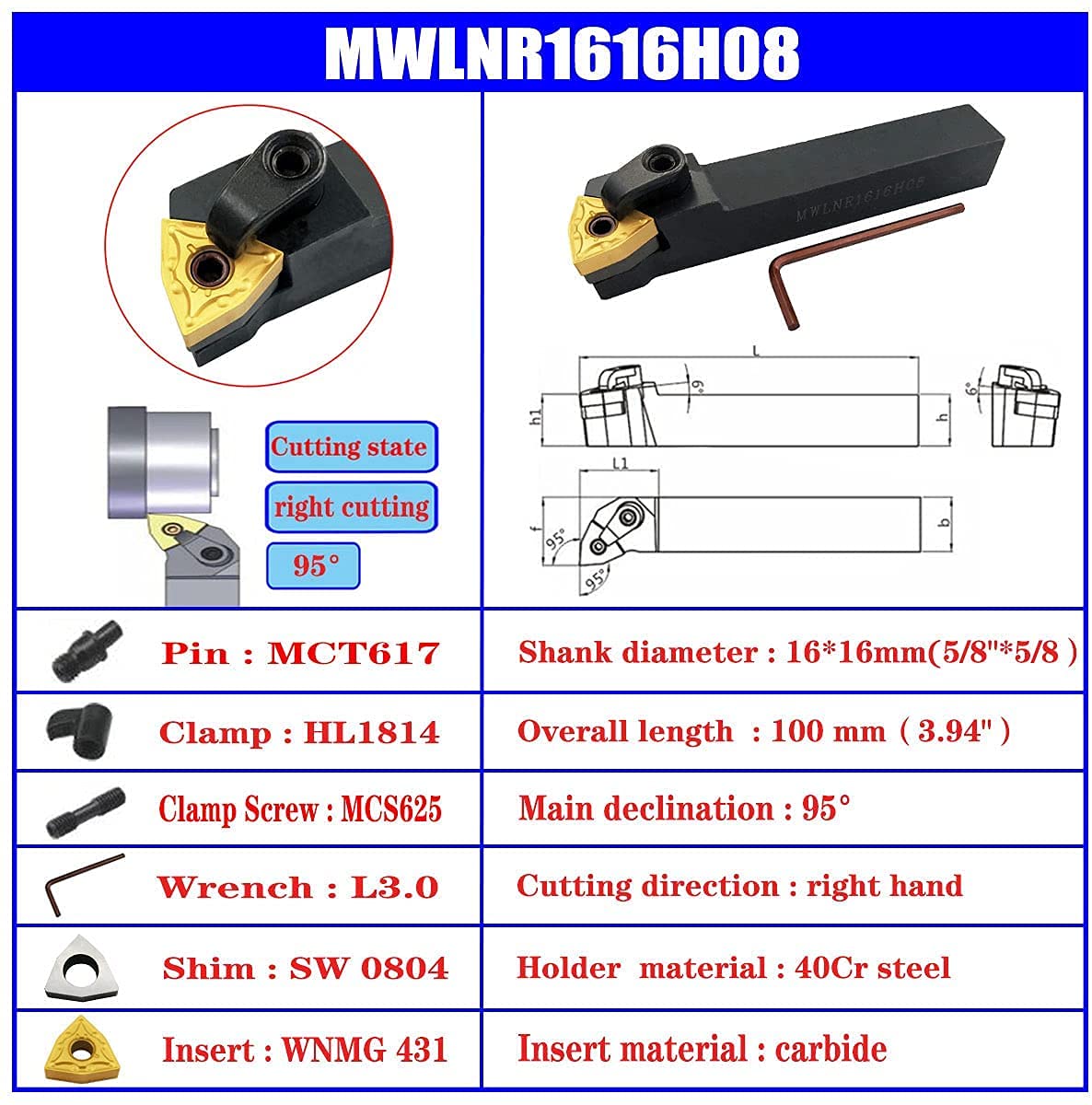

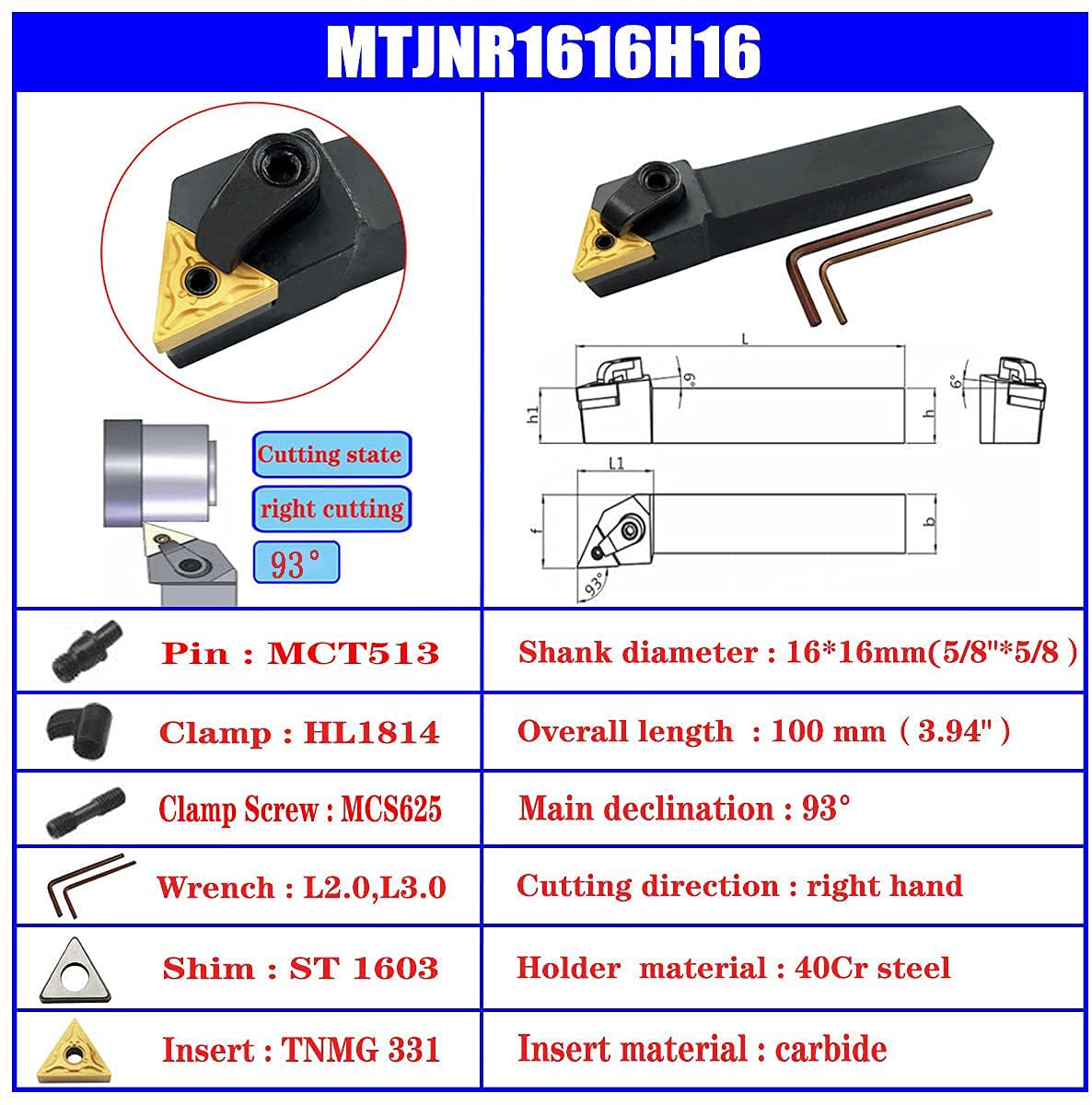

Model: MTJNR1616H16 + MWLNR1616H08 + MCLNR1616H12. ---------- (1) MTJNR1616H16: Rod diameter (length x width): (16 x 16 mm). Total length: 100 mm. Main declination: 93º, Wedge: ST 1603, Pin: MCT513 Pliers: HL 1814 Clamping Screw: MCS625 Key: L2.0, L3.0 Inserts: TNMG 160404 / TNMG 331, insert length: (16 mm), thickness: (4 mm). ---------- (2) MWLNR1616H08: Shaft diameter (length x width): (16 x 16 mm). Total length: 100 mm. Main declination: 95º, Shim: SW 0804, Spindle: MCT617 Clamp: HL1814. Clamping Screw: MCS625 Key: L2.5, L3.0 Inserts: WNMG 080404 / WNMG 431, insert length: (8 mm), thickness: (4 mm). ----------- (3) MCLNR1616H12: Shaft diameter (length x width): (16 x 16 mm). Total length: 100 mm. Main declination: 95º, Shim: SC 1204, Spindle: MCT617 Flange: HL1814 Clamping Screw: MCS625 Key: L2.5, L3.0 Inserts: CNMG 120404 / CNMG 431, insert length: (12 mm), thickness: (4 mm). We are the CNC factory company, if you need more you can contact me immediately and can give you the discount! If you have any questions about this product, you can consult me immediately, I will solve the problem for you! :)
