3 Way Pneumatic Manifold Air Distribution Block, G1/2 Supply Port, G1/4-Inch Output Port, Aluminum Alloy

• Air manifold for distributing pneumatic power to multiple locations from a single source.

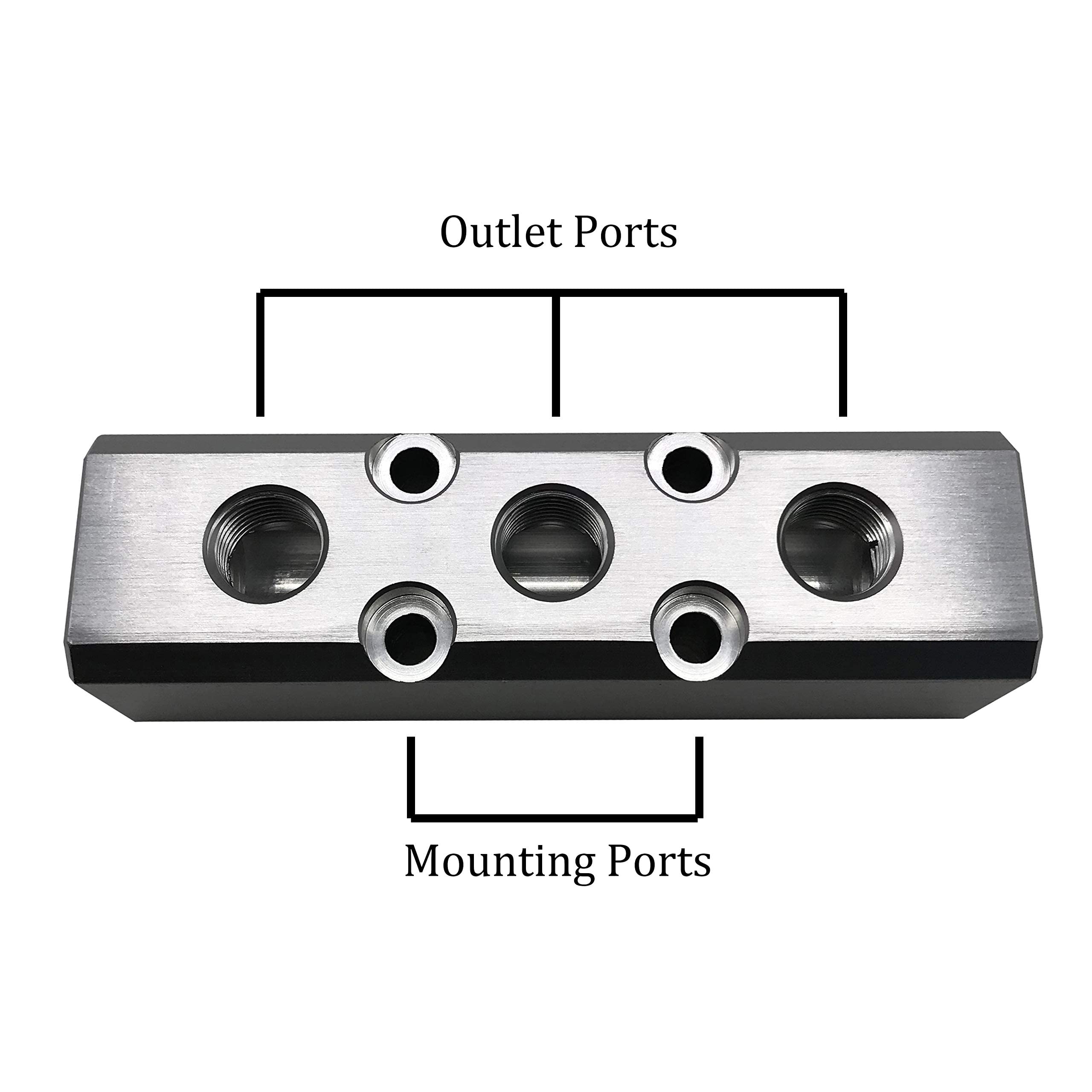

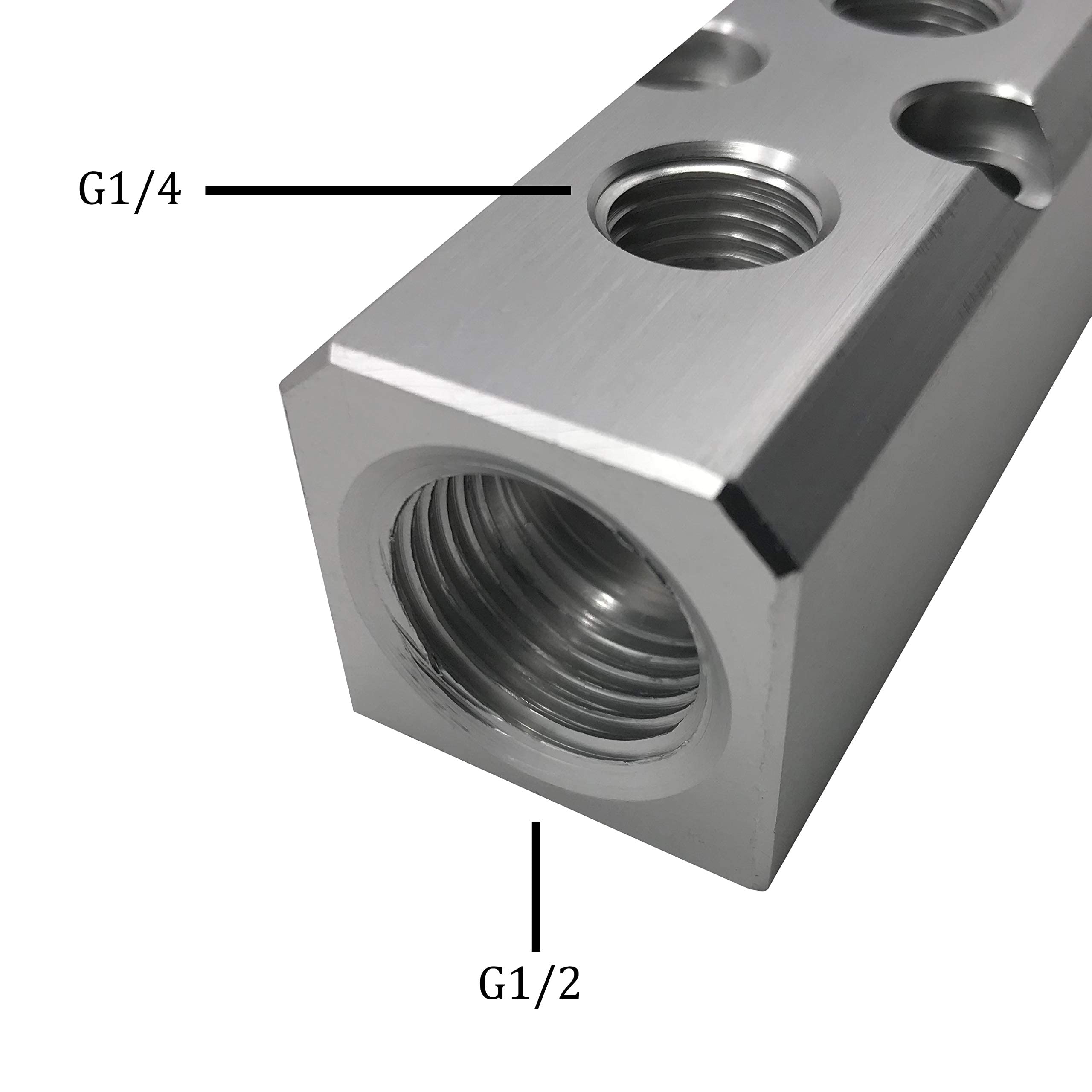

• Two G1/2" inlet ports and three G1/4" outlet ports.
• High pressure resistance and strong sealing.
• Efficient and stable performance, easy to install and sustainable.

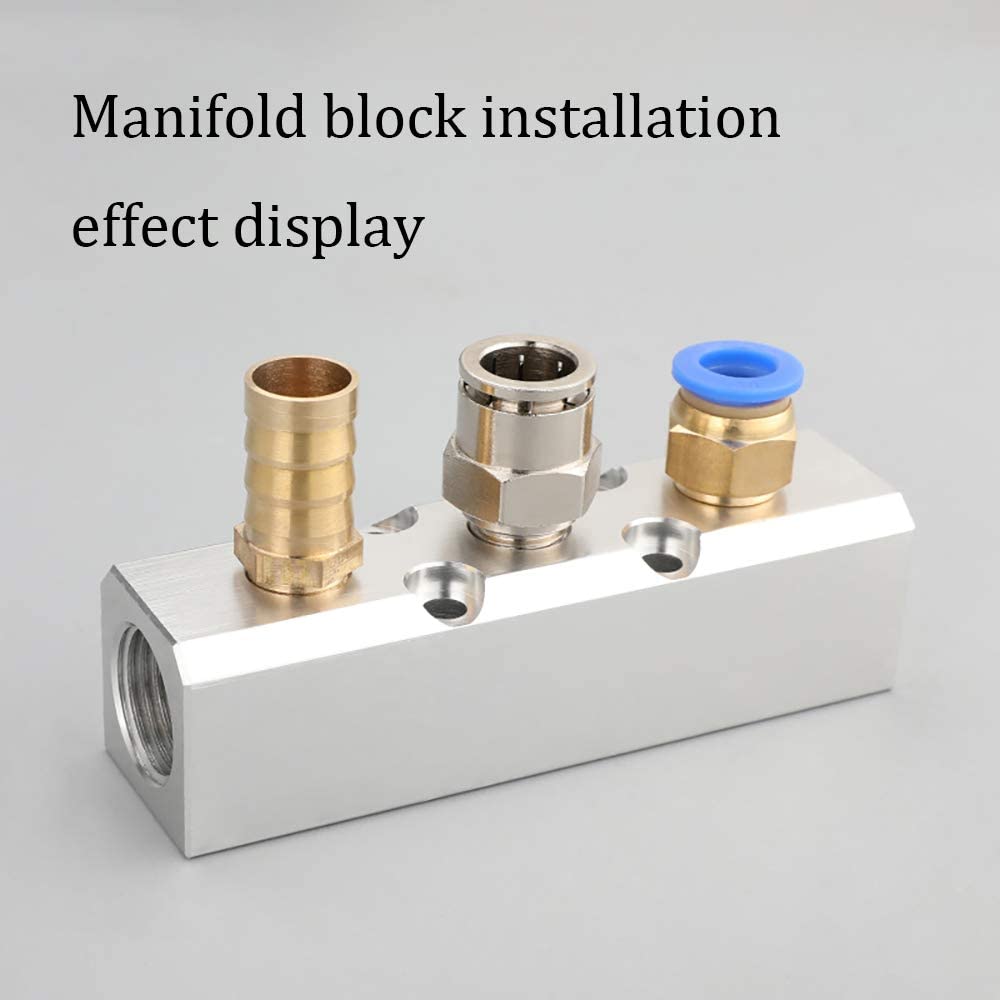

• It is suitable for air compressor or storage gas equipment branch outlet, or used as supporting parts of machine equipment, generally installed in the gas terminal branch interface or engineering wiring pipeline branch.

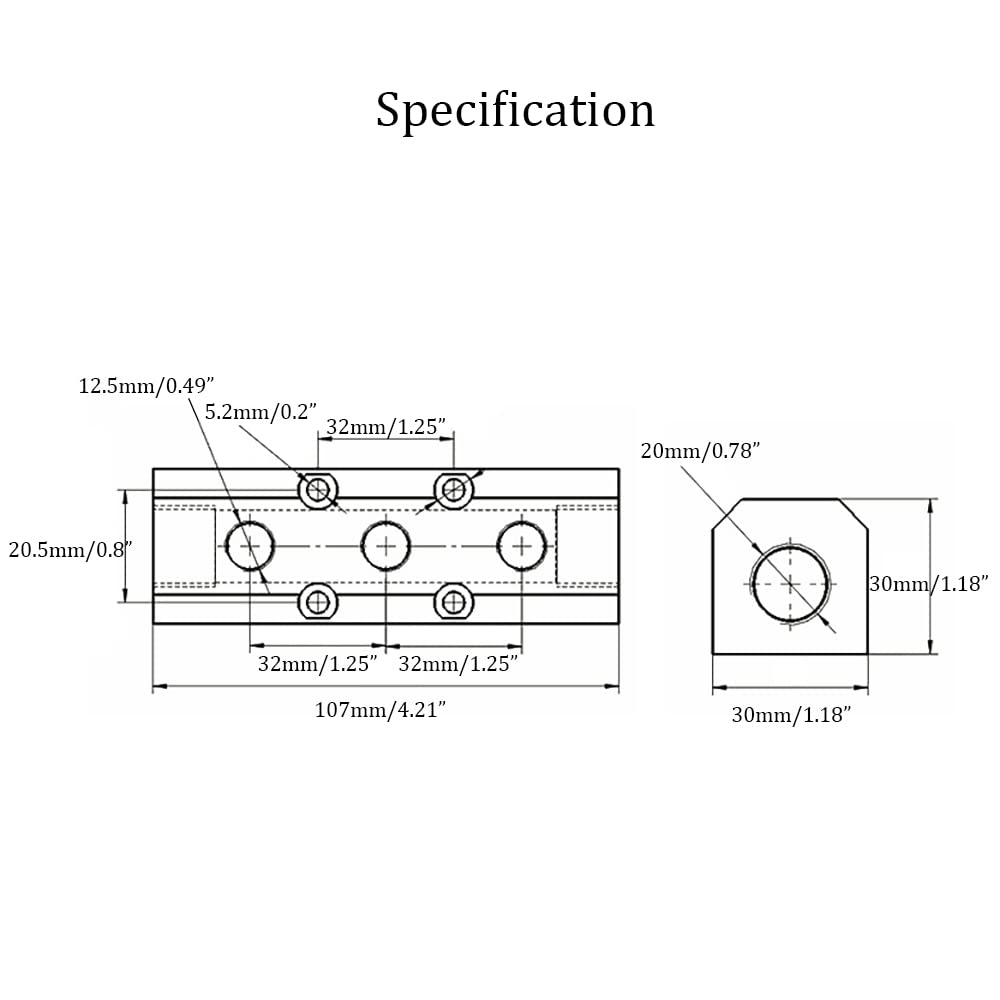

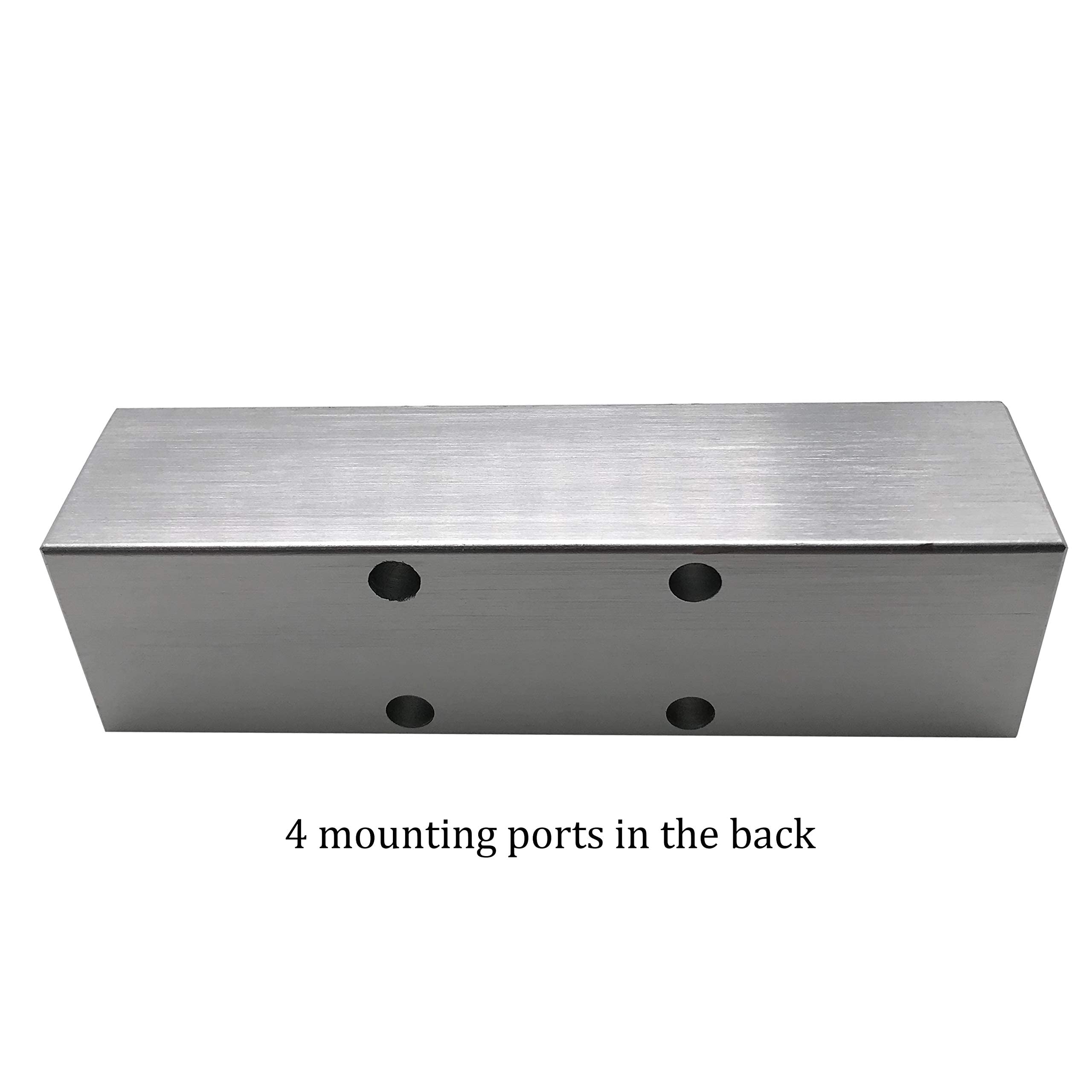

Specifications: Type: 3 Way 5 Port Inlet Port Diameter: G1/2 (20mm/0.78”) Outlet Port Diameter: G1/4 (12.5mm/0.49”) Total Length: 107mm/4.21” Width: 30mm/1.18” Height: 30mm/1.18” Mounting Port Diameter: 5.2mm/0.2” Outlet Port Center Distance: 32mm/1.25” Mounting Port Center Distance: 20.5mm/0.8”
