CNCTOPBAOS 3 Axis GRBL Offline Controller Board Remote Hand Control LCD Screen Off-line Control Module for 1610 3018 PRO CNC Router Carving Milling Engraving Machine Offline CNC Controller

• Product: 3 Axis GRBL Offline Controller Hand Control; With this offline controller module, you can directly control the CNC router without connecting it to your computer
• Manually Control:You can manually adjust X,Y,Z axis location as engraving starting point,manually open or close spindle,manully open or close cooling fan

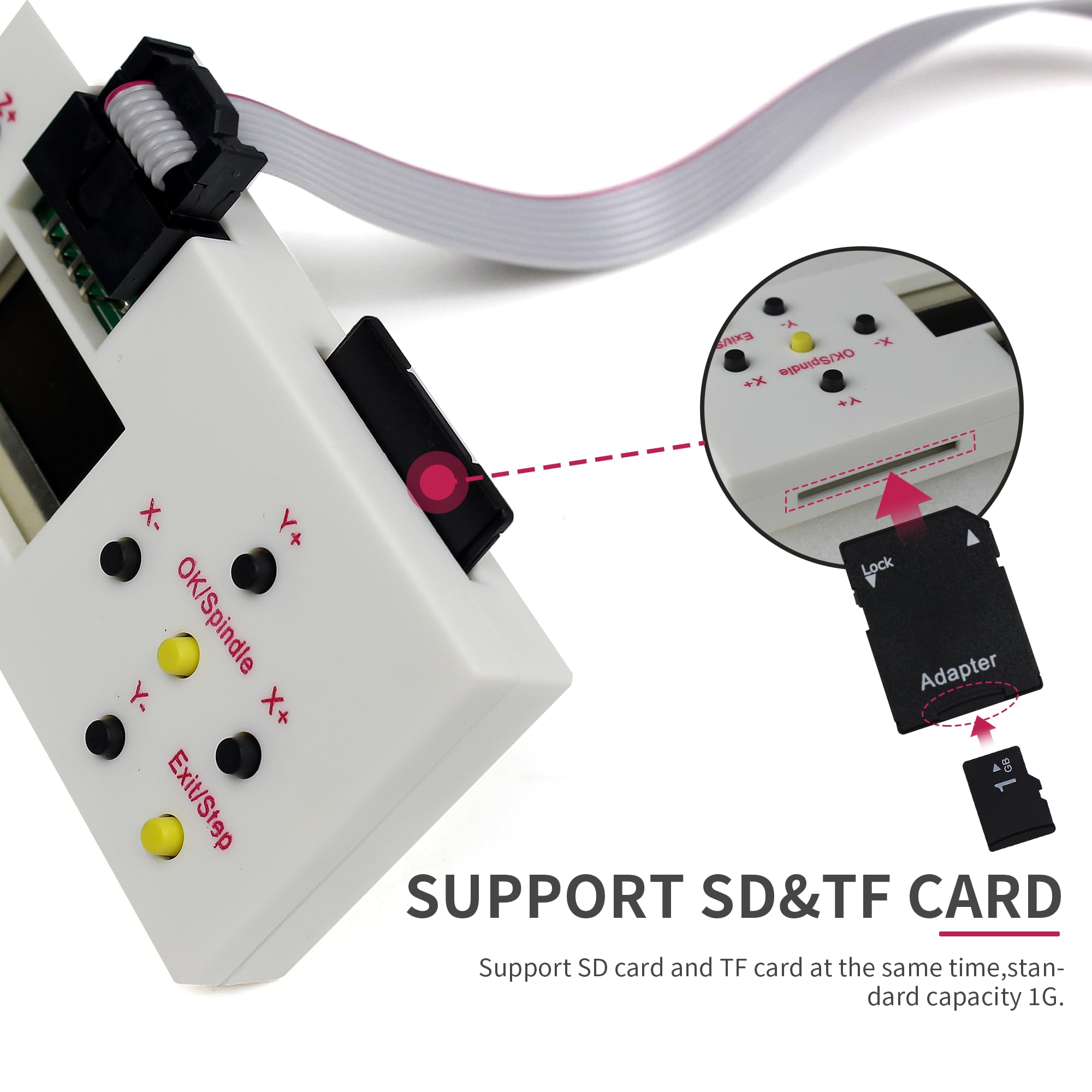

• Support SD AND TF card: Support SD card and TF card at the same time,standard capacity 1G

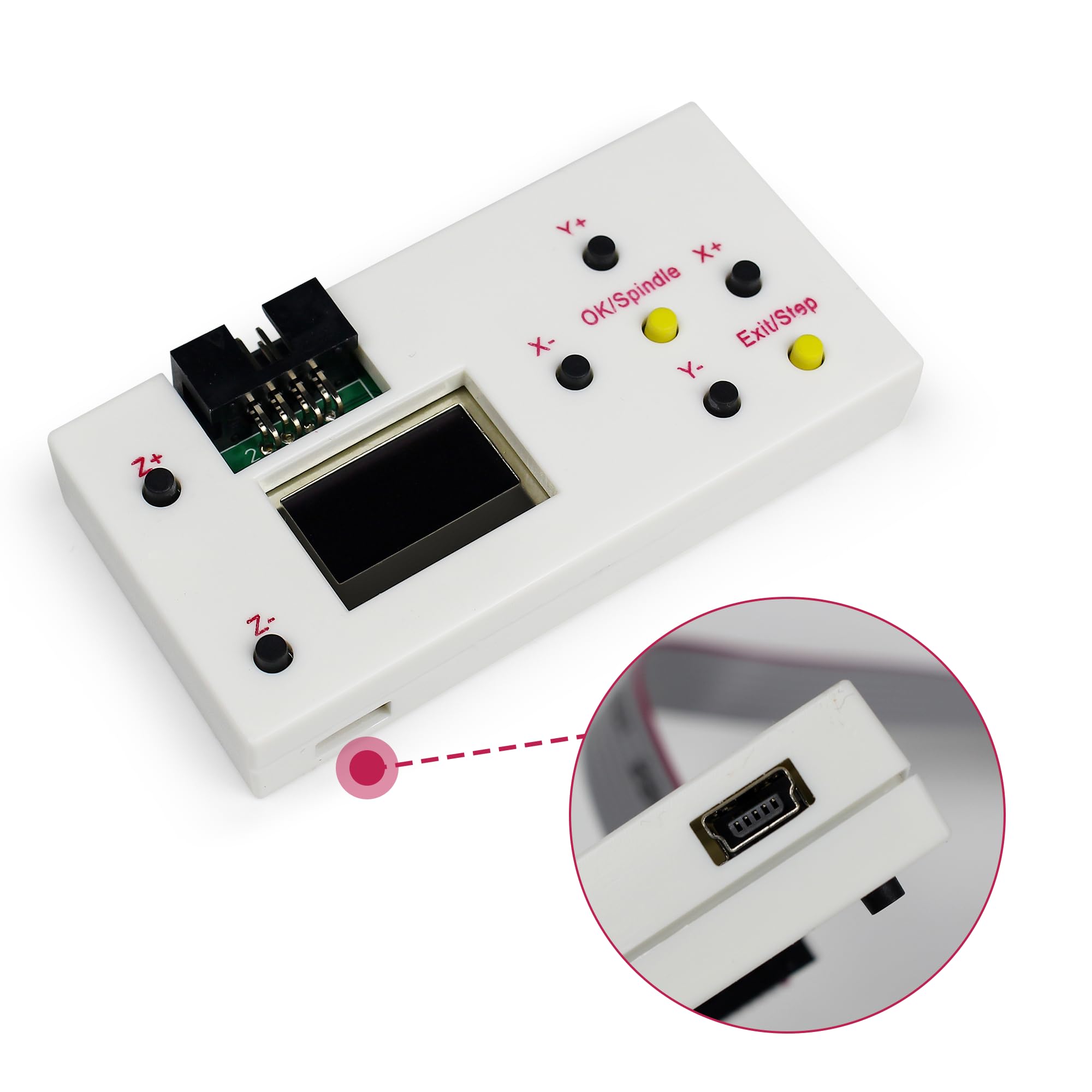

• Function: After inserting the file into the SD card,the engraving file can be directly identified; You can also use the micro USB cable to connect the offline hand controller board to your computer and save the file directly

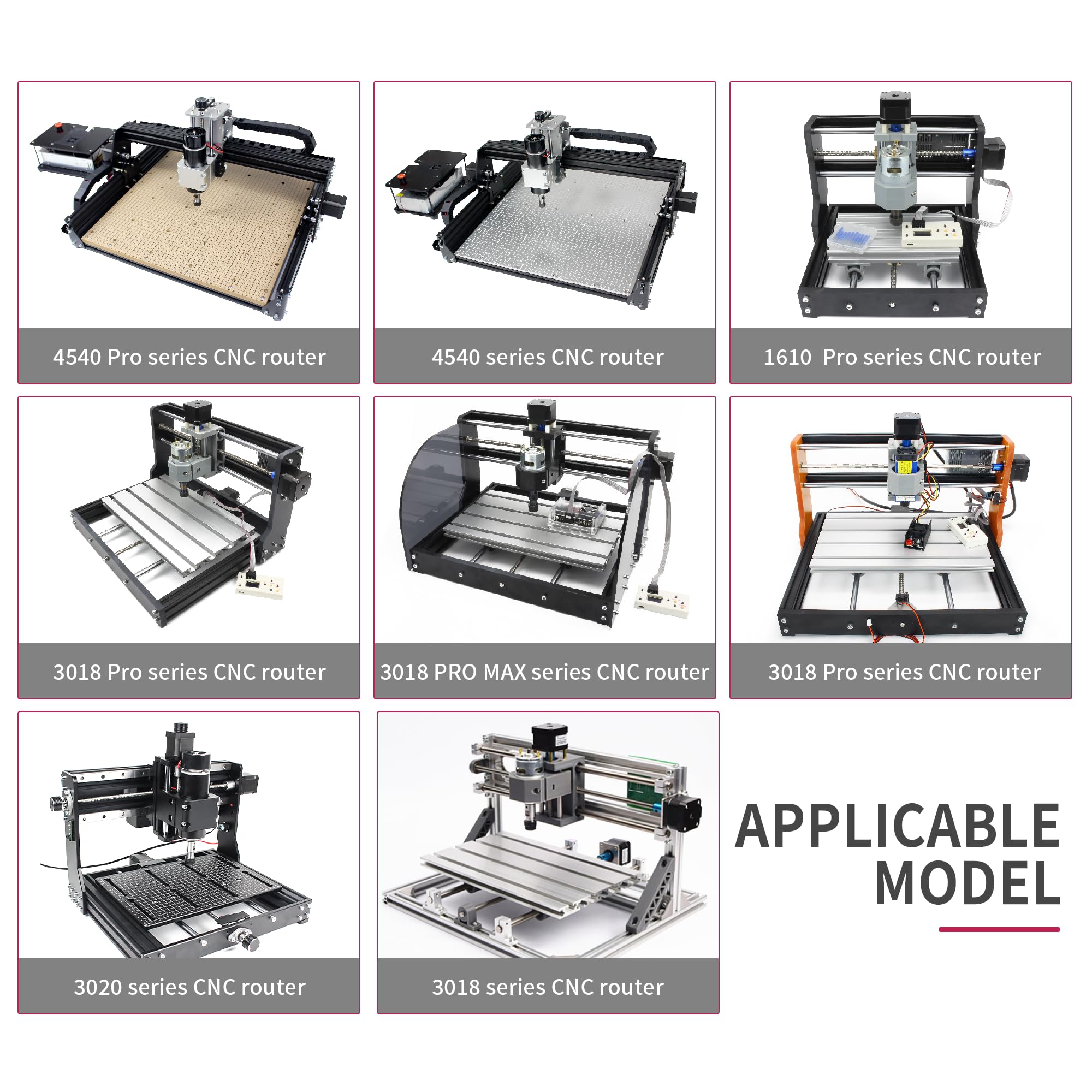

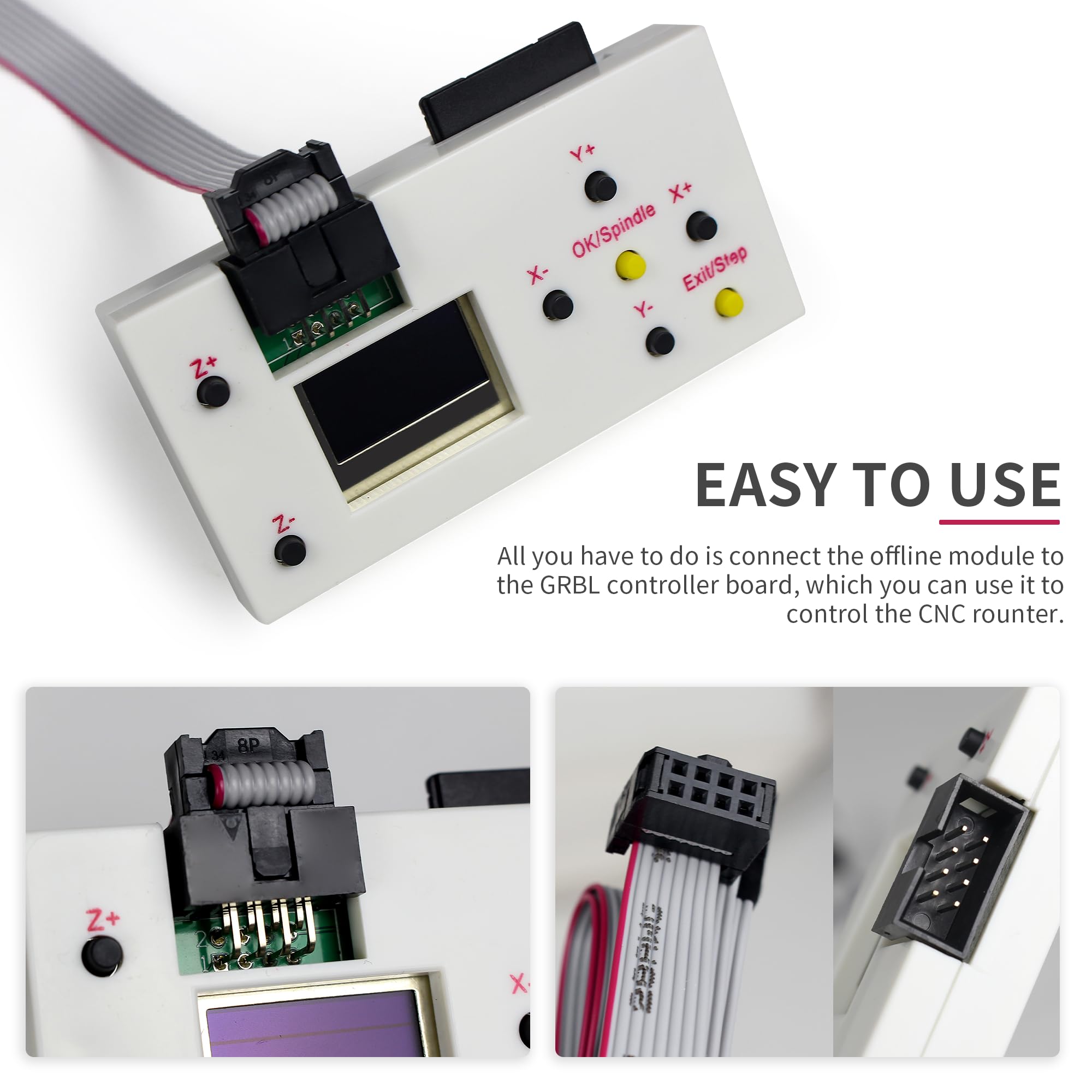

• Easy to use & Wide application: All you have to do is connect the offline module to the GRBL controller board, which you can use it to control the CNC rounter; It supports our 1310, 1610, 3018, 3018 pro ,upgraded 3018 pro etc grbl control cnc machine

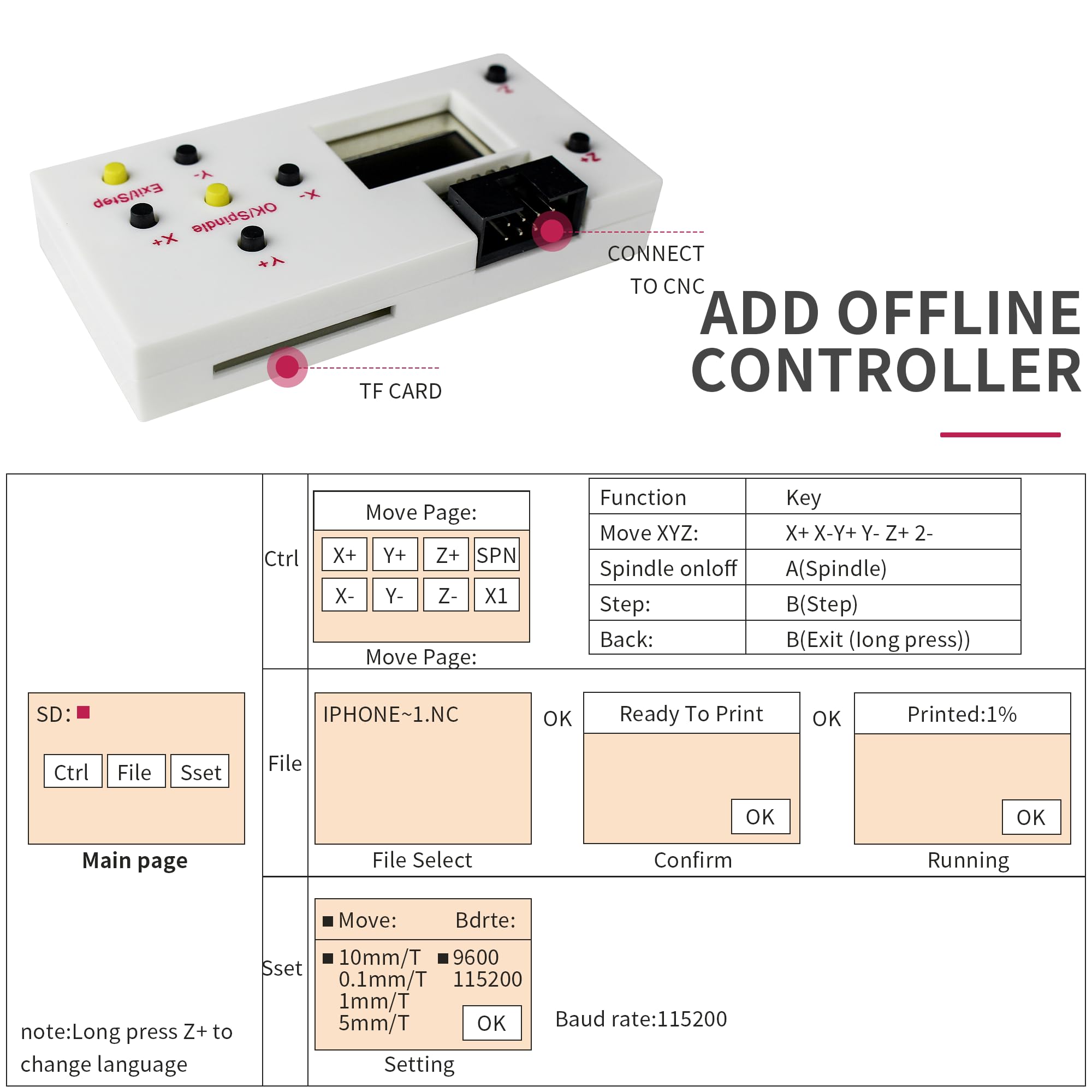

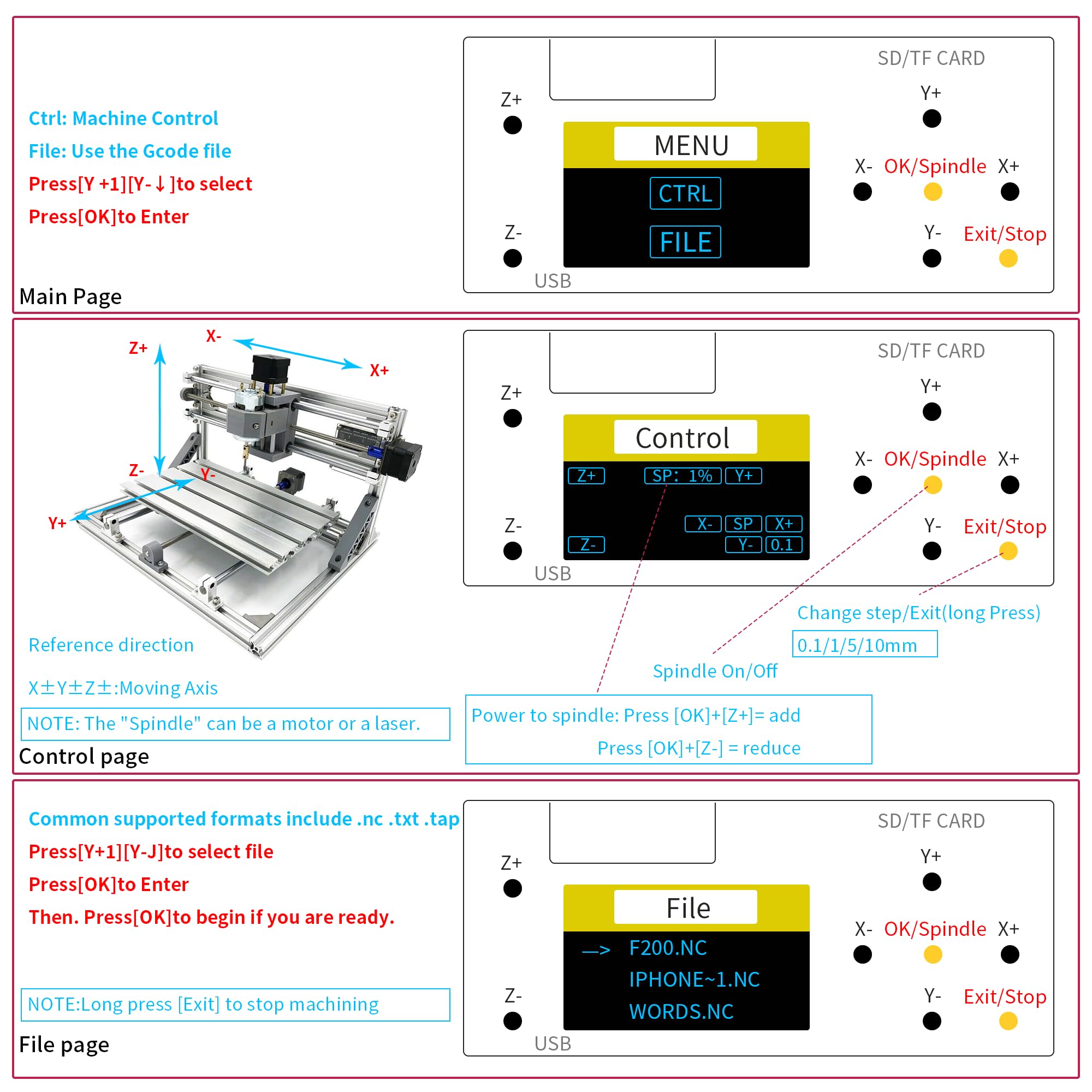

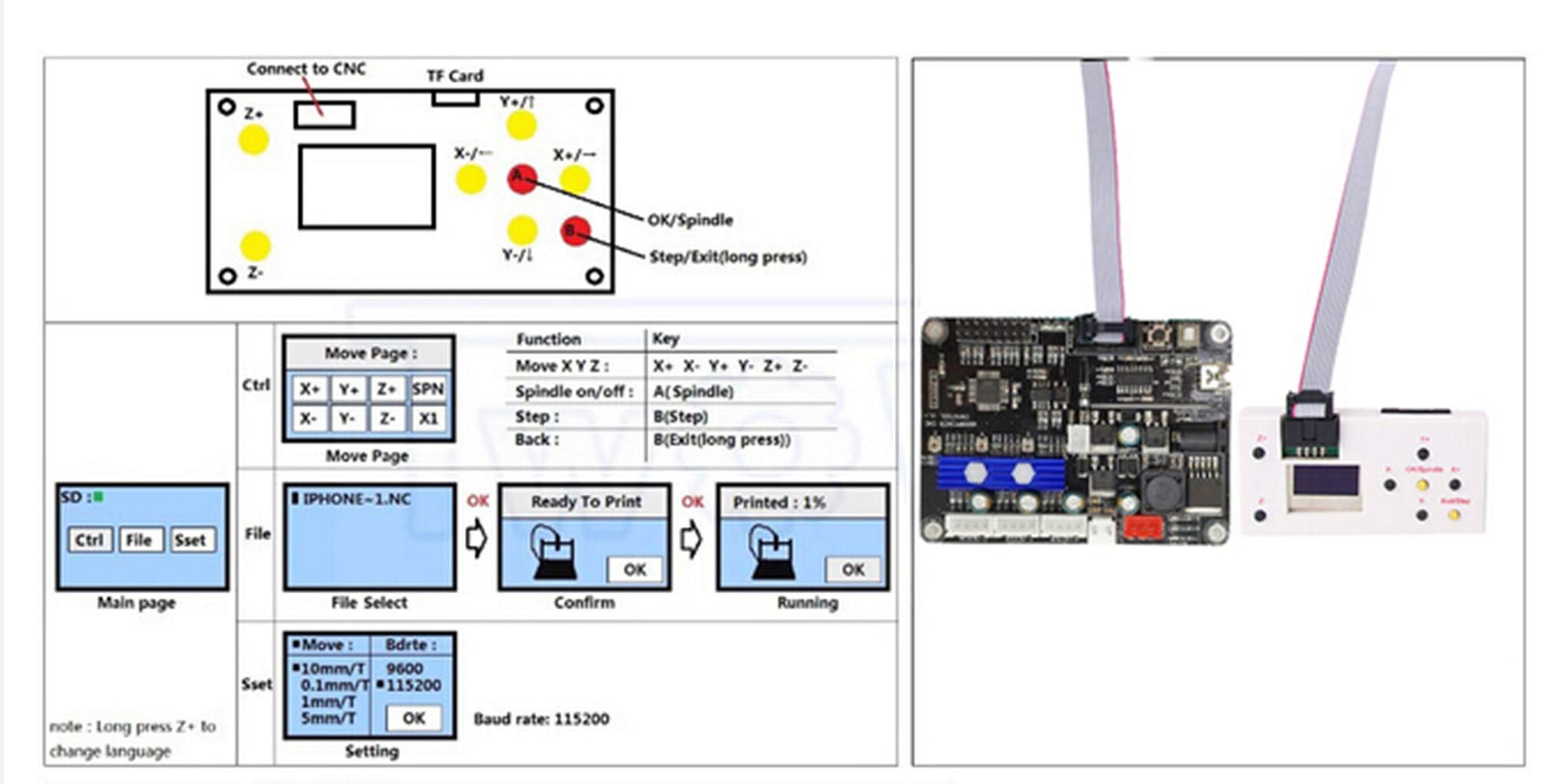

Package include: 1 set of offline hand controller board 1 set of cable 1 set of SD card Specification: Press Z+ and Z- , the Z axis will move up and down. Press X+ and X- , the X axis will move left and right. Press Y+ and Y- , the Y axis will move Front and Back. Press SPIN : Spindle on (Laser on ), Spindle off (laser off) Press SMOD: return Press Z+ for 5 seconds , change the Language to English. Press X- or X+ button to switch Control：Press confirmation button to access manually controlling page File：Press confirmation button to access file page Set：Press confirmation button to access setting page On the off-line controller, buttons control corresponding actions. SPN is spindle controlling,should press SPIN. Fan is fan controlling, should press SMOD. Common supported formats include nc. tex. tap. Press [Y+] [Y-] to select file Press [Ok] to Enter Press [Ok] to begin if you are ready Note:Long press [Exit] to stop machining X± Y± Z±: Moving Axis OK/Spindle: Spindle ON/OFF Exit/Step: Change Step/Exit (long press) How to increase the spindle power: After pressing the spindle button, press and hold the OK button and the Z+ button simultaneously to increase the speed. How to decrease the spindle: After pressing the spindle button, press and hold the OK button and the Z- button simultaneously to decrease the speed. Main Page Ctrl: Machine Control File: Use the Gcode file Press [Y+] [Y-] to select Press[Ok] to Enter
