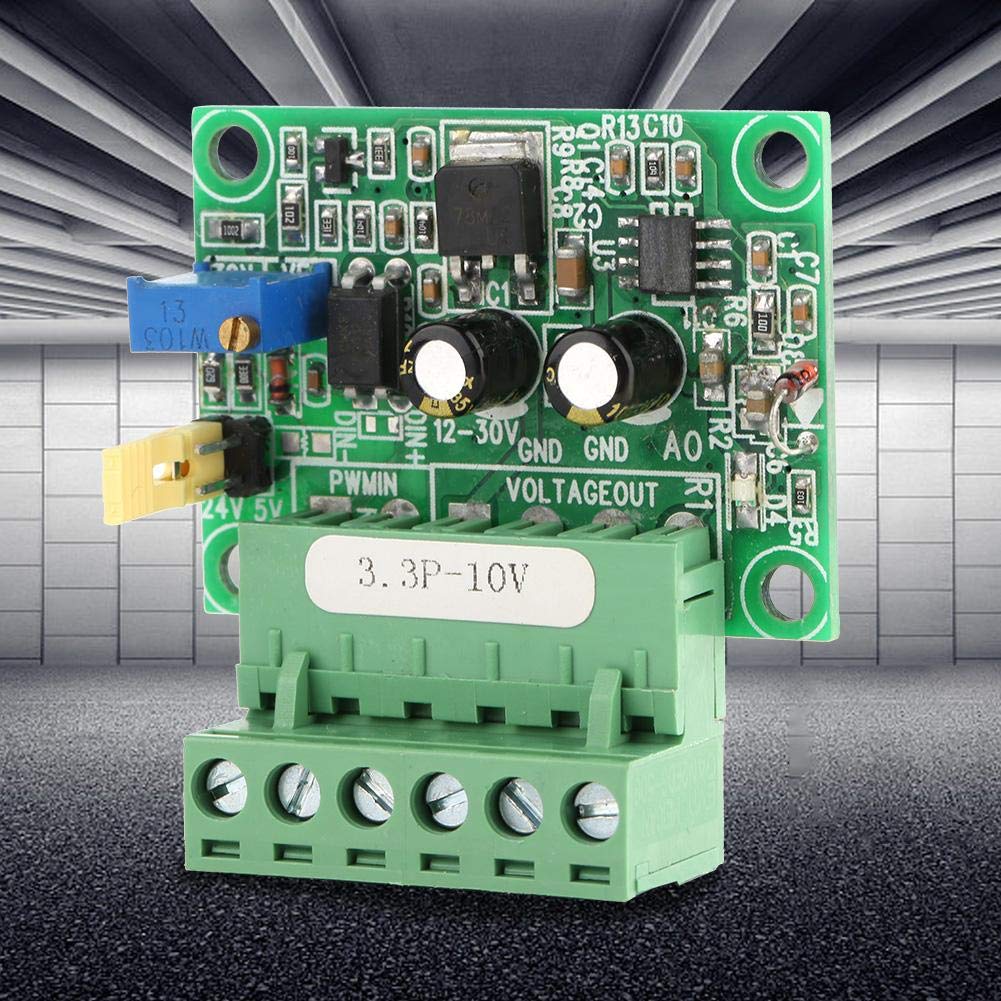

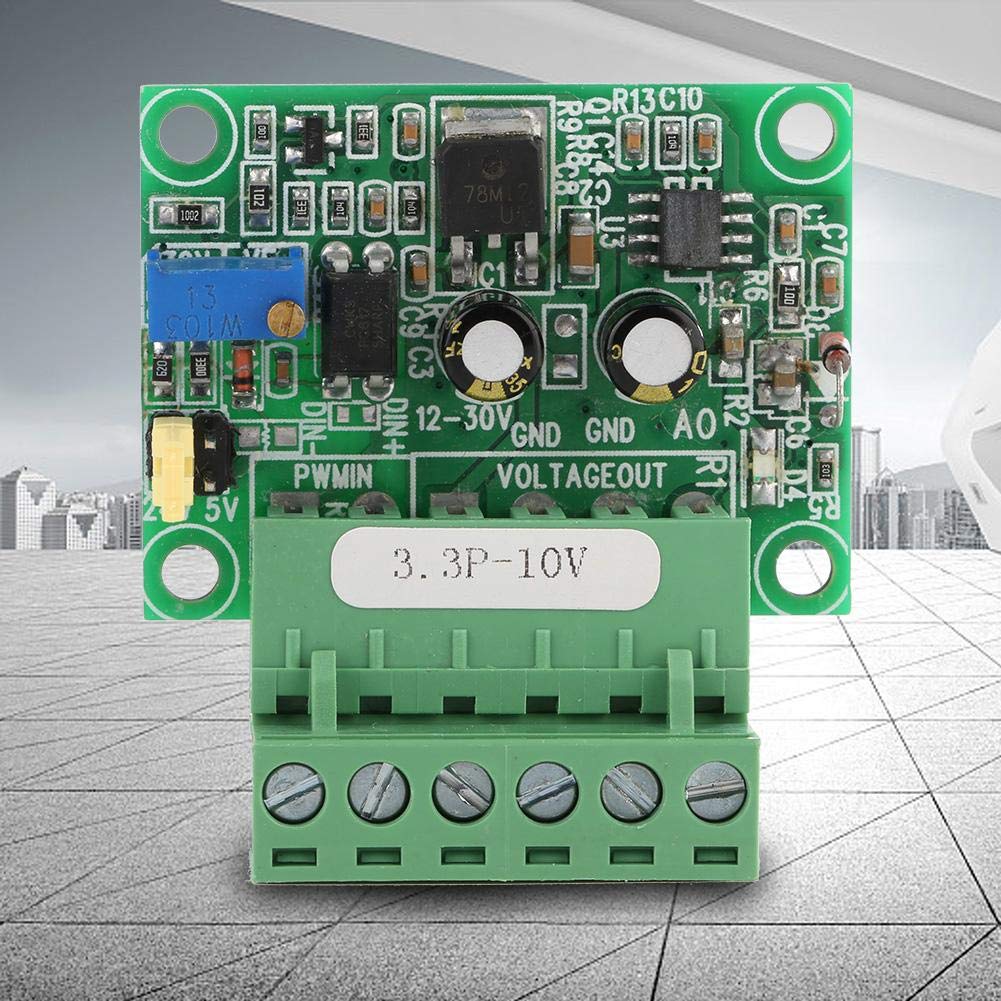

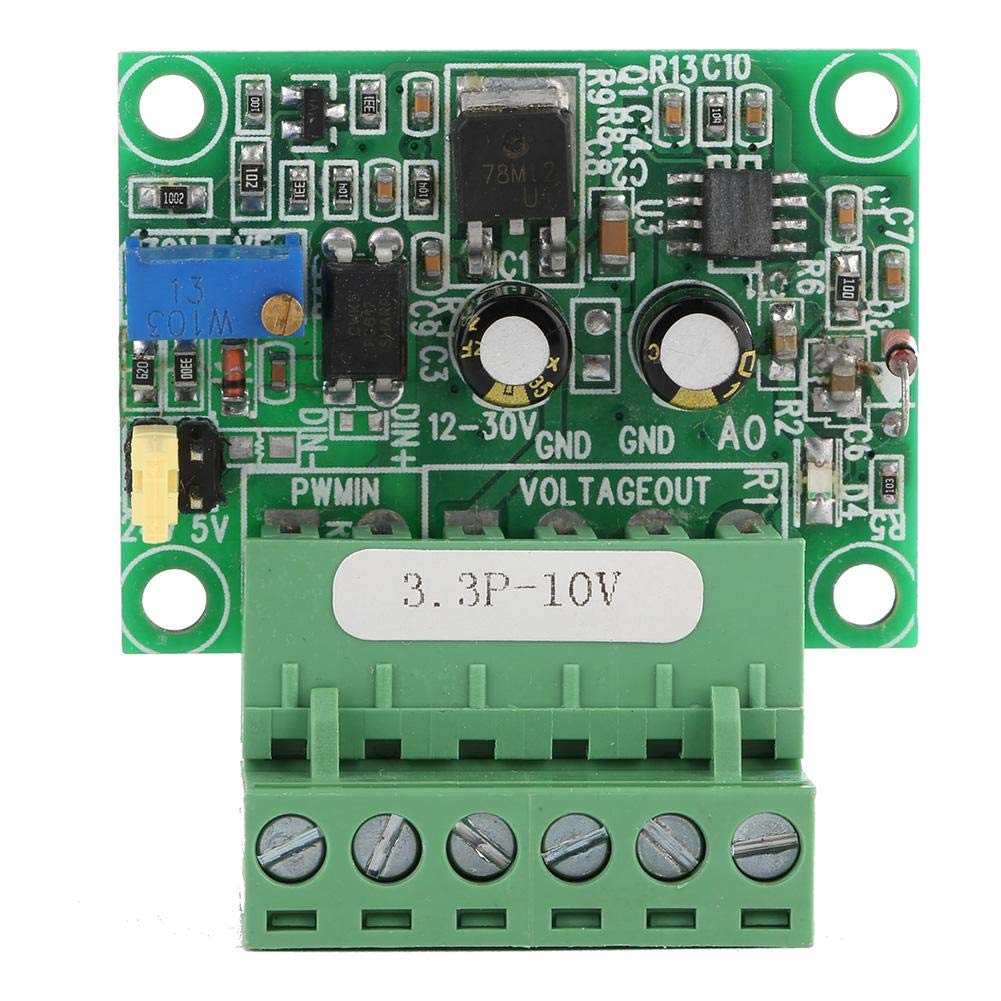

3.3V PWM to 0-10V Voltage Converter D/A Digital-Analog PLC Module for Interface Switching

• The output analog can be 0-10V voltage. The output power of the product is about 10MA, and the mounting method is 4 * M3 screw hole.
• Applocation: the product can be widely used in interface switching of PLC, single chip or other industrial control board.
• Reliability: The power supply has reverse polarity function. Give you a safe and stable working environment.

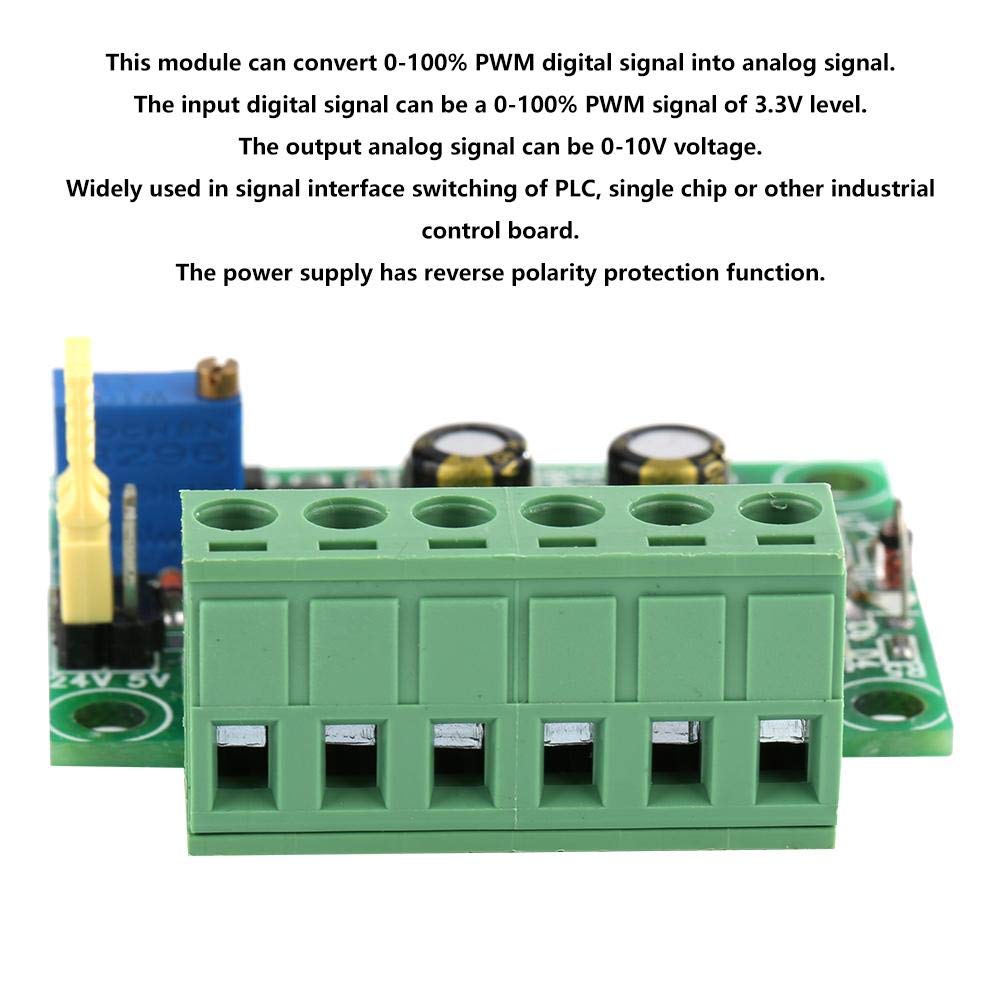

• This module can convert 0-100% PWM digital into analog The product input 0-100% PWM of 3.3V level, and output 0-10V voltage.
• The input digital can be a 0-100% PWM of 3.3V level. The PWM receive frequency range of the product is 100HZ-3KHZ (1-3KHZ is recommended).

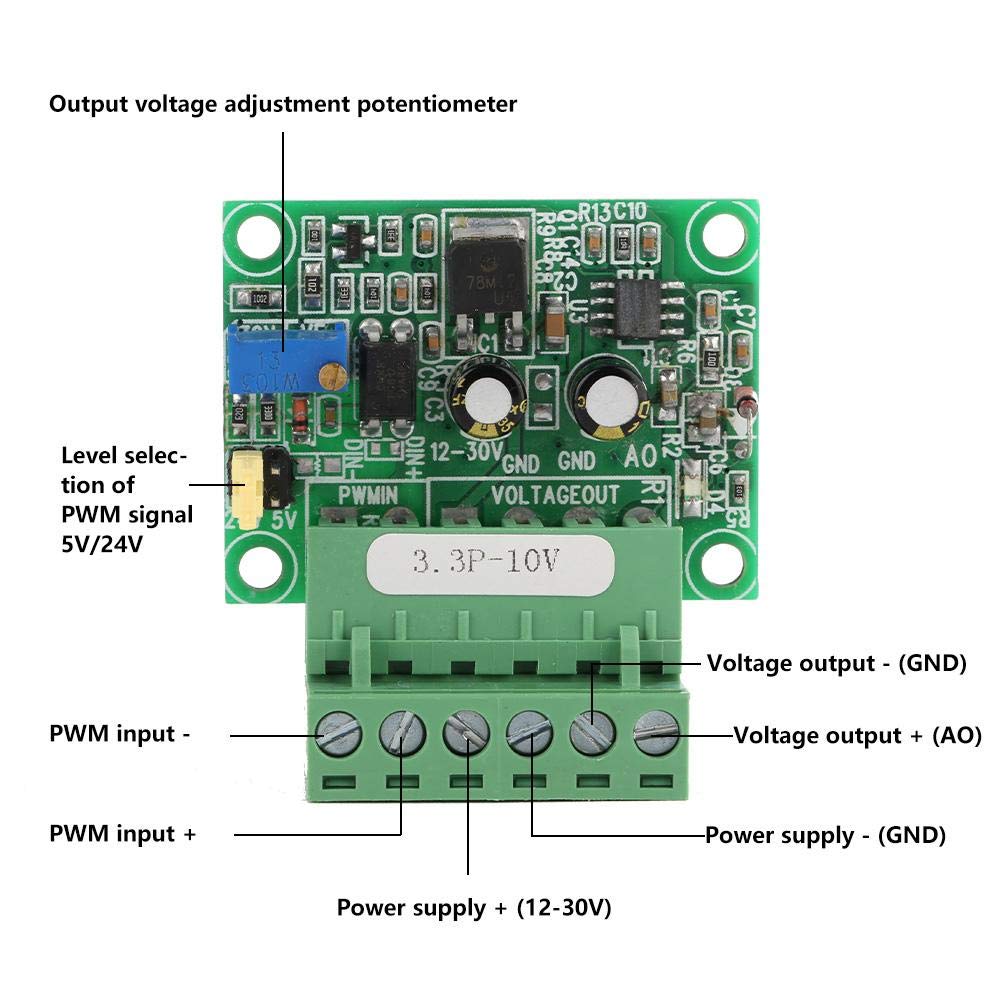

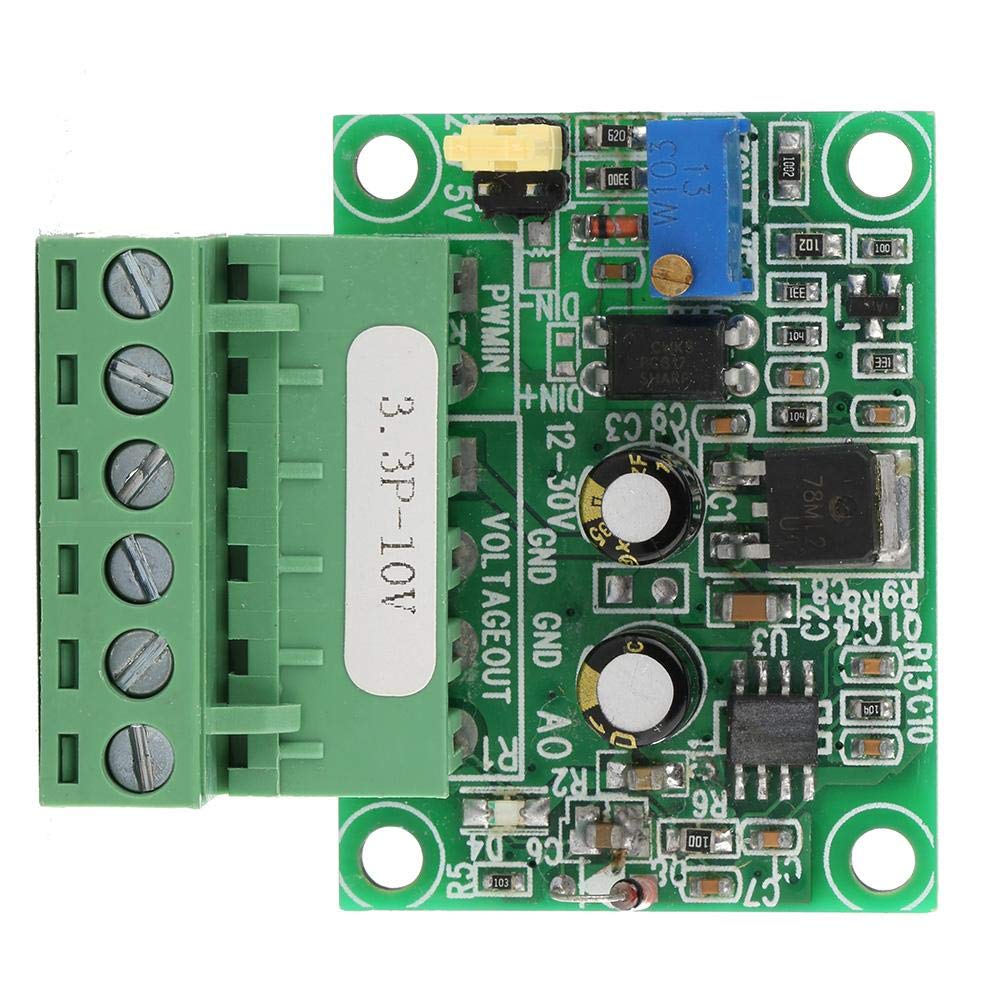

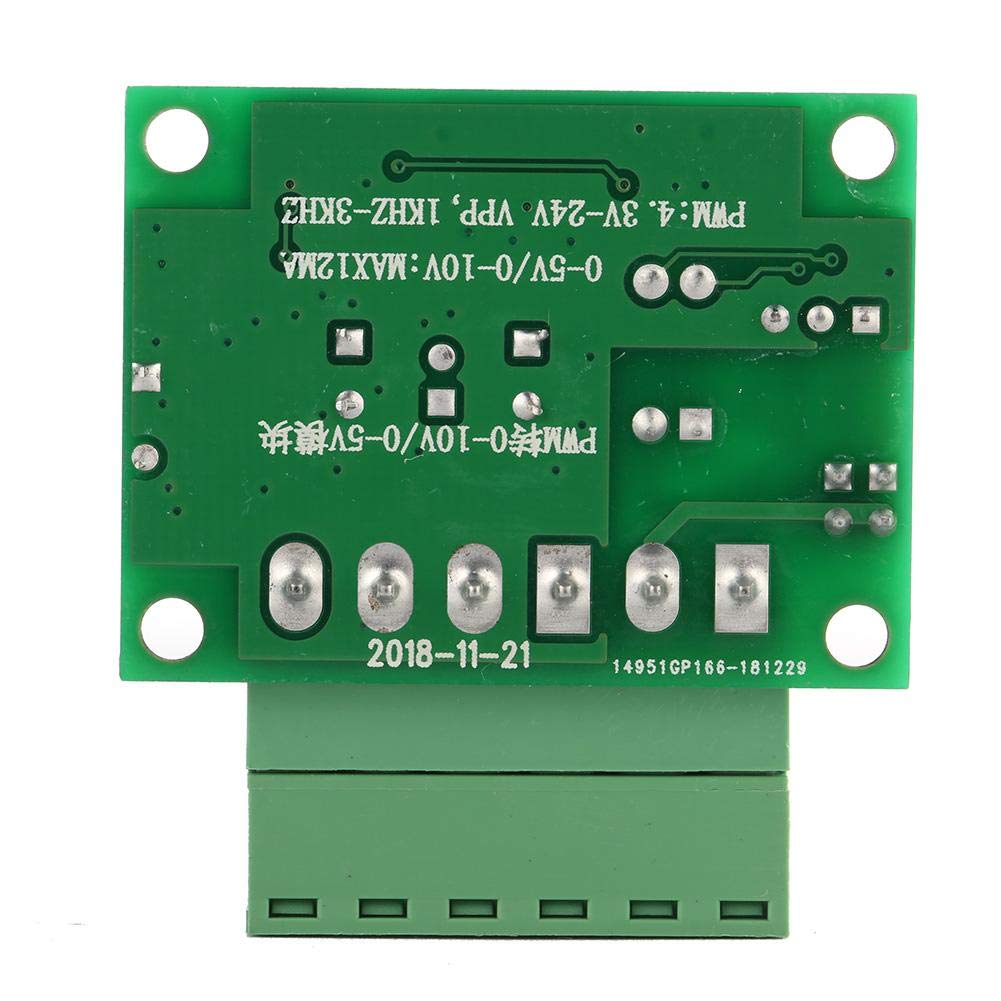

Specification: 1. Model: 3.3P-5V Function: Input 0-100% PWM of 3.3V level, output 0-10V voltage 2. PWM Receive Frequency Range: 100HZ-3KHZ (1-3KHZ is recommended) 3. Insert the jump pin at 5V 4. Analog Voltage Output: The following is the output voltage of 0-10V to illustrate After power-on, when there is no input signal, the output is 0V For the first power-up, a calibration can be done: Input a with 50% duty cycle and 3.3V amplitude to DIN- and DIN+. The frequency is 1-3KHZ. Use a multimeter to measure two ports of AO and GND. Adjust the potentiometer on the board to make the multimeter display 5.40V. This calibrate the corresponding relation between pulse and this module. The resolution of this module is 0.1V. The output current capability is 10MA. If the percentage of the duty cycle is inversely related to the voltage, you can check the check box of STEP LOW, ACTIVE to set the pins of PWM output in the software. 5. Supply Voltage: 15-30VDC (power requirement of power supply: >100MA), 12V customizable 6. Output Power: About 10MA 7. Mounting Method: 4 * M3 screw hole Port: 1. DIN+: Positive of PWM (For common cathode, connect it to PWM For common anode, connect it to 3.3V of terminal) 2. DIN-: Negative of PWM (For common cathode, connect it to GND; For common anode, connect it to PWM signal) 3. 12-30V: Positive of power supply 4. GND: Ground of power supply 5. GND: Ground of power supply. It is connected to ground of power supply 6. AO: Output port of analog voltage (0-10V) Package List: 1 * Digital-Analog PLC Module
