2x Single CAT6a Shielded/Screened Wall Plate – Tool-less RJ45 Ethernet/Network Socket Outlet – Internet/WiFi Data Face Plates – LAN FTP

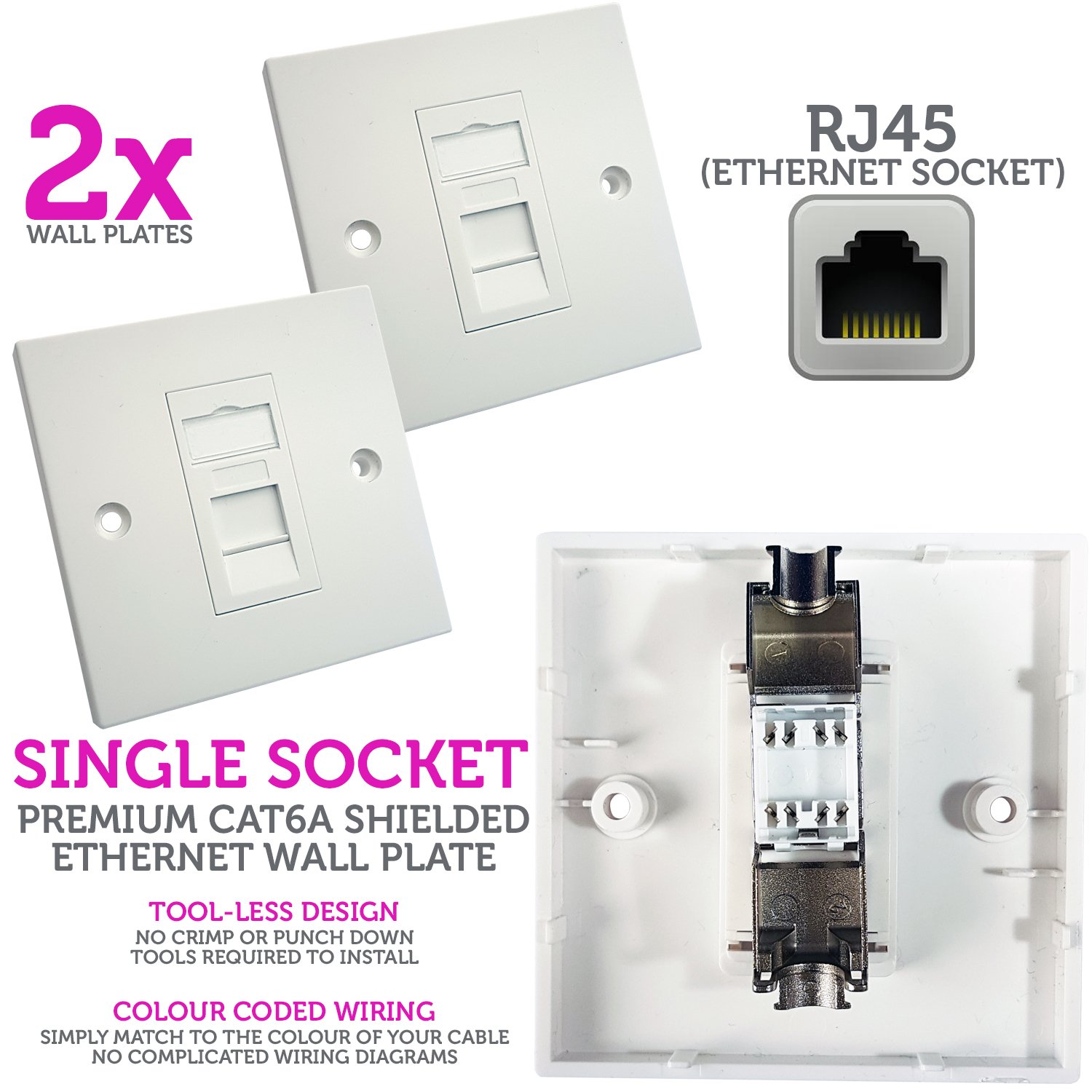

• 2x Single RJ45 CAT6a Shielded Wall Socket
• Quantity x2 – This listing is for 2 wall plates – Each have a single CAT6a connection

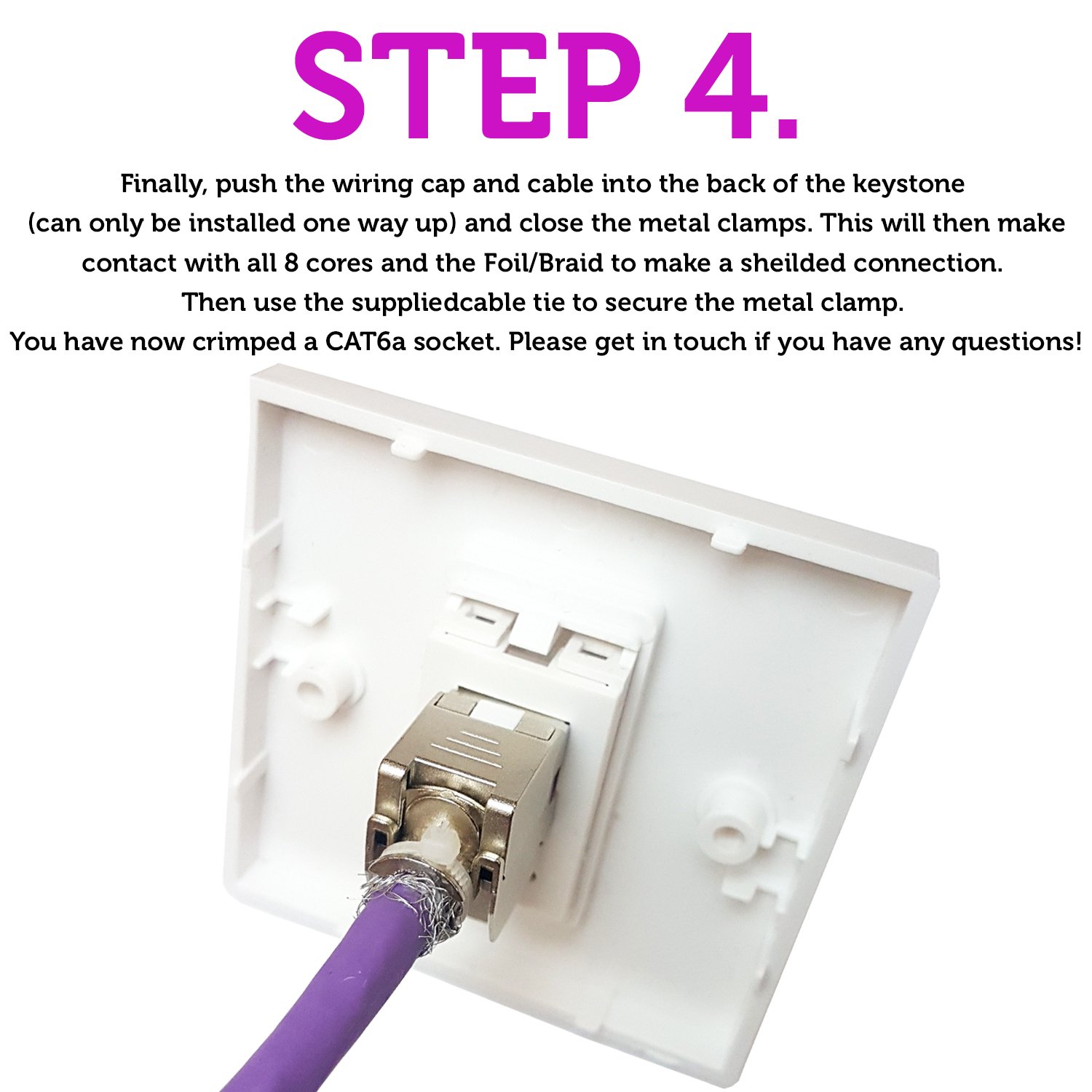

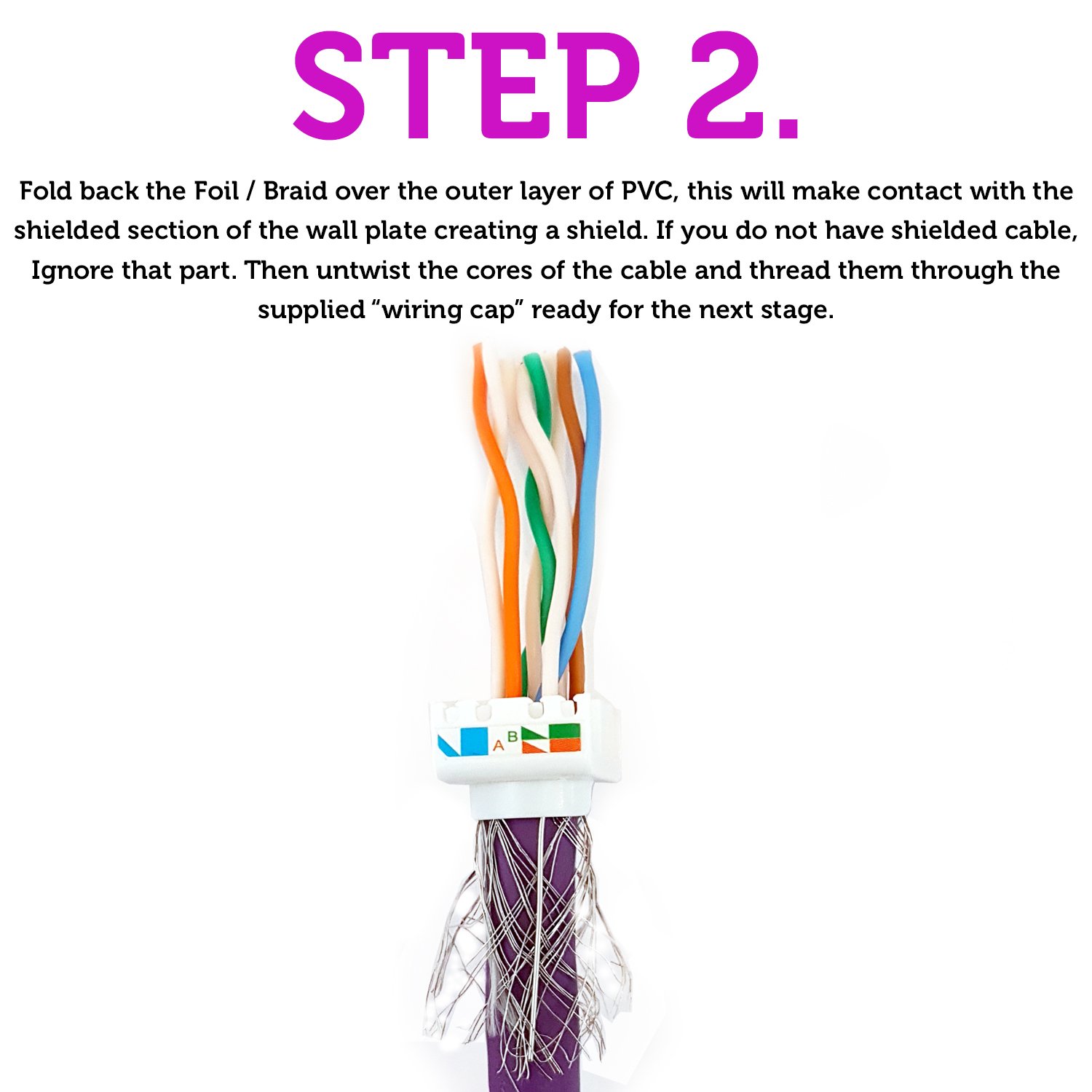

• SHIELDED Connectors – When using a shielded cable, simply expose some of the shield on the cable and ensure that it makes contact with the metal shell when you close it.
• No punch down tool is required
• Brand New & In Stock, Dispatched from UK, Full UK Technical Support Available.

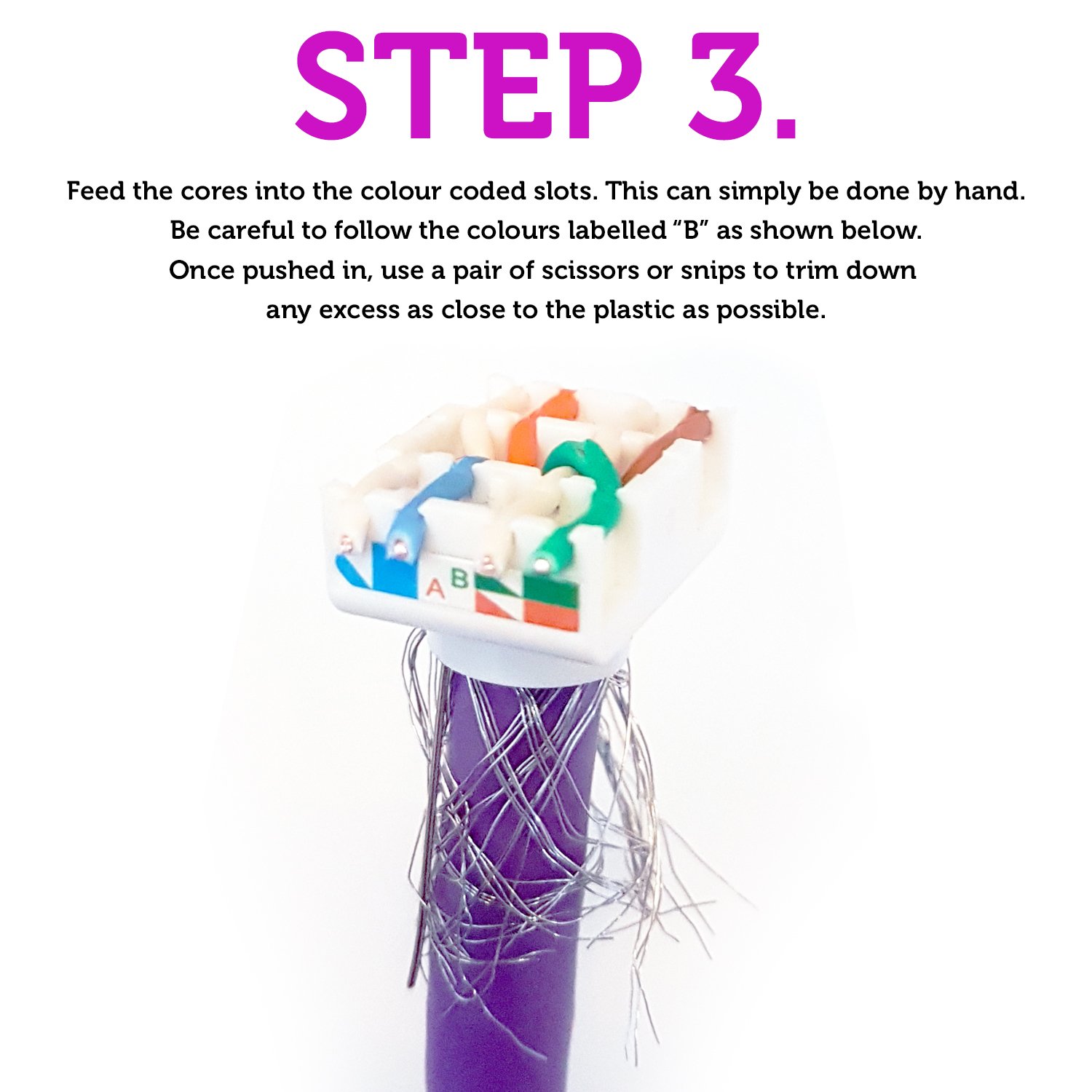

50mm x 25mm modular RJ45 CAT6a keystone socket (can be labelled) Can be used over distances up to 100m/328ft for networking purposes at speeds of 10GBps TIA/EIA-568-B UTP wiring layout IDC termination points Fits a standard single back box Fixing screws & accessories supplied No punch down tool is required Used for - These network outlet faceplates are a perfect fitting for cables that have been run between rooms beneath floors and behind walls. The faceplate is fitted to a standard single back box using the included fixing screws, just like an aerial socket or power outlet. The wires can be attached to the IDC terminals at the back of the sockets in just a few minutes and NO TOOLS are required to do so. The use of IDC connectors on these wall plates means the connector itself actually pierces the wire’s plastic insulation as it is pushed in, thus making installation as easy as possible. The colour coding on the back of each IDC terminal is an easy alternative to complex wiring diagrams. SHIELDED Connectors – When using a shielded cable, simply expose some of the shield on the cable and ensure that it makes contact with the metal shell when you close it. Wiring - Depending on the application in which you hope to use it, the socket can be wired in both the ‘straight through’ or ‘cross-over’ configurations. Please get in touch if you require any advice.
