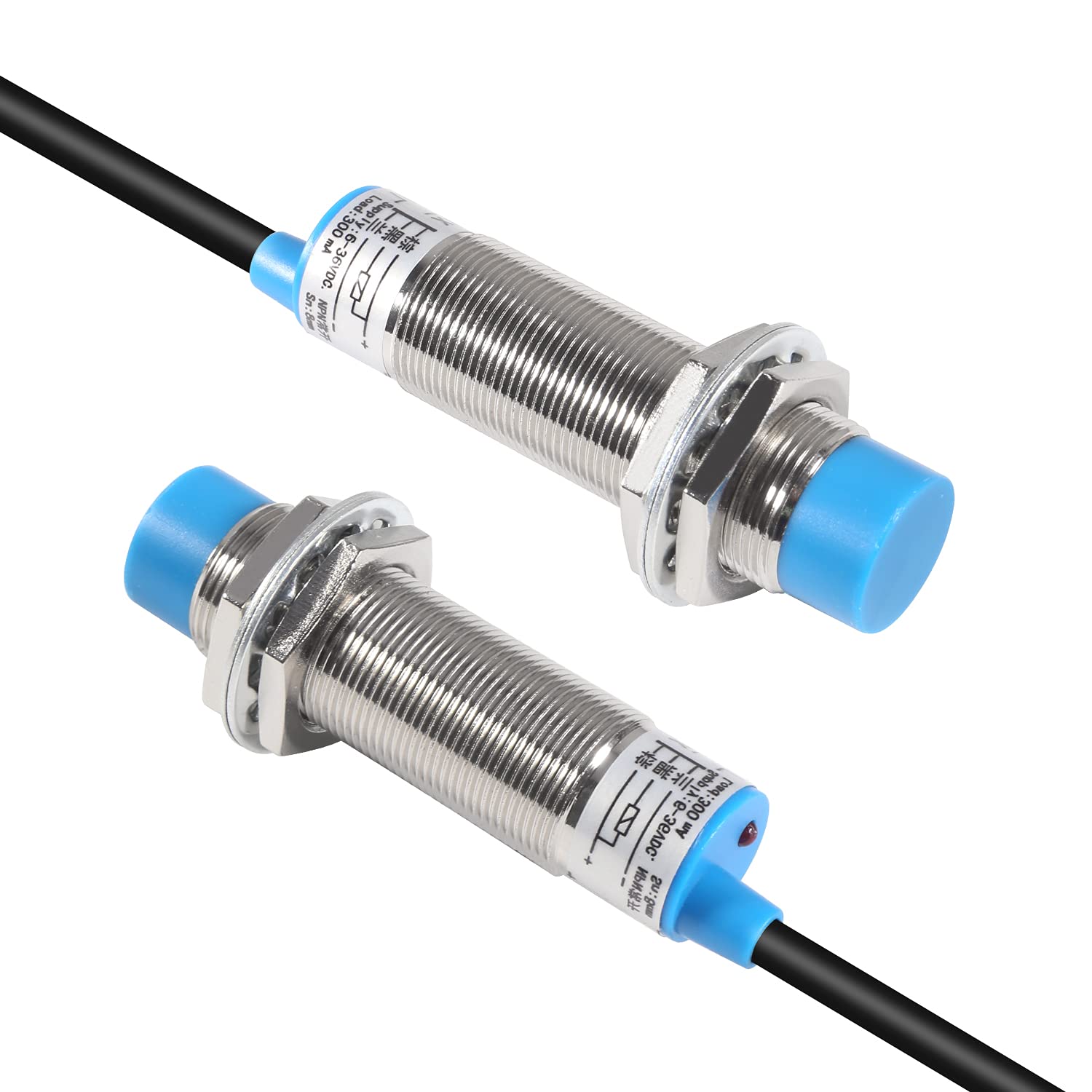

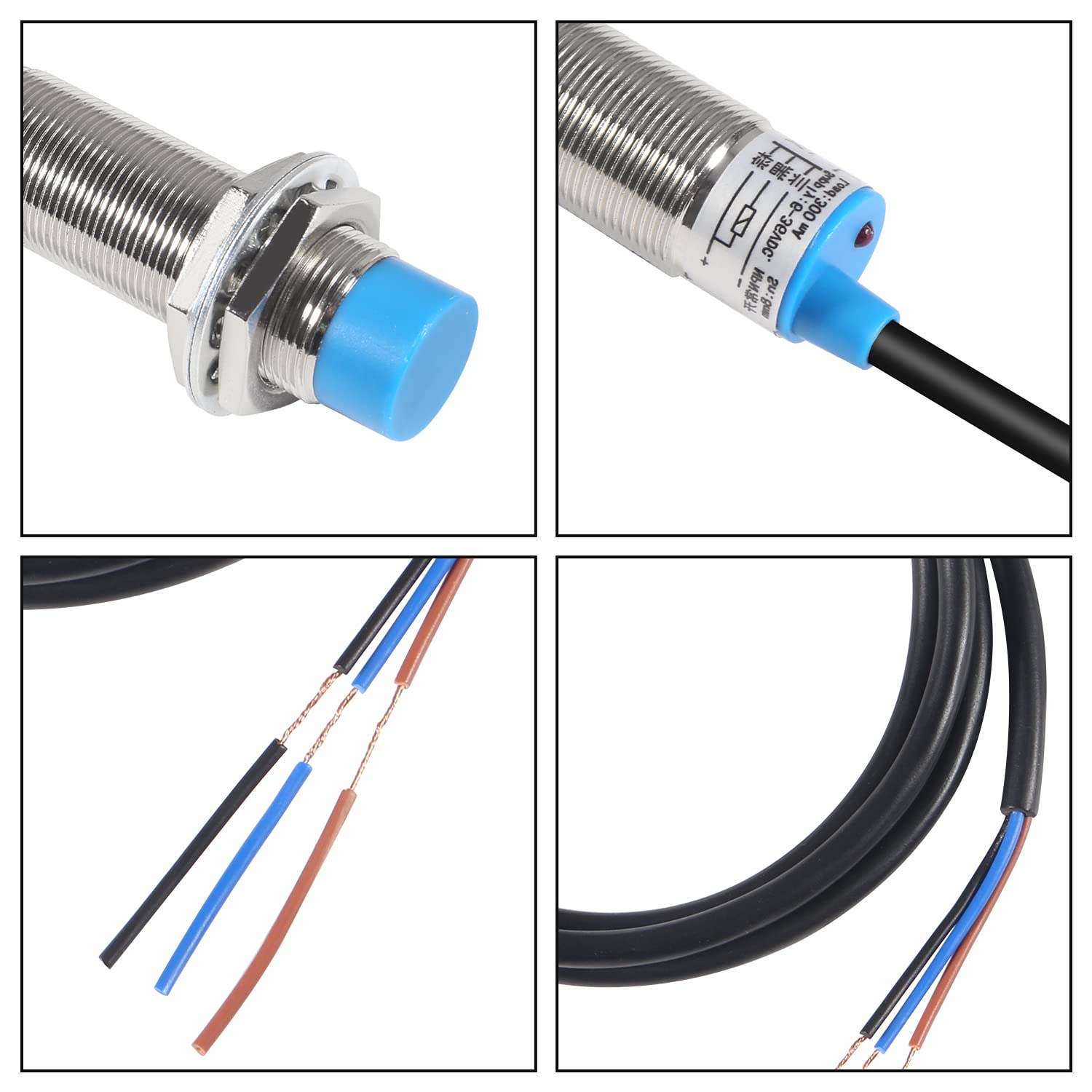

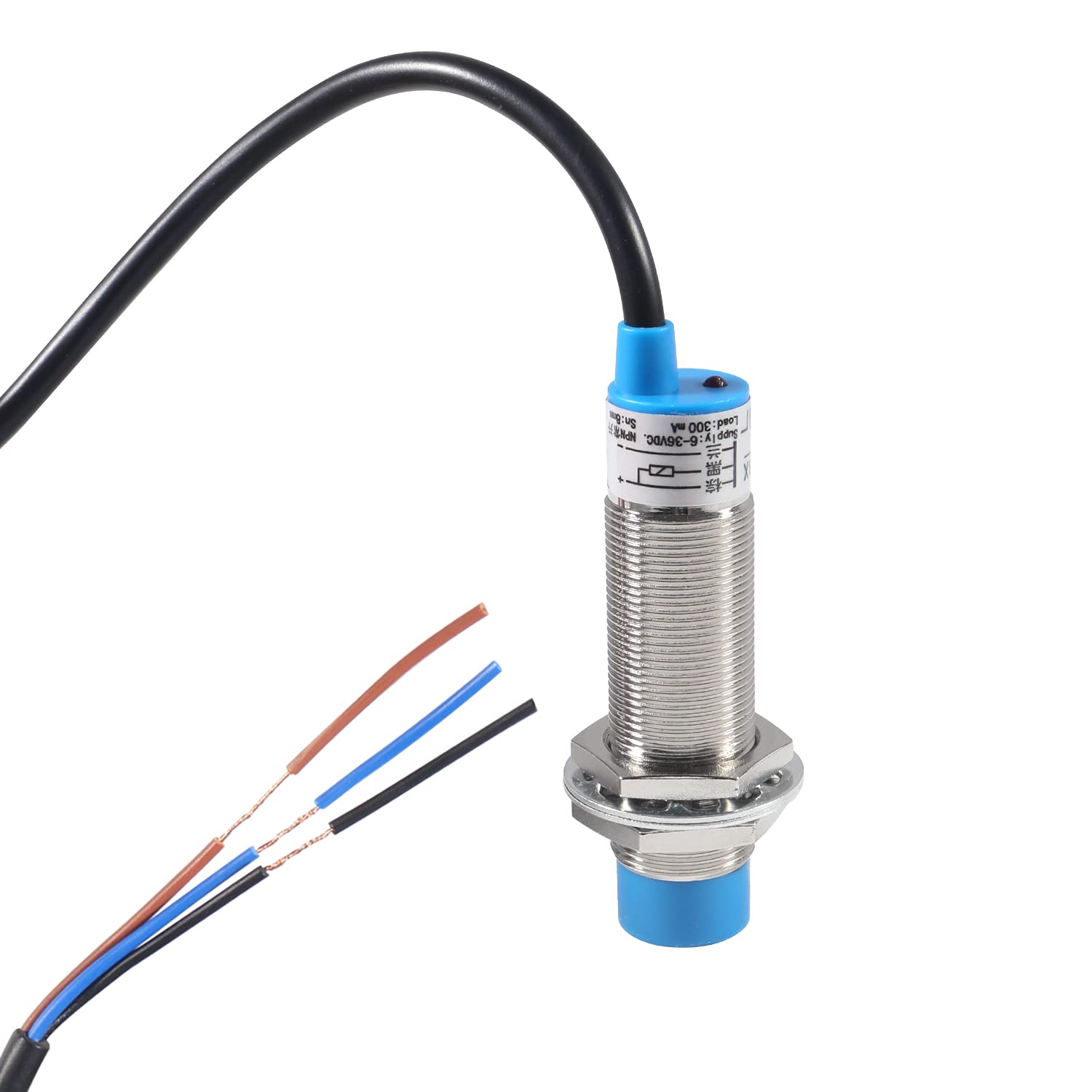

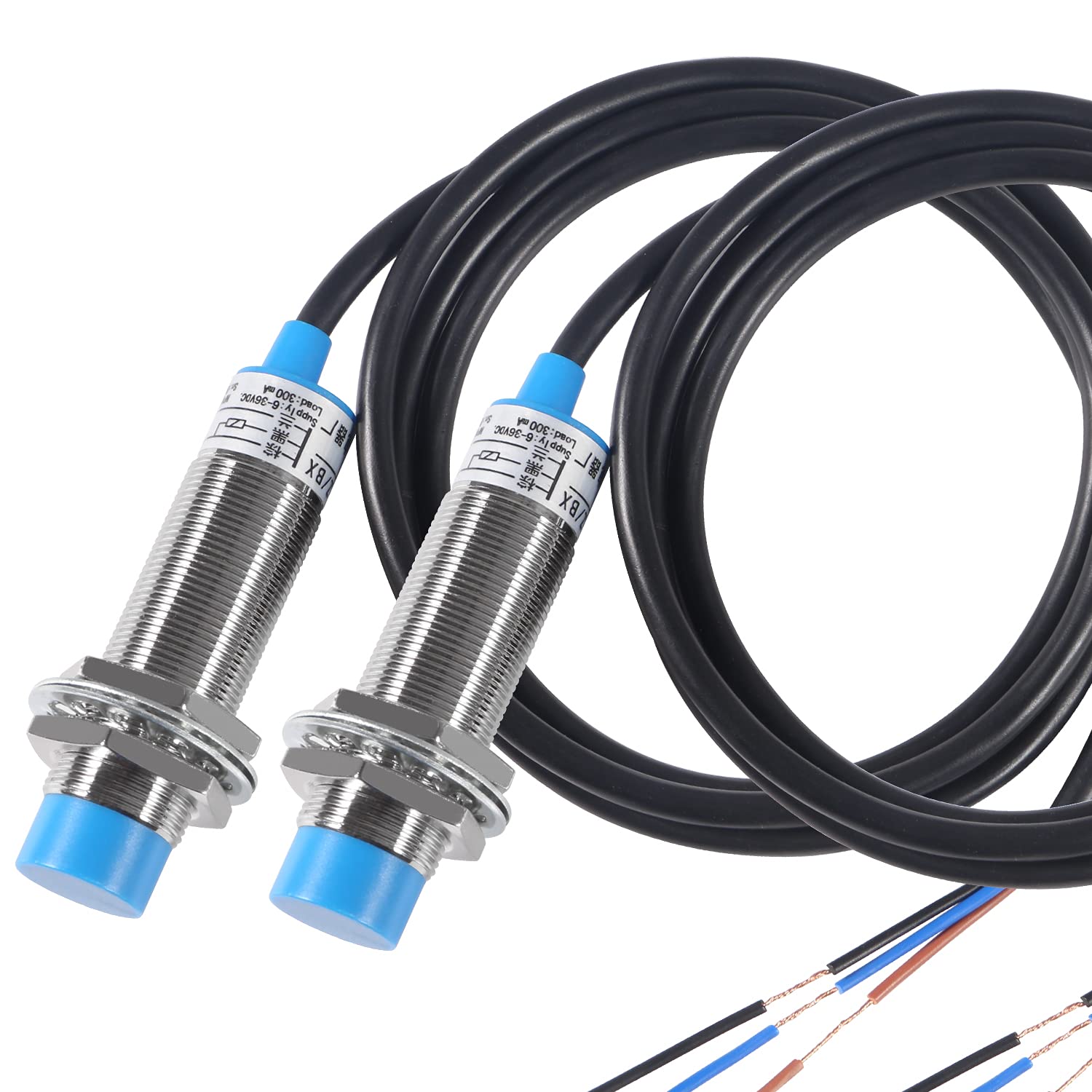

2Pcs LJ18A3-8-Z/BX NPN NO Inductive Proximity Sensor Switch Detector 8mm Detecting Distance DC 6-36V M18 Approach Switch 300mA 3 Wire LJ18A3-8-Z/BX for 3D Printer Probe Bed Leveling, MCU Board

• LJ18A3-8-Z/BX 5V inductive proximity switch; wire type : DC 3 wire type; switch appearance type : cylinder type
• Inductive proximity switch lj18a3-8-z/bx theory: Inductive sensor; output type: NPN NO(Normal Open); diameter of head : 18mm; detecting distance : 8mm ± 10%; Set distance: 0-7mm
• 8mm sensor inductive proximity supply voltage : DC 6-36V; current output : 300mA; detect object : Iron; thread size: 18mm
• Sensitive detection: ABS material detection surface, the built-in intelligent sensing chip of the proximity switch can sensitively detect objects, when proximity switch is close to single target object, it will send control signal
• LJ18A3-8-Z/BX application: It is a component widely used in automatic control industry for detecting, controlling, and contactless switching. It is widely used in mechanical automation, 3D printer probe bed leveling, paper making, light industry for limiting station, orientation taking count, speeding trial etc

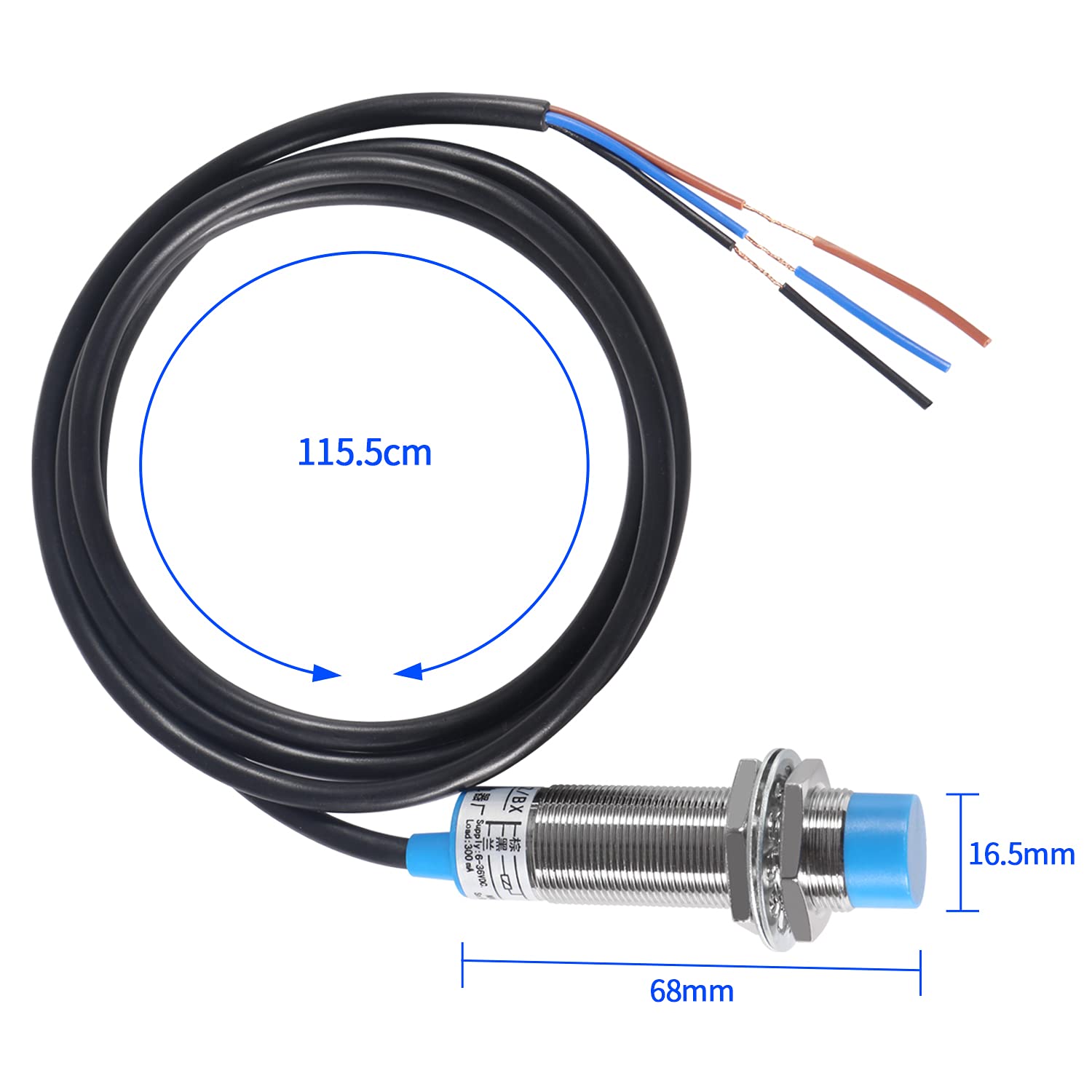

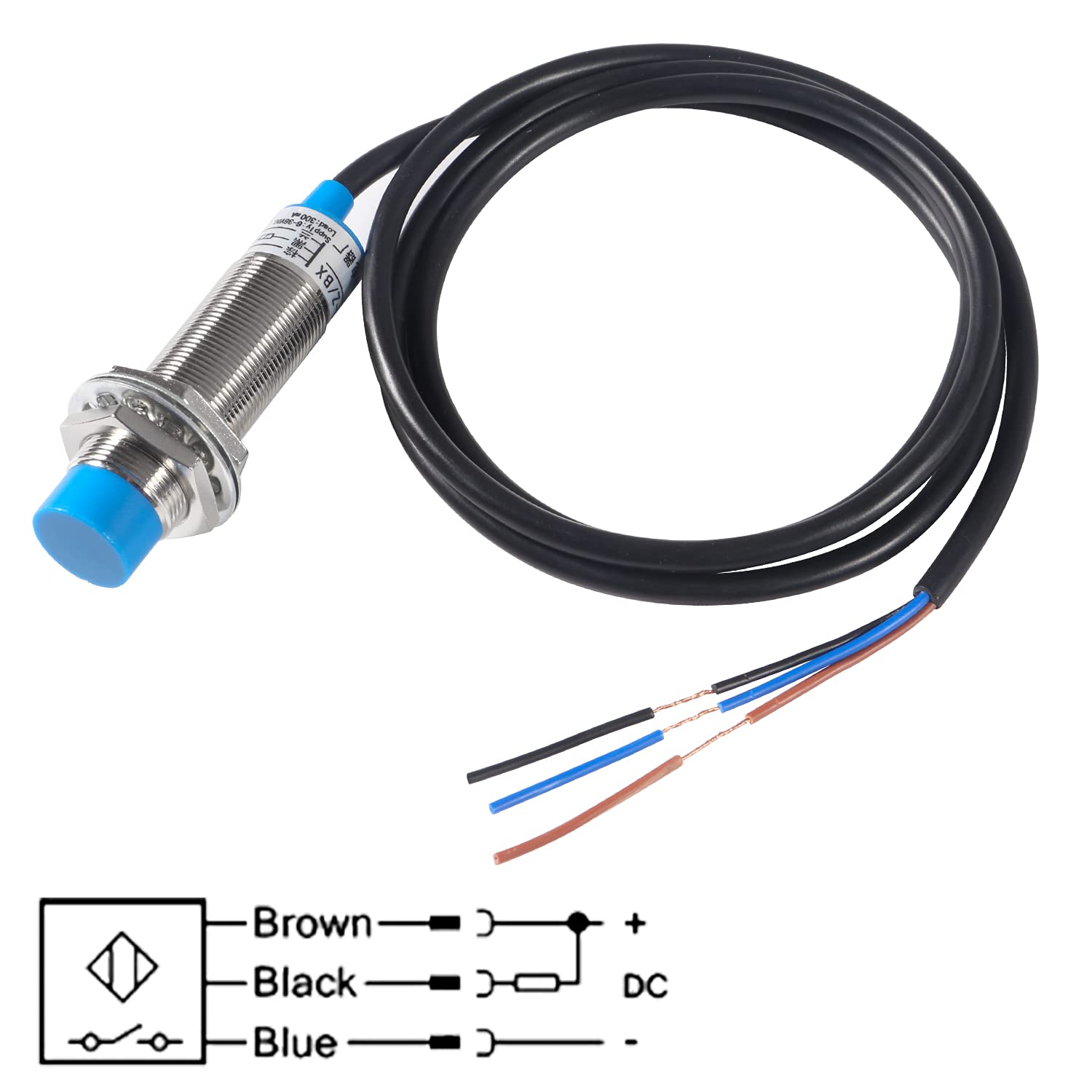

LJ18A3-8-Z/BX Appearance Type : Thread cylindrical Voltage : DC 6-36V Current Output : 300mA Output Polarity: NPN NO(normal open) Detect Object : Magnetic metal Diameter of Sensor Column : 18 mm Length of Sensor Column : 6.8 mm Detecting Distance : 8 mm Total Length: 115 cm/45 Inch Protection level: IP65 External Material : Alloy(Nickel plated brass),Detection surface is ABS Wire Type : DC 3 Wires-Brown(positive electrode) Black(output signal), Blue(negative electrode) The proximity switch is mainly a switch-type sensor, which has the characteristics of good sensing performance, fast frequency response, long application life and strong anti-interference ability. It is widely used in machinery, detection, counting and control ect. Package include: 2 x LJ18A3-8-Z/BX 5V inductive proximity switch
