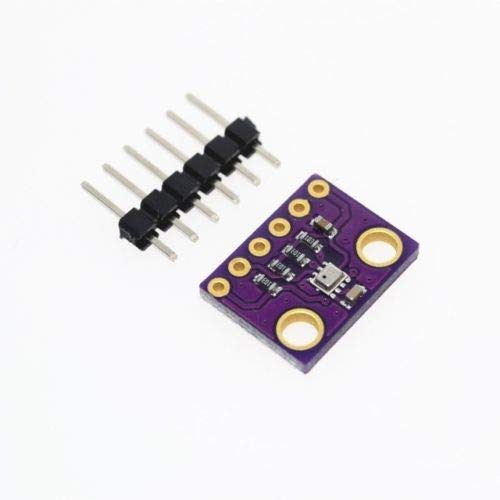

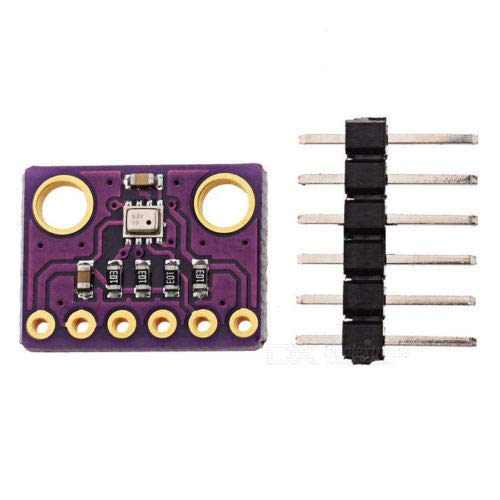

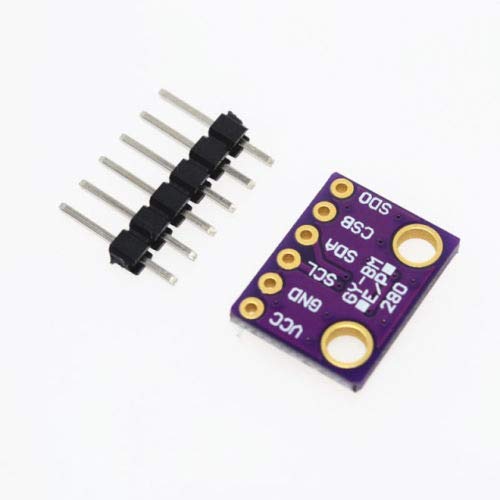

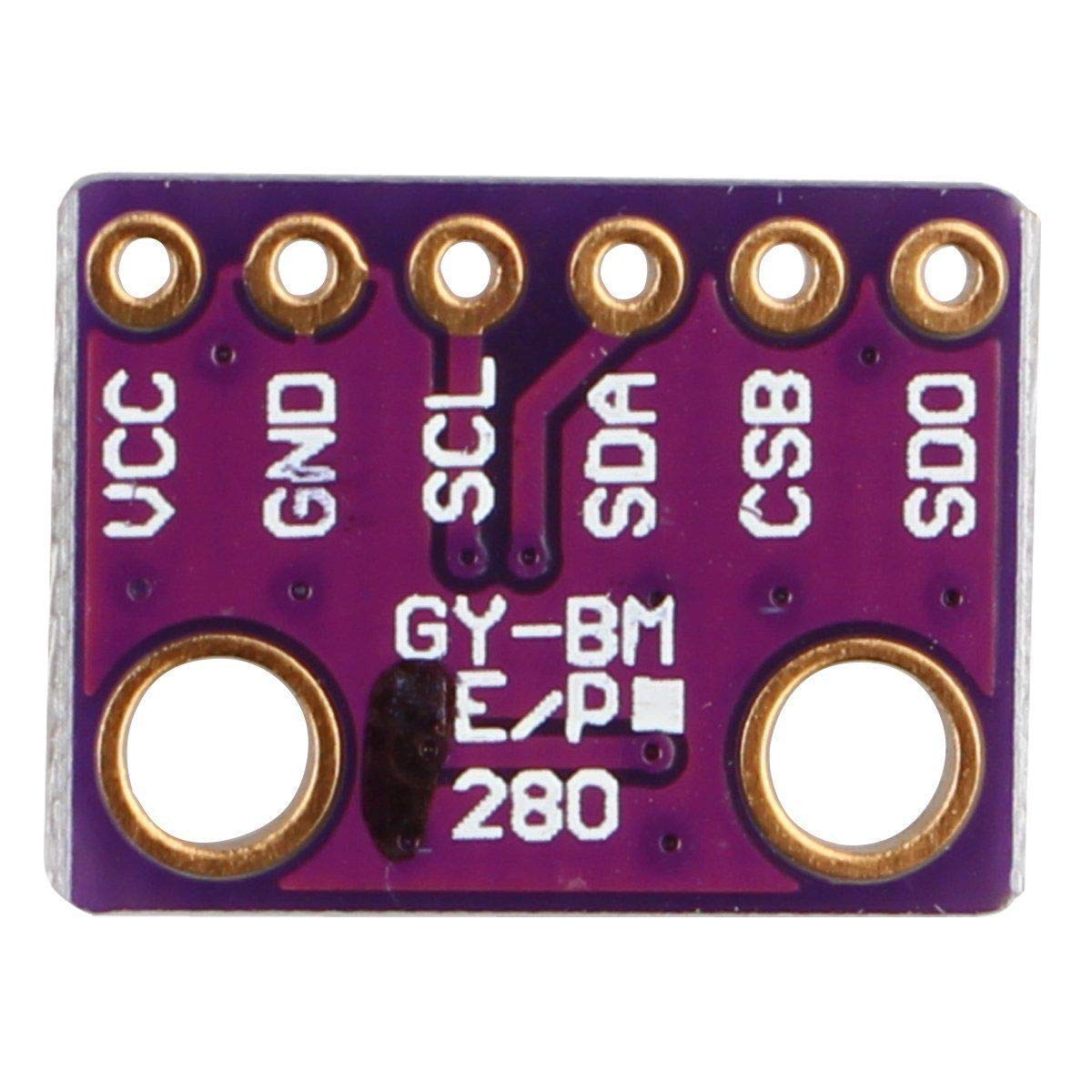

TECNOIOT 2pcs BMP280 Replace BMP180 3.3V Barometric Pressure Sensor Module

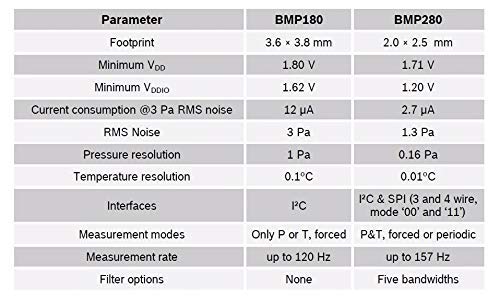

BMP280 Replace BMP180 3.3V Digital Barometric Pressure Sensor Module for Arduino The BMP280 is an absolute barometric pressure sensor especially designed for mobile applications. The sensor module is housed in an extremely compact 8-pin metal-lid LGA package with a footprint of only 2.0x2.5mm2 and 0.95mm package height. Its small dimensions and low power consumption of 2.7µA@1Hz allow the implementation in battery-driven devices such as mobile phones, GPS modules or watches. It supports two types of communication: I2C and SPI. BMP280 comes with a higher performance, we have upgraded the BMP180 to BMP280 in the kit to provide a better experience for the customers. Pressure range: 300 ... 1100 hPa Package: 8-pin LGA metal-lid, Footprint: 2.0*2.5 mm2, height: 0.95mm Related accuracy: 0.12hPa, equiv. to 1m Absolute accuracy: typ. +-1 hPa Temerature coefficient offset: 1.5 Pa/K, equiv. to 12.6 cm/K Digital interfaces: I2C(up to 3.4MHz); SPI (3 and 4 wire, up tp 10MHz) Current consumption: 2.7uA@1Hz sampling rate Temperature range: -40 ... +85 C RoHS complaint, halogen-free MSL1 PACKAGE CONTAINS: 1pc x GY-BMP280 Module (with Pins)
