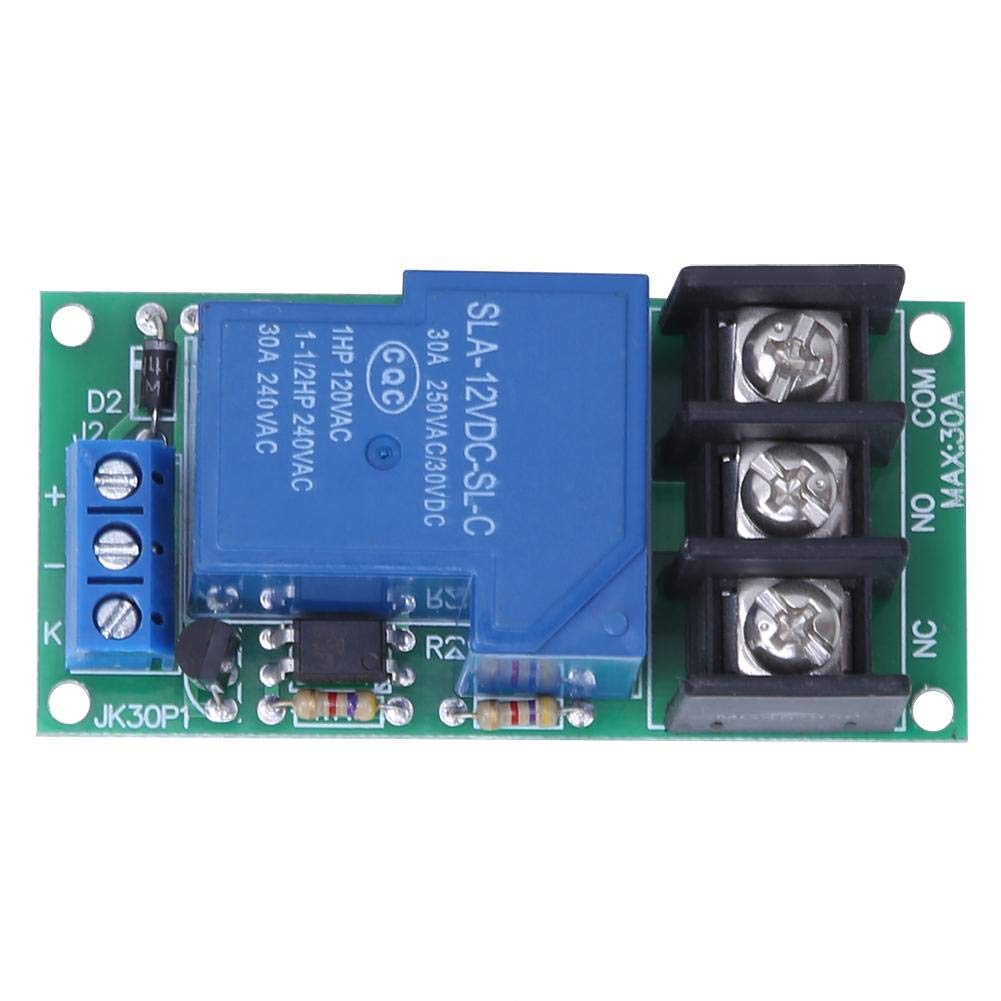

2pcs 1-Way 30A 12V Relay Expansion Module Low Level Trigger with Optocoupler Isolation

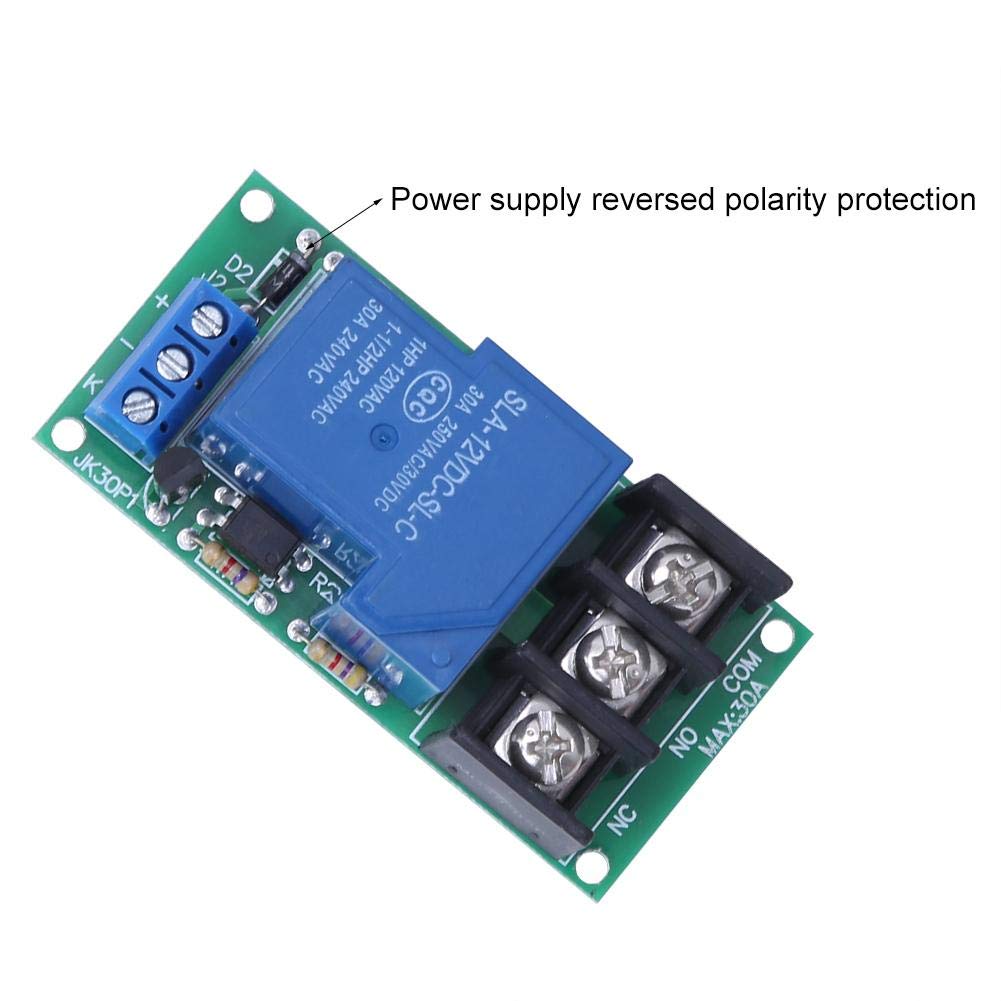

• Power supply reversed polarity makes it worry to connect the power supply wrong. You can use this product without too much concerns.
• Large load capacity, maximum 30A current. The operating voltage of the product is 12VDC, and the operating current is 80mA.
• Low level trigger. Simple circuit structure, easy to connect wire. Bring you a new and different using feeling.
• Optocoupler isolation, strong driving capability, stable performance. The quality of the product is guaranteed.
• The product is especially suitable for 51 single-chip microcomputer expansion to control equipment work.

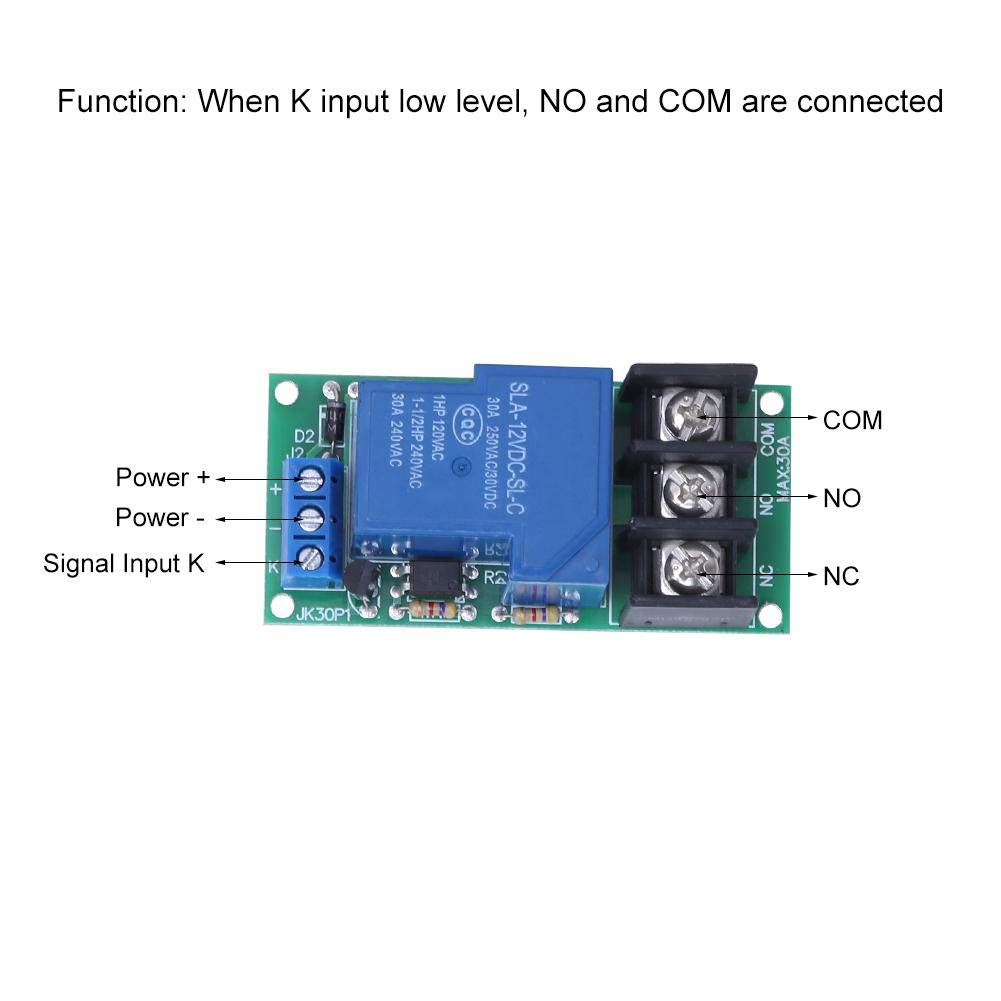

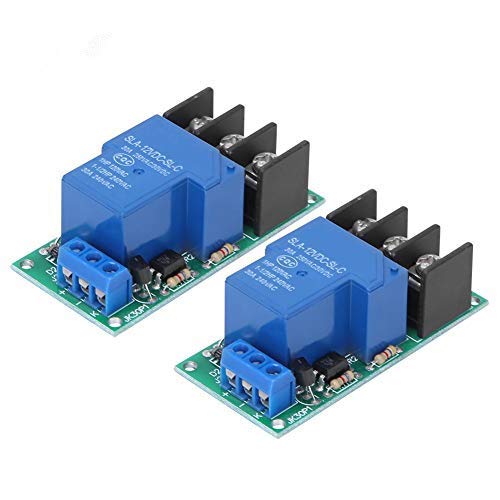

Specification: Item Type: Relay Module Operating Voltage: 12VDC Operating Current: 80mA Contacts: A group of 30A normally open + normally closed (isolated from the input) Input: Low level (0V) active, require drive current at least 0.5mA Function: When the input is low level, the relay is closed; when the input is high level or disconnecting (floating), the relay is open. It is mostly used for circuits in which small signal controls high-voltage and high-current, especially suitable for 51 single-chip microcomputer expansion to control equipment work Package List: 2 x Relay Module
