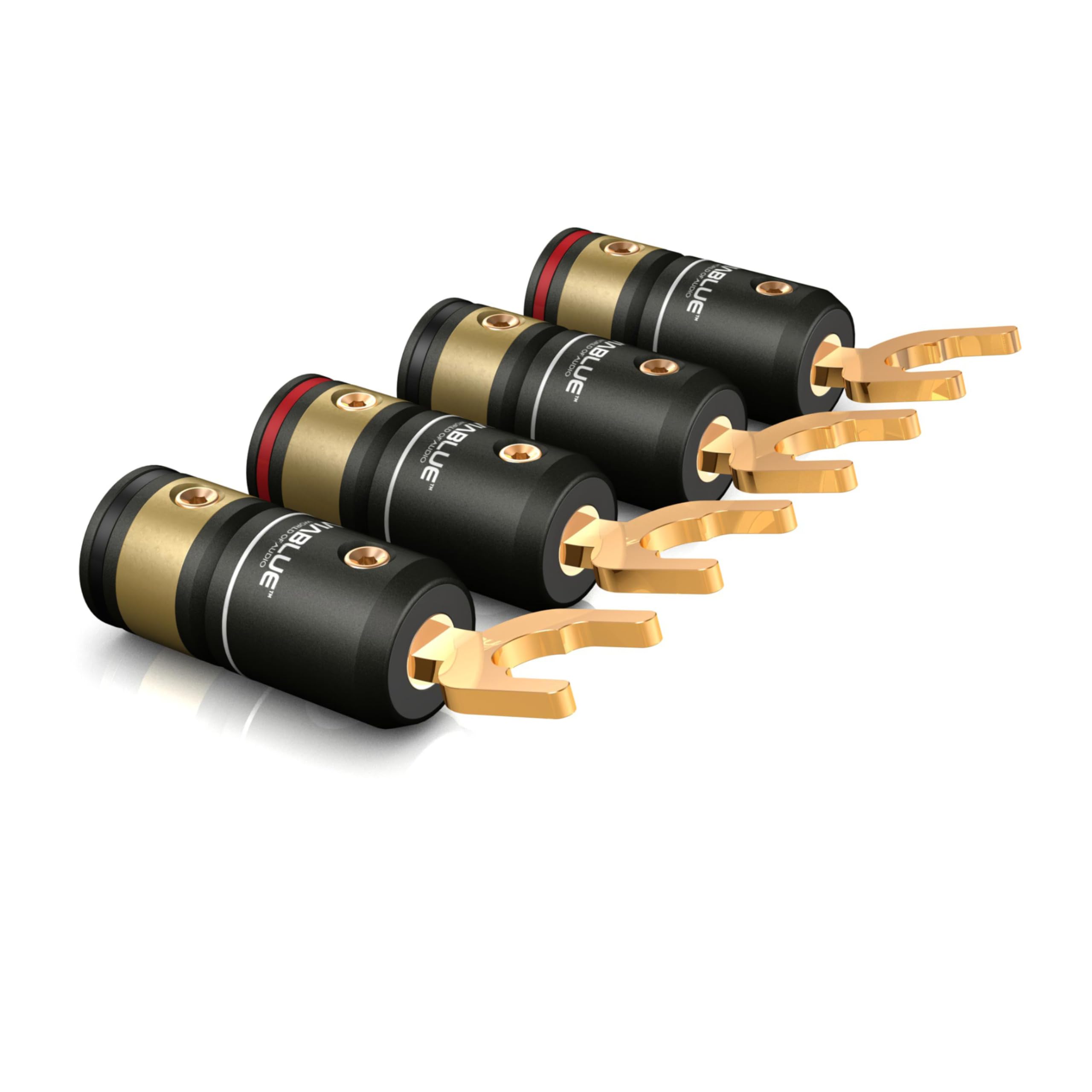

2Pairs Viablue T6s SPADES

• 2 pairs (4 pieces). Cable lugs with fork contacts with double opening of 6.4 and 9.5 mm fork width for universal terminal connection
• 24 carat real gold plated, high-quality full metal housing made of refined aluminium
• Cable holder 3 - 9.5 mm, 2 diameter decreaser for ideal adaptation to various cable sizes
• M4 hexagon socket with 1.5 mm hexagon as strain relief. Interchangeable contacts, no soldering required
• Length: 41 mm. Contact length: 9 mm + 15 mm open wire mesh. Inner soldering tray: 5 mm

ViaBlue T6s spades plug have 24 carat gold-plated contacts. The shells are made of aluminum. Cables up to 9.5 mm diameters can be installed. All connectors of the T6s series are supplied including two diameter decreasers. Those diameter decreasers make an assembly of cables with small and big diameter possible and grant a firm strain relief. For the assembly the stripped cable ends are soldered at the contact parts of the T6s plugs. The contact part can be removed completely from the plug's shell. The M4 screw serves as strain relief. The shell for all plugs (exception: XLR plugs) of the ViaBlue T6s series is identical. Only the contact parts change. Flexibly applicable. For all cable diameters. Each T6s plug contains two diameter decreasers which serve for a firm strain relief and centric adjustment of the cables. The small diameter decreaser has an outter diameter of 7.5 mm and an inner diameter of 4.5 mm. Thus cables with an outter diameter of 3 mm up to 4.5 mm can be fixed firmly. The big diameter decreaser has an outter diameter of 9.5 mm and an inner diameter of 7.5 mm. Thus cables with an outter diameter from 5 mm to 7.5 mm can be fixed firmly. Without using any diameter decreaser cables with diameters from 7.5 mm to 9.5 mm can be installed. VIABLUE T6s SERIES. THE 6TH SENSE. Technical specifications: Max outer diameter: 13.5 mm Contact: for 6 - 9.5 mm Ø jacks Finishing: 24 Karat Gold plated Total length: 46.8 mm Max cable input: for cables with Ø 3 - 9.5 mm Marking: black / red Screws: 1.5 mm Hexagon
