2Packs Power Distribution Board PDB-XT60 with BEC 5V and 12V 2oz Copper for RC Helicopter Quadcopter FPV Racing — image 1
HelicoptersFLY RC✓ In stock

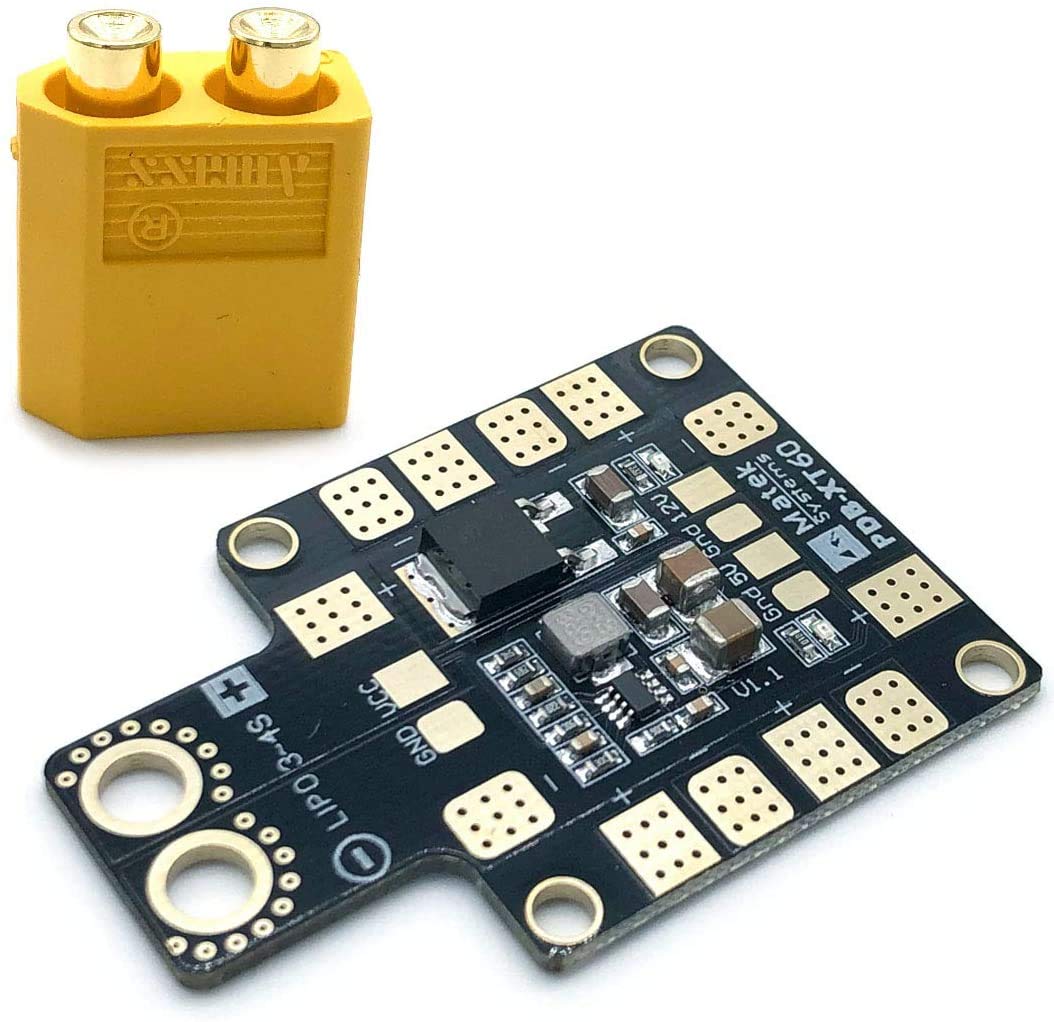

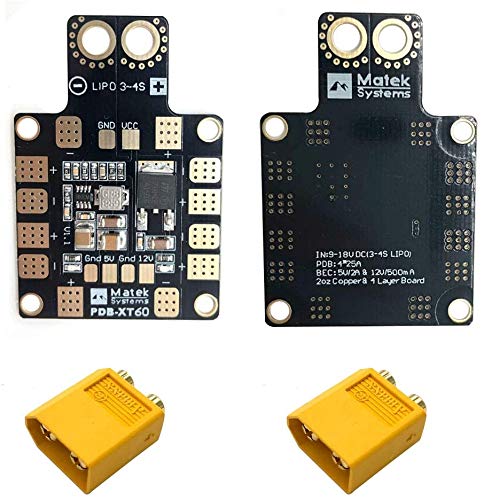

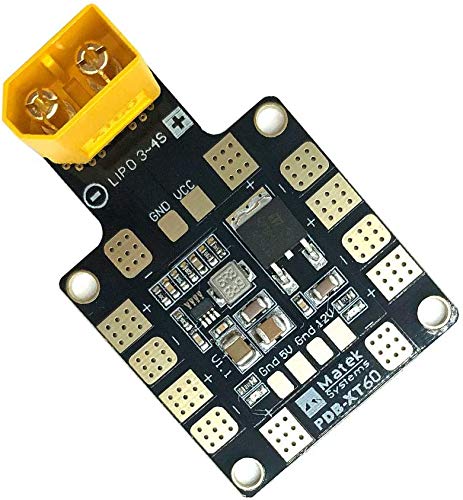

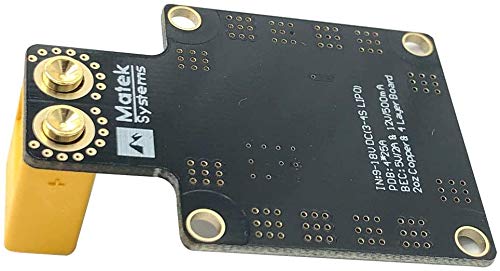

2Packs Power Distribution Board PDB-XT60 with BEC 5V and 12V 2oz Copper for RC Helicopter Quadcopter FPV Racing

★★★★★
$15.83
Worldwide shipping
Fast tracked delivery
30-day returns
Hassle-free returns
Secure checkout
Safe & protected
Great service
Thousands of happy customers
About this item
  • Input Voltage Range(3S-4S Lipo operation): DC 9-18V; Regulated 5V and 12V outputs; LED power indicators( 5V & 12V outputs); 6 ESC outputs & 1 pair VCC/GND pads.
  • ESC outputs:Continuous current: 25A*4 or 15A*6;Peak current (10 seconds/minute): 30A*4 or 20A*6.
  • BEC 5V output:Designed for RC Receivers, Flight controllers, OSD, and Servos; DC/DC synchronous buck regulator; Voltage: 5.0 +/- 0.1VDC; Continuous current: 2 Amps (Max.2.5A 10s/minute); Output Ripple: 40mV (VIn=16V, VOut=5V@2A load); Short-circuit tolerant (5 seconds/minute) .
  • BEC 12V output:Designed for Video TX or FPV camera with linear regulator; The battery should be 4S LiPo (13~18V DC);Voltage: 12.0 +/- 0.3VDC; Continuous current: 500mA (Max.0.8A 5s/minute); Short-circuit tolerant (2 seconds/minute).
  • BEC 12V @ 3S LiPo;Output voltage= 3S LiPo voltage -1V.
Product description

Production Description: General: Input Voltage Range(3S-4S Lipo operation): DC 9-18V. Regulated 5V and 12V outputs. LED power indicators( 5V & 12V outputs). 6 ESC outputs & 1 pair VCC/GND pads ESC outputs: Continuous current: 25A*4 or 15A*6 Peak current (10 seconds/minute): 30A*4 or 20A*6 BEC 5V output: Designed for RC Receivers, Flight controllers, OSD, and Servos. DC/DC synchronous buck regulator. Voltage: 5.0 +/- 0.1VDC Continuous current: 2 Amps (Max.2.5A 10s/minute) Output Ripple: 40mV (VIn=16V, VOut=5V@2A load) Short-circuit tolerant (5 seconds/minute) BEC 12V output: Designed for Video TX or FPV camera with linear regulator. The battery should be 4S LiPo (13~18V DC) Voltage: 12.0 +/- 0.3VDC Continuous current: 500mA (Max.0.8A 5s/minute) Short-circuit tolerant (2 seconds/minute) BEC 12V @ 3S LiPo Output voltage= 3S LiPo voltage -1V Package Include: 2 * PDB-XT60 Power Distribution Board with BEC 5V and 12V 2oz Copper for RC Helicopter Quadcopter FPV Racing.

Product details
Brand
FLY RC
Manufacturer
FLY RC
