2P Protective Device DC Photovoltaic Protector Low-voltage Arrester House Protective Voltage Arrester Device(2P40KA)

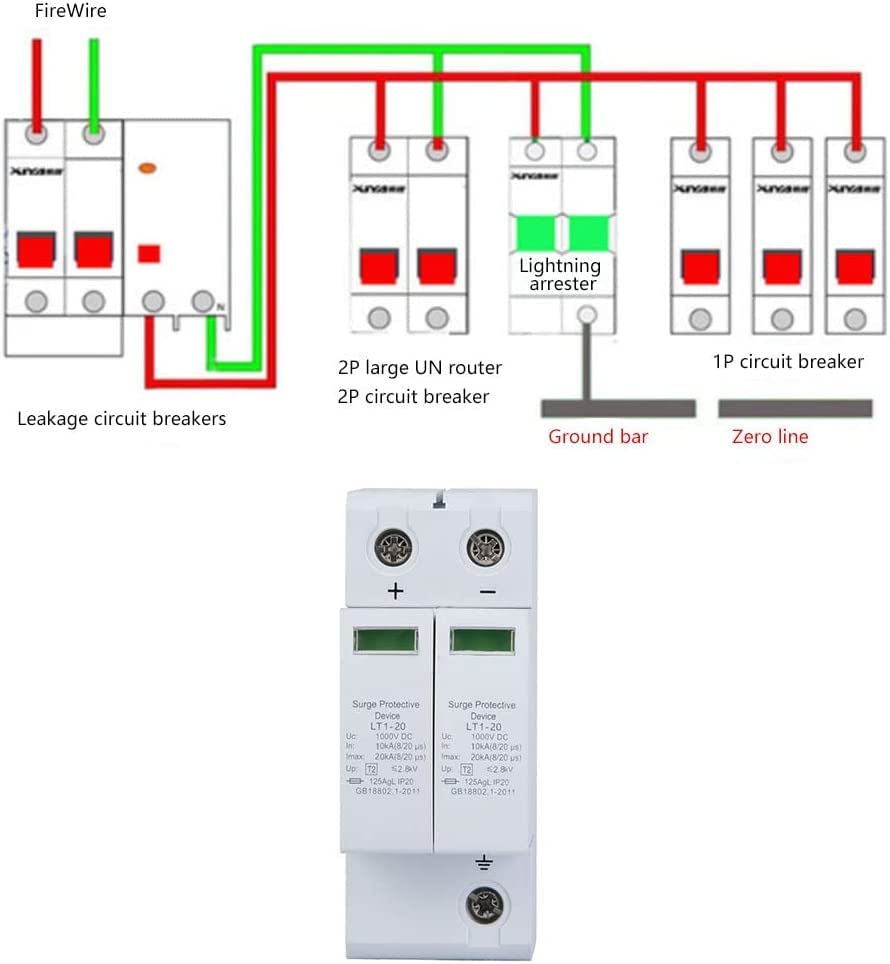

• Use: Installation with standard 36MM guide rail and use with circuit breaker in distribution box
• The product is made of precise electronic components, with longer service life and more stable performance.
• Reasonable design: The product adopts modular design, and its use and maintenance are very simple. Rated connectivity and segmentation Ability: 1M

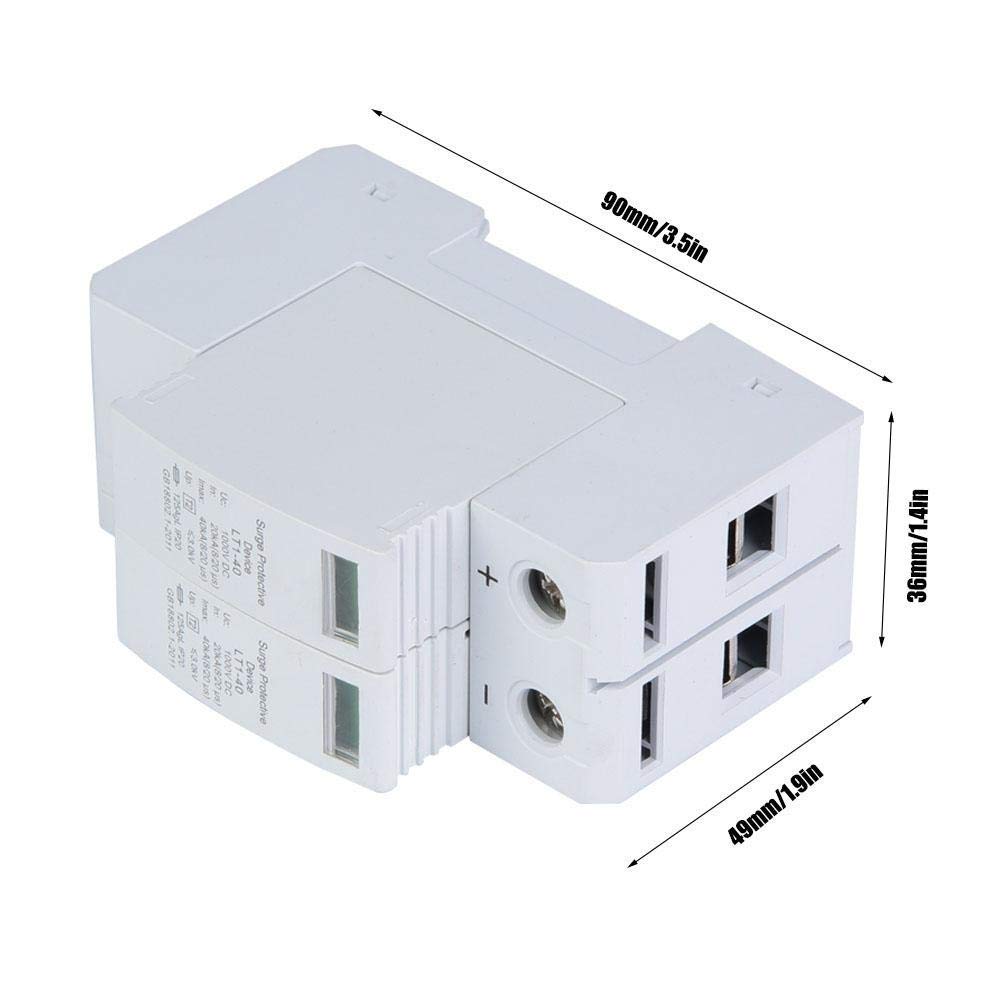

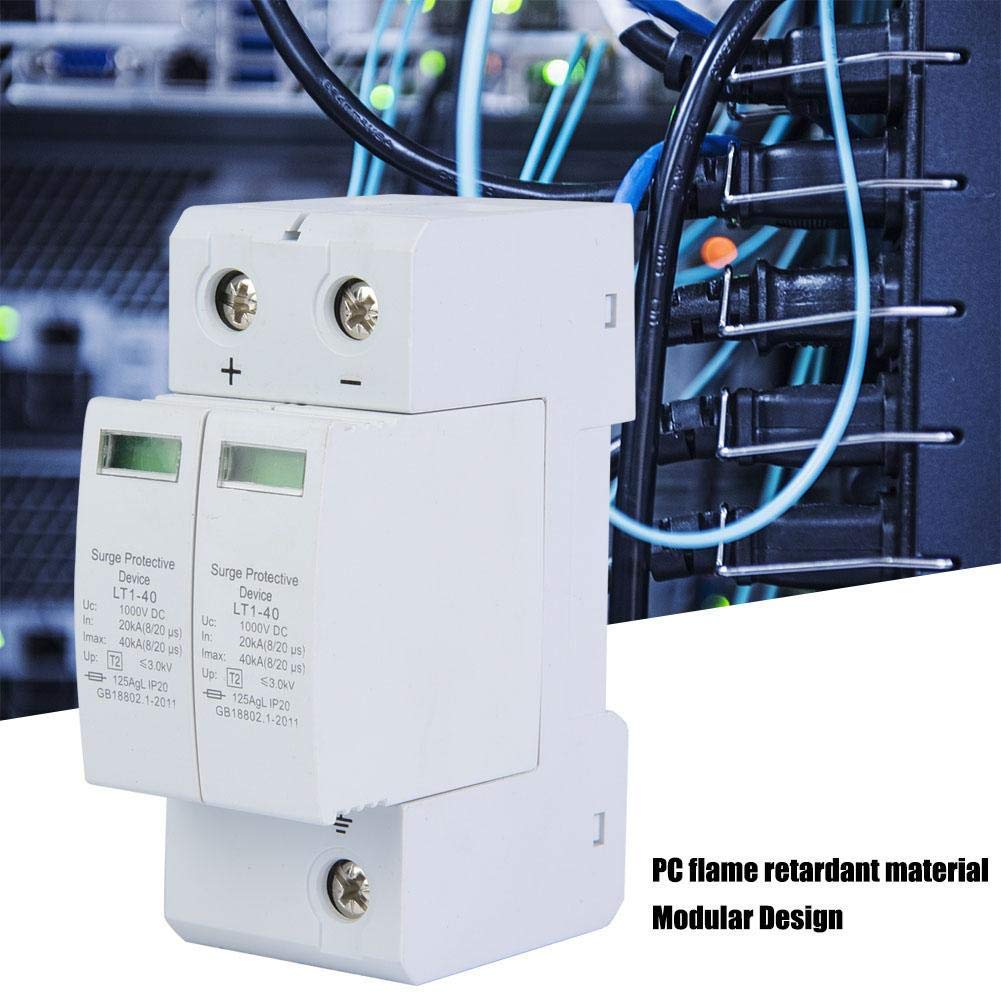

• Material safe: PC flame retardant shell.The product shell is made of PC flame retardant material, which is safer to use.Product dimension: 90×49×36mm / 3.5×1.9×1.4in
• Installation mode: 2P Guide rail mounting. This product adopts 2P guide rail installation, installation is very simple.

Specification: Material: PC flame retardant shell Uc: 1000V Type: #1, 10/20KA; #2, 20/40KA(Optional) Nominal discharge current: 10KA(#1),20KA(#2) Maximum discharge current: 20KA(#1), 40KA(#2) Installation mode: 2P Guide rail mounting Residual voltage after unloading voltage: <3.0KV Rated connectivity and segmentation Ability: 1M Product dimension: 90*49*36mm / 3.5*1.9*1.4in Weight: 260g/9.2oz Package List: 1 * Protective Device Note: The actual product color may deviate from the photo due to light. There may be a slight deviation in the measurement of product.
