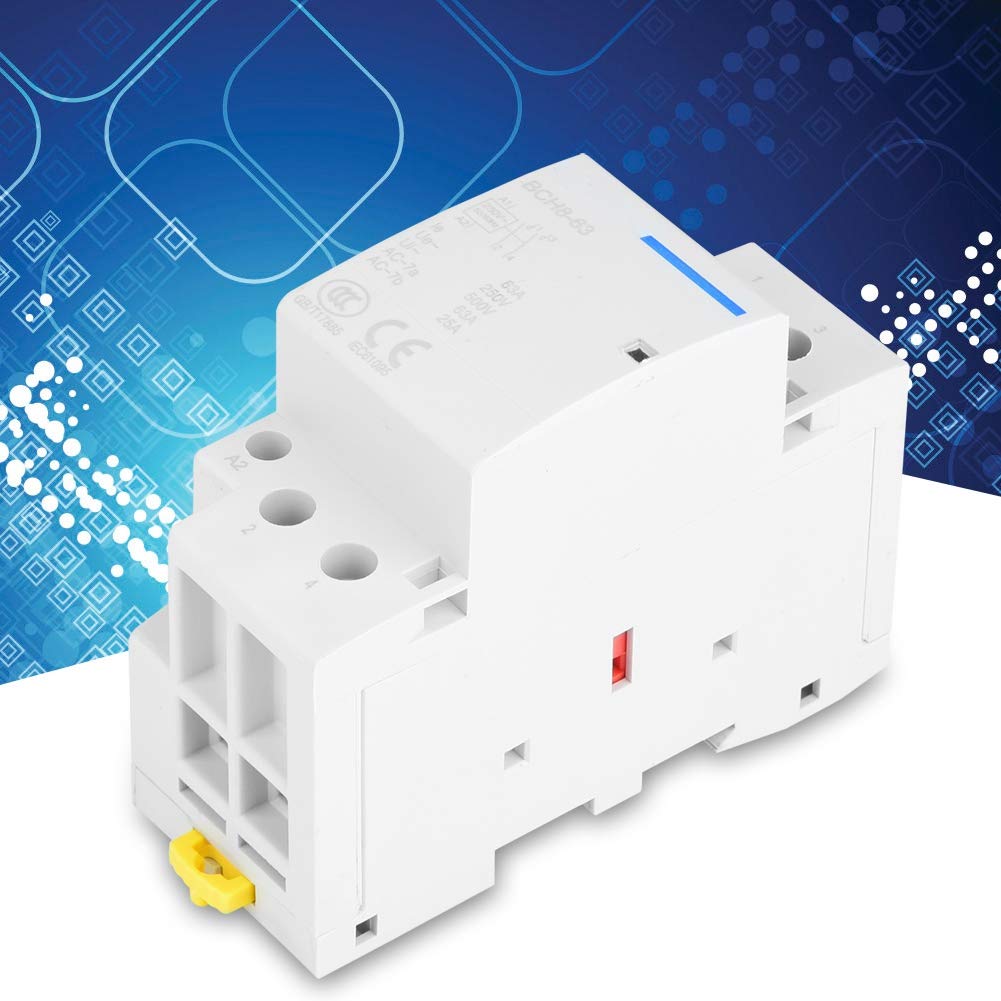

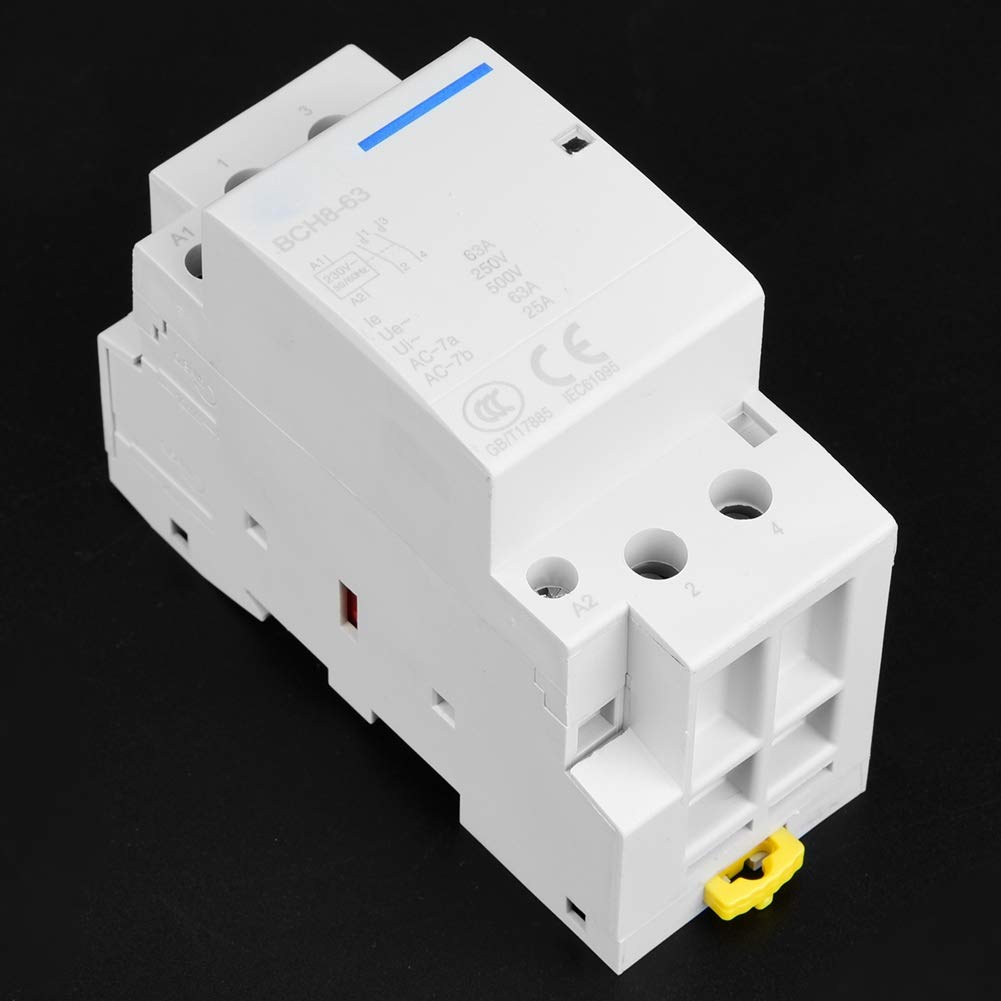

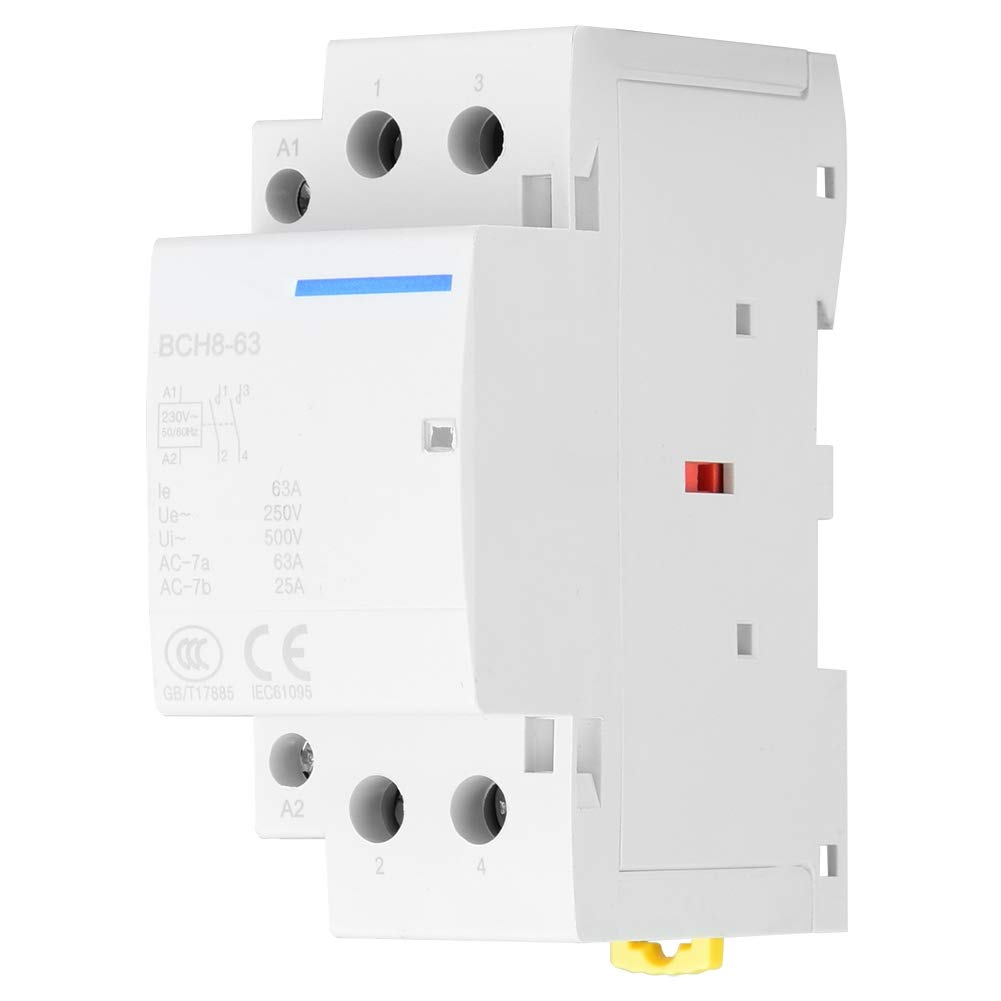

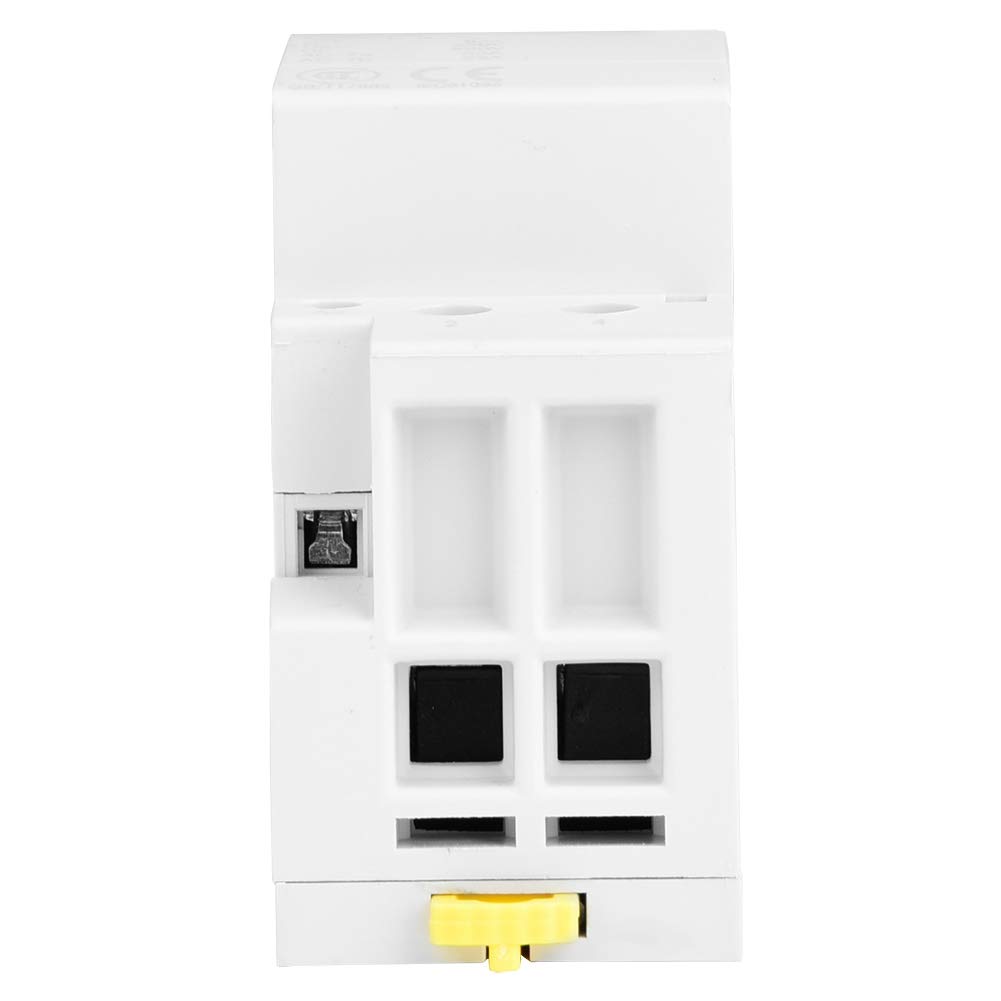

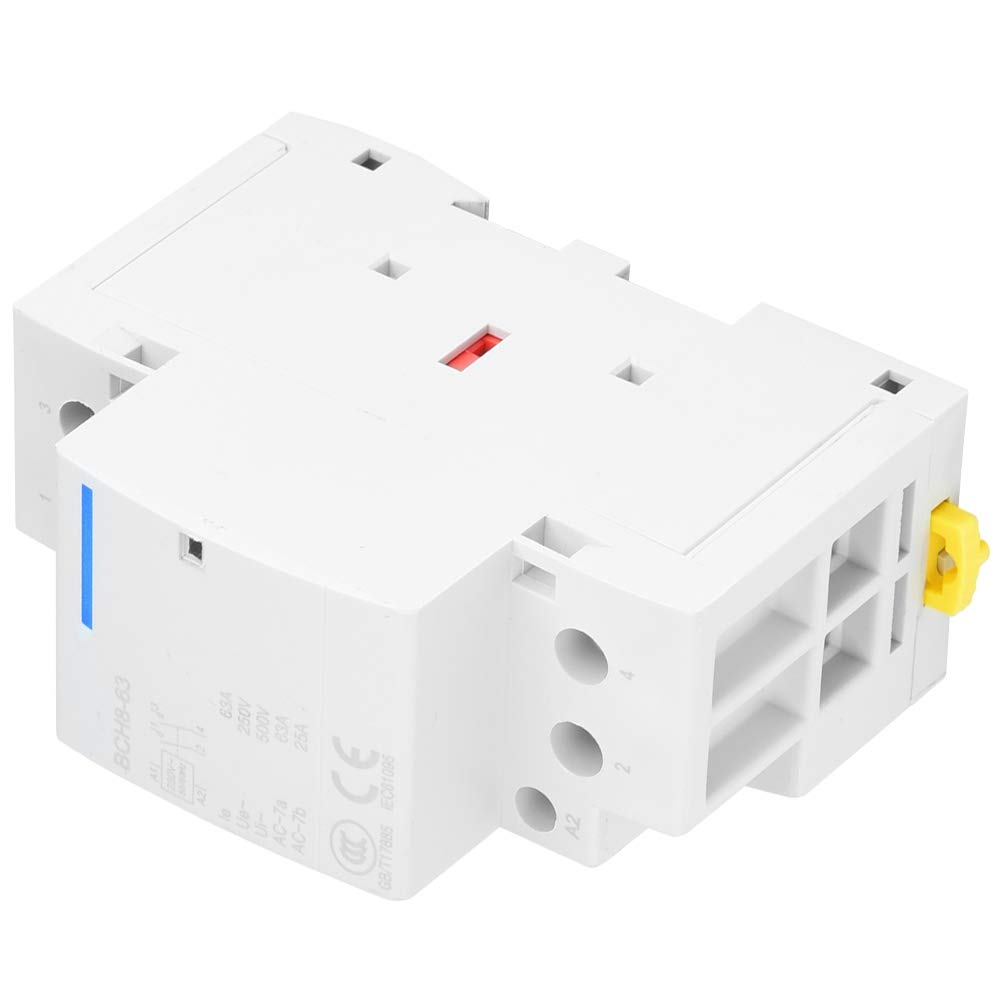

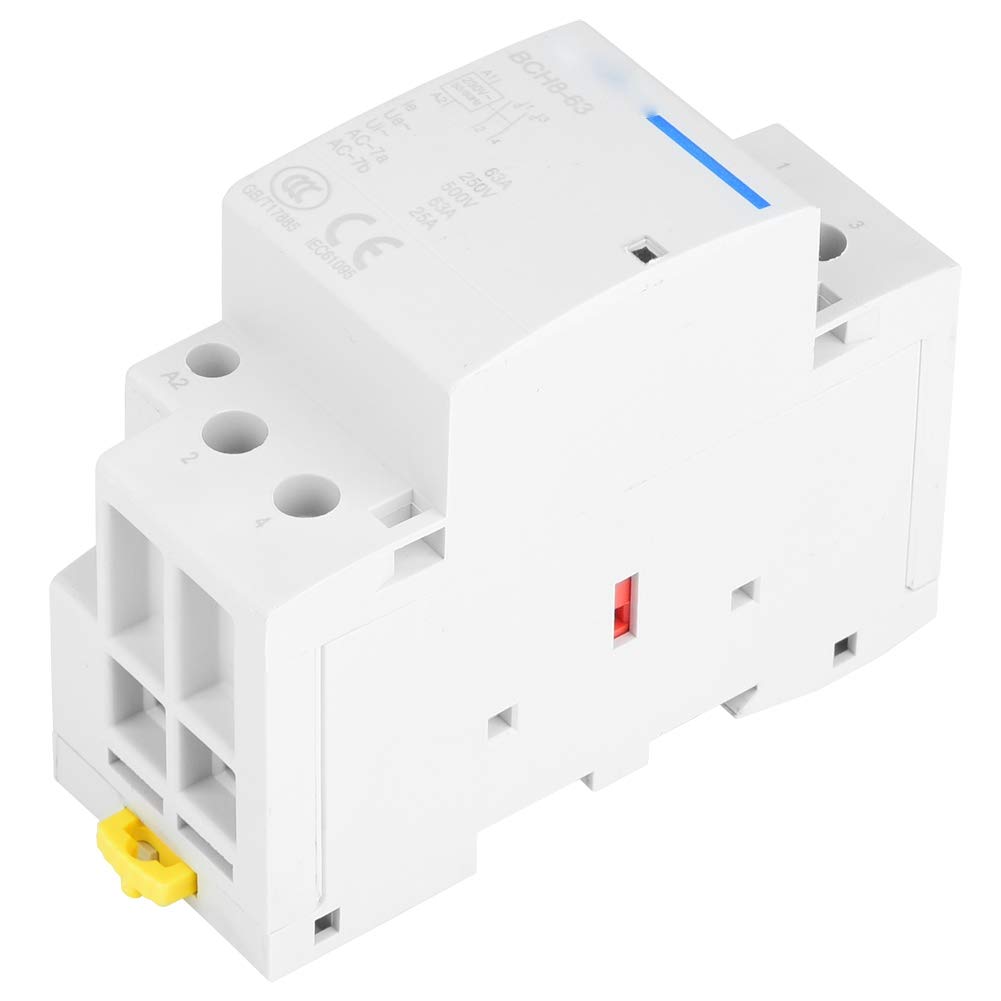

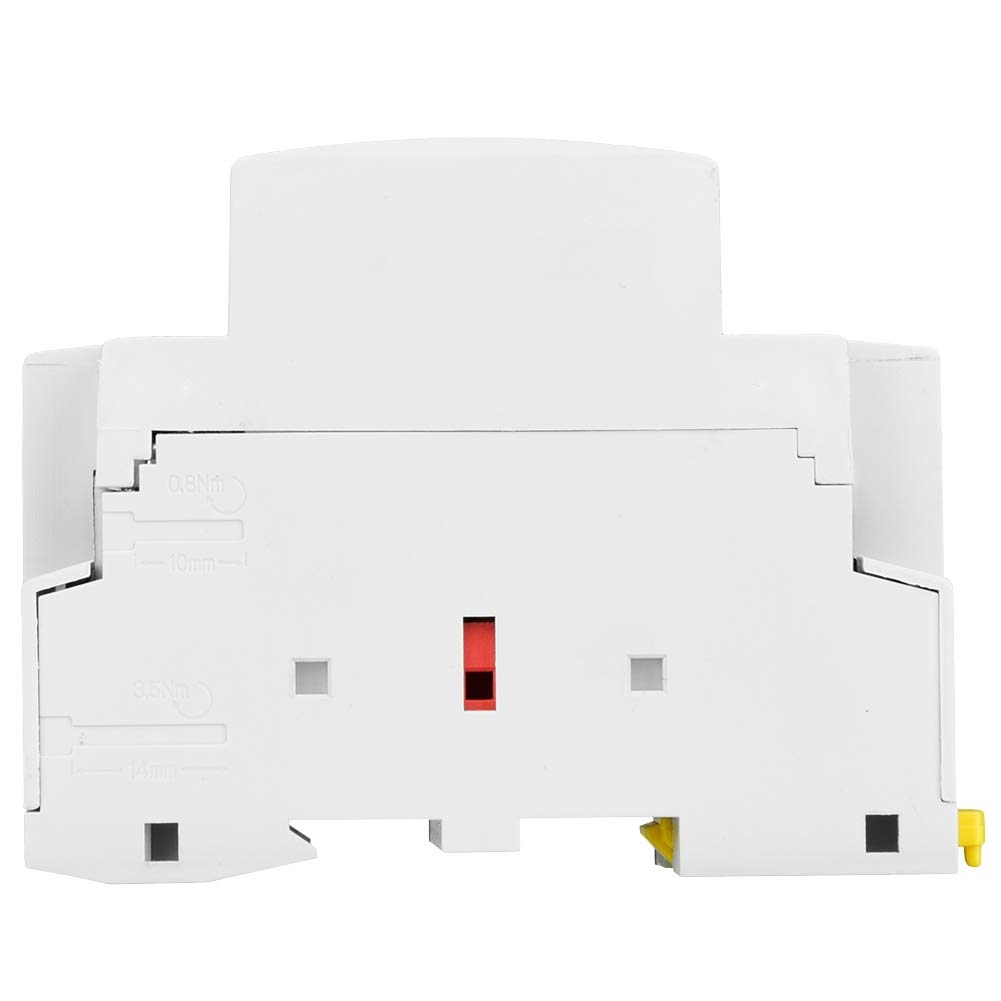

2P 2NO AC Contactor, 63A 24V 220V/230V 50/60Hz Household AC Contactor Low Power Consumption DIN Rail Mount (220V/230V)

• HIGH QUALITY: This home AC contactor is new and high quality, designed for home use, 35mm DIN rail mounting.

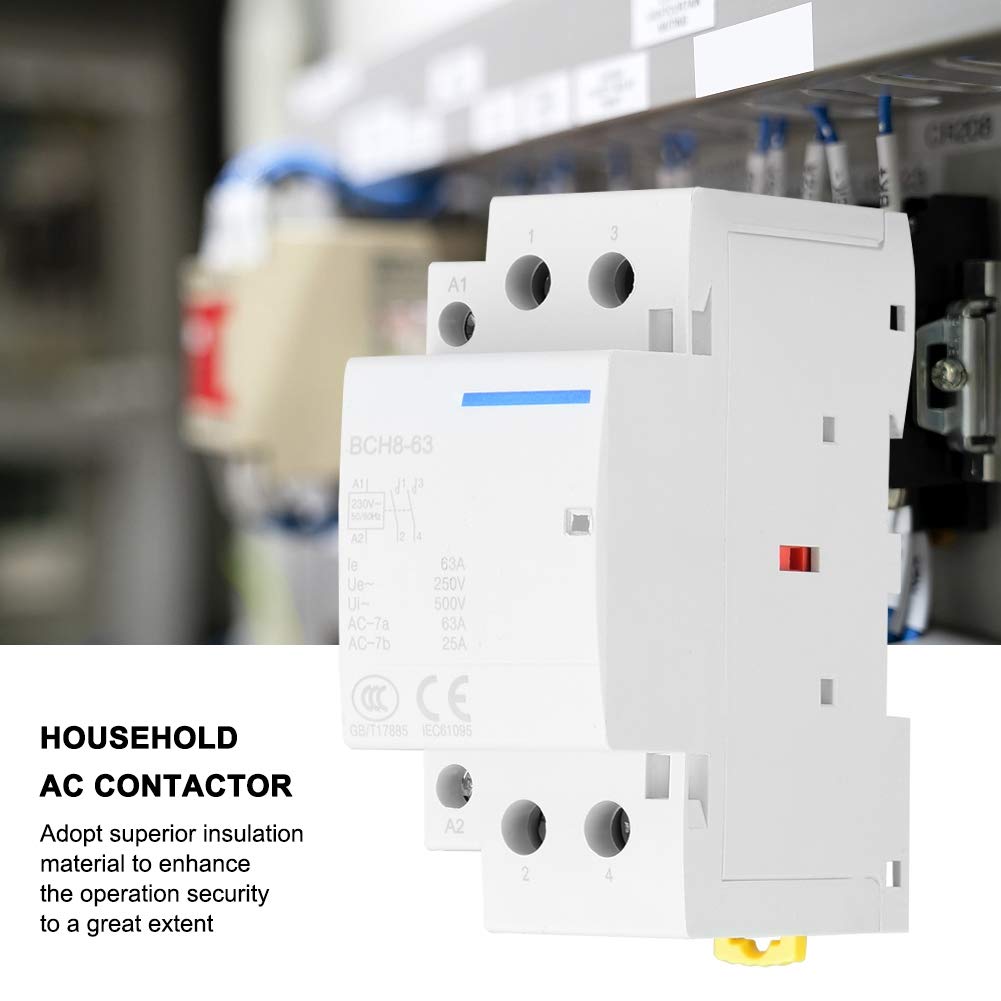

• OPERATIONAL SAFETY: This AC contactor uses high-quality insulation to greatly enhance operational safety.
• EASY TO INSTALL: The compact, modular design makes this AC contactor easy to install and saves space.
• WIRING DIAGRAM: A wiring diagram is printed on the of the contactor.
• QUIET AND SAFE This home AC contactor is suitable for most building electrical control applications and no noise and electric spark during

Description Specification: Rated Control Supply Voltage (Us): AC 24V, AC 220V/230V(Optional) Rated Current: 63A(AC-7a), 25A(AC-7b) Conventional Thermal Current (lth): 63A Rated Insulation Voltage (Ui): 500VAC Rated Working Voltage (Ue): 250VAC Number of Poles: 2P(2NO) Maximum Number of Switching Operations: 30times/hour Electrical Life: 100,000 times Mechanical Life: 1,000,000 times Package Weight: Approx. 241g Rated Duty: 1) 8-hour duty This is the basic duty, and conventional heating current Ith of the contactor is determined by this working system. 2) Intermittent periodic duty The rated operating frequency of the contactor under this duty is 30 times/h, and the load factor is 40%. Action(Operation) Condition: When the ambient temperature is in the range of -5°C to +60C, apply the rated control power supply voltage Us to the contactor sucking coil to make it heat up to a steady state, Then the contactor should be reliably closed under any voltage of (85% ~ 110%) Us. Its release voltage is (20%~75%) Us. Package list: 1 * AC Contactor
