280kg DC12/24V Access Control Magnetic Door Lock, Stainless Steel Waterproof Electric Magnetic Lock for Wooden Doors, Glass Doors, Metal Doors, Fire Doors

• ✦The outer shell of this magnetic door lock is made of high-quality stainless steel, and the is anodized, which is strong, safe, and not easy to rust.

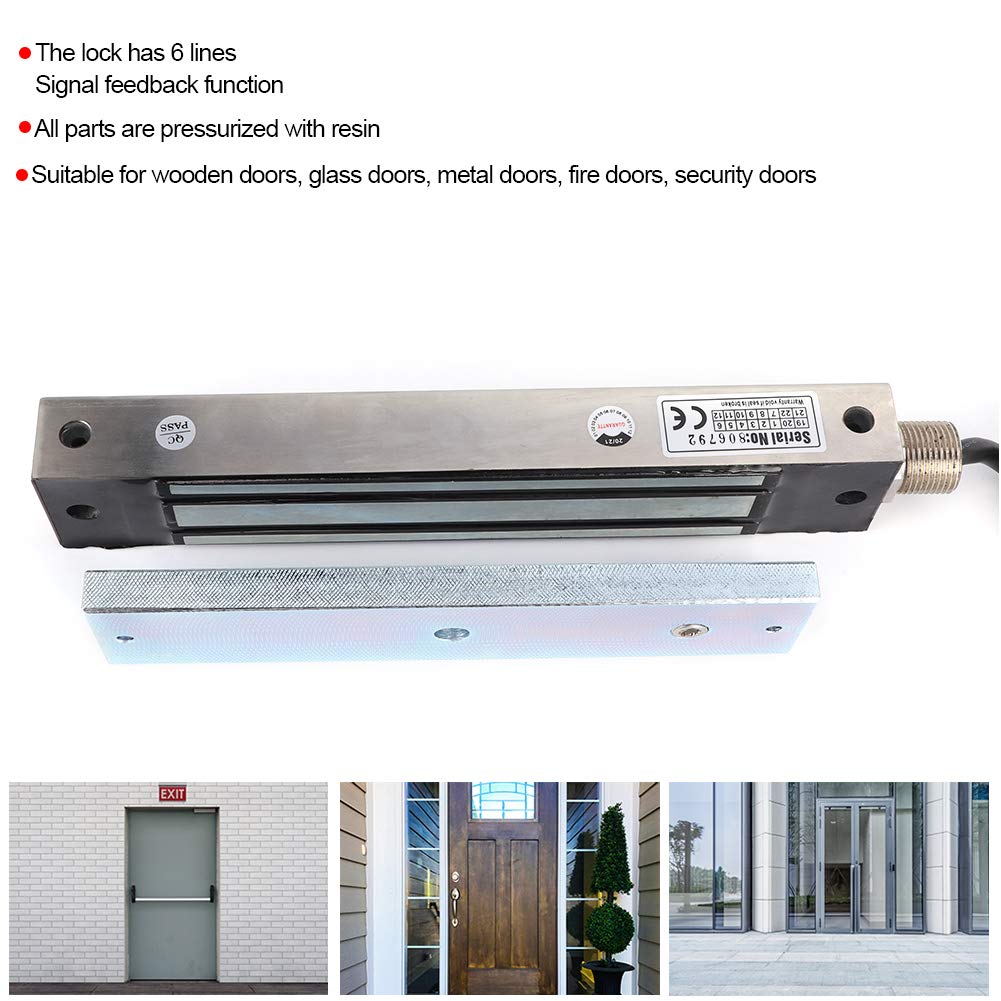

• ✦This kind of magnetic door lock uses magnetic force to lock the door and has a strong magnetic force of 280KG. The design has no mechanical failures, locks with 6 lines, and has a signal feedback function.
• ✦The magnetic door lock has a built-in surge absorption circuit, which is locked when the power is turned on, and unlocked when the power is turned off, and has a DC12V/24V dual voltage power supply.

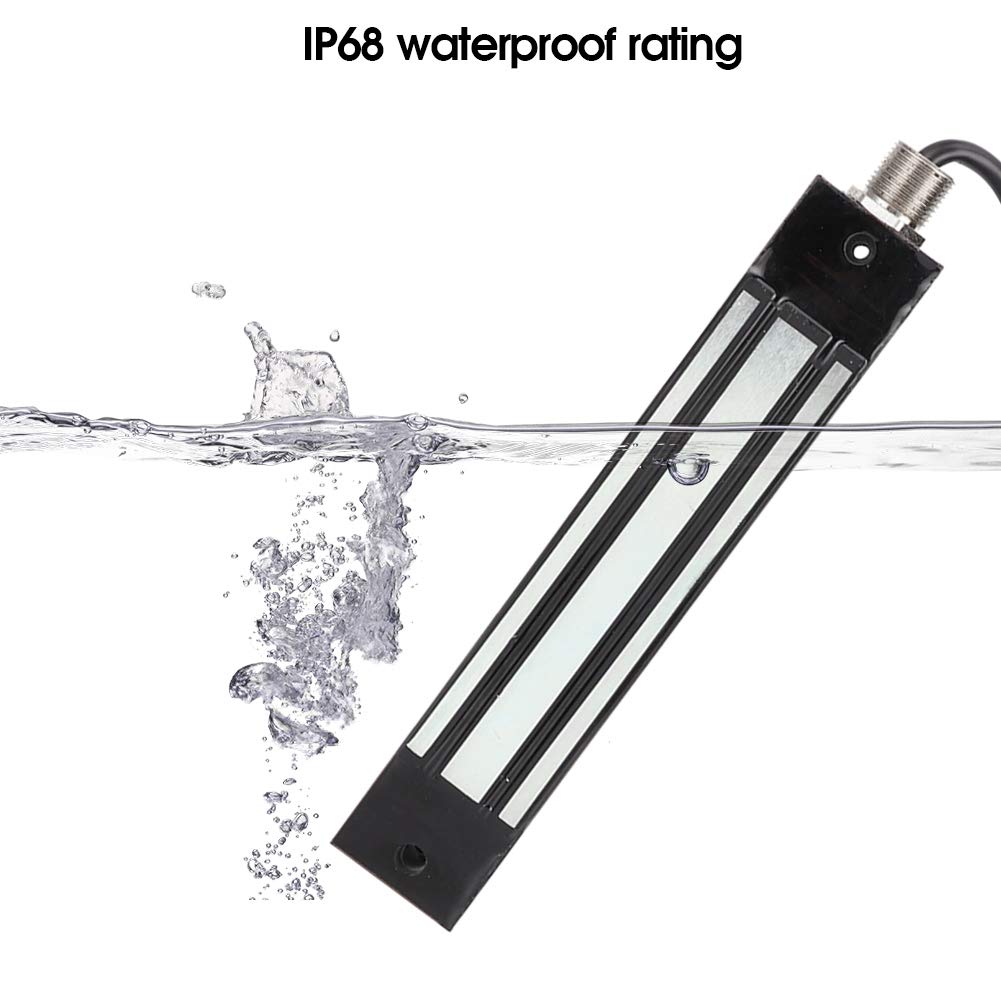

• ✦The lock has fine workmanship, no mechanical wear and long service life. All parts of the magnetic door lock are pressurized with resin and have a high waterproof rating of IP68, which is not afraid of rain.

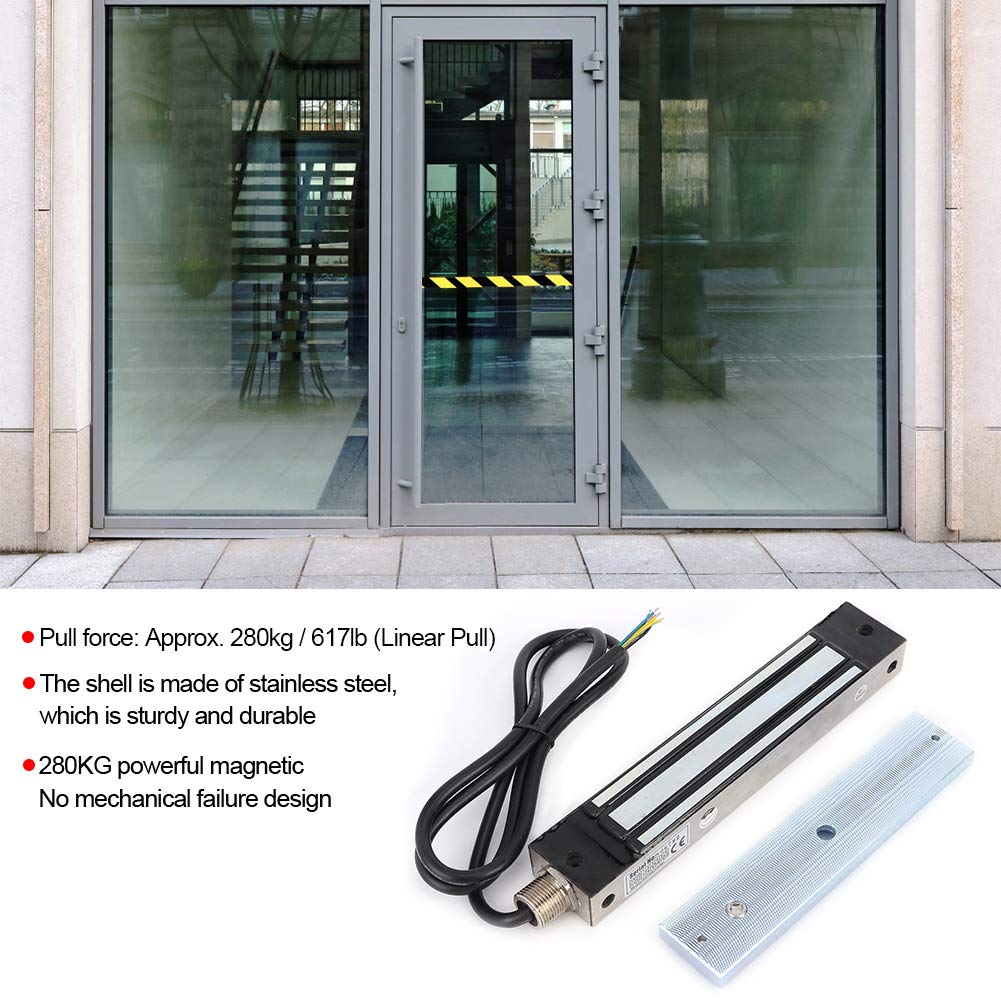

• ✦This 280KG super magnetic door lock is generally suitable for wooden doors, glass doors, metal doors, fire doors, etc., with a wide range of applications.

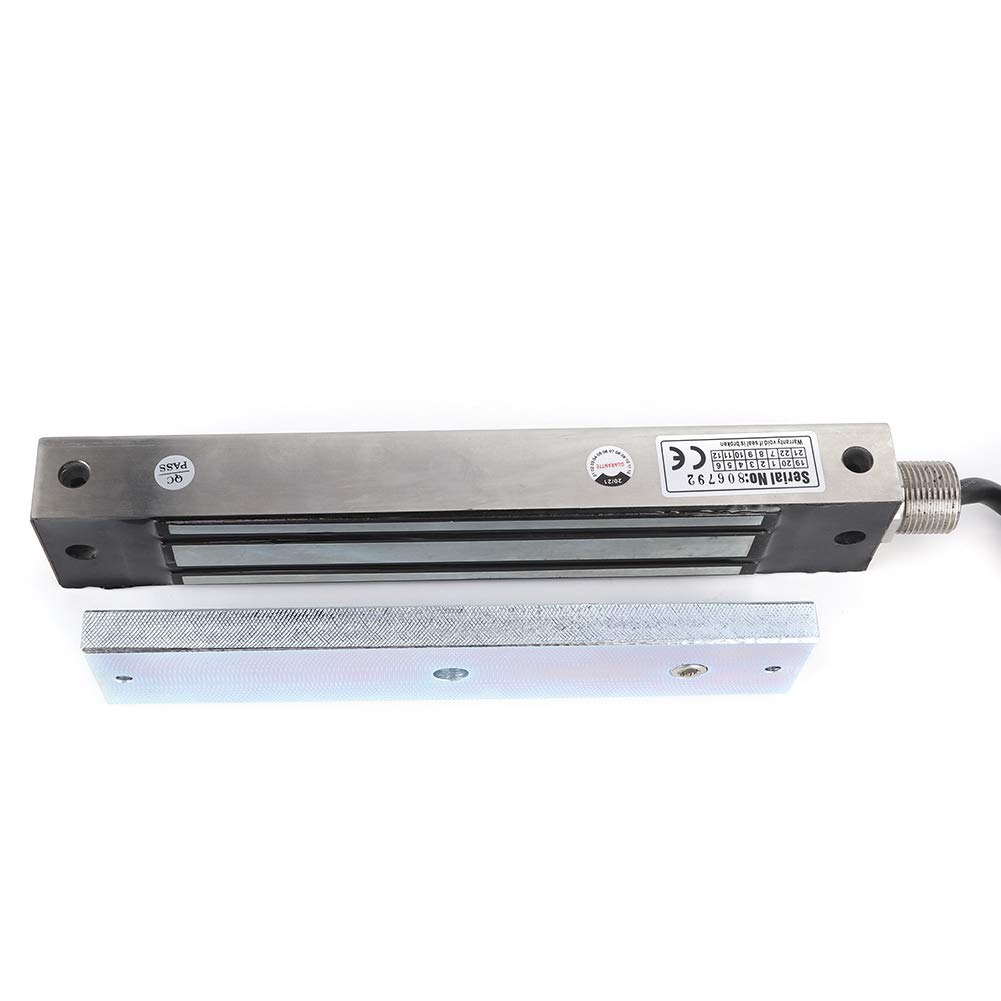

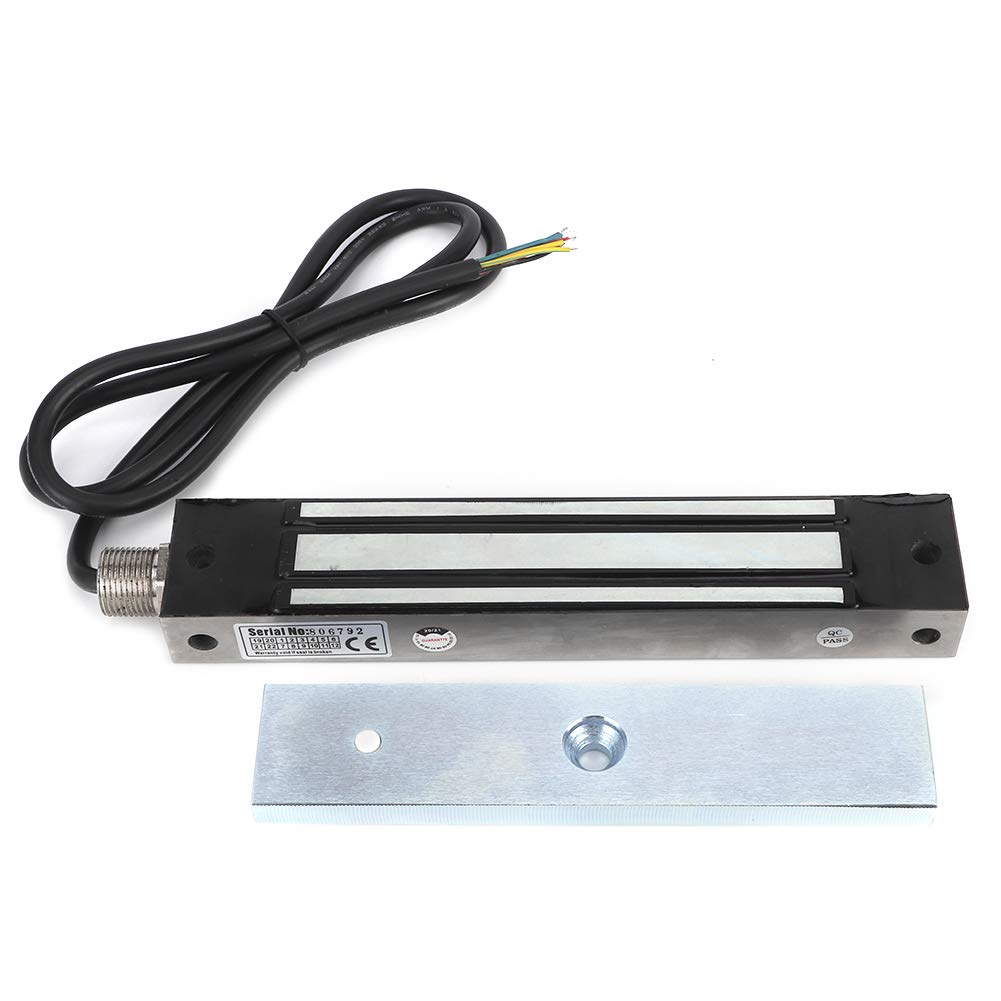

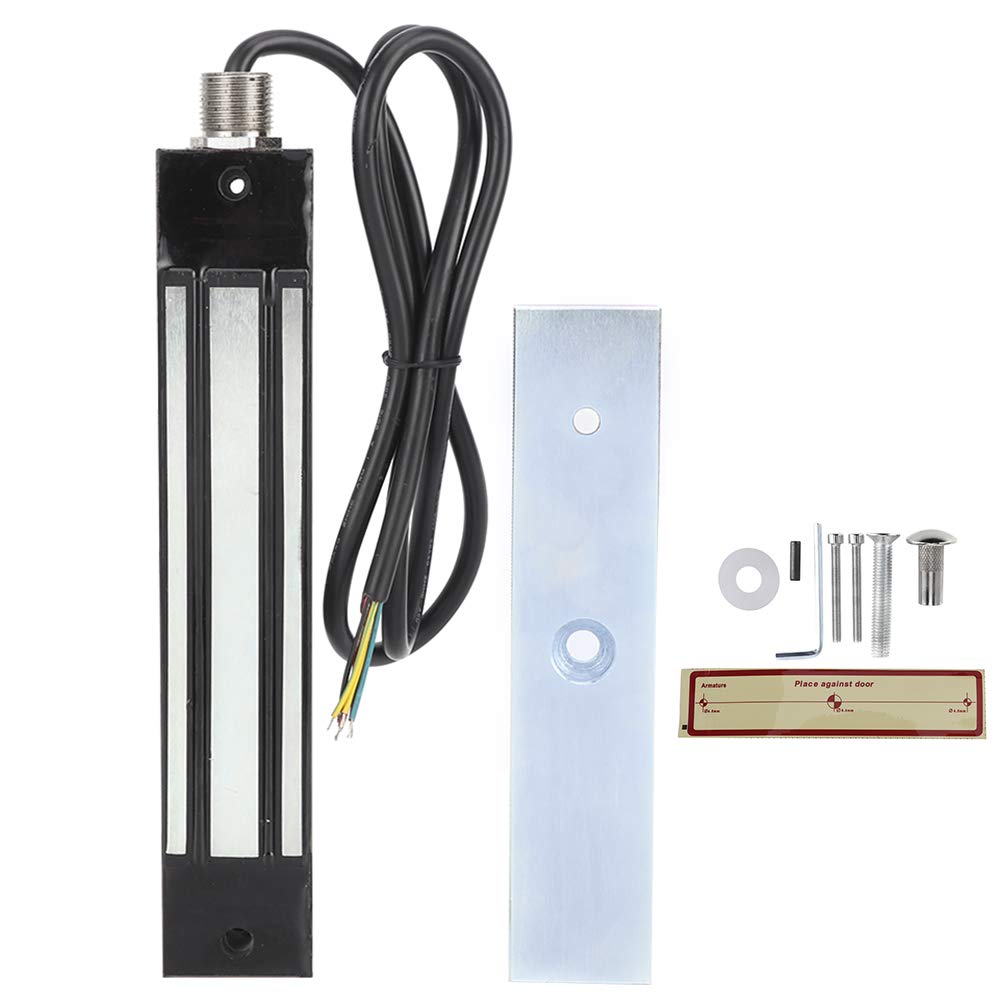

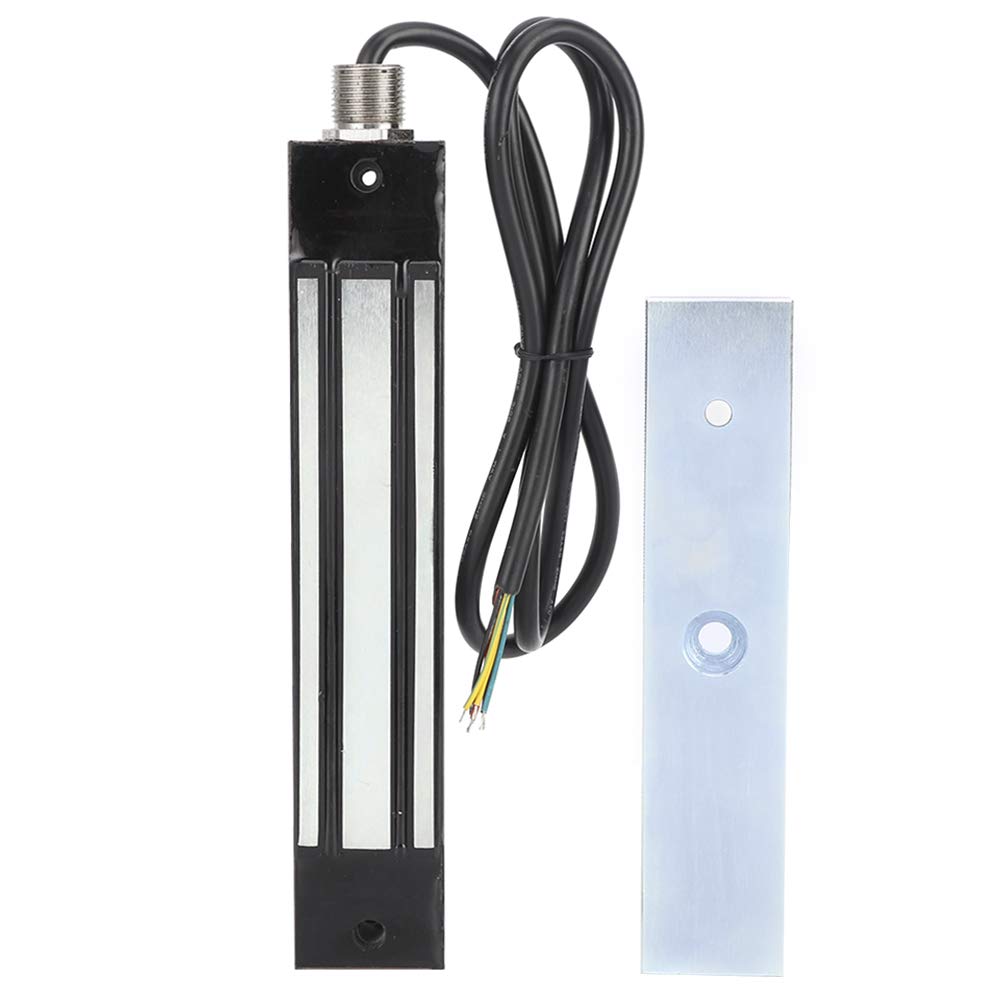

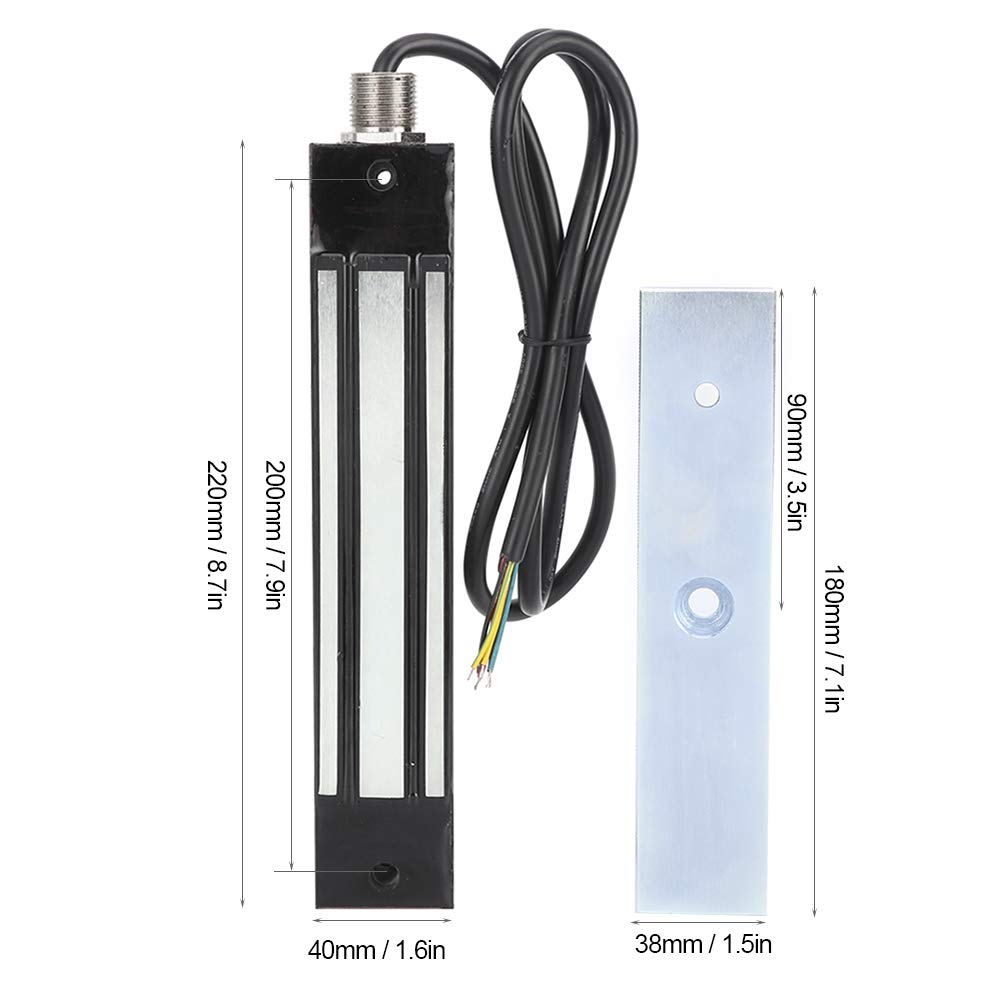

Specification: Condition: 100% brand new Item Type: 280kg Magnetic Lock Material: stainless steel. Colour: as shown in the pictures. Length: approx. 220 mm/8.7 inches. Width: approx. 40 mm/1.6 inches. Thickness: approx. 25.5 mm/1 inch Pulling force: approx. 280kg/617lb (Linear Pull) Input voltage: DC12V or DC24V. Working current: 12V/500mA ± 10%, 24V/250mA ± 10% Signal output: NO/COM contact of lock state signal Applicable door type: security door/fire door/wooden door/glass door/metal door Working temperature: -20°C to + 55°C. Waterproof rating: IP68 Package list: 1 x 280 kg magnetic lock. 1 x suction plate. 1 x Installation Accessories Kit 1 x positioning paper
