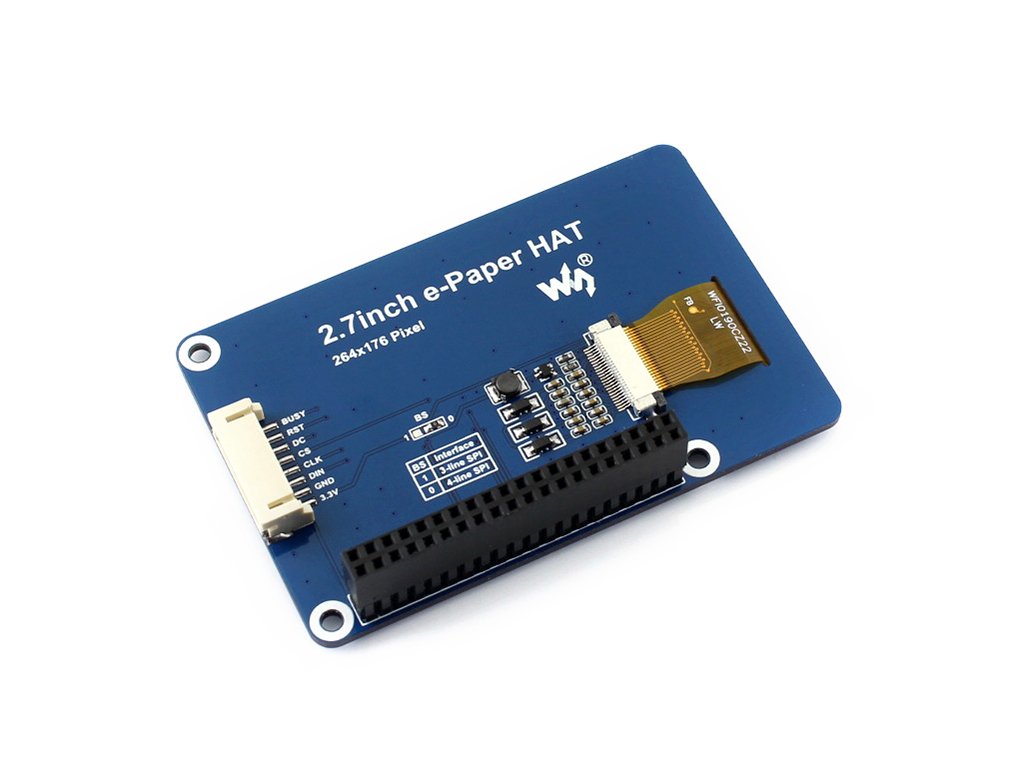

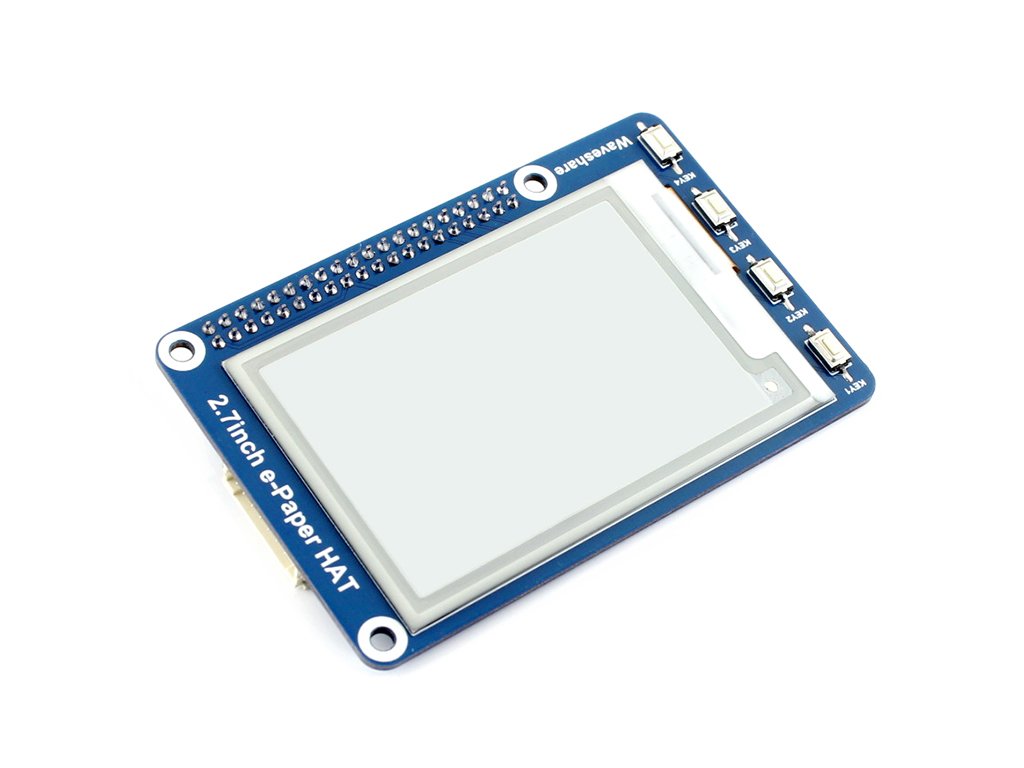

264x176 Resolution 2.7 Inch e-Paper Display HAT E-Ink Screen LCD Module SPI Interface with Embedded Controller for Raspberry Pi 2B 3B 3B+ 4B Zero Zero W/Arduino/STM32/Jetson Nano

• No backlight, keeps displaying last content for a long time even when power down
• Ultra low power consumption, basically power is only required for refreshing

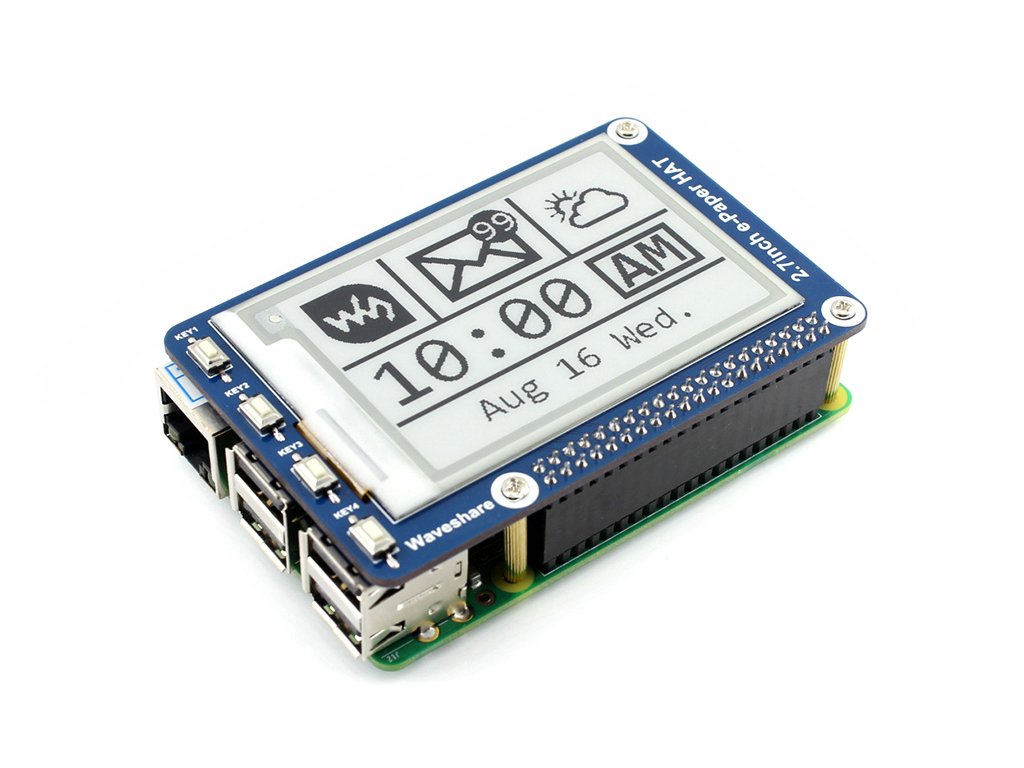

• Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
• Onboard 4x Keys; Onboard voltage translator, compatible with 3.3V/5V MCUs; SPI interface, for connecting with other controller boards like Raspberry/Arduino/Nucleo, etc.
• Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32),download link: www.waveshare.com/wiki/2.7inch_e-Paper_HAT

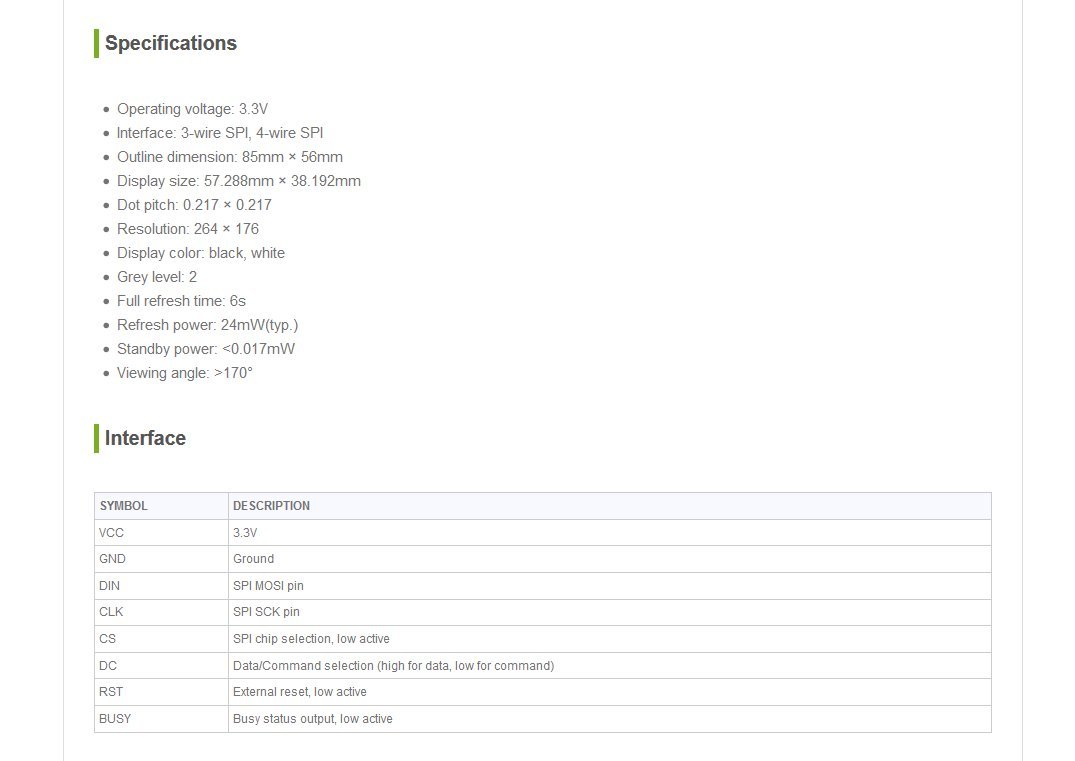

Description: 264 x 176, 2.7 inch E-Ink display HAT for Raspberry Pi, SPI interface Overview This is an E-Ink display HAT for Raspberry Pi, 2.7inch, 264x176 resolution, with embedded controller, communicating via SPI interface. Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on. Features: No backlight, keeps displaying last content for a long time even when power down Ultra low power consumption, basically power is only required for refreshing Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano Onboard 4 x keys. SPI interface, for connecting with other controller boards like Raspberry/Arduino/Nucleo, etc. Onboard voltage translator, compatible with 3.3V/5V MCUs Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32) Specifications: Operating voltage: 3.3 V/5 V. Interface: 3-wire SPI, 4-wire SPI Outline dimensions: 85 mm x 56 mm. Display size: 57.288 mm x 38.192 mm. Dot pitch: 0.217 × 0.217. Resolution: 264 × 176. Display colour: black, white. Grey level: 2. Full refresh time: 6s. Refresh power: 24mW (typ.) Standby power: <0.017mW. Viewing angle: >170°. Package includes: 1. 1 x 2.7 inch e-paper hat. 2. RPi screws pack (2pcs) x2 3. PH2.0 20 cm 8 pin x 1. 100% original,offer technical support!
