25x Ring Cable Lug Blank 1,5-2,5mm² Hole Diameter M12 Ring Lug Copper tinned

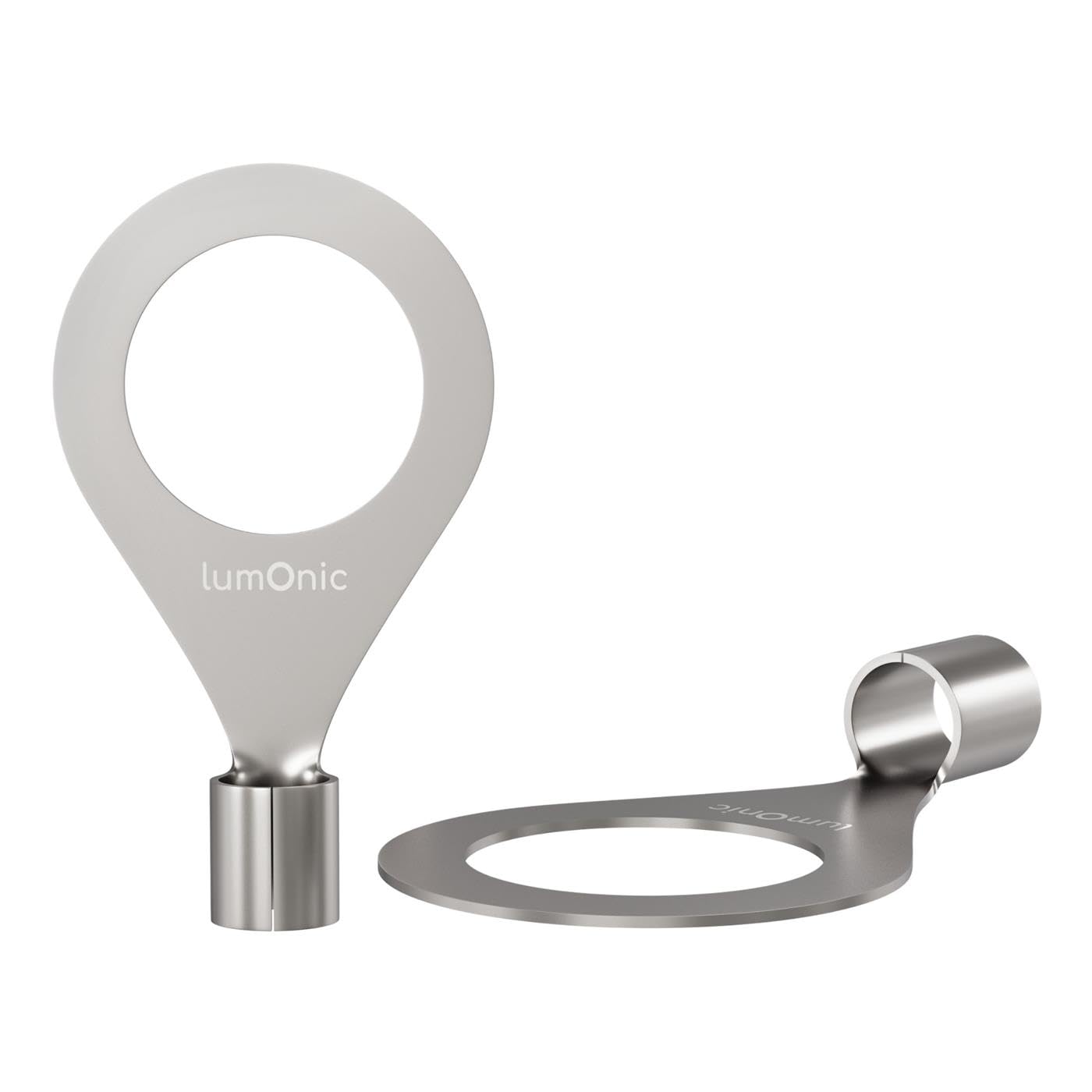

• Art ring cable lugs set consisting of 25 cable lugs 1.5 - 2.5 mm² with M12 ring opening and uninsulated crimp terminal blank.
• Suitable for: the M12 cable eyelet of the ring terminal has a diameter of d2: 13 mm and is suitable for 1.5 - 2.5 mm² cable cross-section. Can also be used as a pipe cable lug in the range between 1.5 mm2 2.5 mm2.

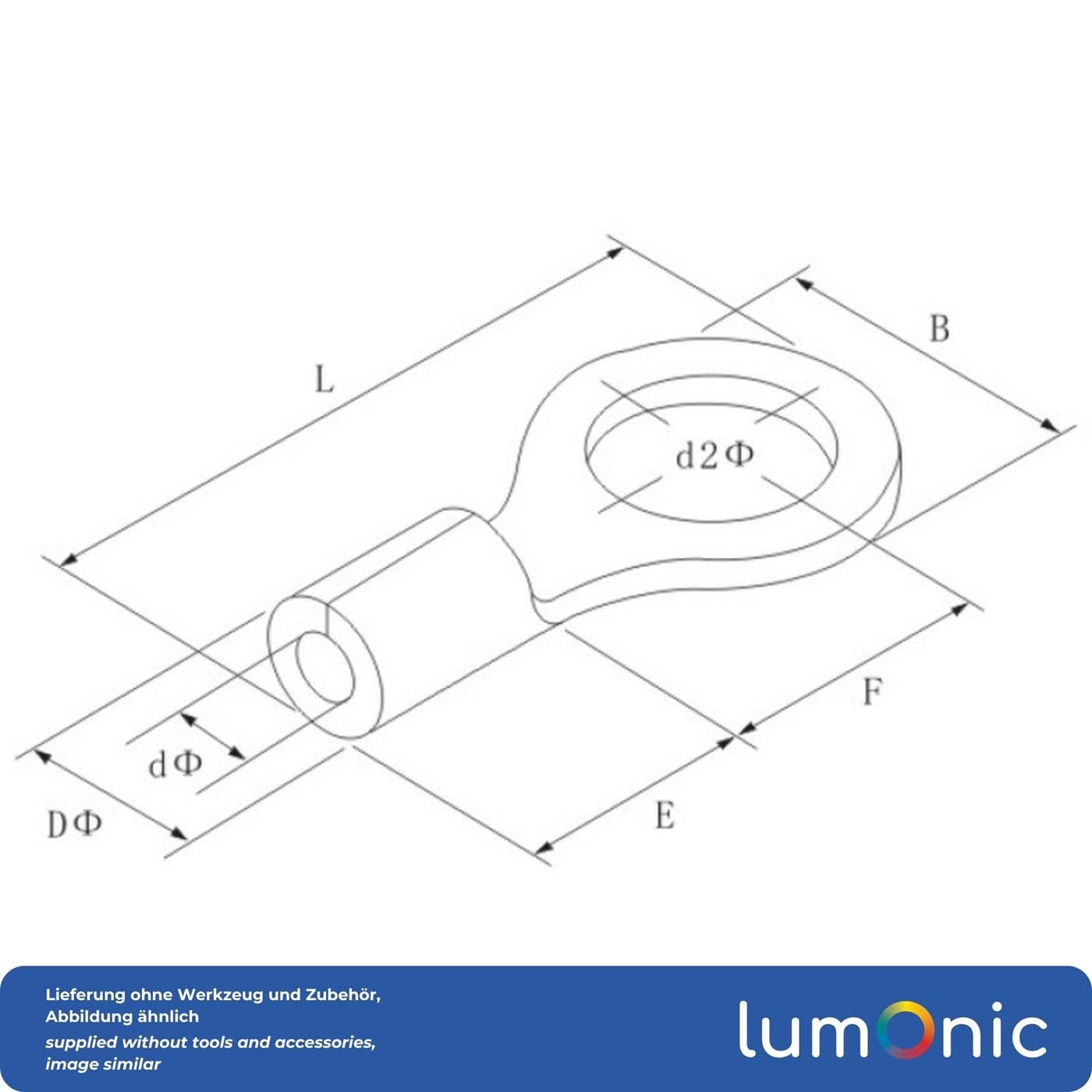

• Dimensions – The cable lug M12 has a diameter d2: 13 mm, inner diameter diameter: 2.3 mm and outer diameter diameter: 4.1 mm. The length E: 4.8 mm and total length L: 30.4 mm. Other dimensions: W: 19.6 mm, F: 13.9 mm

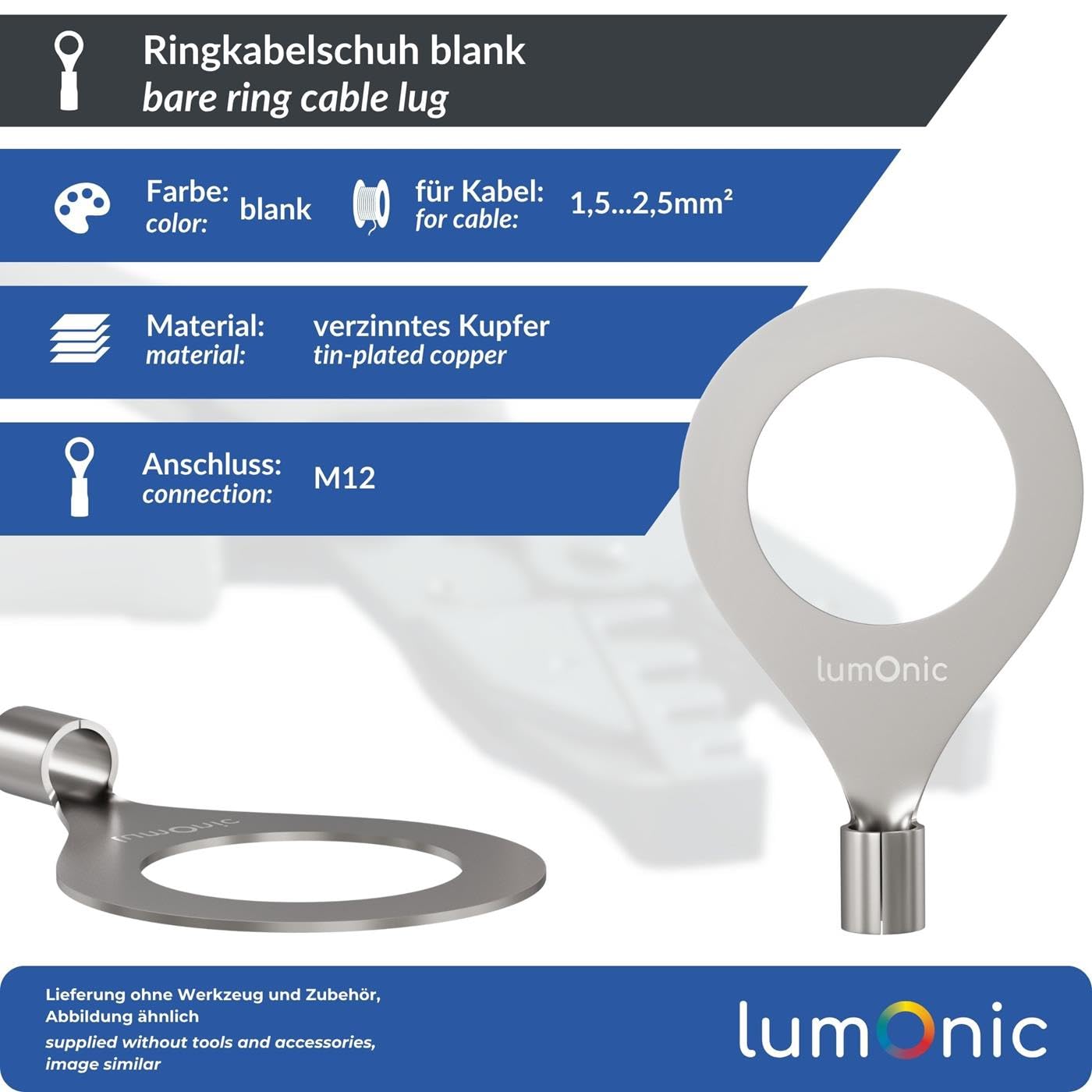

• Quality product – Our ring cable lugs 1.5-2.5 mm² are made of high-quality tinned copper. Ideal for safe electrical installations.
• Box contents: a tube cable lug set consisting of 25 pieces 1.5-2.5 mm² cable lugs uninsulated with ring eyelets M12

Quantity: pack of 25. Manufacturer: IT-Tronics Connection: hole diameter M12. Insulation Type: Uninsulated Cable connector type: crimp terminal Contact material: copper, tin-plated. Material thickness: 0.8 mm. Cross section: 1.5 - 2.5 mm². Current: max. : 27 A.
