25KG Servo Motor Binghe 25KG Digital Servo Motor RC Servo ServoMotor Metal Gears with 25T Dual Lock Metal Servo RC Servo 180°for RC Car/RC Helicopter/Airplane Compatible with Ar-duino Robotic Arm

• High Torque Output：This 25KG metal gear digital servo is designed for high torque applications, making it ideal for robotic arms, RC cars, rc helicopter, boats.
• Multi-Voltage Support：Compatible with a working voltage range of 3.7V to 7.2V, servo motor compatible with various power configurations,providing more flexible power options.
• IP66 Design: The servo is rated IP66 waterproof, suitable for various tough environmental conditions, extending the product's application range and lifespan.

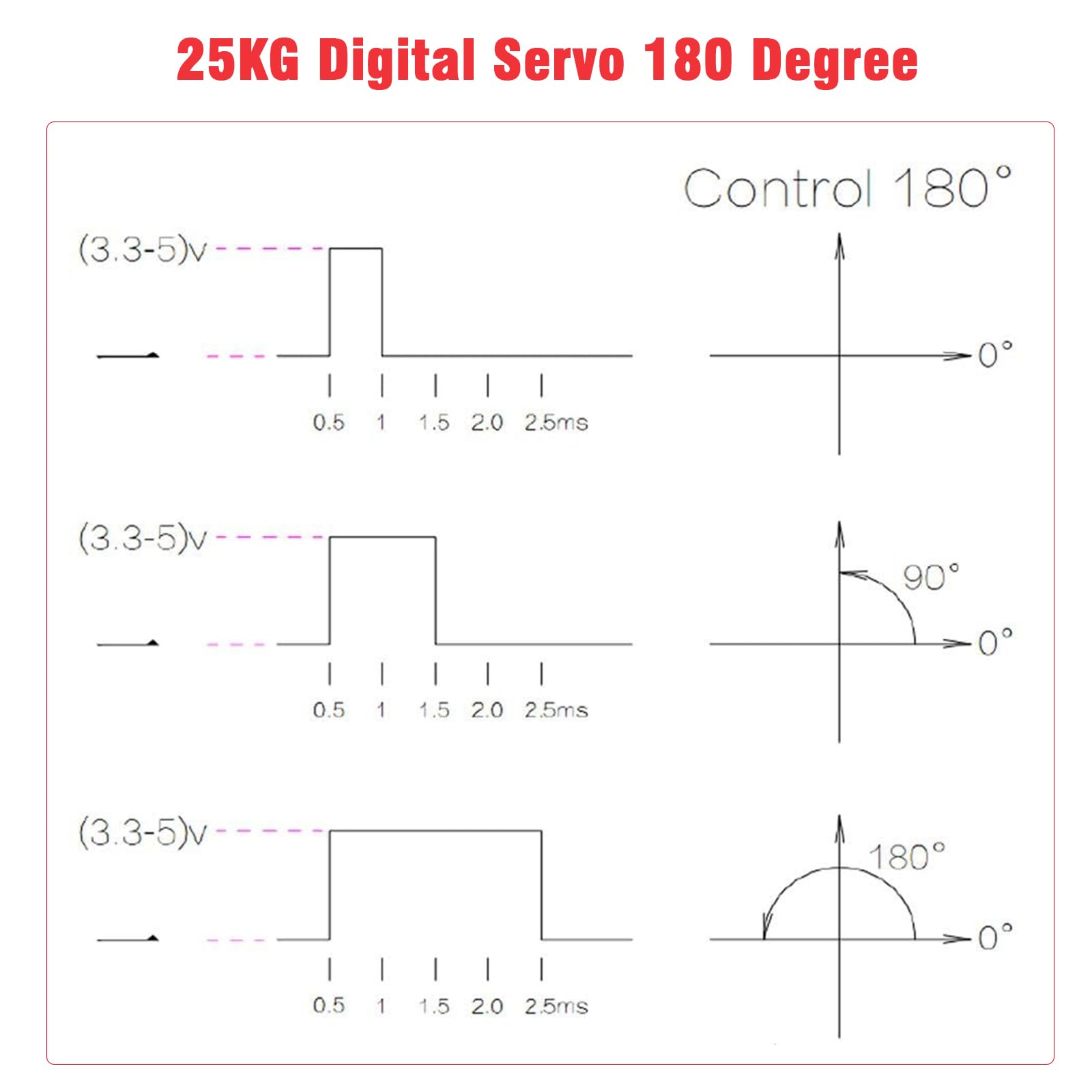

• Precise PWM Control: 25KG digital servo supports PWM (Pulse Width Modulation) control with a pulse width range of 500-2500μs, ensuring fast and accurate servo response.
• Versatile Application Scenarios: Servo motor suitable for various robot designs, RC cars, boats, offering wider application possibilities for DIY enthusiasts and professional engineers.

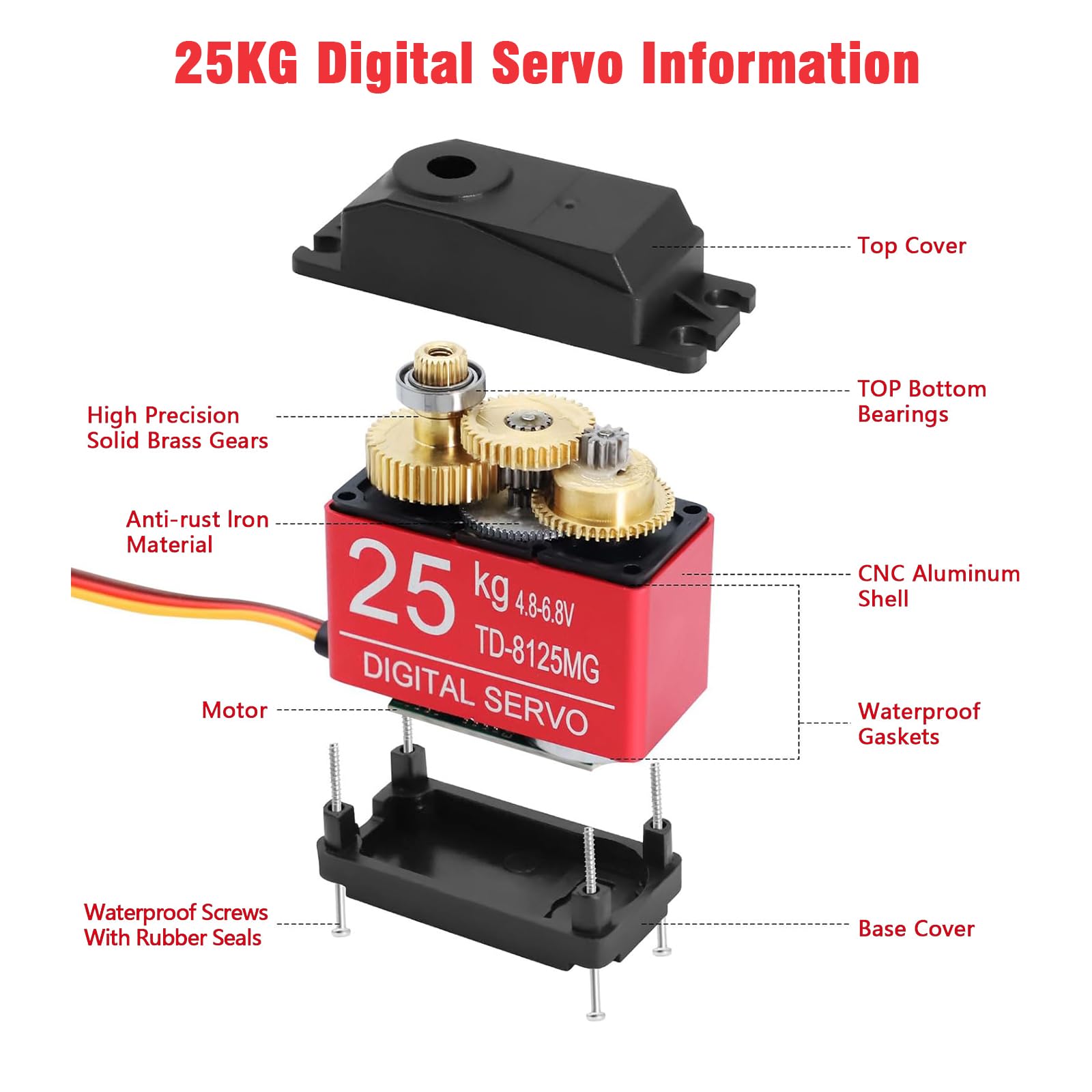

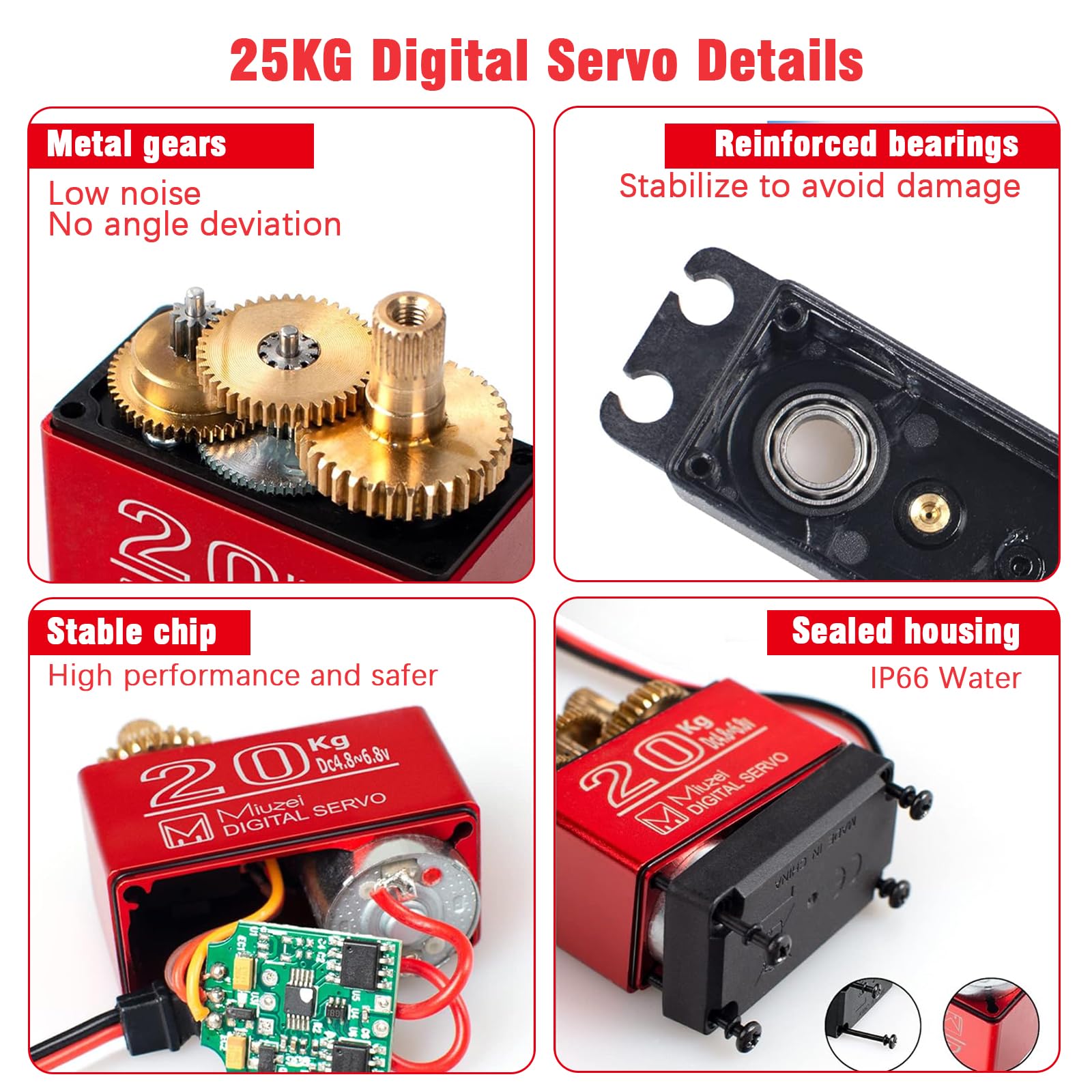

Description: 25KG Large Torque Metal Gear Digital ServoWith high-quality metal gears and digitally imported master control chip, this servo offers strong load capacity and faster response speed. Its double ball bearing structure ensures smooth operation under high loads, while the IP66 rating ensures reliability in a variety of harsh environments. The 25KG servo supports 180° rotation and uses a PWM control system to enable high-precision operation. Parameter： No load speed:0.18sec/60°~0.14sec/60° Runnig current:140mA~200mA Peak stall torque：23.5kg/cm~26.8kg/cm Stall current:2600mA±10%~3400mA±10% Case:Engineering plastics(PBT)+Aluminum alloy Motor:Carbon brush motor Command signal:Pulse width modification Amplifier type:Digital controller Pulse width range:500～2500usec Neutral position:1500usec Running degree:270°±3°(when 500～2500usec) Dead band width:5 usec Rotating direction:Counterclockwise (when 1000～2000usec) Apply Environmental Conditon: Storage Temperature Range:-30°C～80°C Operating Temperature Range:-25°C～70°C Standard Test Environment: Temperature Range:-25°C～70°C Humidity Range:65%±10% Specification: Connector wire:320mm±5mm Weight:60g±5% Limit angle:360° Horn type:Plastic, POM Horn gear spline:25T Package: 1 x 25MG Digital Servo 1 x 25T Adjustable metal servo arm
