Waveshare 250x122 Resolution 2.13 Inch e-Paper Display HAT E-Ink Screen LCD Module SPI Interface with Embedded Controller for Raspberry Pi 2B 3B 3B+ 4B Zero Zero W/Ardui/STM32/Jetson Nano

• 250x122 Resolution 2.13 Inch e-Paper Display HAT E-Ink Screen LCD Module SPI Interface with Embedded Controller for Raspberry Pi 2B 3B 3B+ 4B Zero Zero W/Ardui/STM32/Jetson Nano

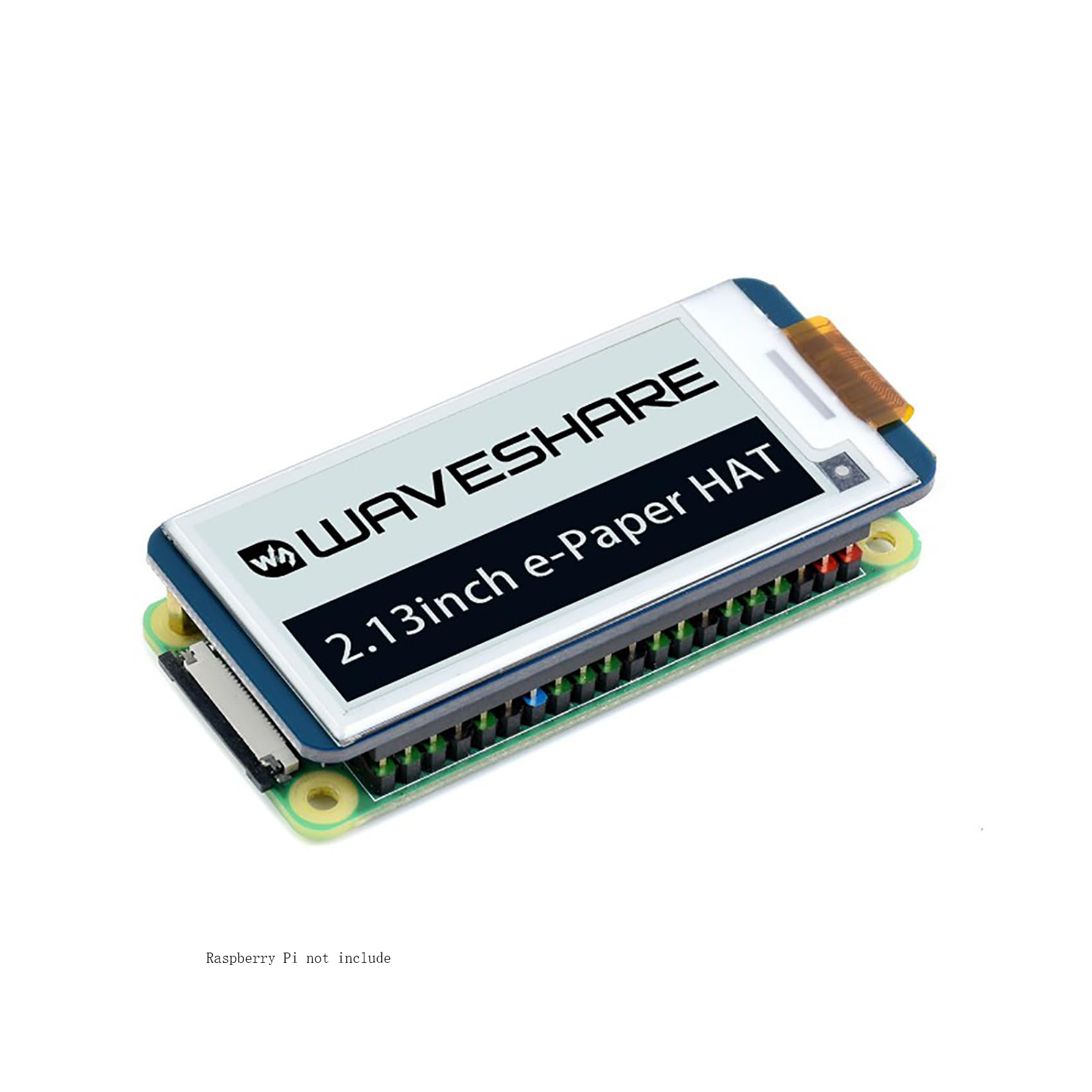

• Standard for Raspberry Pi 40PIN GPIO extension header, fits Raspberry Pi series boards, Jetson Nano

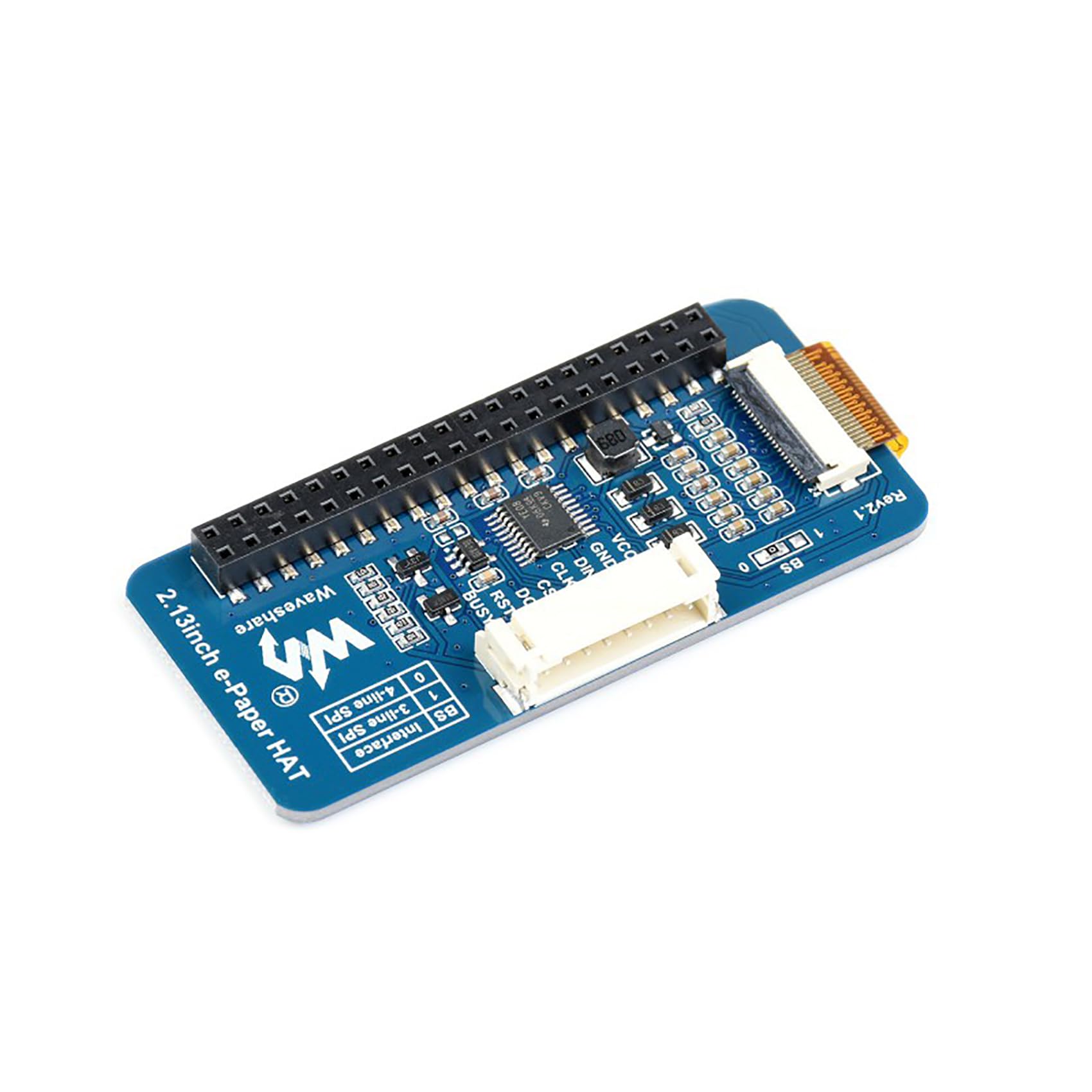

• Onboard voltage translator, compatible with 3.3V/5V MCUs

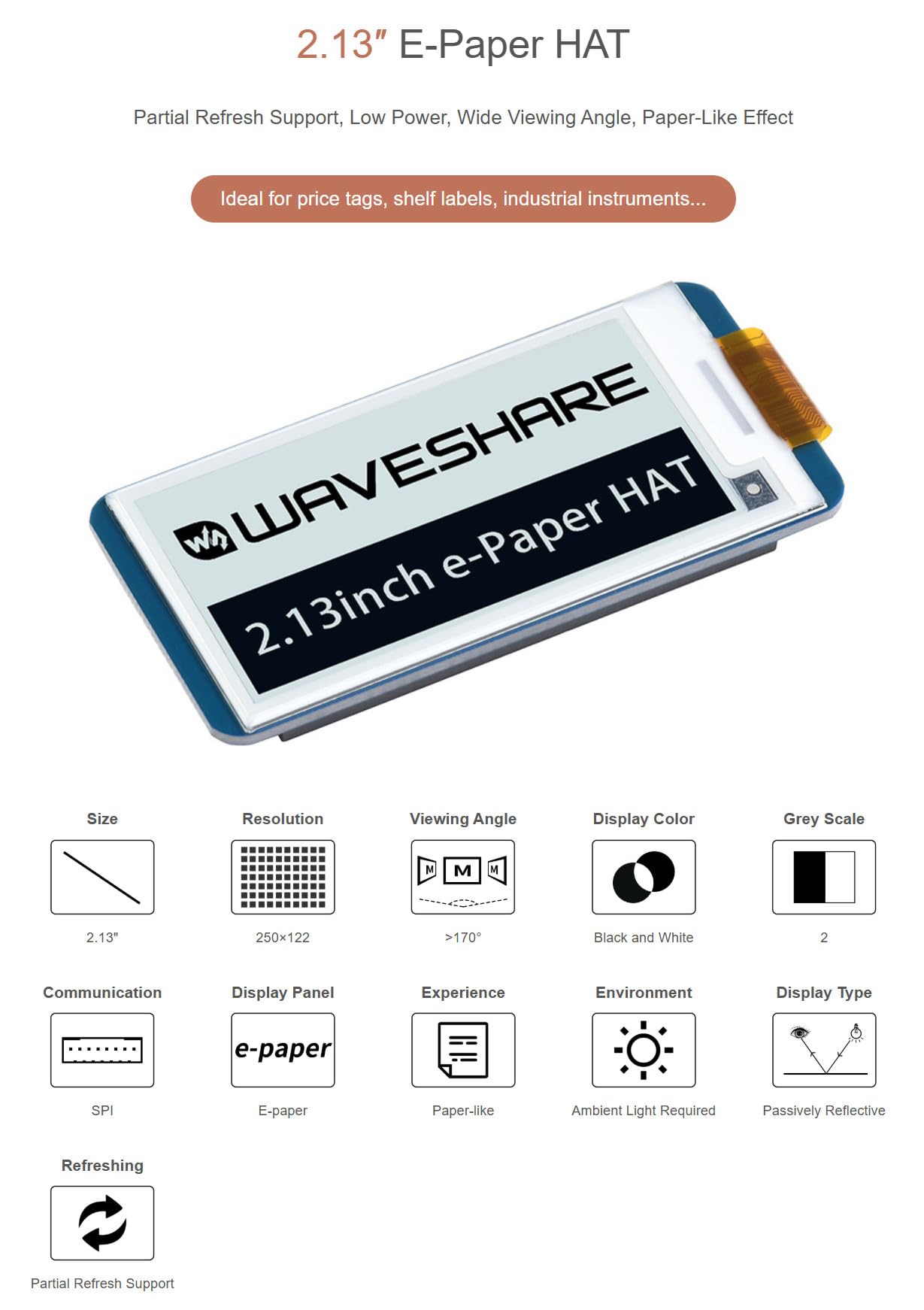

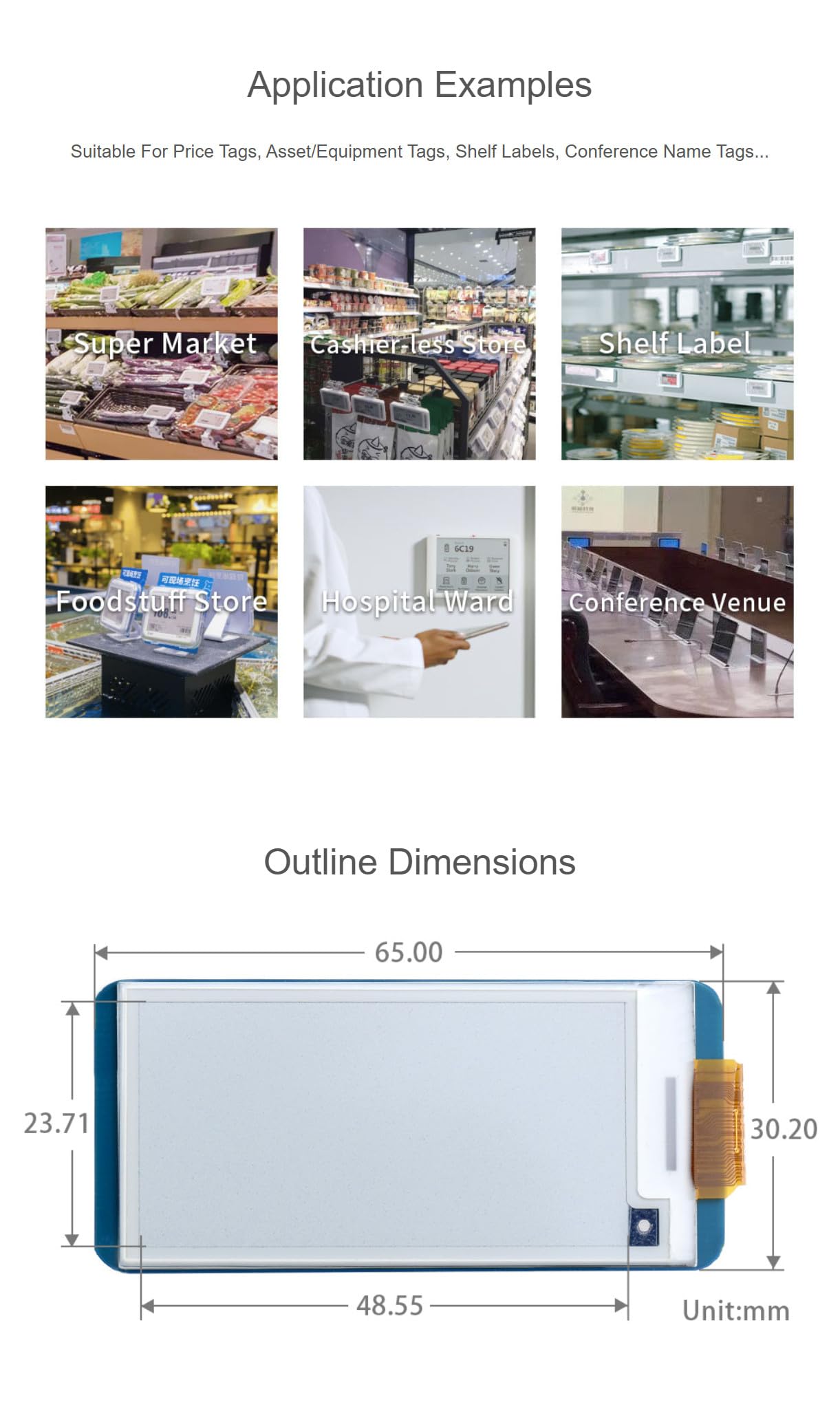

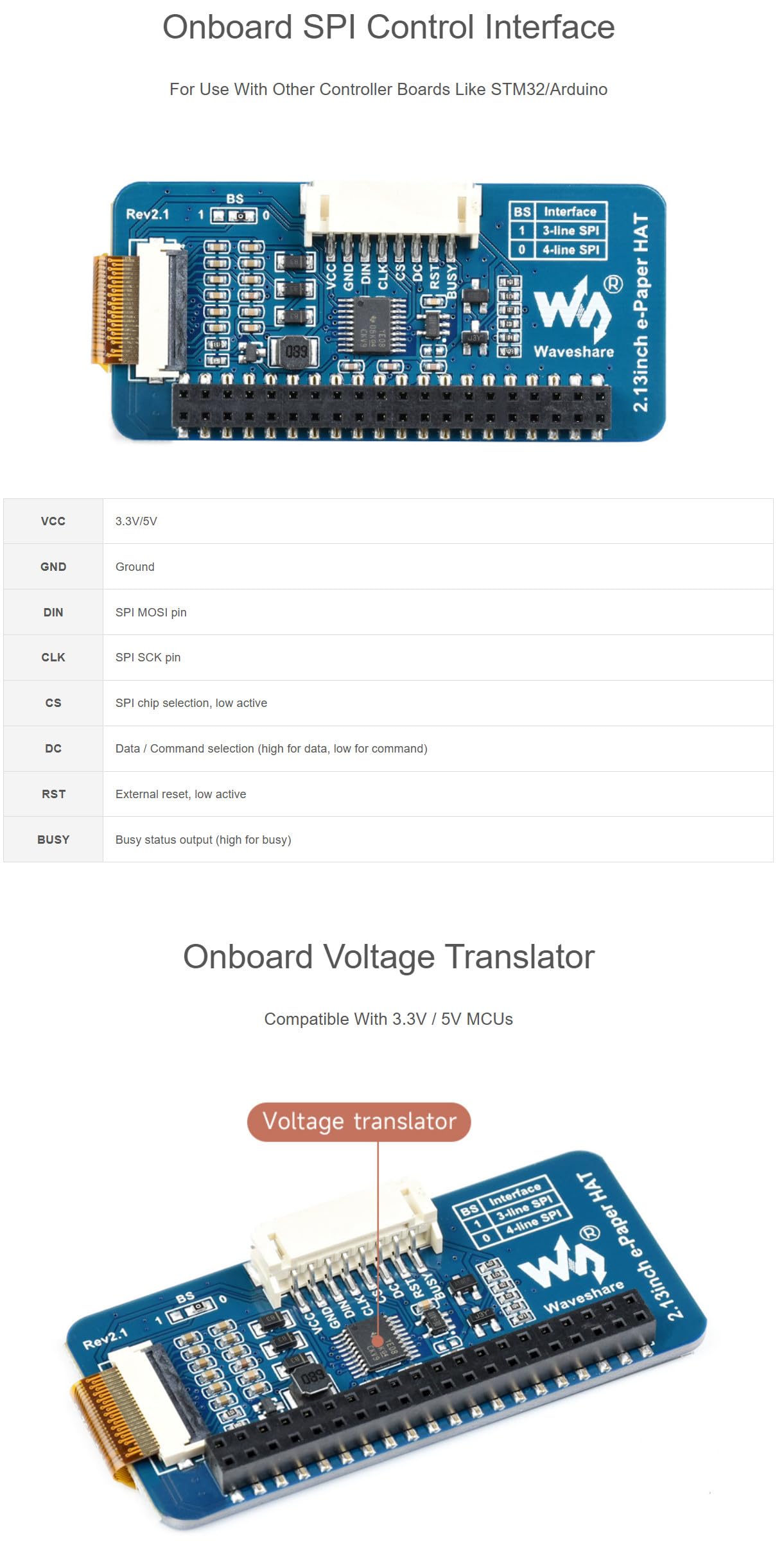

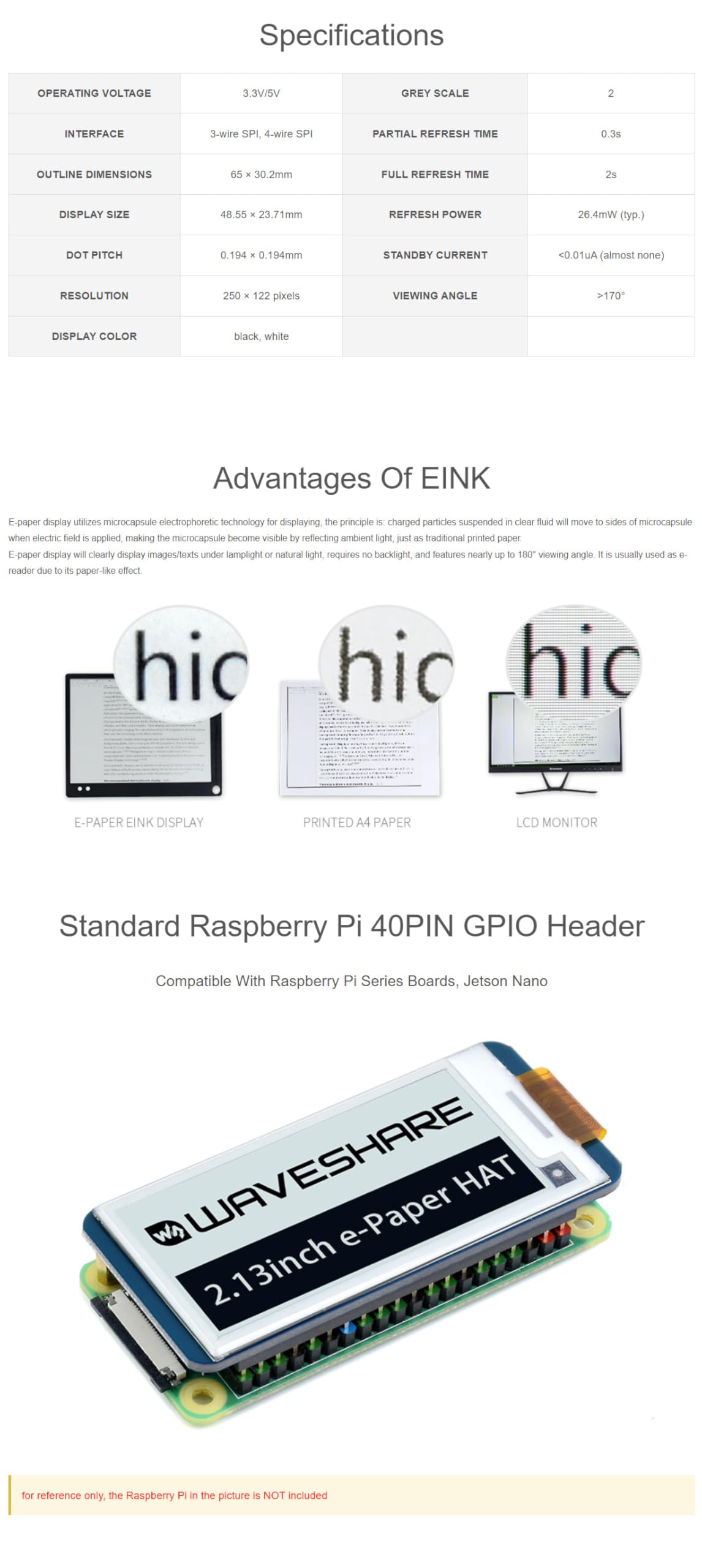

Overview This is an E-Ink display HAT for Raspberry Pi, 2.13inch, 250x122 resolution, with embedded controller, communicating via SPI interface, supports partial refresh. Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on. Features No backlight, keeps displaying last content for a long time even when power down Ultra low power consumption, basically power is only required for refreshing Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano Preserved solder pads for SPI interface, for connecting with other controller boards like Ardui/Nucleo, etc. Onboard voltage translator, compatible with 3.3V/5V MCUs Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Ardui/STM32) Specifications Operating voltage: 3.3V/5V Interface: SPI Outline dimension: 65mm 30.2mm Display size: 23.71mm 48.55mm Dot pitch: 0.194 0.194 Resolution: 250 122 Display color: black, white Grey level: 2 Partial refresh time: 0.3s Full refresh time: 2s Refresh power: 26.4mW(typ.) Standby power: <0.017mW Viewing angle: >170° Package Content 1. 2.13inch e-Paper HAT x1 2. RPi screws pack (2pcs) x1 3. PH2.0 20cm 8Pin x1
