250V DC 2P Low-voltage Miniature Air Circuit Breaker Din Rail Mount Solar Energy Switch for Solar Panels Grid System ( Edition : 16A )

• ⚡ SHORT CIRCUIT PROTECTION:This is an excellent circuit breaker which is mainly used to protect circuits from over-current damage caused by over-charging or short-circuiting, as well as for control and isolation.
• ⚡ FLAME RETARDANT:This DC circuit breaker adopts high-performance flame retardant cover plate, which is flame retardant and not easy to wear out, with long service life and high stability. It can be closed quickly to provide overload and short-circuit protection for circuits or DC equipment.
• ⚡ RELIABLE PERFORMANCE:The air circuit breaker has a reliable performance, once a short circuit occurs, the electromagnetic tripping system will trip immediately. Ensure the safety of the circuit, charging operation is reliable, the use of which can extend the service life of the circuit breaker.
• ⚡ EASY TO INSTALL:The circuit breaker adopts modular design, easy and convenient installation. It can be easily mounted on DIN rail (DIN rail not included).
• ⚡ WIDE RANGE OF APPLICATIONS:Miniature circuit breakers are widely used in marine power systems, solar panels, hybrid solar and wind systems, and many other DC systems.

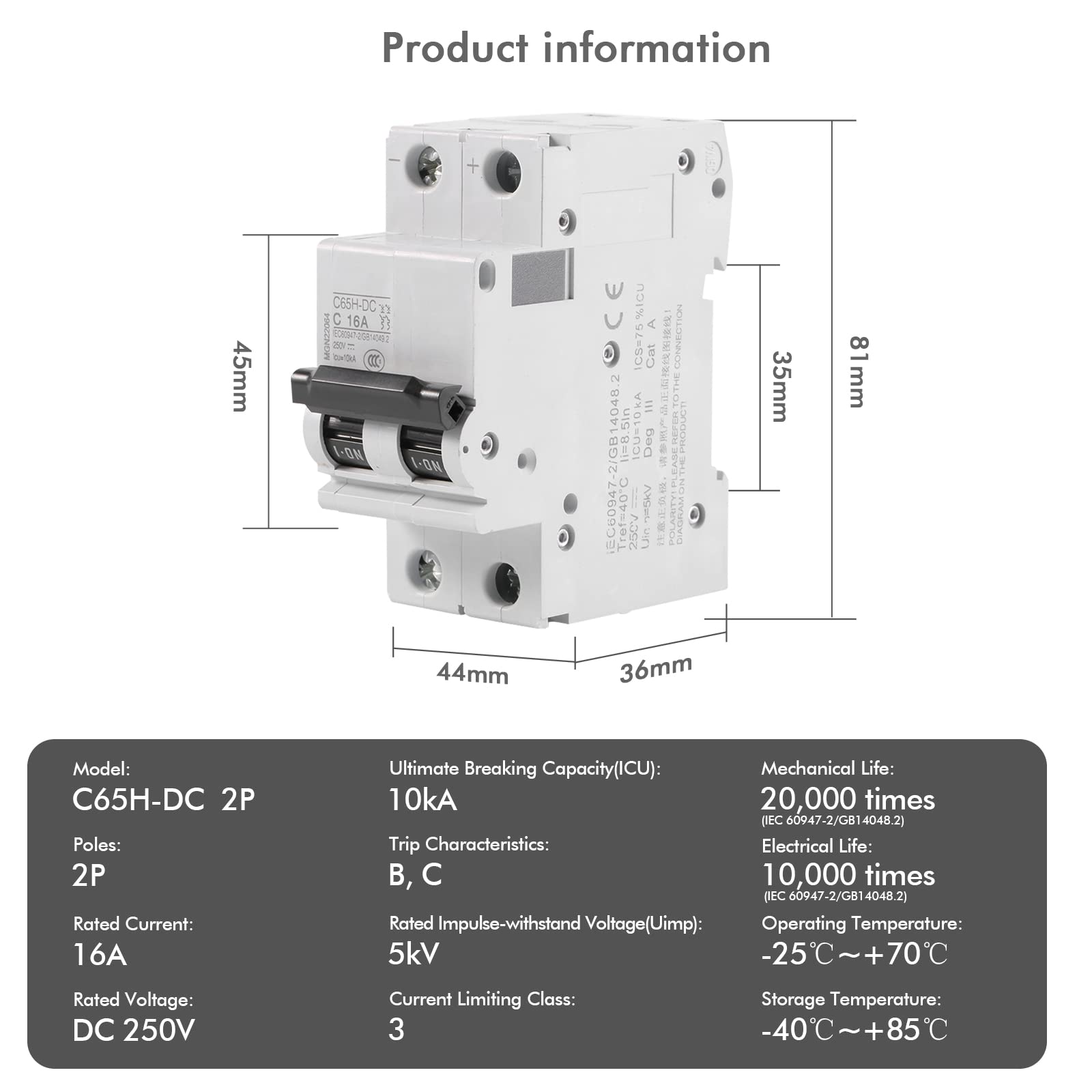

Features: It is an excellent circuit breaker used to protect an electrical circuit from damage caused by excess current resulting from overload or short circuit. Quick release to ensure reliable load operation and extend the life of circuit breakers. It is easy to use, reliable and supports short circuit and overload protection. It can be easily mounted on DIN rail, DIN rail is not included. Widely used for solar panel grid system, wind and solar hybrid system and many other DC systems. Features: Model No.: C65H-DC 2P. Poles: 2P. Rated current: 16A / 32A / 63A (optional). Rated voltage: DC250V. Final Breaking Capacity (ICU): 10kA Trip features: B, C Nominal Pulse Withstanding Voltage (Uimp): 5kV Current Limiting Class: 3 Mechanical life: 20,000 times (IEC 60947-2 / GB14048.2). Electrical life: 10,000 times (IEC 60947-2 / GB14048.2). Operating temperature: -25 ~ +70 Storage temperature: -40 ~ + 85 °C. Heat and moisture resistance: 55°C, 95%RH Size: 8.2 x 3.6 x 7 cm/3.22 x 1.41 x 2.75 inches. Package includes: 1 x circuit breaker
