24V~380V Pressure Switch，Electronic G1/4” Pressure Control Switch Air Compressor Pressure Controller for Air Water Compressor Pressure Switch Pressure Switch Pressure Switch Pressure Switch

• [Stability] - The product is debugged after 2000 actions, which makes the parts of the whole machine run in and ensures the performance of the product is more stable

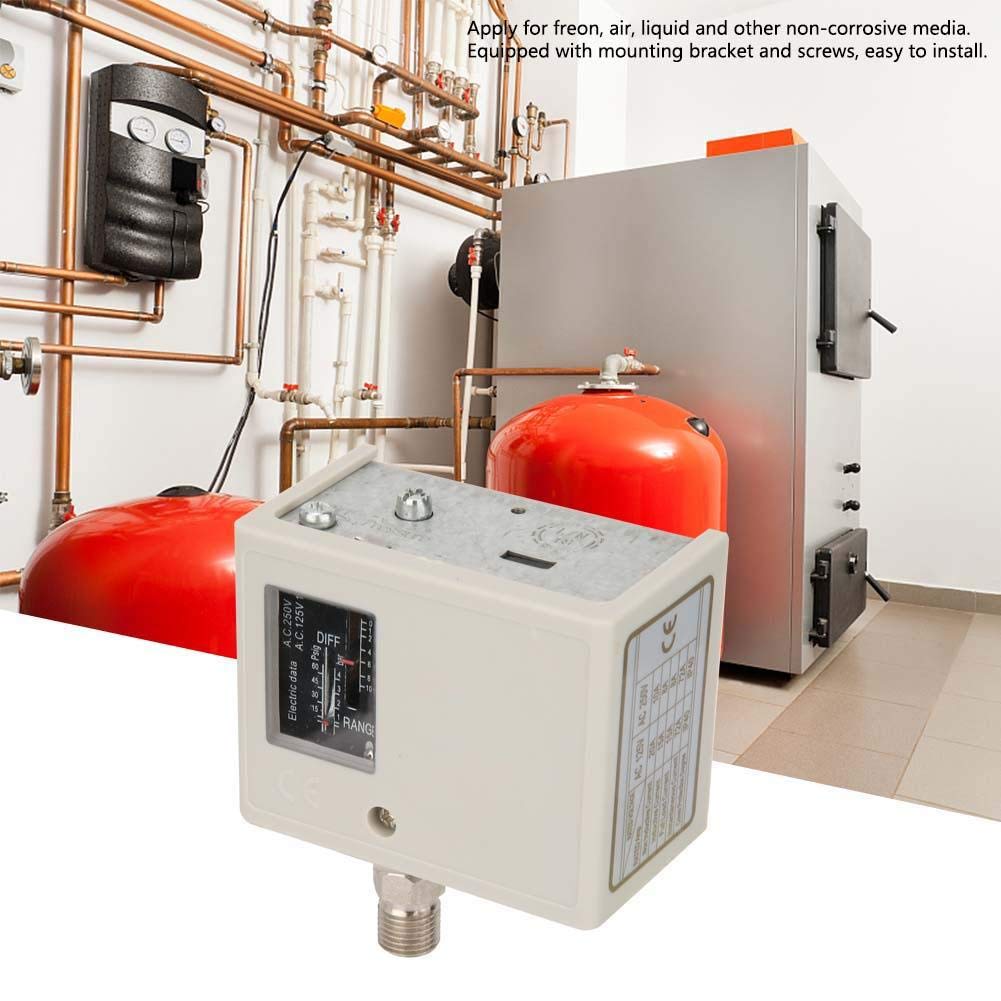

• [Applicable Medium] - The pneumatic switch is suitable for non-corrosive media such as freon, air and liquid. Make sure the switch is accurate: Single-pole double-throw switch ensures contact switch
• [High Quality] - The pressure controller is made of high quality materials, the standard type of pressure bellows are made of phosphorus-copper bellows, and the pressure joints are made of brass. Ammonia refrigerant type bellows and pressure joints are made of stainless steel

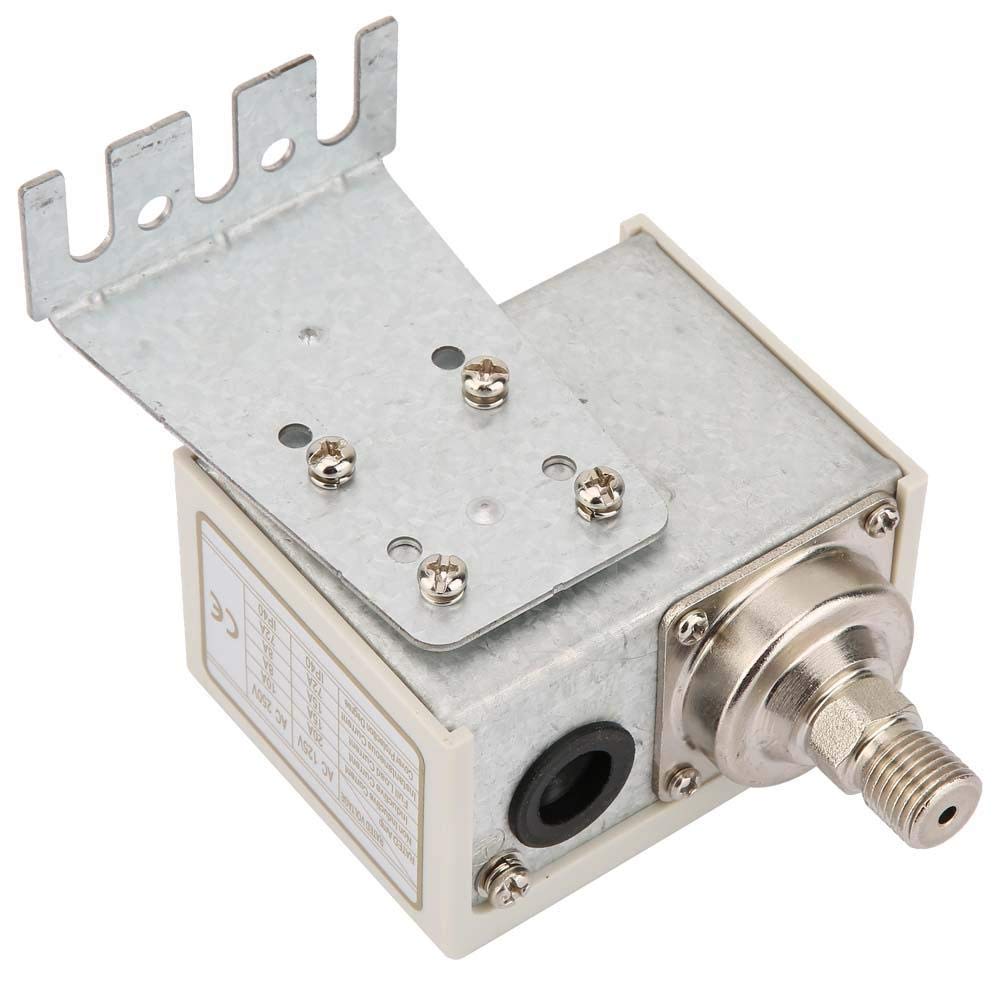

• [Easy to install] - This electronic pressure controller is equipped with mounting bracket and screw, easy to install, please make sure that the model matches the parts you replace
• [Application] - Suitable for boilers, ships, refrigeration equipment, medical equipment, high-frequency welding machine with any other pressure control system, the pressure of gas, steam, or liquid for two-way control

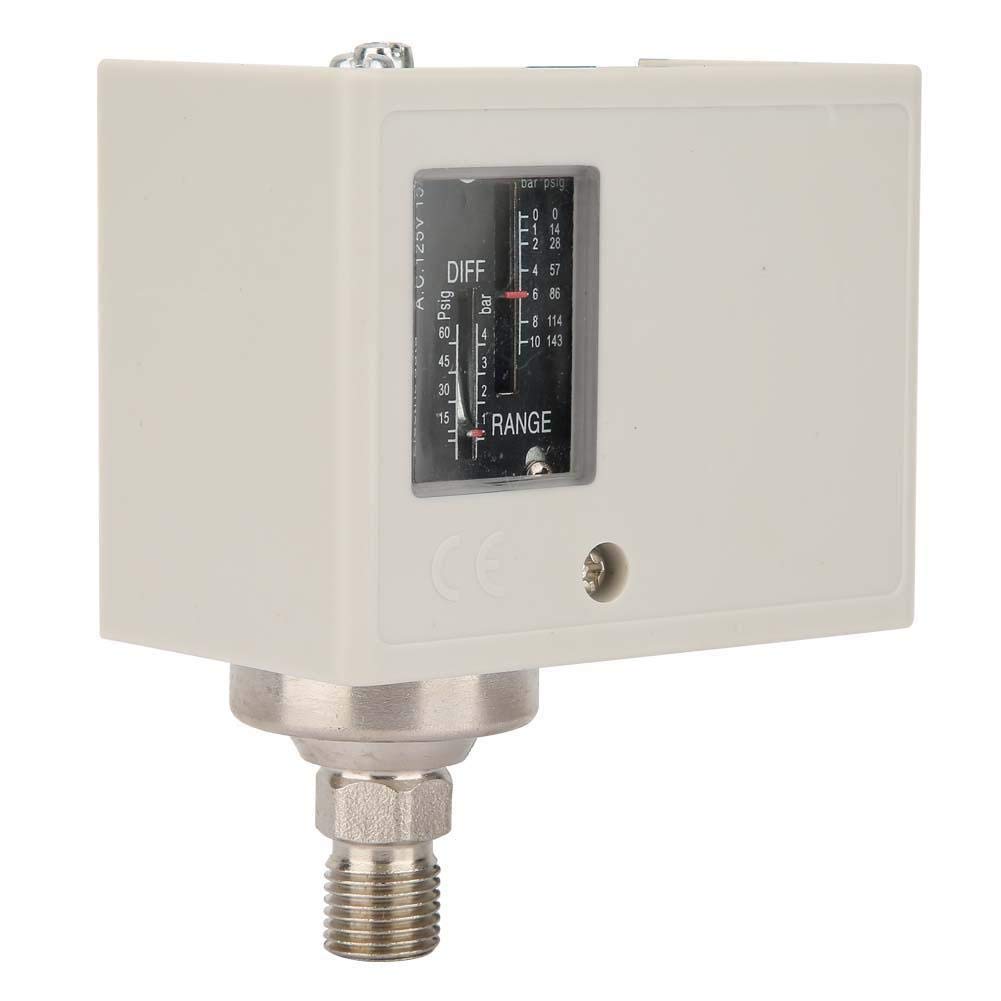

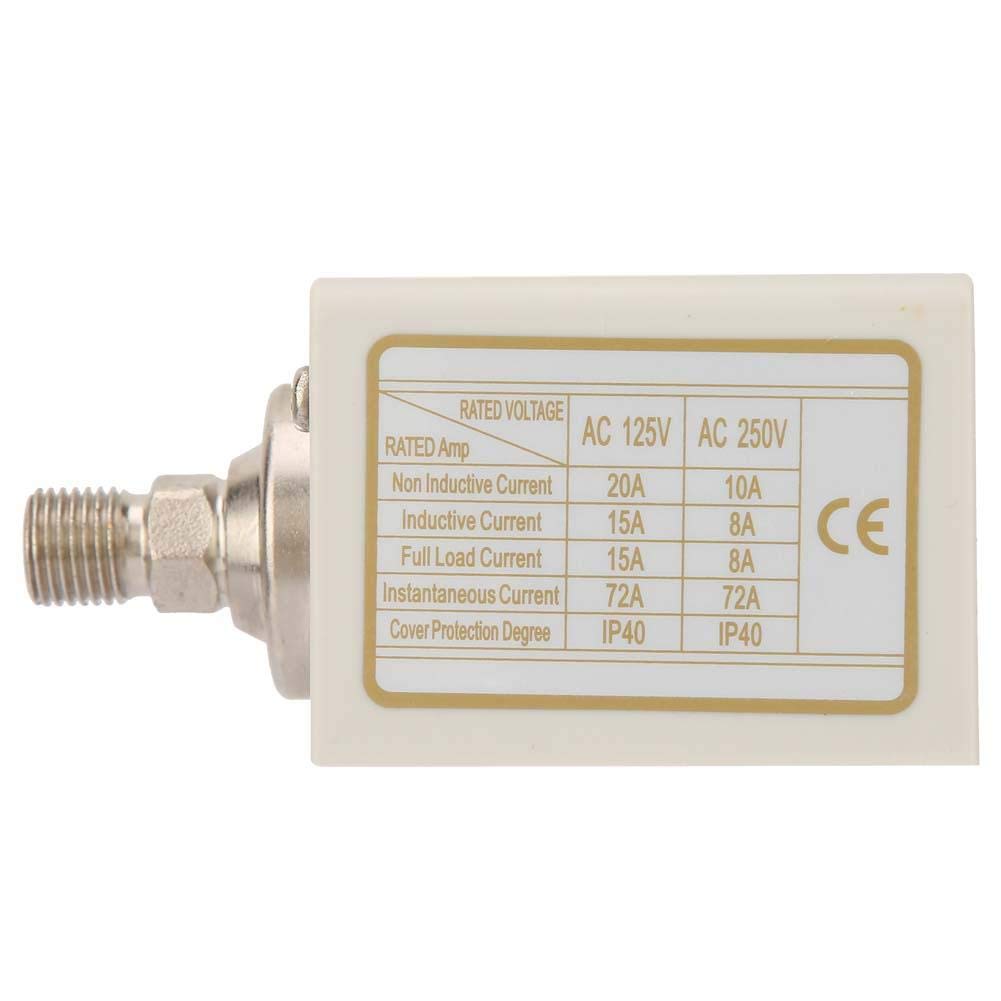

24V~380V Pressure Switch，Electronic G1/4” Pressure Control Switch Air Compressor Pressure Controller for Air Water Compressor Pressure Switch Specification: Material: Stainless steel, iron plated nickel, plastic Weight: 408g/14.4oz Thread: G thread Pressure regulating range (bar): 1 (Min) ~ 10 (Max) Differential pressure adjustment range (bar): 1(Min) ~ 3 (Max) Factory setting (bar): 5 (OFF/ON) ~ 6 (ON/OFF) Maximum air tightness test (bar): 16.5 Power supply voltage: 24V~380V Micro switch life: 100,000 times Electrical parameters: When the voltage is 125VAC, the non-inductive current is 20A, the full load current is 15A, and the instantaneous current is 72A. When the voltage is 250VAC, the non-inductive current is 10A, the full load current is 8A, and the instantaneous current is 72A. Package List: 1* Pressure Control Switch 1* Mounting bracket 4* Screw 1* Instructions
