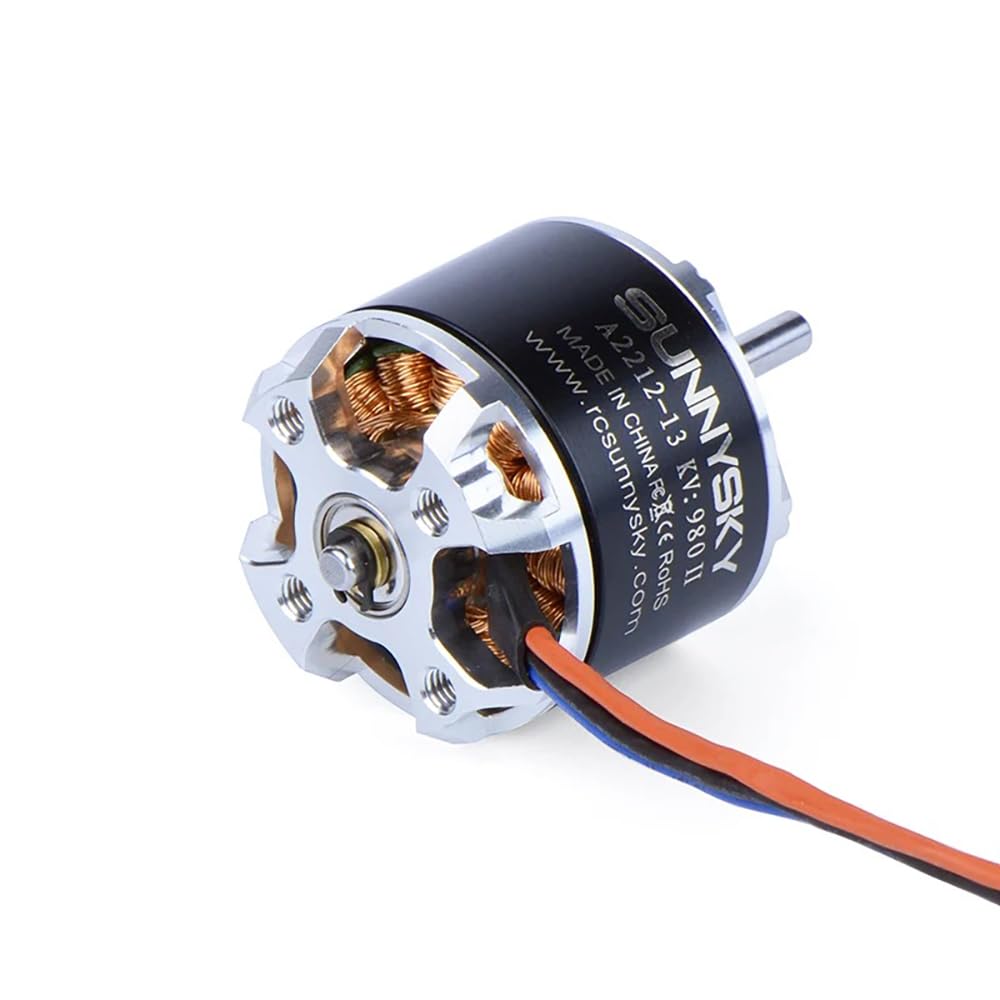

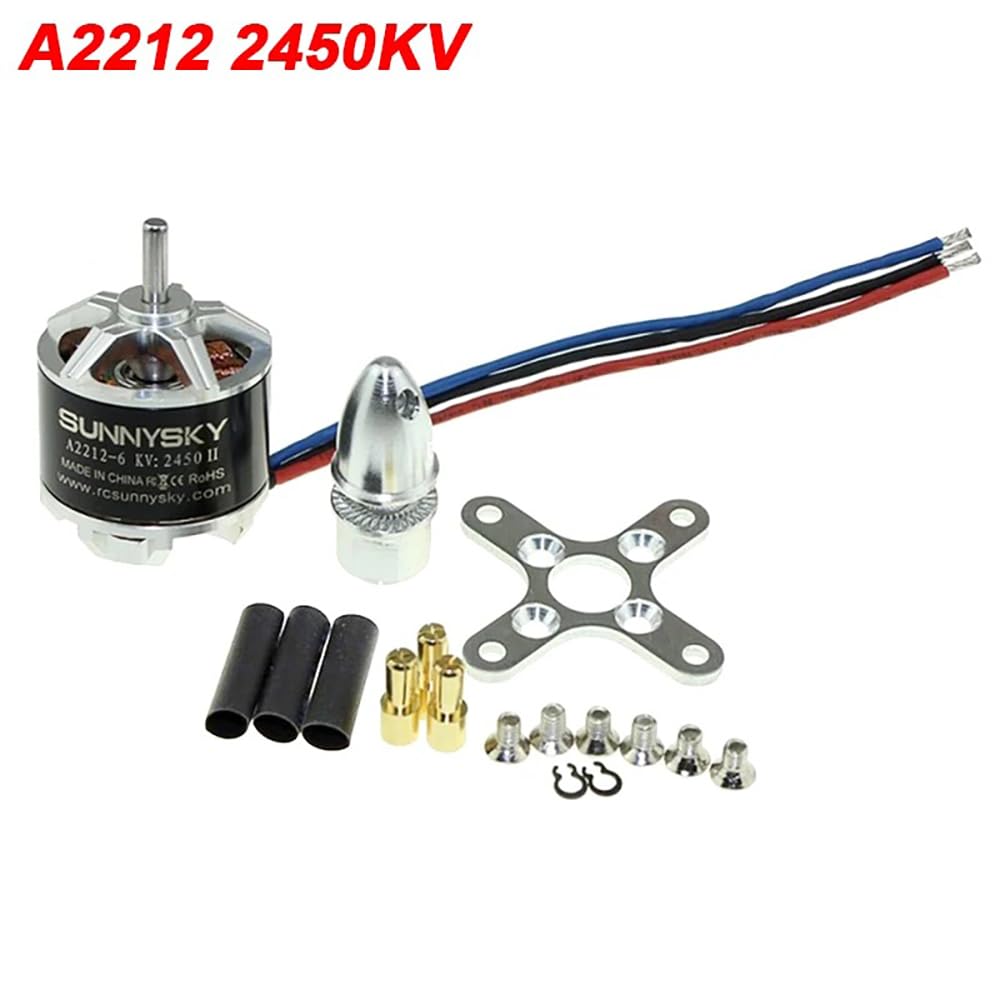

2212 A2212 II 980KV 1400KV 2450KV Brushless Motor 3mm Shaft Suitable for Sunnysky 2~3S Battery Fixed-Wing Four-axis Multirotor Drones (4PCS 2450KV)

• A2212 series motors, contact optional power, quality assurance, easy and fast propeller installation, safe and stable performance, high efficiency, low load temperature
• The hidden motor shaft design is adopted to more effectively protect the motor shaft from wear.
• New paddle seat design, more stable performance and easier disassembly.
• High-quality circlip, small and large, closely fitted with the motor shaft, providing a reliable safety guarantee for the operation of the motor

Item: A2212 Series Brushless Motor Parameters: A2212 980KV Stator Diameter:22mm Stator Thickness:12mm No.of Stator Slots:12 No.of Rotor Poles:14 NO-Load Current(A/10V):0.75A Motor Resistance:138mΩ Max Continuous Current:18A/30s Max Continuous Power:302.4w Weight:54g Rotor Diameter:27.5mm Body Length:30mm MaxLipo Cell:3-4S ESC:30A Recommend Prop(inch):8045 9045 1045 1038 A2212 1400KV Stator Diameter:22mm Stator Thickness:12mm No.of Stator Slots:12 No.of Rotor Poles:14 NO-Load Current(A/10V):0.9A Motor Resistance:76mΩ Max Continuous Current:25A/30s Max Continuous Power:420w Weight:51g Rotor Diameter:27.5mm Body Length:30mm MaxLipo Cell:3-4S ESC:30A Recommend Prop(inch):7050 8060 A2212 2450KV Stator Diameter:22mm Stator Thickness:12mm No.of Stator Slots:12 No.of Rotor Poles:10 NO-Load Current(A/10V):1.7A Motor Resistance:32mΩ Max Continuous Current:28A/30s Max Continuous Power:350w Weight:54g Rotor Diameter:27.5mm Body Length:30mm MaxLipo Cell:3S ESC:30A~40A Recommend Prop(inch):5040 5045 Feture: Suitable for 2~3S batteries, various KV values, multi-model adaptation Suitable for fixed wing, four-axis multi-rotor Using high-purity oxygen-free copper wire to ensure electrical conductivity The motor shaft is made of high-precision alloy materials, which can effectively reduce motor vibration and effectively prevent the motor shaft from detaching. Package Included: A2212 Brushless Motor x 1 or A2212 Brushless Motor x 4
