LCD Display Digital DIN-Rail Electric Meter 220V Single-Phase 2 Wire 4P Electronic KWh Digital Meter (10(40)A)

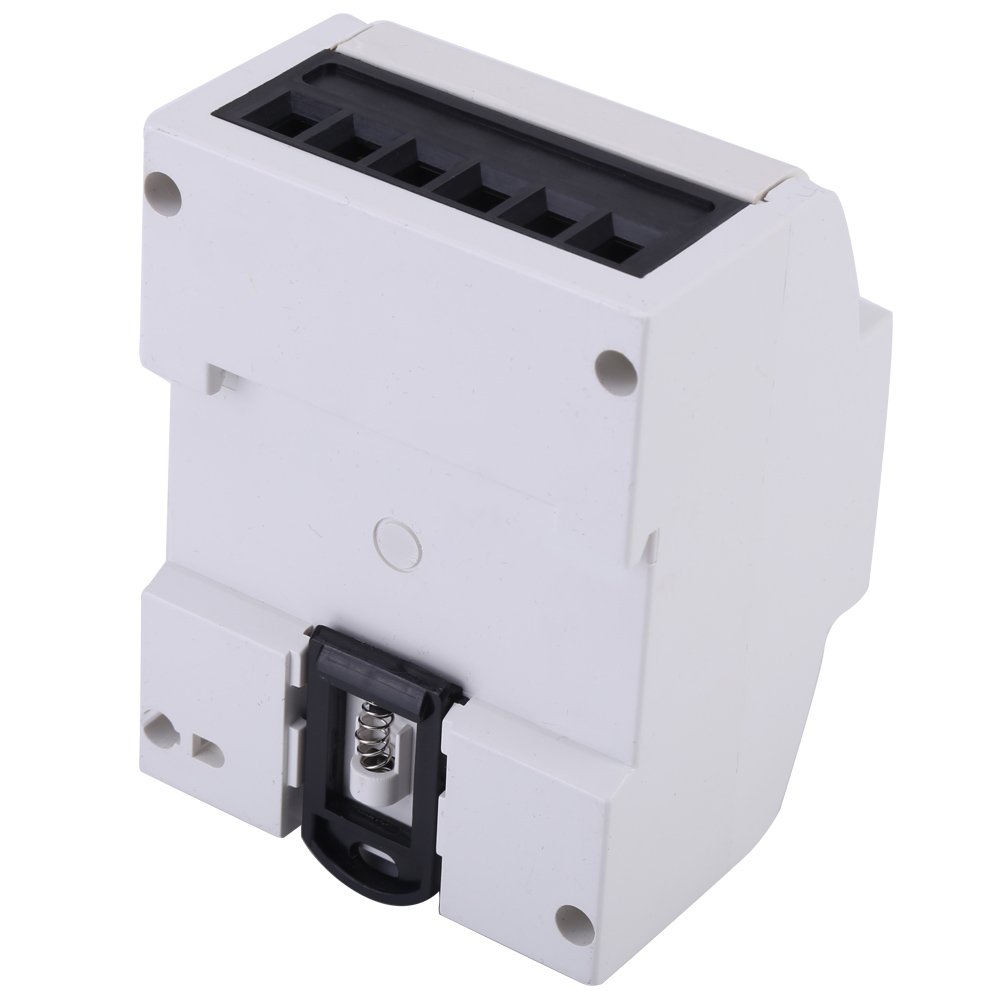

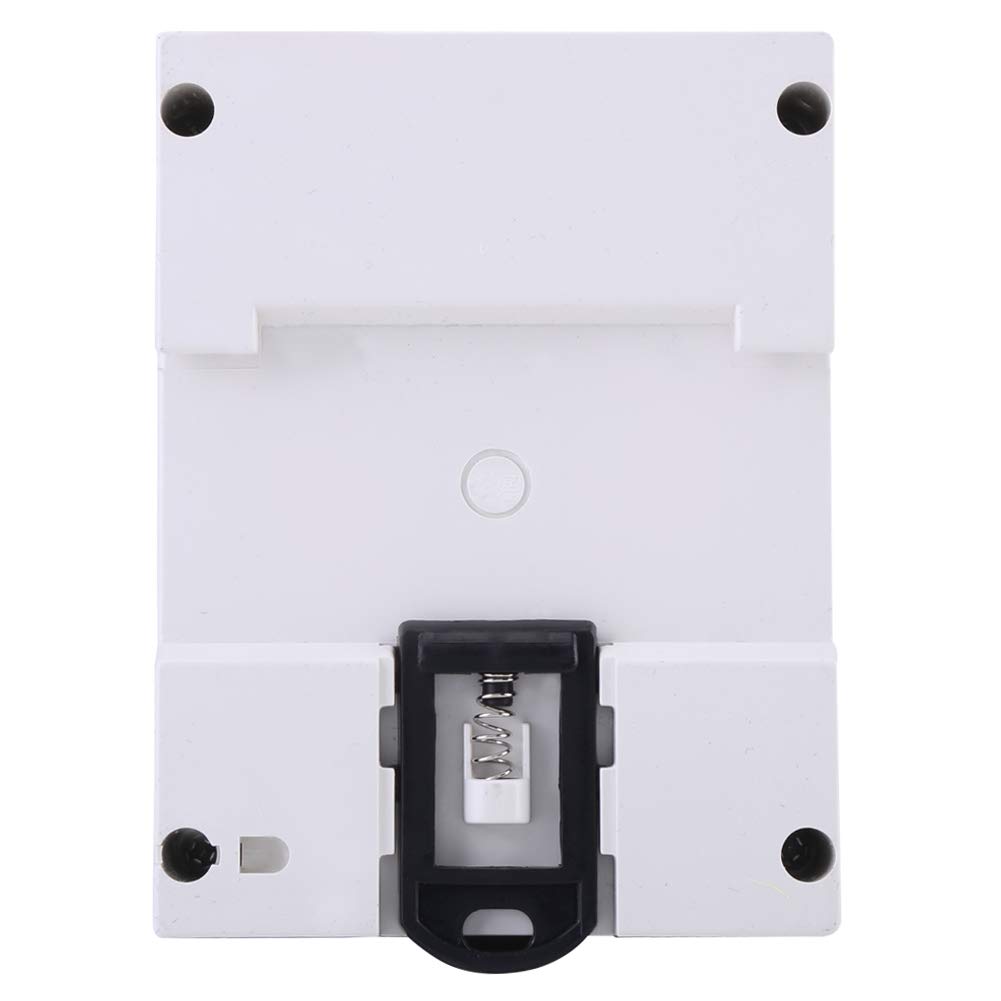

• ELECTRIC METER】: The DIN-Rail Electric Meter uses 35mm standard DIN rail installation,which is compliance with national standards GB/T17215.321-2008 and IEC62053 international standard.

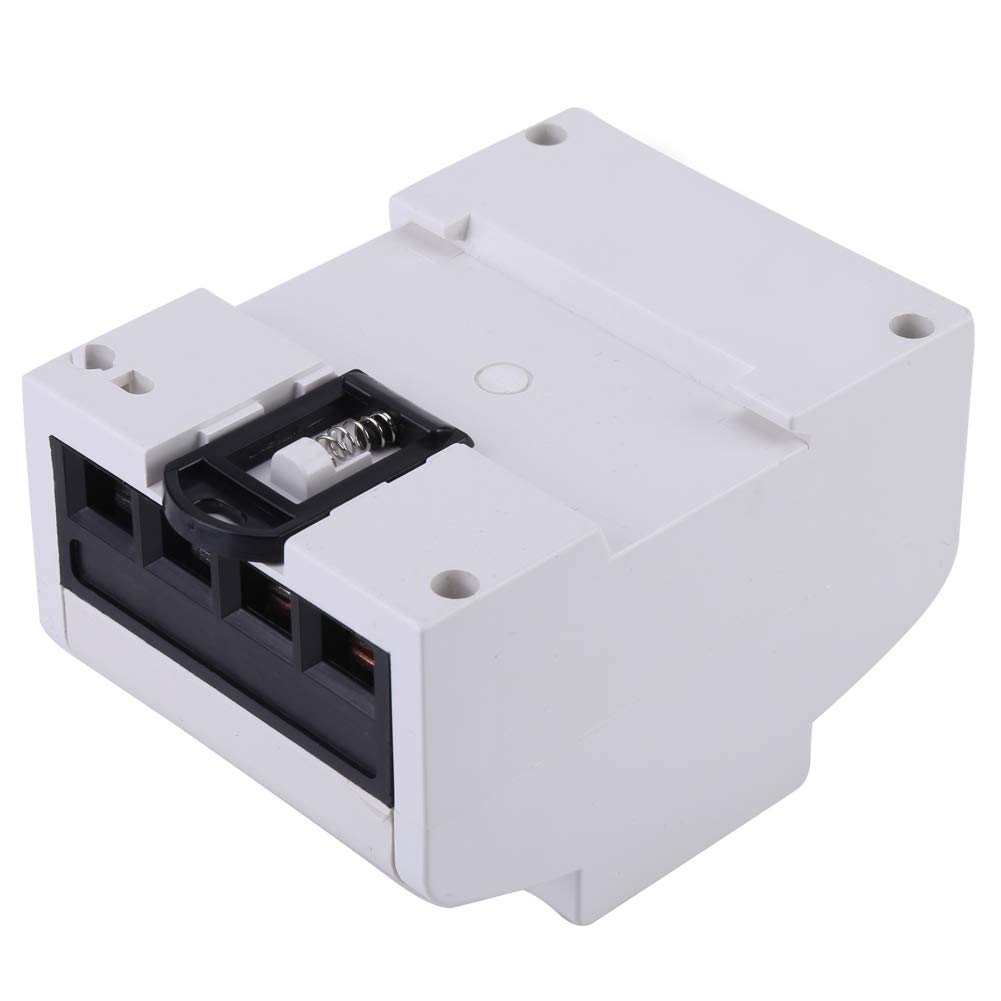

• 【SHORT TERMINALS COVER】: This Din Rail Energy Meter has standard configuration short terminals cover, and is able to select extension terminals cover, in order to protect to use safely.
• 【50HZ MEASUREMENT】: This DIN-Rail Electric Meter is suitable for the measurement of the single-phase AC efficient electrical energy of rated frequency 50Hz, and can be used for fixed indoors installation.
• 【SINGLE DIRECTION MEASURE】: The Electronic KWh Meter has single direction measure and single phase two wire active energy consumption. It is nothing with direction of the of load current.
• 【MULTIPLE ADVANTAGES】: This Digital Electric Meter has the advantages of convenient meter reading, high reliability, small volume, light weight, beautiful appearance, advanced technology.

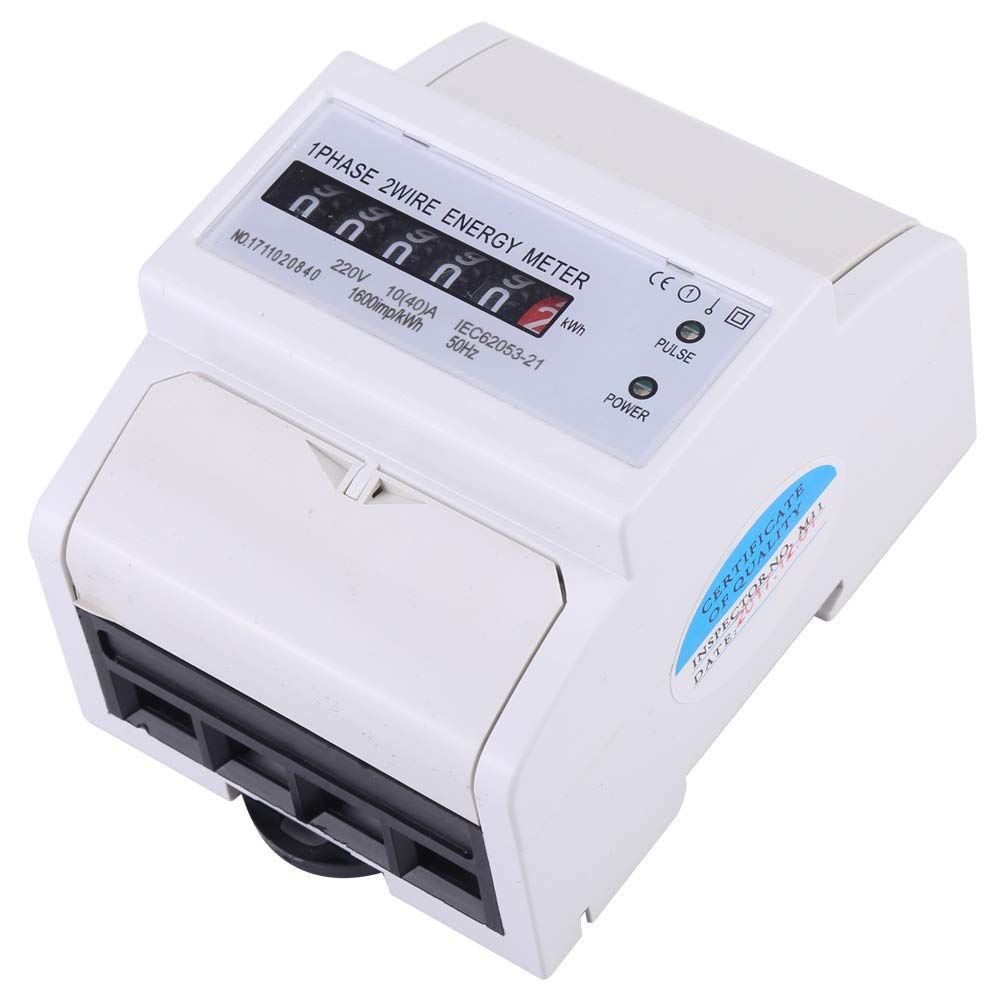

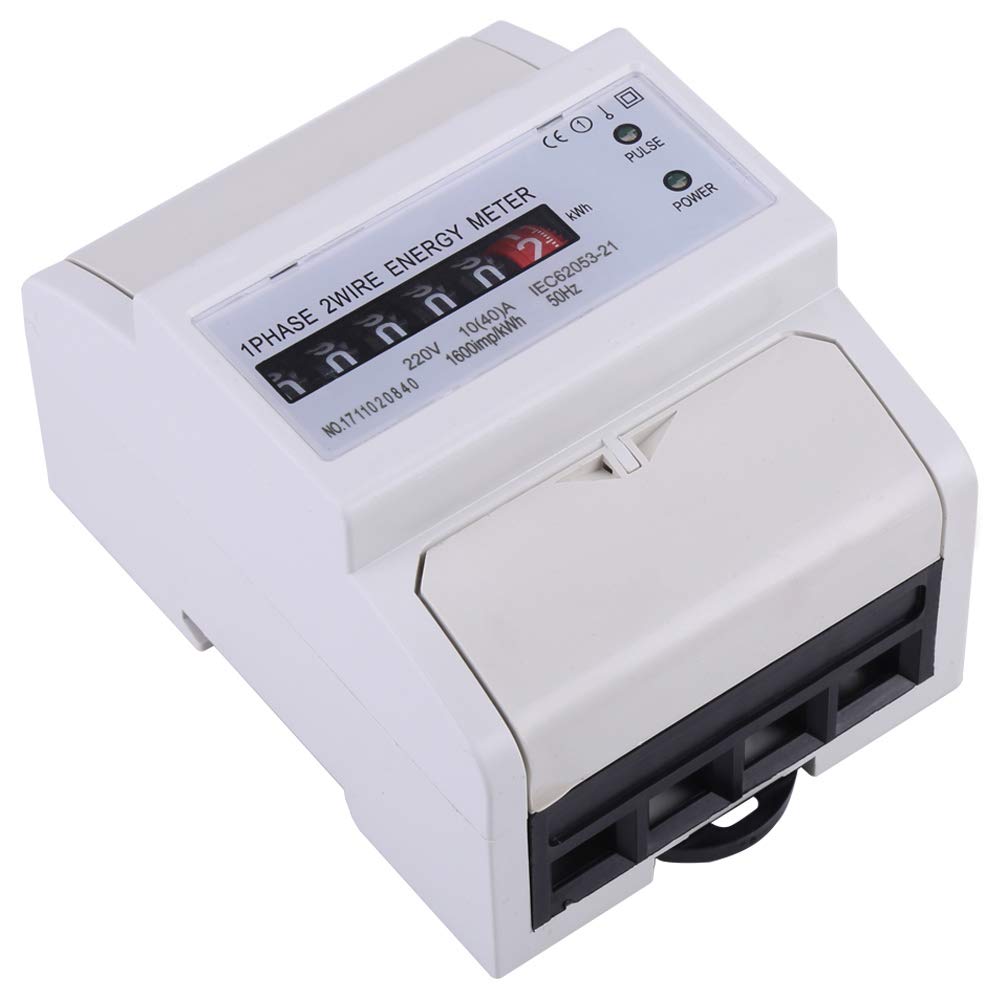

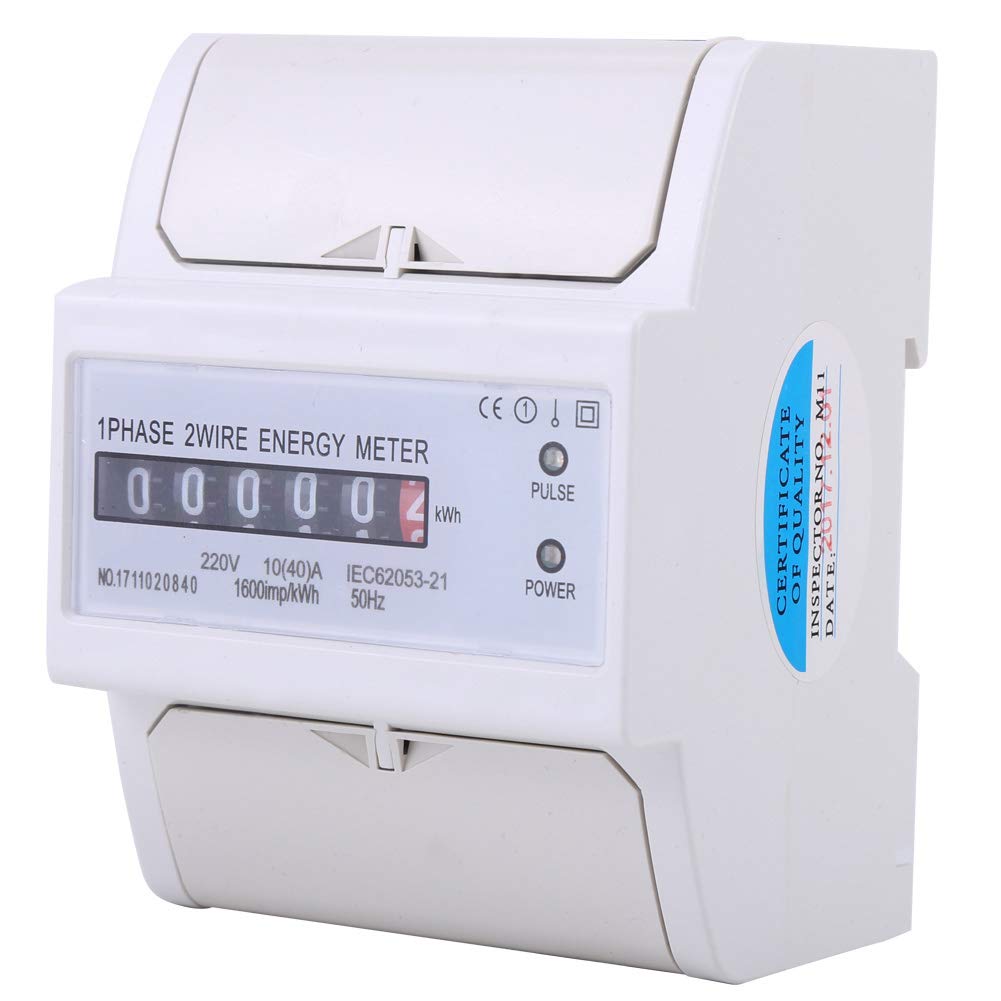

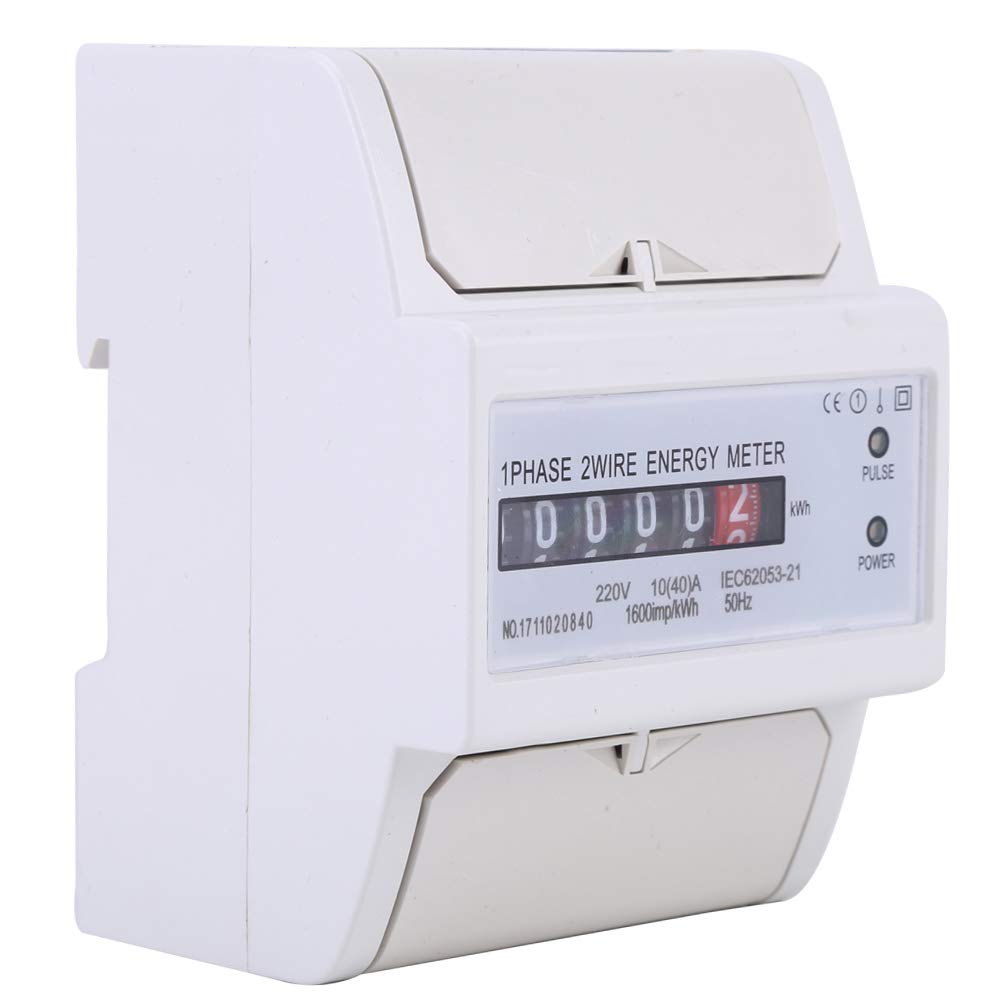

The meter is full compliance with national standards GB/T17215.321-2008 and IEC62053 international standard of grade 1 level of the relevant technical requirements of the single phase KWh meter,can measure the active power energy, by 6 digital display total electricity consumption. Specifications: Standard: IEC62053-21 Display:6-digit Color: White Voltage: 220V Current: 10(40A) Frequency: 50Hz Impulse constant: 1600imp/kWh Operating Humidity: ≤95% Operating Temperature: -25 ℃ ~ + 55 ℃ Size:10 x 7.5 x 6.5cm/3.93 x 2.95 x 2.55inch Weight: 276g Installation and use: 1. Installation of energy meter required experienced electrician or professional, and determined to read the manual. 2. energy meter should be installed in the indoor ventilated and dry place, adopt 35mmDIN standard guide type installation, the bottom plate of the electricity meter should be fixed in the wall that is strong refractory, and not easy to vibrate. 3. Electricity meters should be installed in protective cabinets in places where there are filth and potential damages. 4. Install according to the wiring diagram ,it is best to use a multi-strand copper wire to avoid the failure of the electrical energy meter working or burning down. Package Included: 1 x Energy Meter
