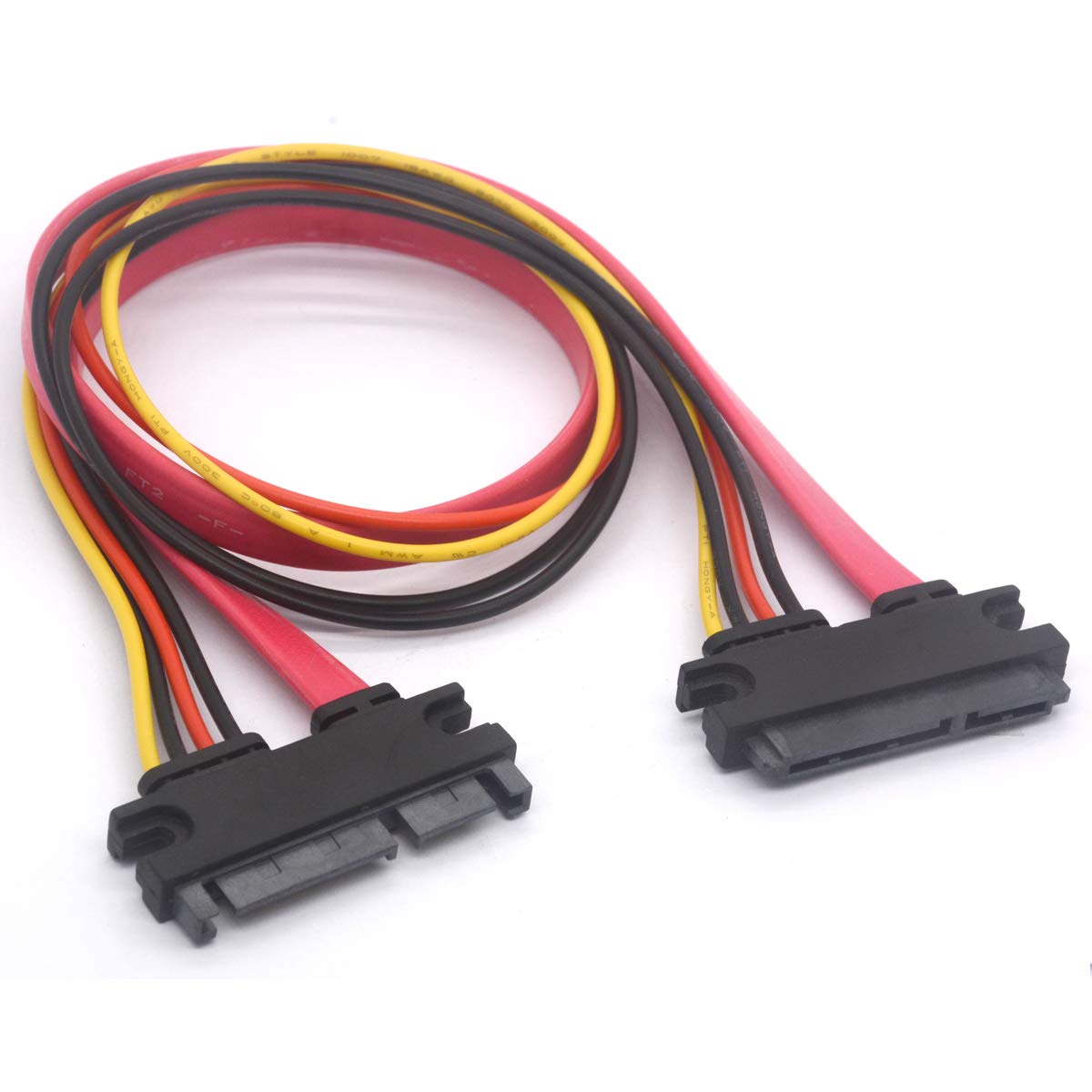

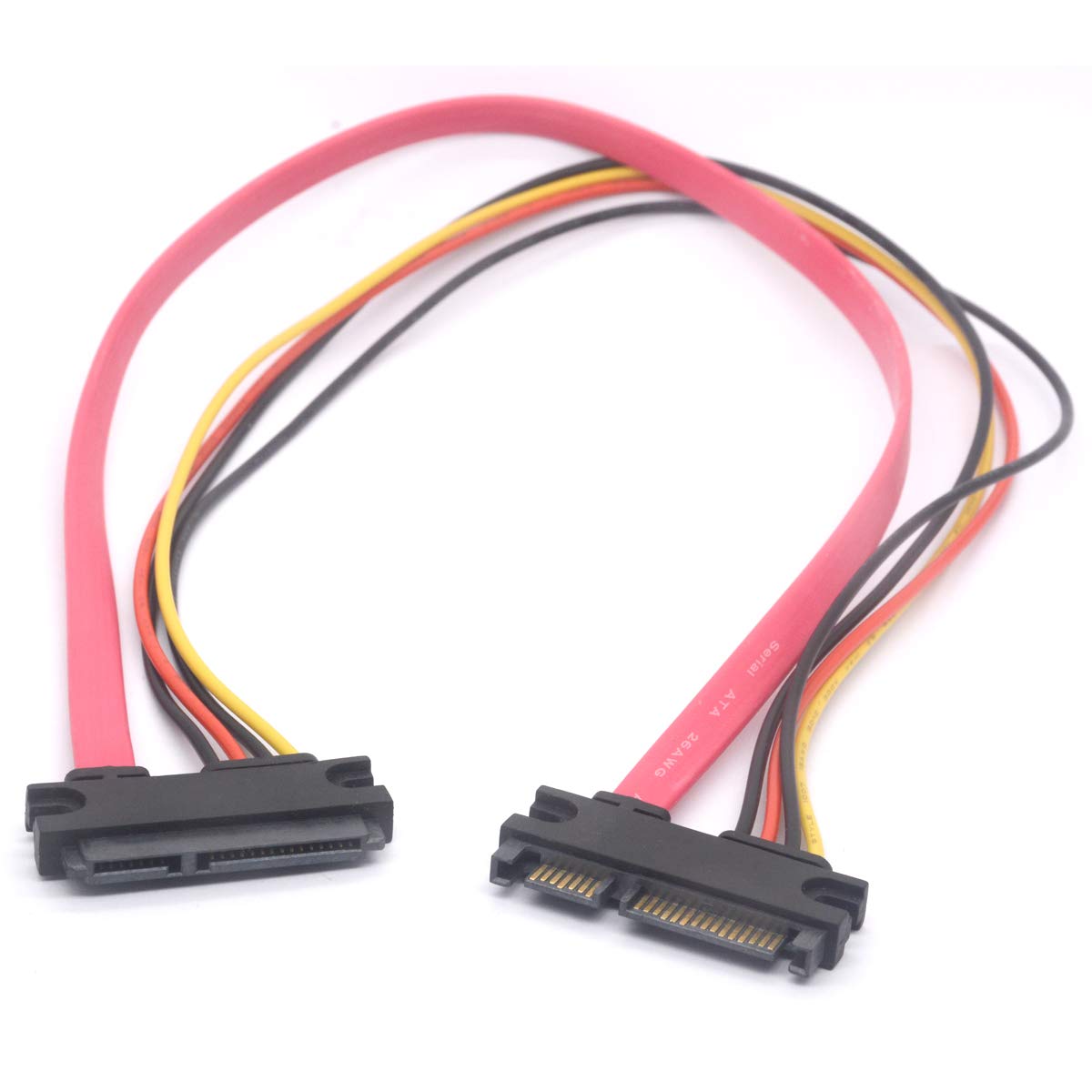

22 pin SATA Extension Cable 7+15 Sata Male to Female Data and Power Extender (30cm)

• SATA III 3.0 7+15 22Pin SATA Male to Female Data Extension Cable 30cm Suitable for extending a SATA data and power interface.
• 22 pin SATA data and power combo extension cable, manufactured for connecting various devices with 22 pin SATA connector

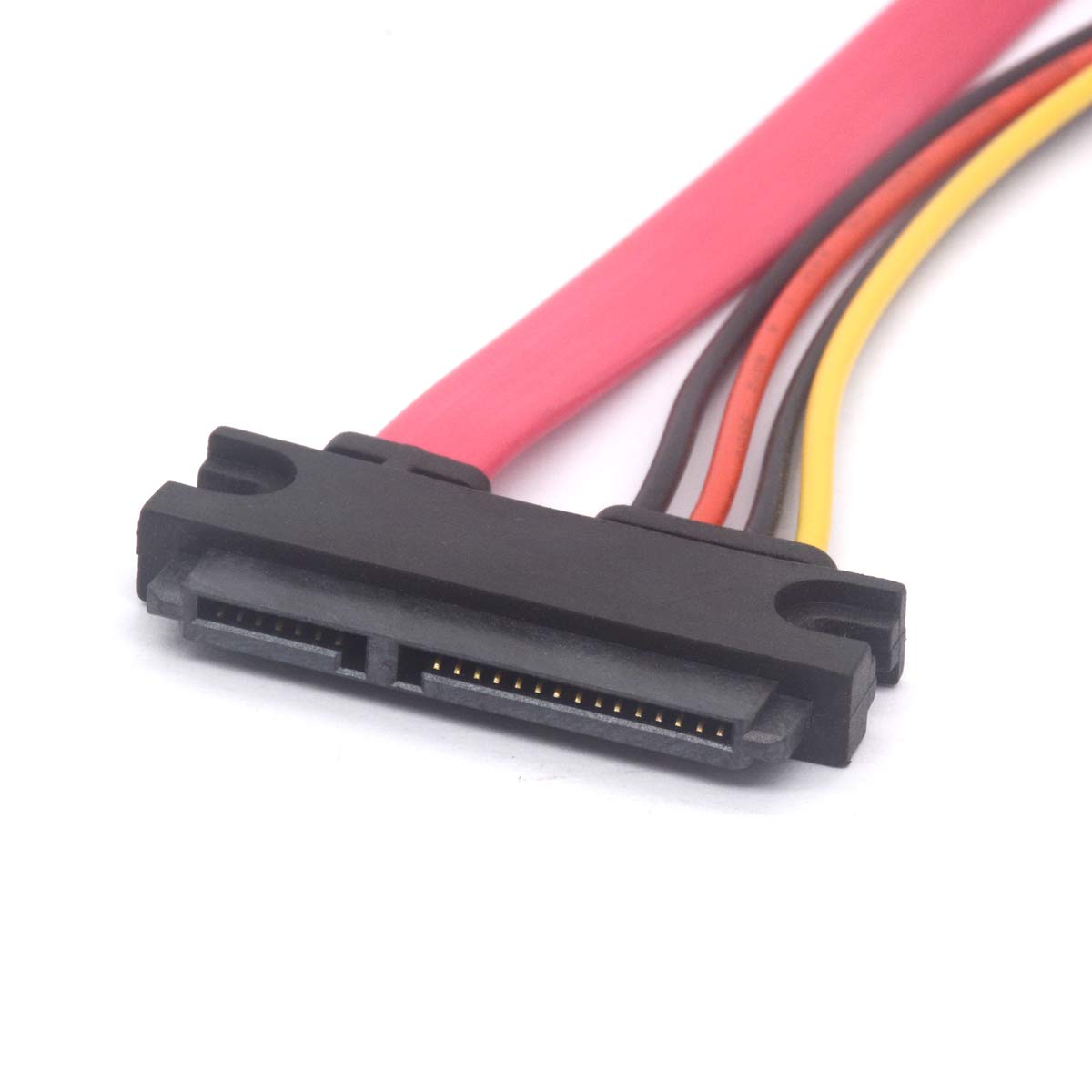

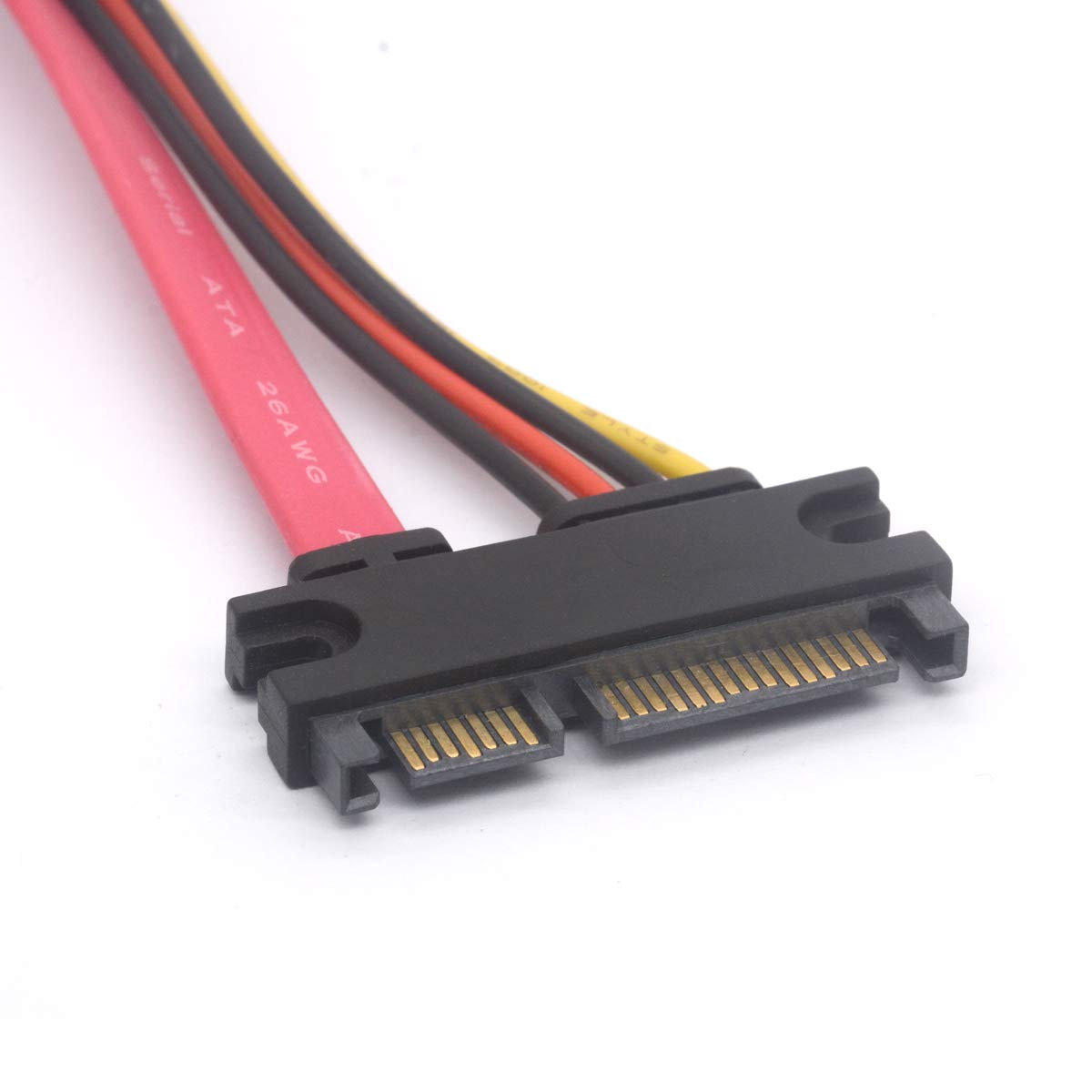

• 22 Pin Female to 22 Pin SATA Data and Power Adapter Connector 1: S-ATA 22-pin Male, Connector 2: S-ATA 22-pin Female version: SATA 3Gb/s
• The sata cable is for 3.3V (orange), 5V (red) and 12V (yellow) along with 2 black (grounding); the 22 pin SATA 3 extension unit contains both 15 pin power supply and 7 pin data with female and male connectors.
• The SATA extension cable is approx. 30 cm long. Conductor: Copper, Signal: Digital, Outer Material: PVC, Length: 0.3m

Item SATA III 3.0 7+15 22 Pin SATA Male to Female Data Stream Extension Cable Features: 1. Connectors: 1 x 22 Pin Serial ATA, Male 2. Connectors: 1 x 22 Pin Serial ATA Female Cable length: approx. 30 cm. 4. This is a 22 pin SATA 3 male to female 5 wire data extension cable. 5. The unit wires for 3.3V (orange), 5V (red) and 12V (yellow) along with 2 black (ground). 6. The 22-pin SATA 3 extension unit contains both 15-pin power supply and 7-pin data with female and male connections. Function: This SATA22PEXT 12" SATA Power and Data Extension Cable 22 Pin allows you to extend the reach between internal SATA power and data ports and a SATA hard drive, reducing the risk of damage to the drive or motherboard SATA connector. SATA cable is suitable for 1. Extends SATA power and data connections by up to 30 cm. 2. Creates flexibility when building or upgrading systems. 3. Expand backplane adapter ports. 4. Expand the dock connectors. Package includes: 1 x 30cm 22pin SATA Power and Data Extension Cable
