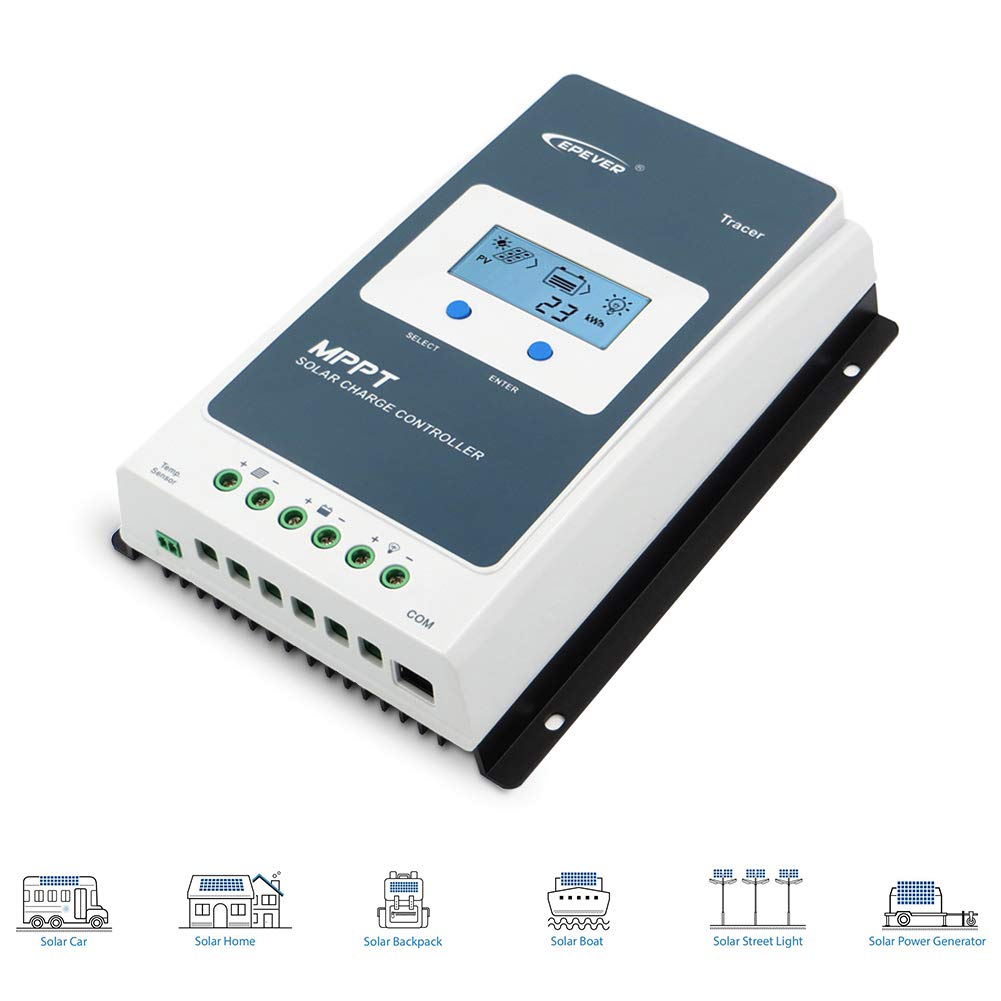

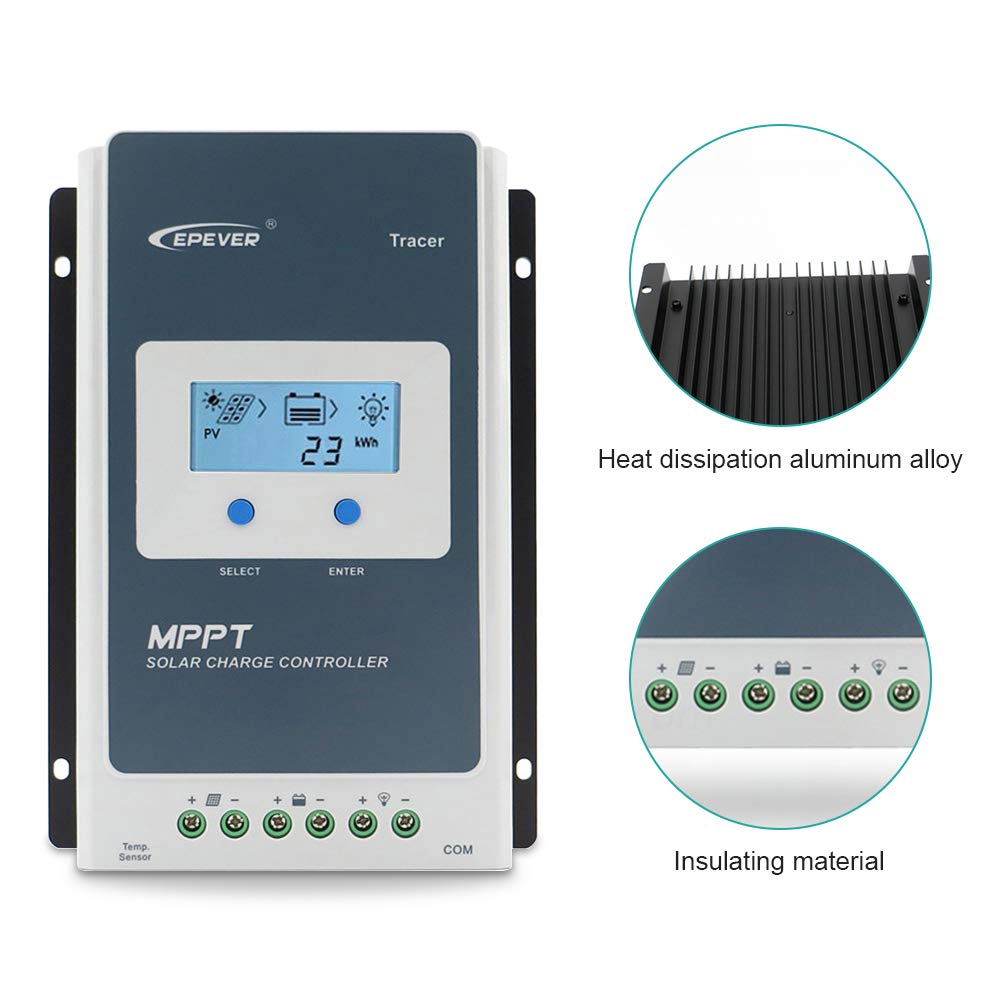

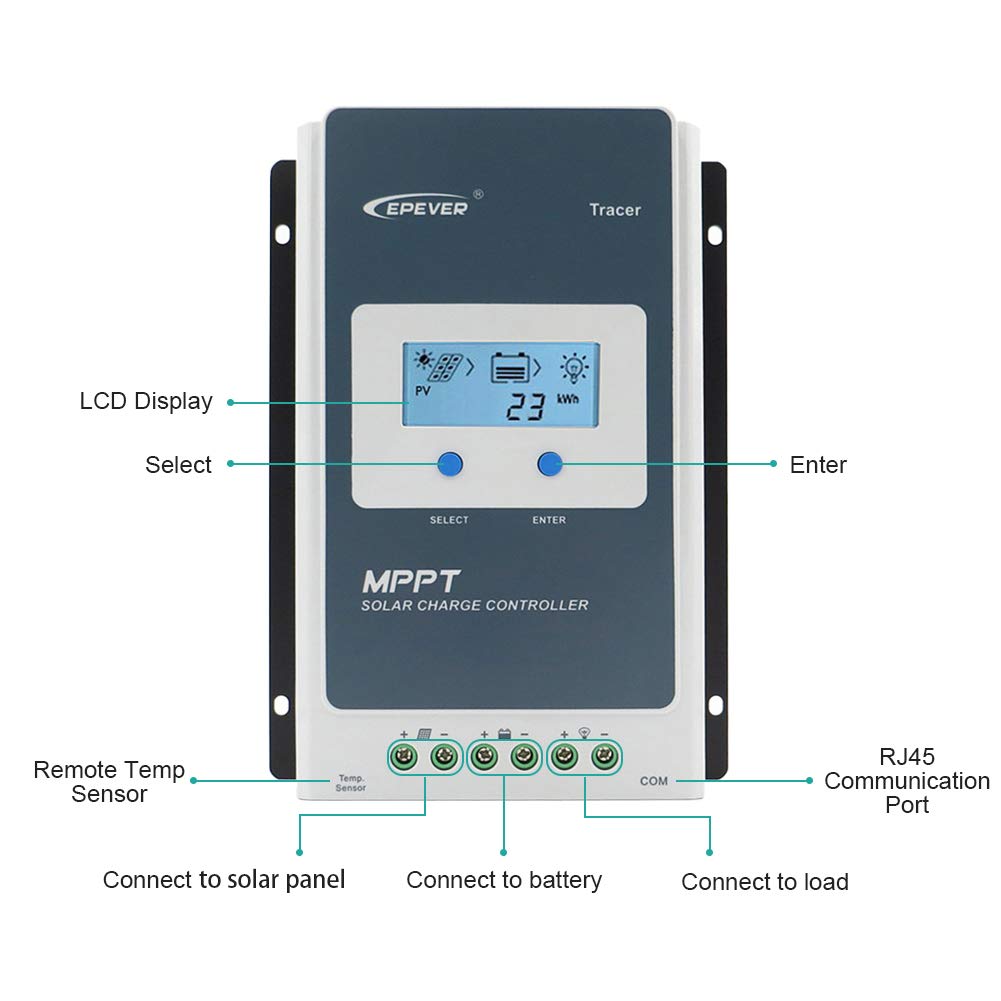

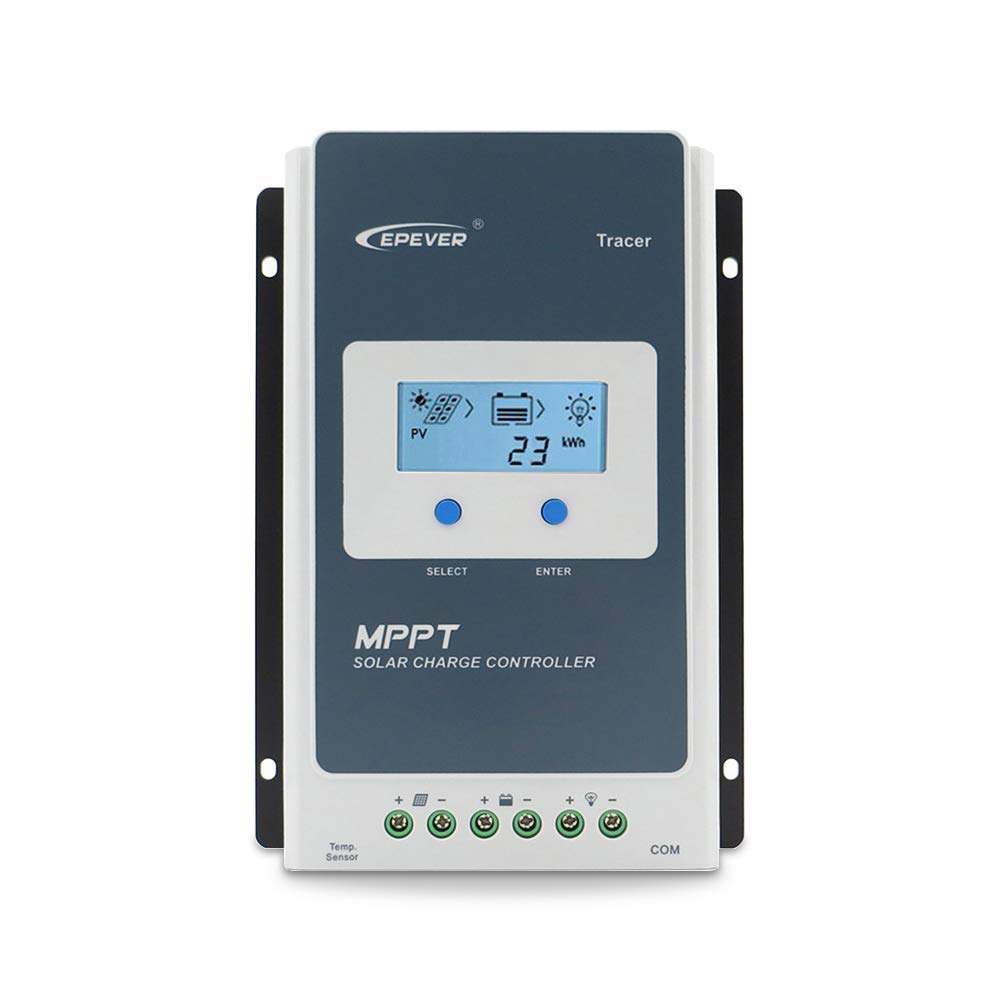

20A MPPT Charge Controller 12V/24V Auto, 20 amp Solar Panel Charge Controller Mppt 100V PV Input Negative Grounded Solar Regulator

• MPPT Charge Controller 20A : 12V / 24V Auto identifying system volt. Auto control system to limit the charging power & current go over the rated value.
• 20 amp Solar Charge Controller Max Input Solar Panel Power: 260W/12V, 520W/24V. Max input Voltage: 100V. Real-time energy recording and statistical.
• 20A Solar Controller MPPT support for 4 type Battery charging: Lead-acid (Sealed, AGM, Gel, Flooded), User and Lithium). Battery temperature compensation function to ensure the controller’s life. It protect the battery from being over-charged by the solar modules and over-discharged by the loads.

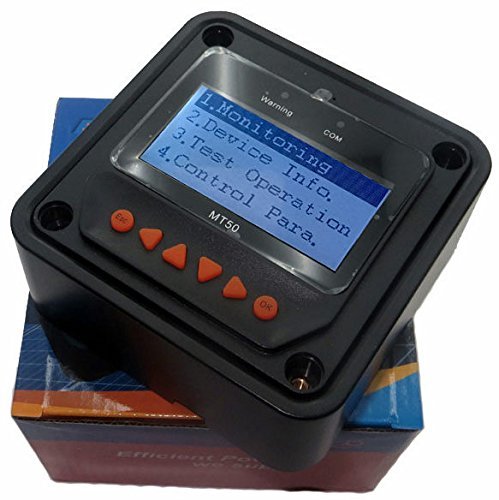

• Solar Panel Charge Regulator with RS485 interface , it can be monitored by cellphone APP(eBox required) , PC Software and MT50 remote meter.

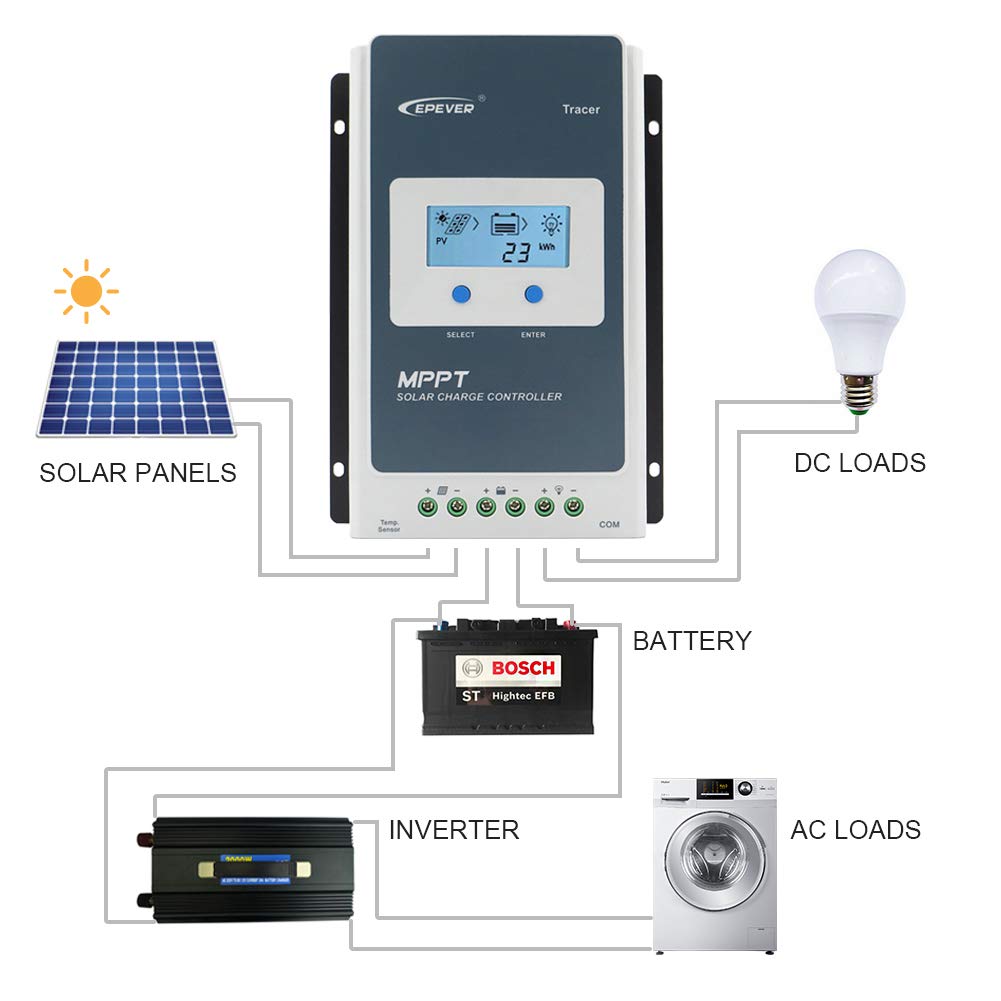

• available to meet various communication requirements in different situations. Solar Charge Controller can be widely used for various applications, e.g. solar RV, household system and industrial field monitoring

Tracer AN MPPT Charge Controller Features: 12 / 24VDC Auto Rated charge current: 20A Max Input Power:12V@ 260W | 24V@ 520W Max PV open circuit voltage:100VDC (92V at 25℃ temperature) Battery type selection: lead-acid (Gel, Sealed, Flooded) and Lithium Charging Power and Current Limitation Function User programmable for battery types, load control etc. Accurately recognizing and tracking of multiple power point PV short circuit / PV reverse polarity /Battery over voltage Battery over discharge / Battery reverse polarity / Load overload protection You can connect two or more Tracer charge controller to the batteries bank in parallel, but do not share PV Panels. Dedicate a number of PV panels to each mppt controller. Never connect the soalr panel array to the controller Without/Before a Battery. Package List: 1 x Tracer 2210AN Solar Charge Controller 1 x Use Manual
