Hailege 2004 20X4 LCD Display LCD Screen Serial with IIC I2C Adapter Yellow Green Color LCD For
About this item
- 2004 20X4 LCD Display LCD Screen Serial with IIC I2C Adapter
- Backlight control, you can control by jumpers, can also be controlled by the program.
- IIC/I2C interface was developed to reduce the IO port usage on Arduino board.
- Adjustable contrast, the backlight control to provide library.

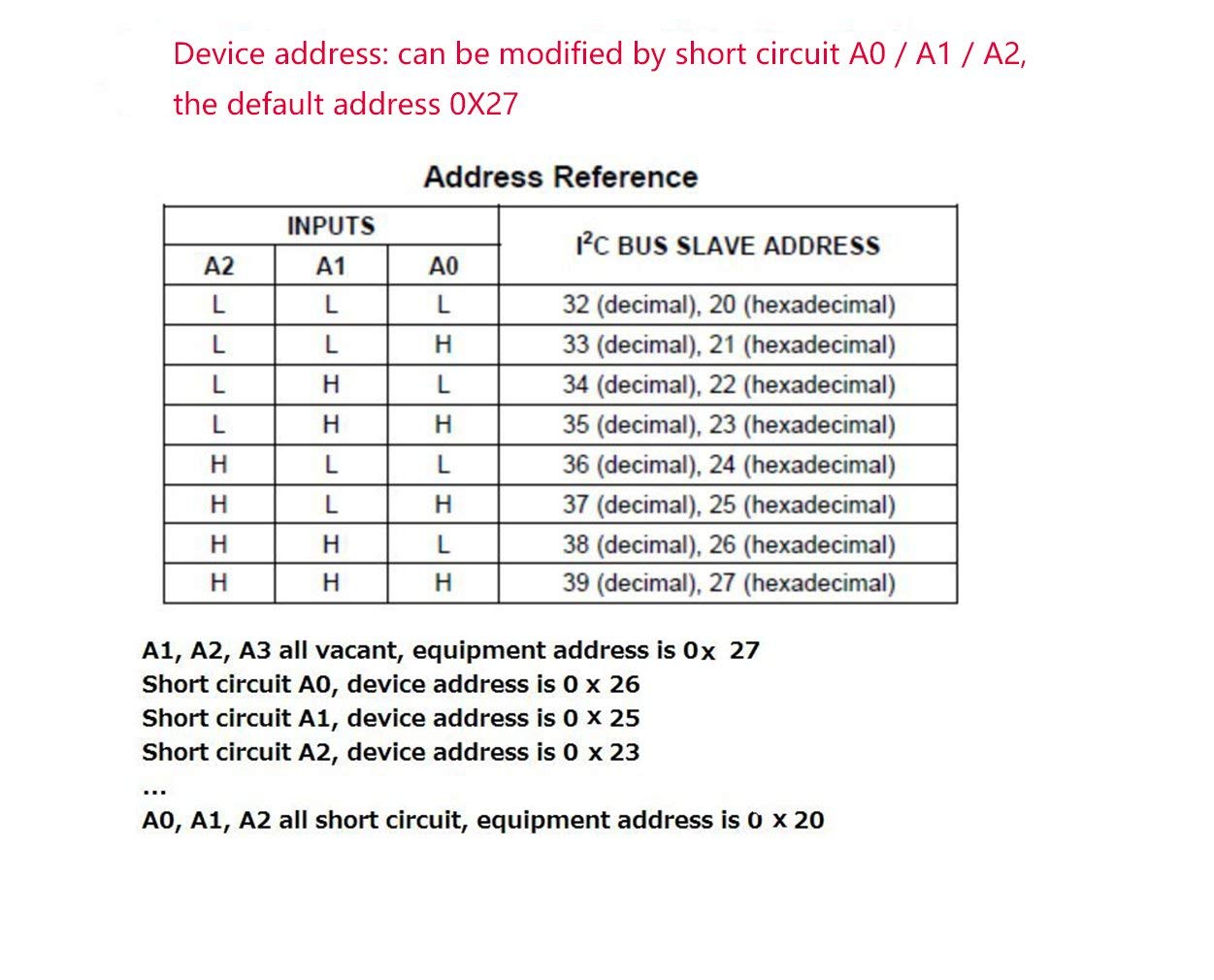

- 5V power supply, the address 0x27 or 0x3F.
Product description

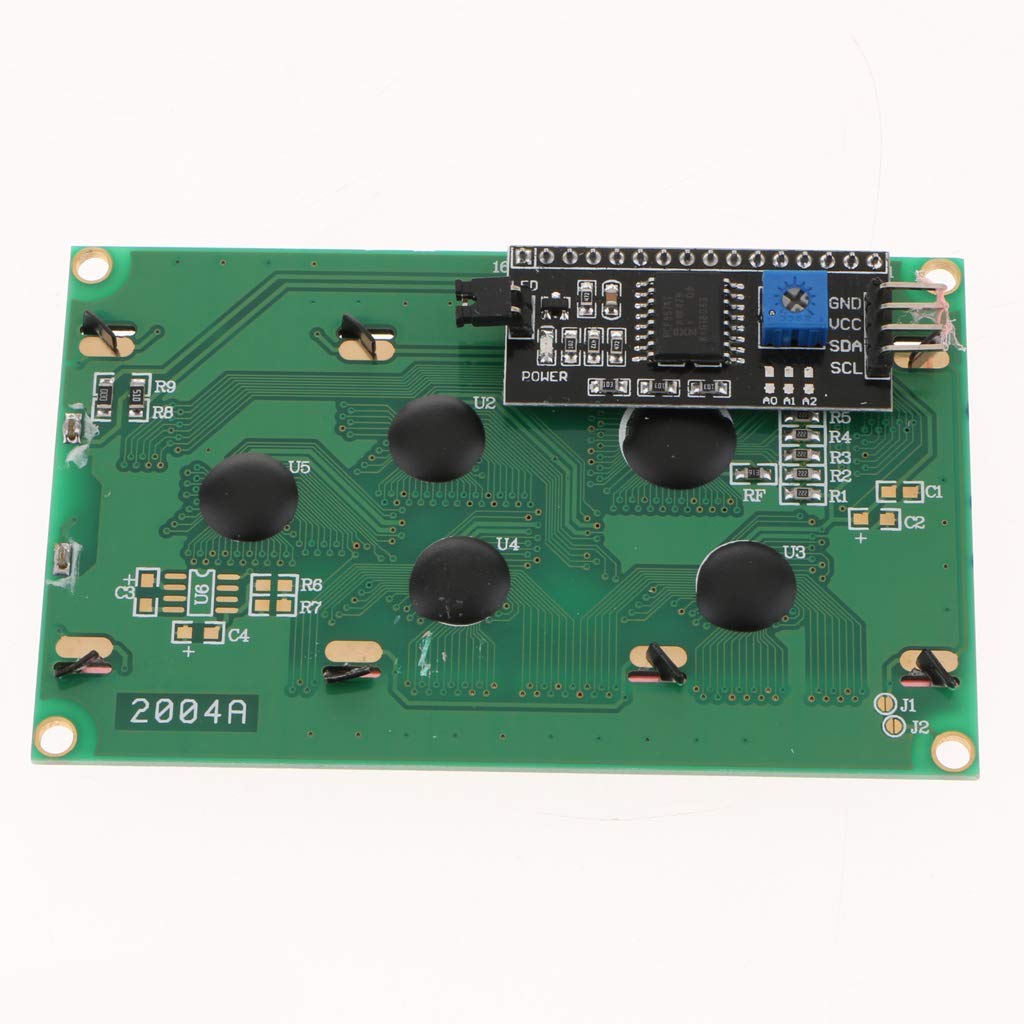

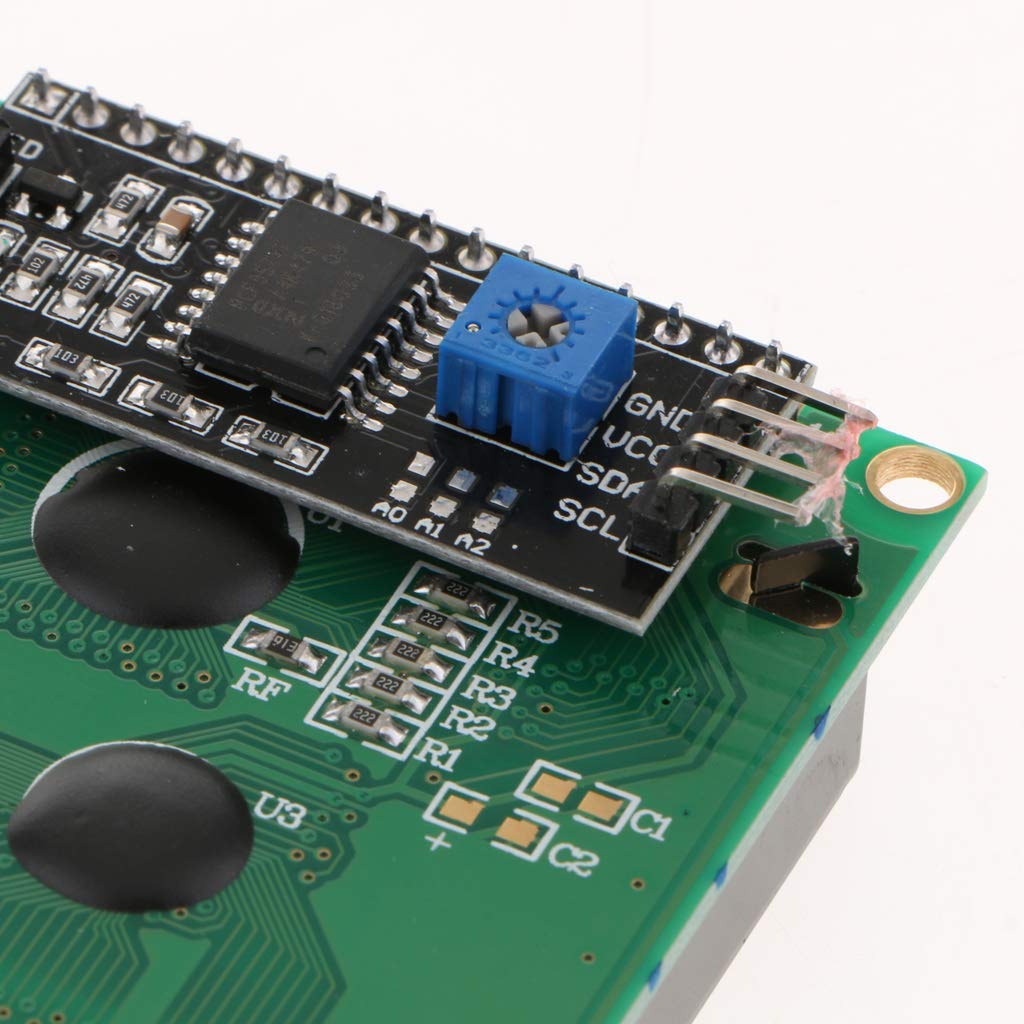

Features? IIC/I2C interface was developed to reduce the IO port usage on board. * Old 1602 screen requires 7 IO ports but this module uses only two. * Much needed control panel IO ports can be used to add some sensors, SD card and so on. * A New High-Quality 4 Line 20 Character Lcd Module. * Potentiometer can be adjusted to control the contrast. * Back light can be turned off by removing the jumper on the back panel. Specification: * Interface: I2C * I2C Address: 0x27 * Pin Definition : GND?VCC?SDA?SCL * Back lit (Yellow with Black char color) * Supply voltage: 5V * Size : 60mm?9mm * Contrast Adjust : Potentiometer * Backlight Adjust : Jumper Package Included: 1* 2004 20X4 LCD Display LCD Screen Serial with IIC I2C Adapter
