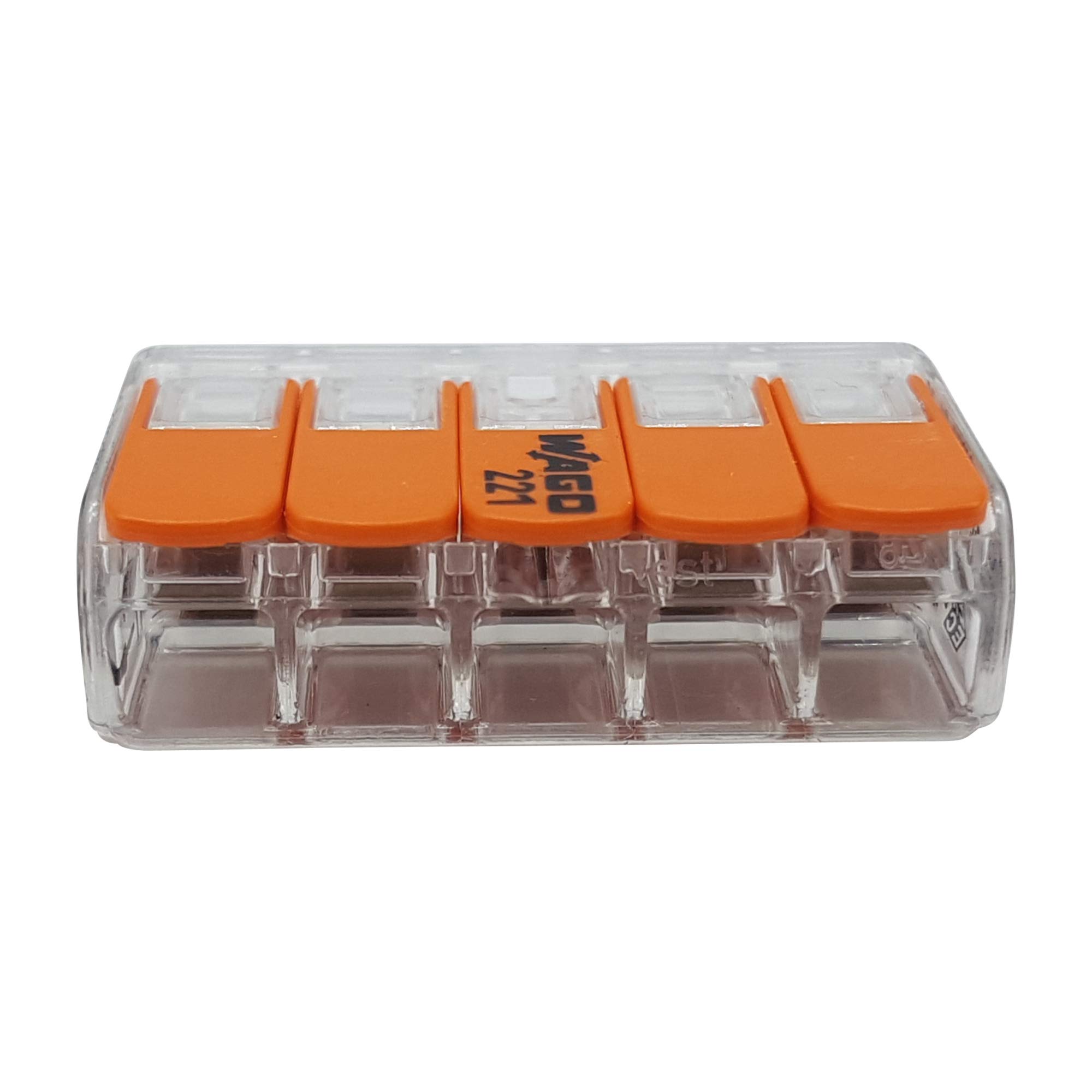

20 Pieces Wago 221-415 Connection Terminal 5 Wires with Lever 0,2-4 qmm Small Design, Transparent

• Comfortable conductor connection from 0.2 to 4 mm²
• Installation of single, fine and multi-wire conductors

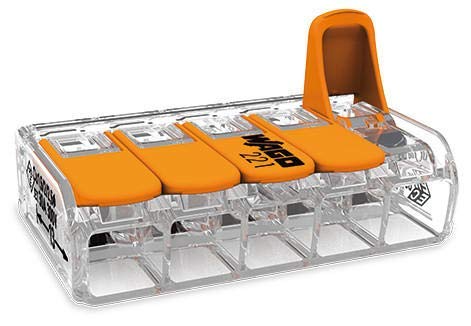

• Lever up, ladder in, close lever
• For all types of conductors
• 32 A/450 V

Electrical data Rated data according to IEC/EN 60664-1 Rated voltage (II/2): 450 V Rated surge voltage (II/2): 4 kV Rated current: 32 A Connection data: Connection technology: CAGE CLAMP Actuation Type: Lever Connectable conductor materials: Copper Nominal cross-section: 4 mm² Single wire conductor: 0.2 - 4 mm² / 24 - 12 AWG Multi-stranded conductor: 0.2 - 4 mm² / 24 - 12 AWG Fine wire conductor: 0.14 - 4 mm² / 24 - 12 AWG Stripping length: 11 mm / 0.43 inch Total number of clamping points: 5 Total number of potentials: 1 Wiring Type: Side Wiring Conductor cross-sections single-wire: 0.2 mm² Geometric data Width: 29.9 mm / 1.177 inches Height: 8.3 mm / 0.327 inches Depth: 18.6 mm / 0.732 inches Material data Colour: transparent Flammability class according to UL 94: V2 Fire load: 0 MJ Weight: 4.048 g Environmental conditions Operating ambient temperature: 85 °C Continuous operating temperature: 105°C T-marking according to EN 60998: T85
