20 Inch Electric Bike Conversion Kit | 36V 250W LED Electric Bicycle Hub Motor PAS Electric Bike Front Wheel Conversion Kit Motor E-bike Conversion Kit

• SUPERIOR PERFORMANCE: With a torque of 40N. m and 440RPM rated speeds, this product can climb up 12° slopes, allowing you to apply it to more terrains in daily life. It converts your bike into an e-bike, which is both efficient and convenient, allowing you to fully enjoy riding while commuting to and from work and on short trips
• HIGH EFFICIENCY: Featuring a 250 W brushless and gearless motor with empty speeds up to 26.72 mph and a motor efficiency of over 82%, it provides stable speeds, responsive braking and directional change control compared to brushed motors, allowing you to ride further
• THOUGHTFUL DESIGN: The pedal assist sensor (PAS) can sense the pedal rhythm and adjust the motor speed accordingly. It allows you to ride your electric bike without a throttle response, which helps on long trips and reduces wrist soreness
• EXCELLENT LOAD-BEARING CAPACITY: The high-class materials and carefully processed wheel can hold up to 308.64 lbs, supporting most ordinary adults and bicycle frames without worrying about deformation or collapse
• SIMPLE OPERATION: You only need to control the speed through the thumb throttle, and its battery indicator lights can quickly check your battery level, making it convenient to charge on time and easy to use. The brake lever can cut off the power supply to the motor during emergency braking to stop the bike in time and ensure safe riding

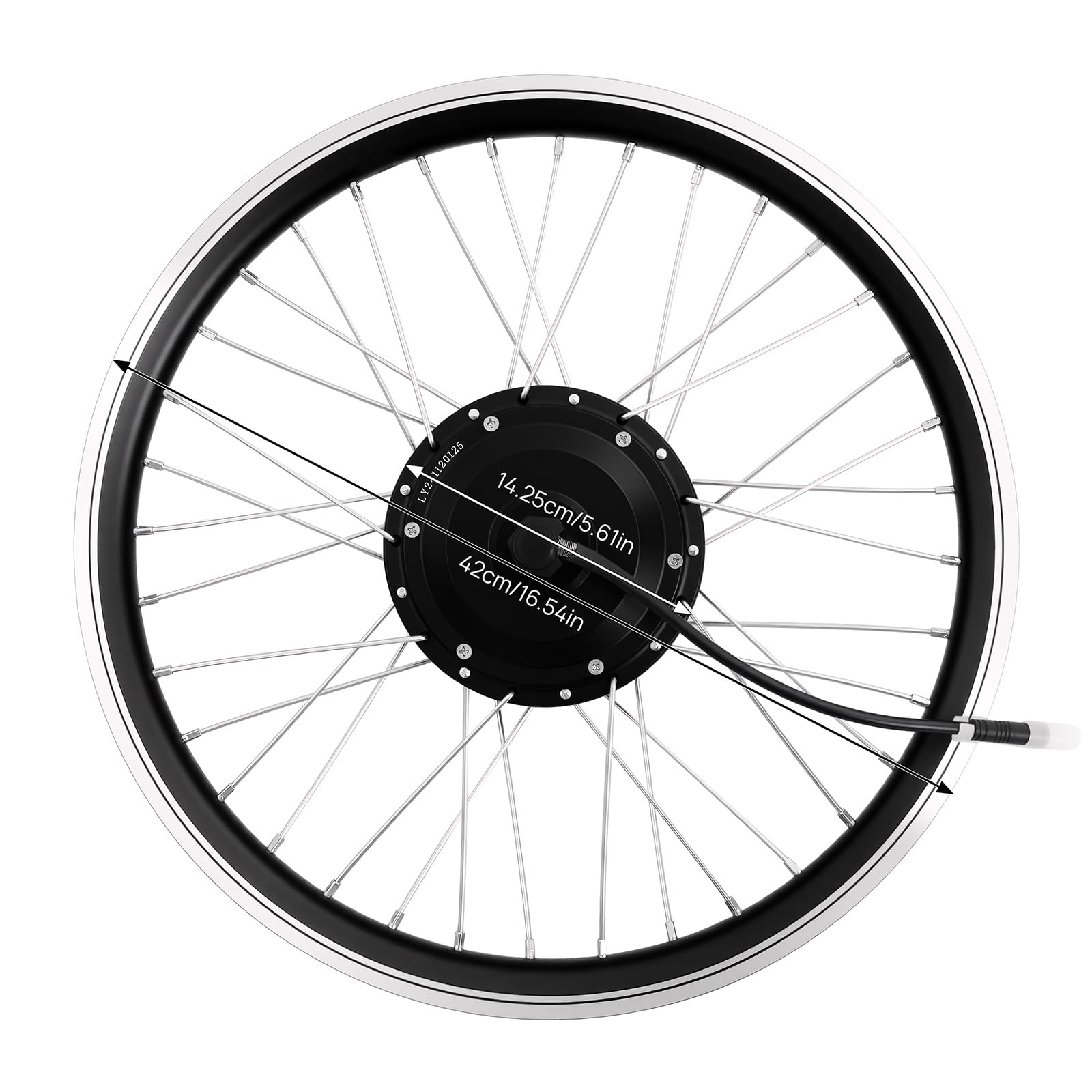

Specification Materials: Aluminum, Iron, Copper, Magnetic Steel Process: Baking Paint Color: Silver, Black Style: Modern Assembly Required: Yes Installation Posituon: Applicable Wheel Size: 20 Inches Motor Type: Brushless Toothless Motor Hand Brake Type: Disc Brake/V-Type Brake Voltage: 36V Power: 250W Empty Speed: 43km/26.72mile/h Load Speed: 35-38km/21.75-23.61mile/h Gear Adjustment: 3 Gears Assist: 5 Magnetic Point Assist Sensor, Pedal Assist Sensor Brake Lever: Power Cut-off Brake Lever Throttle: Thumb Throttle Display: SW-810 LED Display Wiring Mode: Waterproof Wire for Outgoing Motor, Common Wiring for Other Efficiency: ≥82% Climbing Angle: 12° Rated Speed: 440PRM Rated Torque: 40N.m Front Fork Open Size: About 100mm/ 3.94 in Load-Bearing Capacity: ≤140kg/308.64 lb Brake Line Length: 1.8m/5.9ft Motor Diameter: 14.25cm/5.61 in Motor Width: 10 cm/3.94 in Package Size: 51 x 50 x 24cm/20.08 x 19.7 x 9.45 in Gross Weight: 6.05 kg/13.34 lbs Net Weight: 5.75 kg/12.68 lbs Package Included 1 x Motor Front Wheel 1 x Controller 1 x Power-off Brake Lever 1 x LED Display 1 x Thumb Throttle 1 x Power Sensor 1 x Controller Bag 1 x English Manual 1 x 7 Speed Flywheel Other Accessories for Assembly Application This ebike conversion kit is suitable for a 20-inch bike. It can be mounted as a power unit on the front wheel of the types of two-wheeled, mountain, beach, and off-road bikes. It is suitable for cyclists who like challenges, DIY modification of beach, and off-road bikes. Notes This package does not include batteries, chargers, or tires. Please bring your own DC36V lead-acid or lithium battery, appropriate charger, and 20-inch tires.
