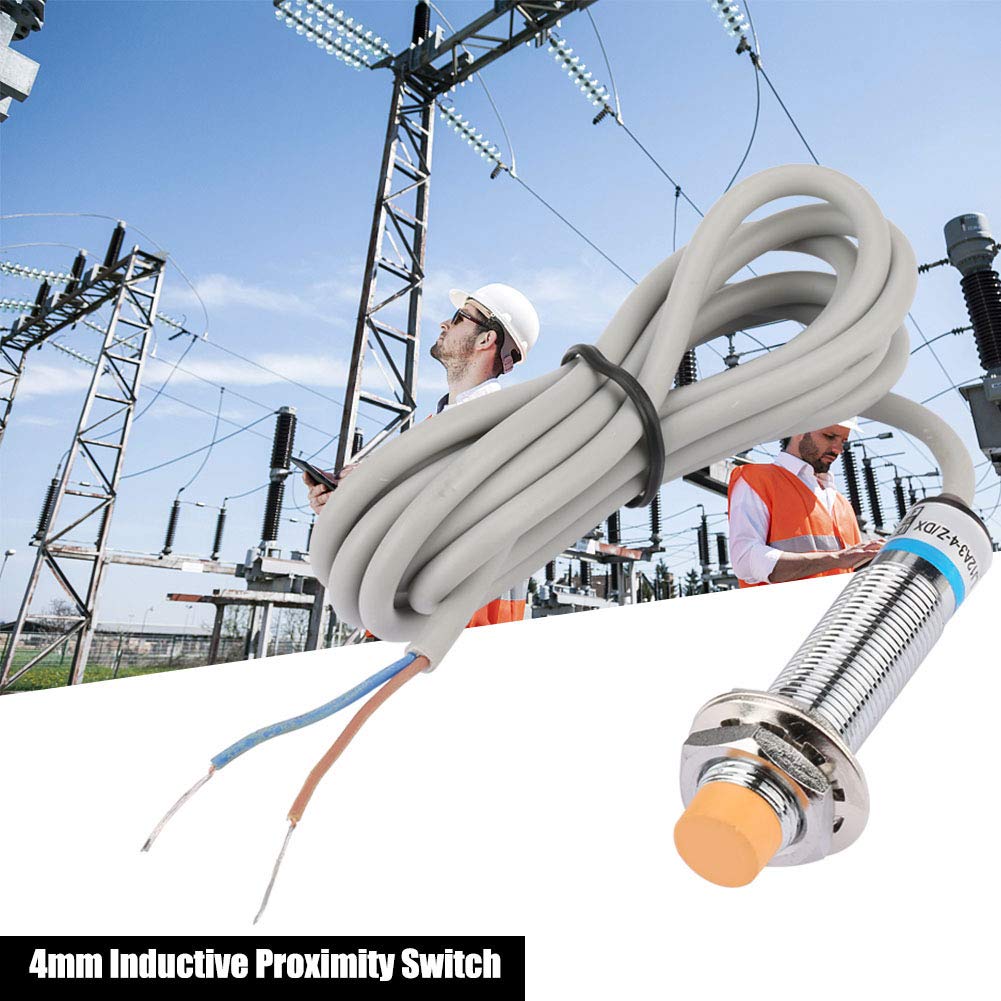

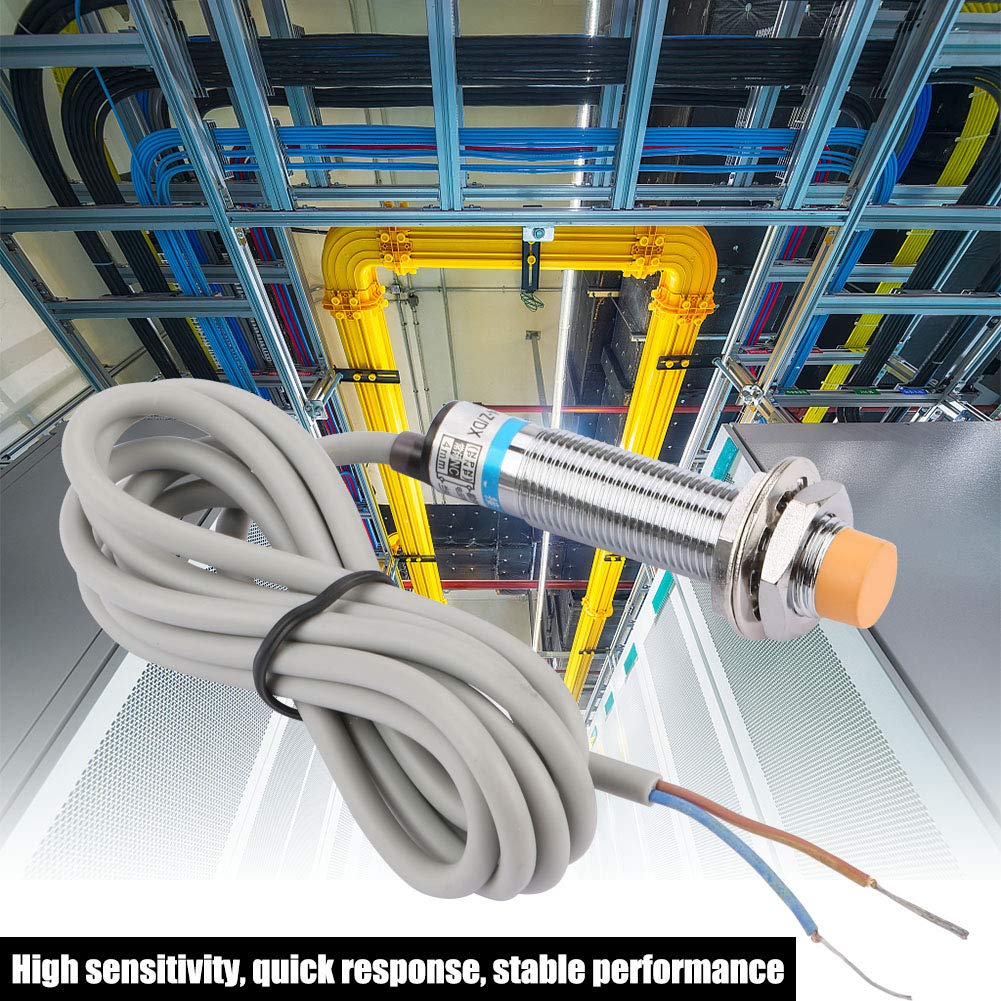

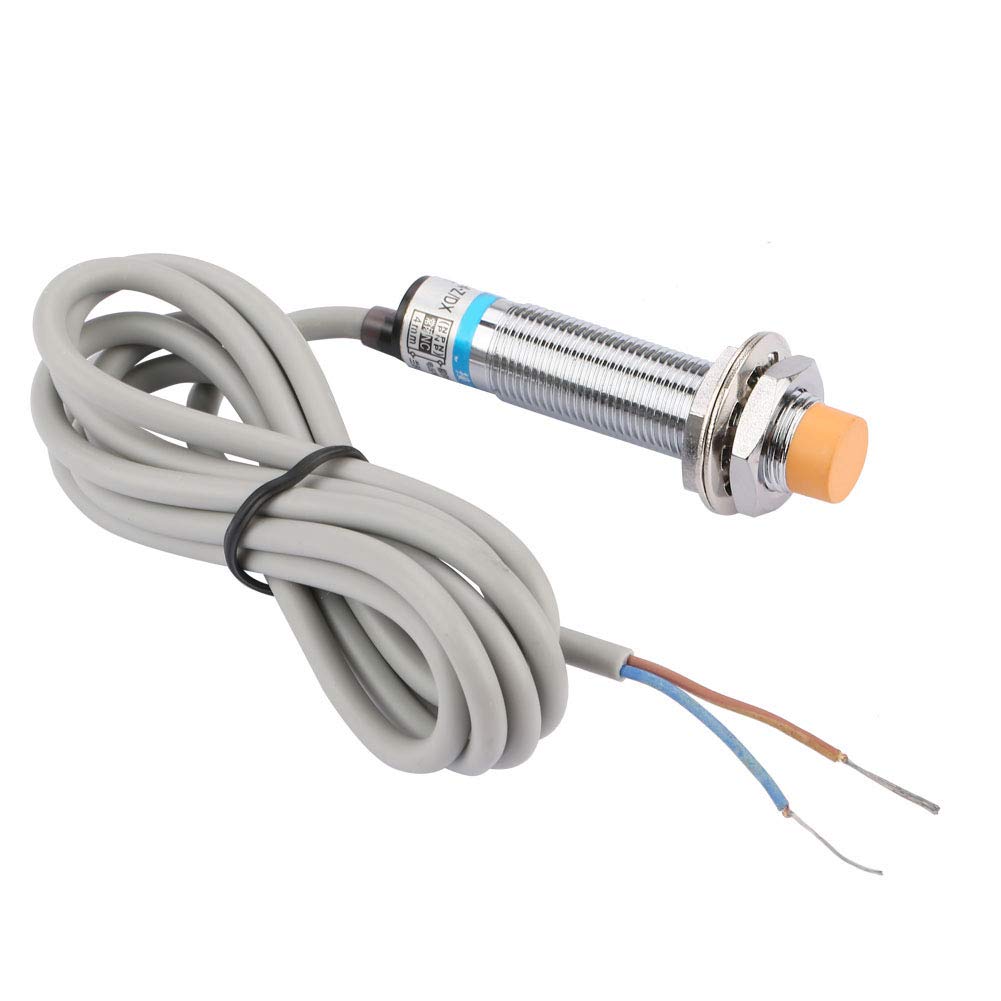

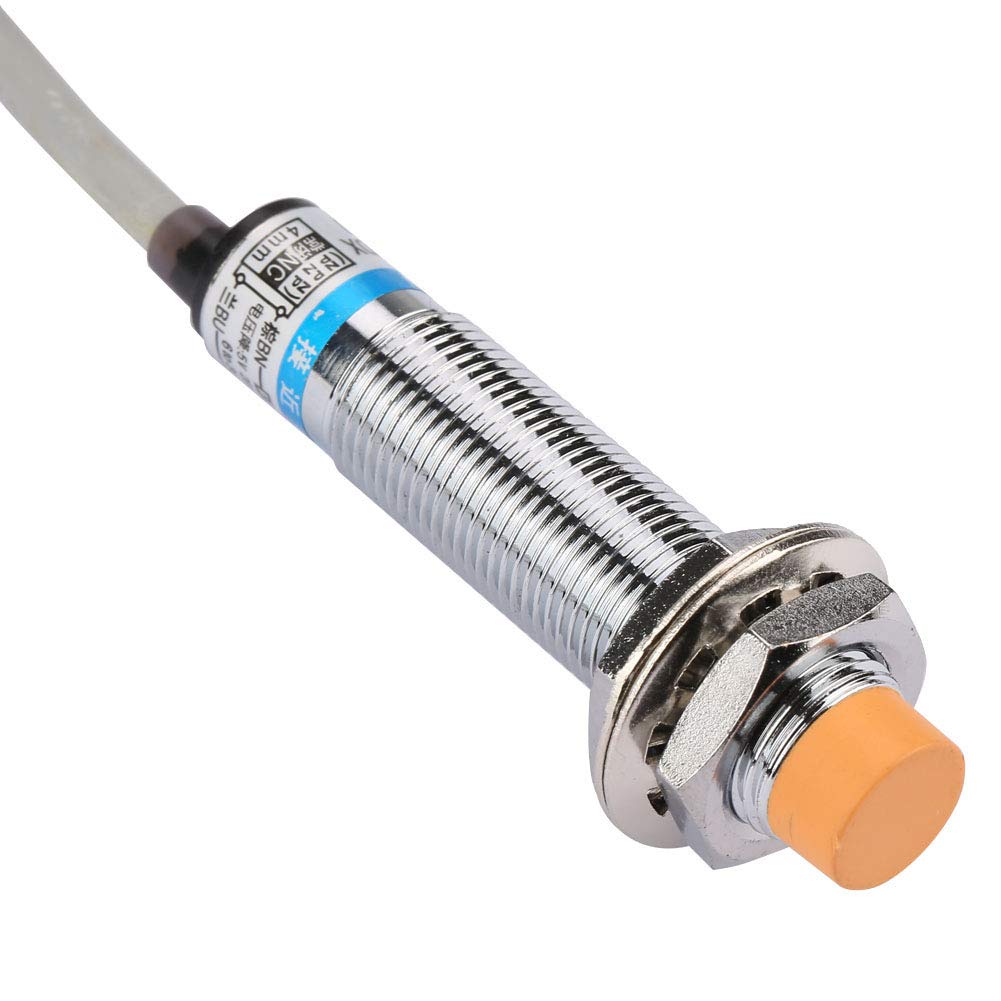

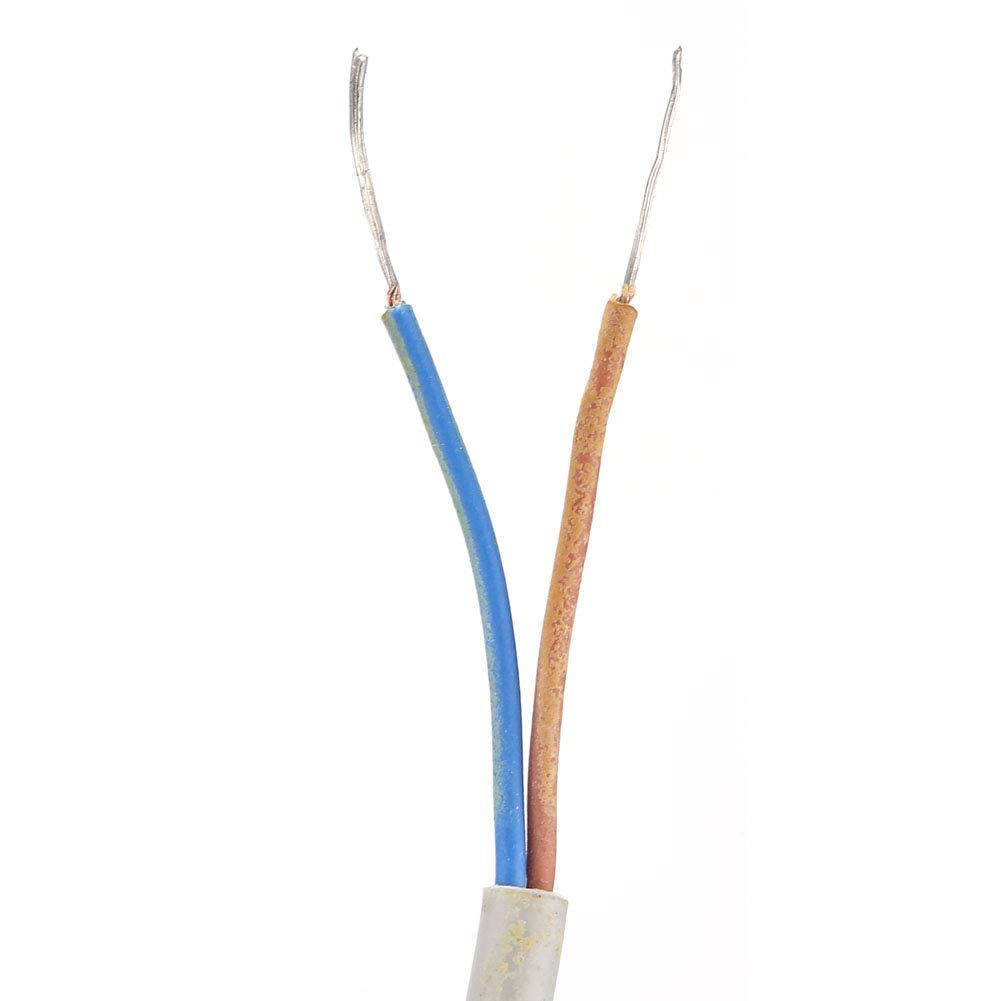

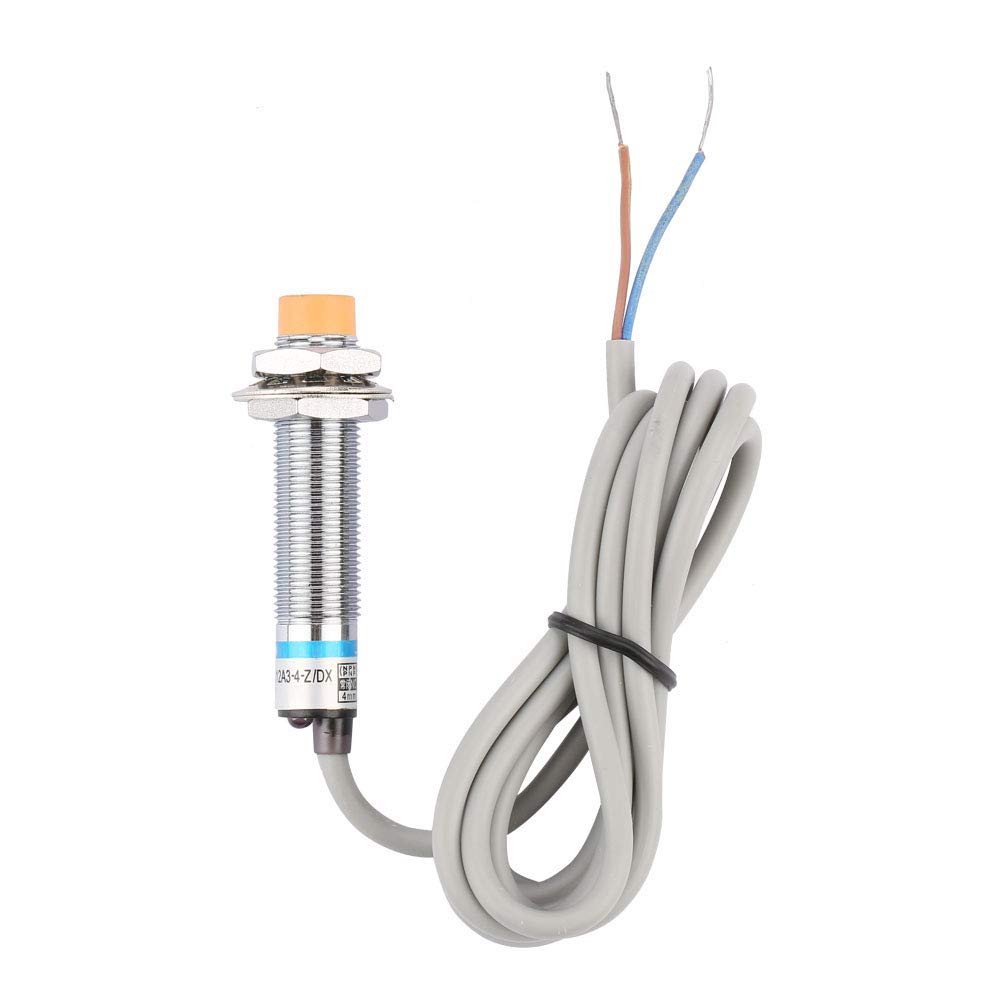

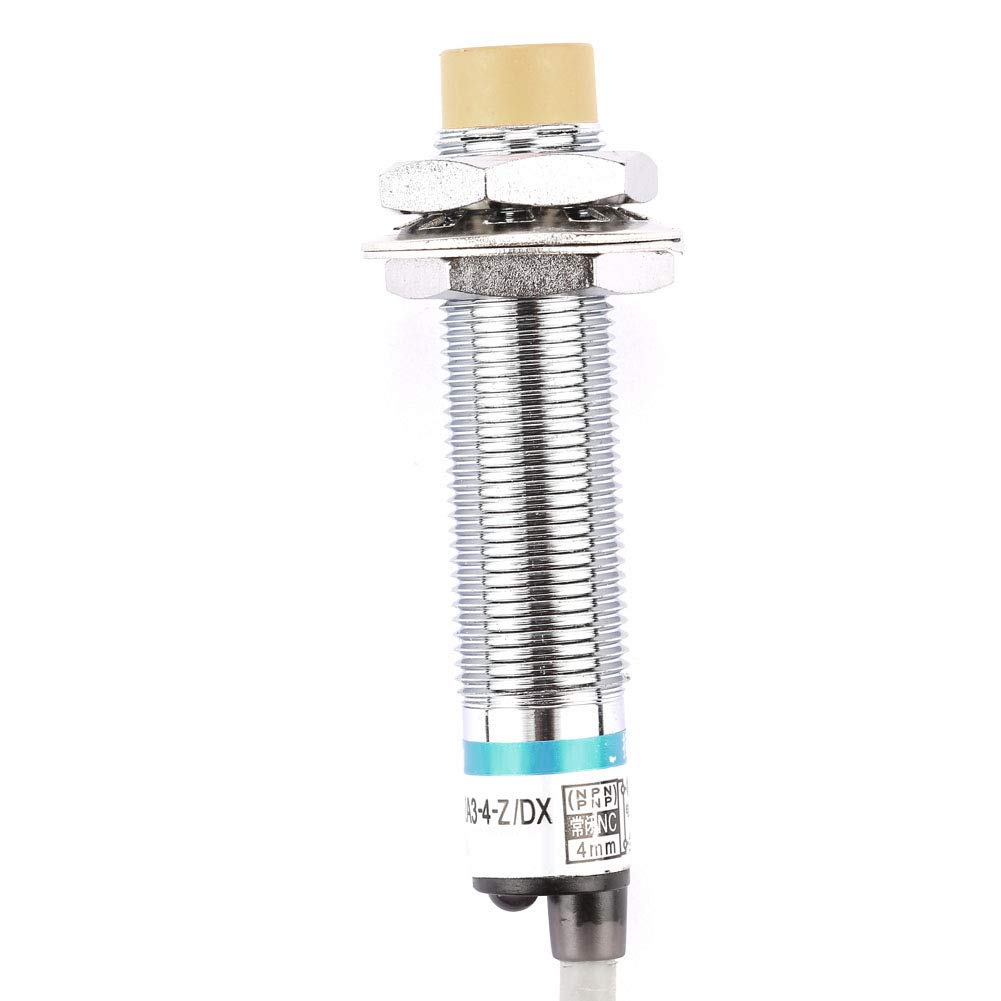

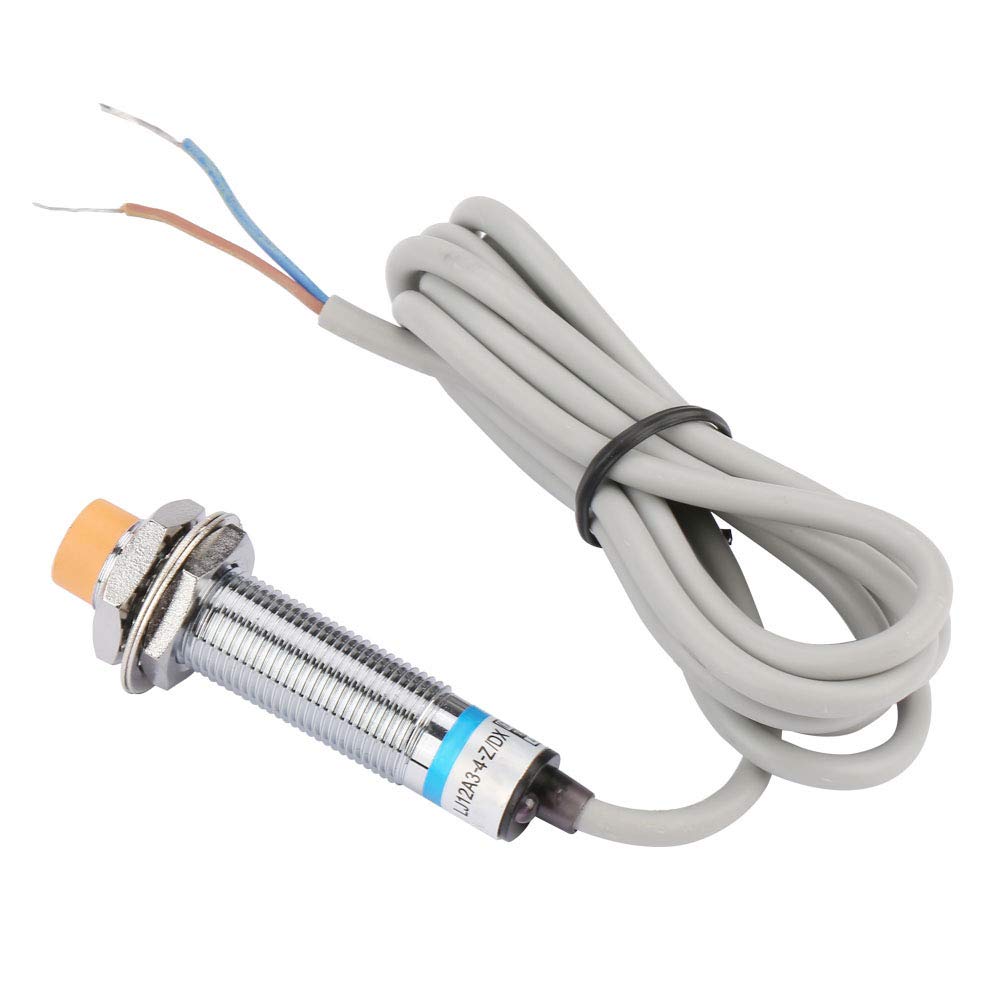

ViaGasaFamido 2-Wires Normally Close Inductive Proximity Switch, LJ12A3-4-Z/DX DC Distance Approach Sensor Switch with 4mm Detection Distance

• 4MM DETECTION DISTANCE:This is an inductive proximity switch sensor with 4mm detection distance.
• STRONG ANTI-INTERFERENCE AND STABLE PERFORMANCE:This proximity switch has strong anti-interference capability, action, stable performance and fast frequency response.
• NON-CONTACT DETECTION:The non-contact detection of this proximity switch does not affect the operating conditions of the measured object.
• SEALED STRUCTURE:The sealed structure makes this proximity switch extremely resistant to moisture and dust, which makes it more
• WIDE RANGE OF USES:This proximity switch is used in in automatic control industry for detecting, controlling, and non-contact switching.

Specification: Model: LJ12A3-4-Z/DX Detection Distance: 4mm±10% Setting Distance: 0-3.6mm Delay Distance: <10% of detection distance Detection Object: Magnetic Metal(The detection distance decreases when it is non-magnetic metal) Standard Detection Object: Iron 15*15*1mm Response Frequency: 0.5kHz Supply Voltage: DC12-24V (6-36V) impulse (P-P) below 10% Withstand Voltage: AC1000V 50/60Hz 1min Current Consumption: N.P type: <13mA, D type: <0.8mA, A type: <1.7mA Control Output: N.P type: <300mA, D type: <200mA, A type: <400mA Loop N.P.D type: reverse connection protection, absorption, load short circuit protection, type A: absorption Ambient temperature and humidity: -30~65℃, 35-95%RH Temperature Influence: Temperature range -30~65℃, at 23℃, ±15% detection distance; Temperature range -25~60℃, at 23℃, ±10% 0detection distance Insulation Impedance: >50MΩ Housing Material: Nickel Plated Brass Detection ABS Weight: Approx. 80g/2.8oz Package list: 1 * Inductive Proximity Switch
