2 wire wall video control

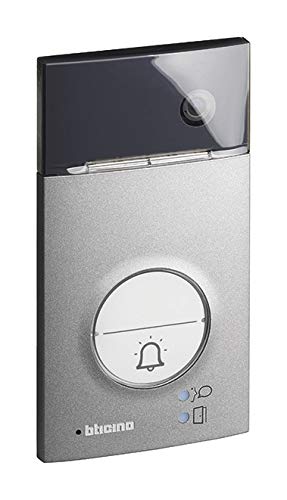

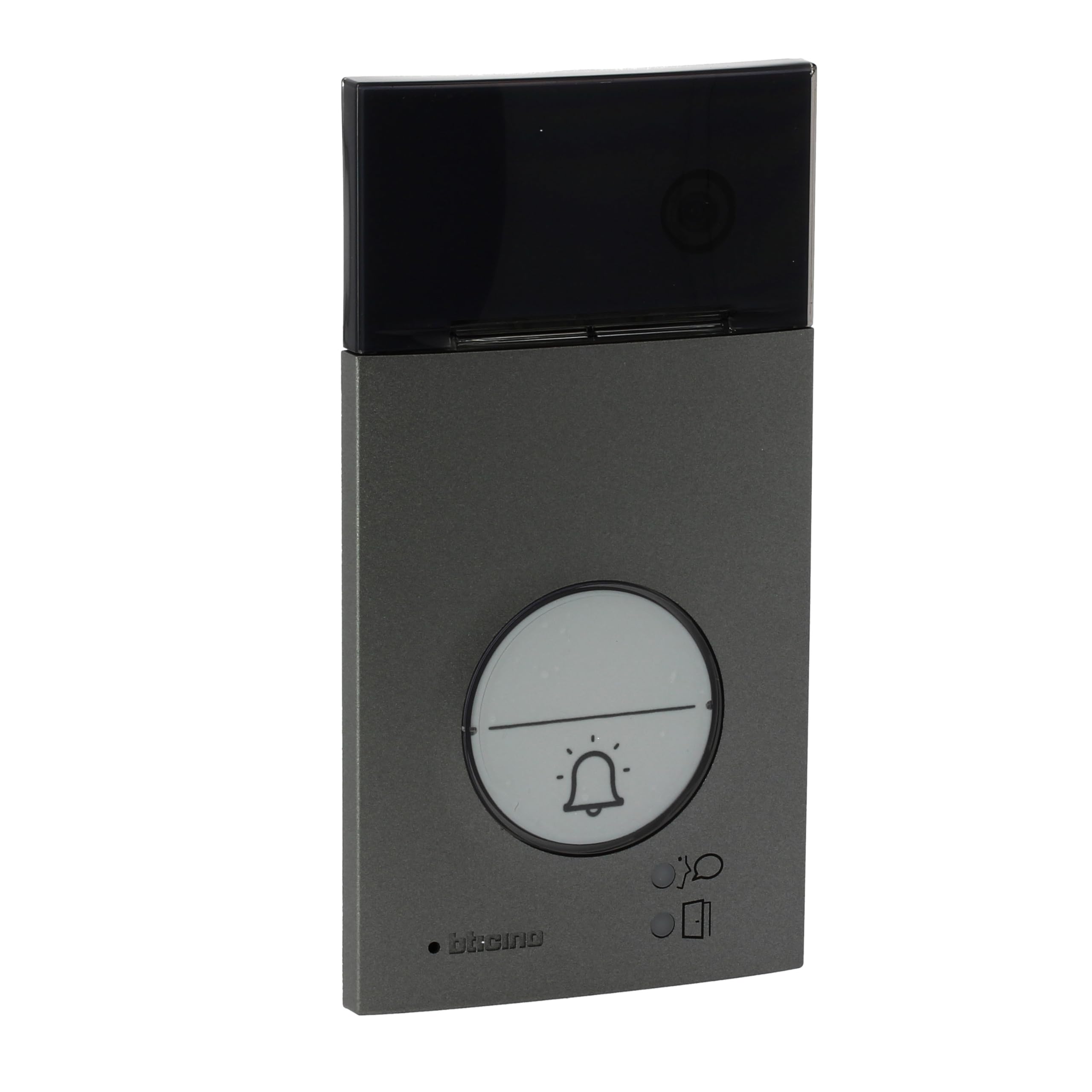

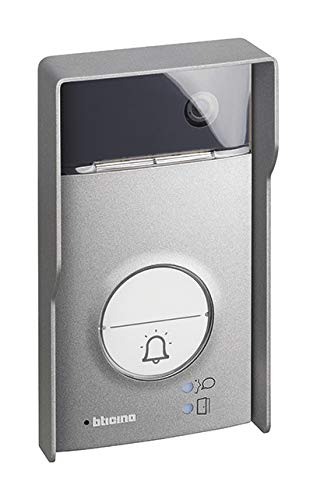

• Video / audio surface-mounted door station 2-wire, contains 2 call buttons for a single or two-family house.
• Wide angle colour camera with white LED camera lighting for better night vision.
• Illuminated name plate with brightness sensor controlled backlight.
• 2 status LEDs for the functions "conversation" and "door opener"

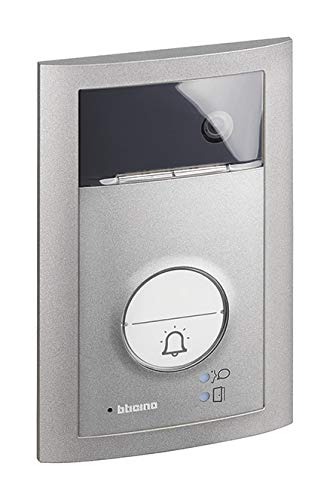

• Door station can be mounted using a flush-mounted box (item no. 350020) and accessories (order no. 343061) flush-mounted.

2-wire surface-mounted door station LINEA 3000 video with wide-angle colour camera front panel made of ZAMAK. Camera lighting with white LEDs for better night vision. Includes 2 call buttons as standard and can be configured as a single or two-family house using a slide switch. Equipped with name plate including brightness-controlled backlight (white LEDs) and status LEDs for conversation and door opener. The door opener (max. 30 Ohm internal resistance) is connected directly to the terminals S+ and S- (18 V, 4 A surge current, 250 mA holding current). Door station can be mounted using a flush-mounted box (item no. 350020) and accessories (order no. 343061) flush-mounted. Protection class IP 54, impact resistance IK 10. Dimensions: W x H x D: 100 x 190 x 26 mm
