2 PCS - UCP 204 / NP20 204 20mm bore, Mounted Block Cast Housing Self-aligning Pillow Bearing

• Product Name : Pillow Block Bearing;Bearing Model : UC204;Block Model : P204

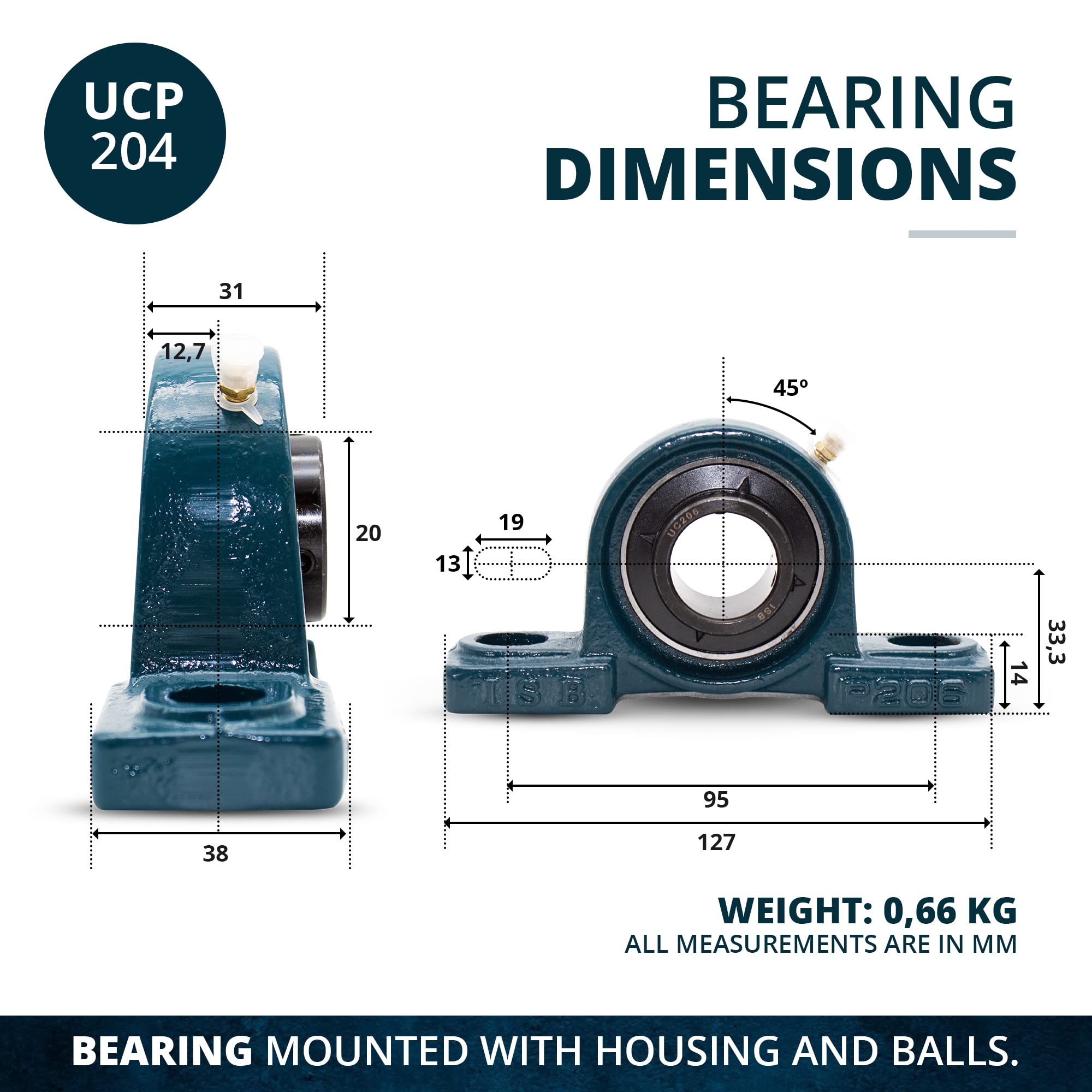

• Type : Pillow Block Mounted Bearing;Bearing Size : Inner Diameter: 20mm / 0.787",Outside Diameter: 47mm / 1.85",Max Thickness: 34mm / 1.34", Min Thickness: 18mm / 0.7"
• Bearing Block Size(Approx) : 13.8 x 3.6 x 7cm / 5.43" x 1.42" x 2.76" (L*W*H);Mounting Hole Size : 19 x 13mm / 0.76" x 0.5" (L*W)
• Hole Spacing : 94mm / 3.7" (Centre to Centre);Material : Metal
• Net Weight : 650g;Package Content : 1 x Pillow Block Bearing

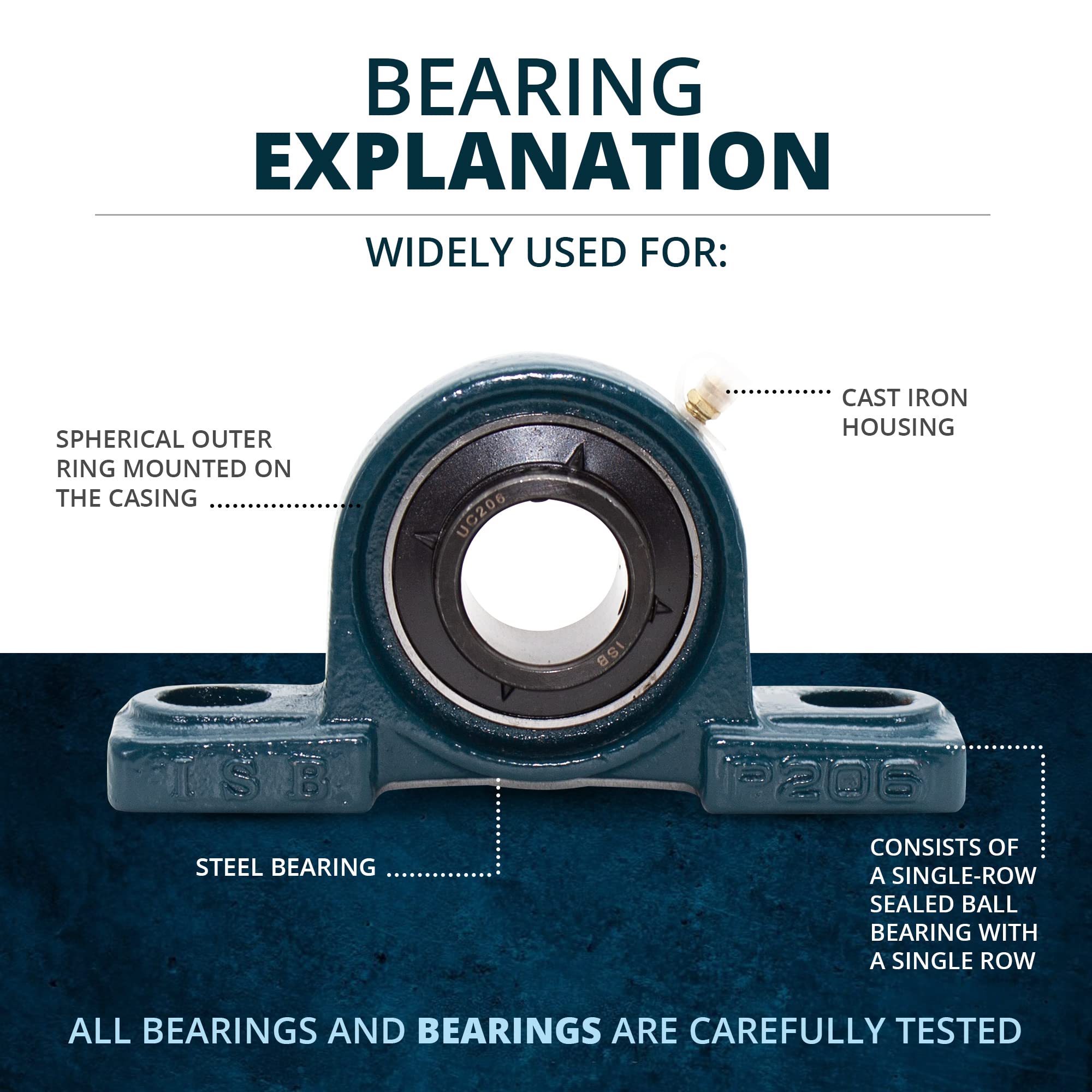

UCP 204/NP 20 Pillow block bearing unit is easy to mount widely used in transportation machinery, mines, metallurgy, reaper, textile machinery, body building equipment, motors, chain belts, chain wheels, and automobiles etc . The insert bearings correspond to 62 series deep groove ball bearing, it is with the same structure, but has wider inner rings. Bearing insert is well protected and can compensate align defects thanks to its spherical outer ring. If necessary it can be replaced very easy. The cast iron housing has a grease nipple for re-lubrication.
