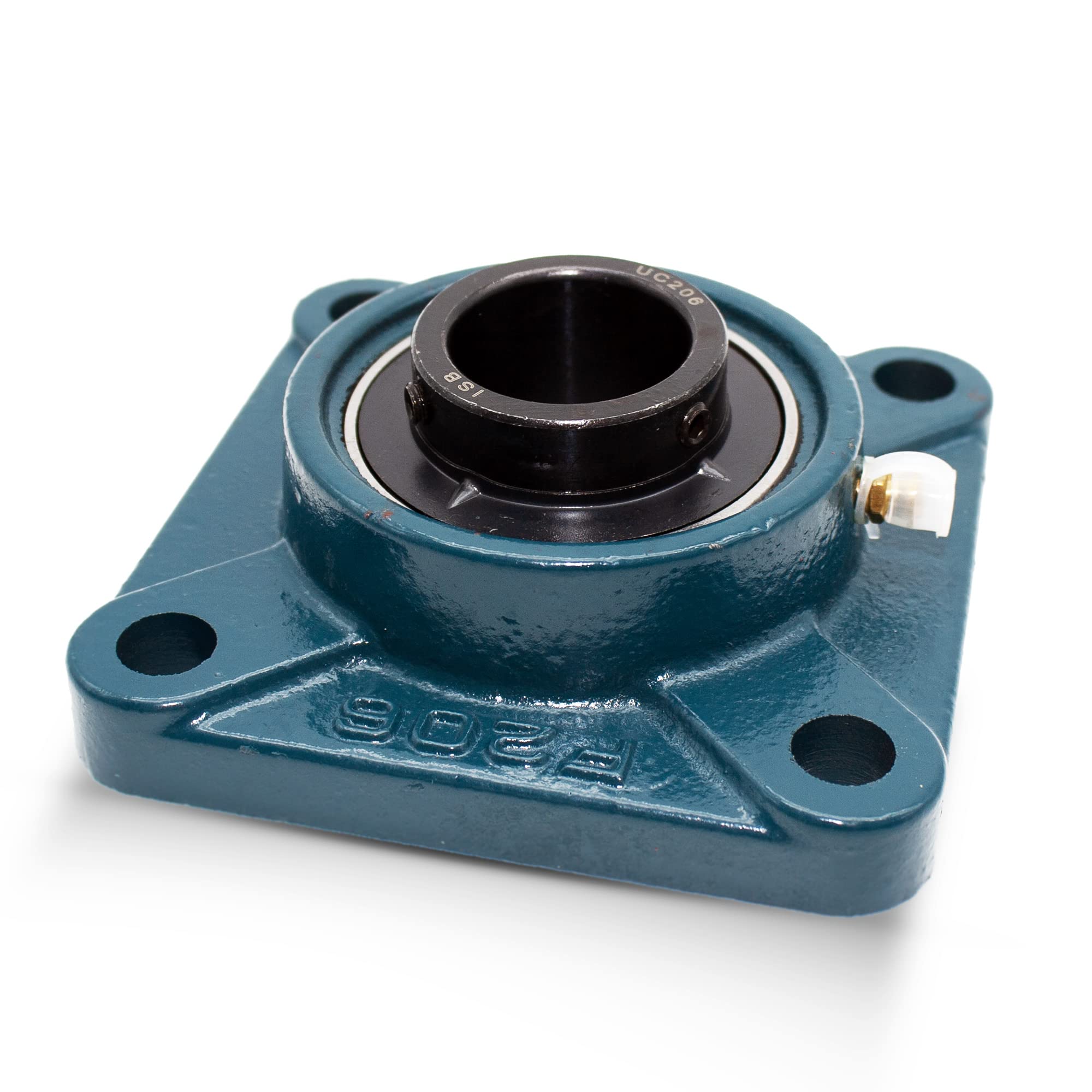

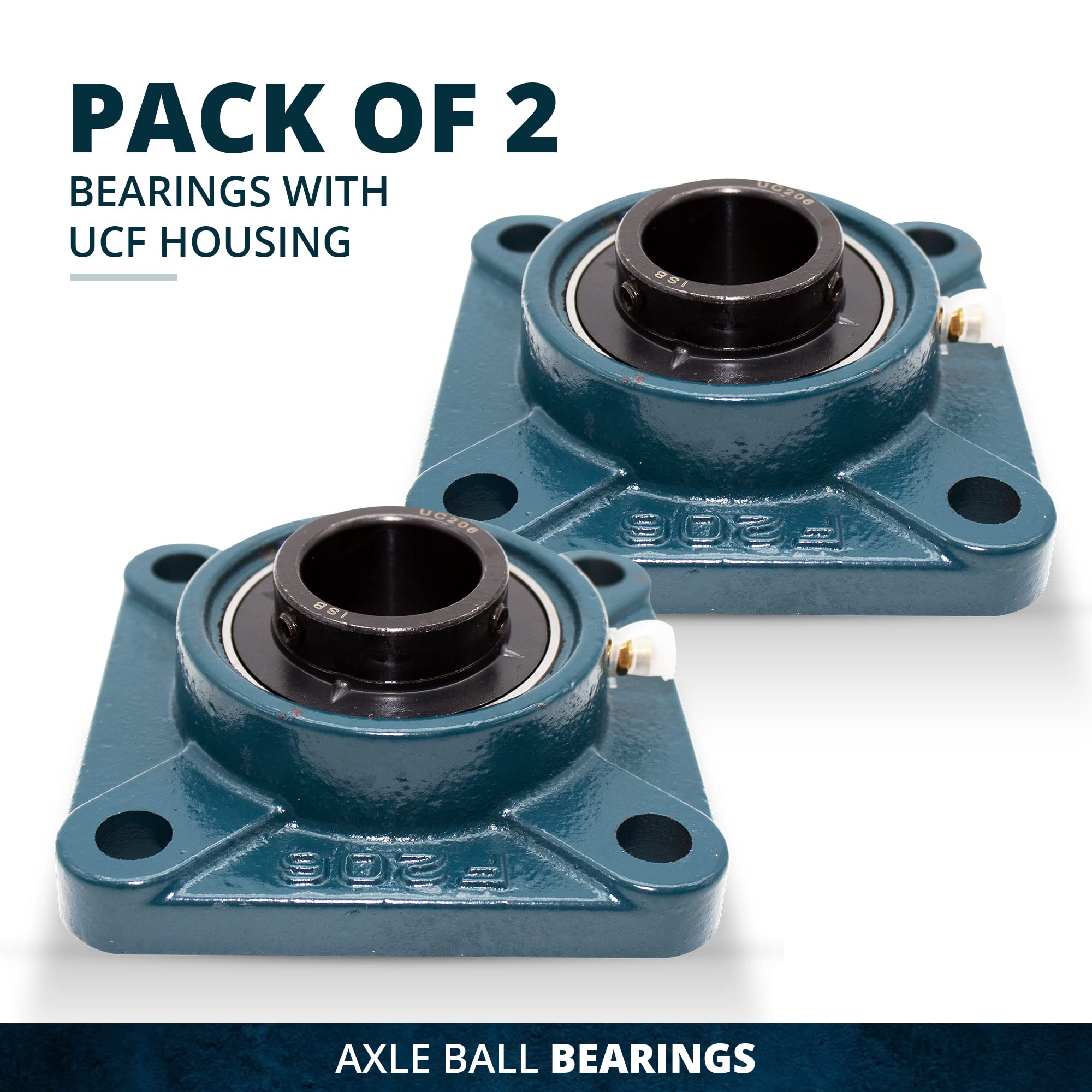

2 PCS - UCF 206/ SF30 30 mm bore, Mounted Block Cast Housing Self-aligning Pillow Bearing

• Product Name : flange Bearing unit; Bearing Model : UC 206;Block Model : F 206

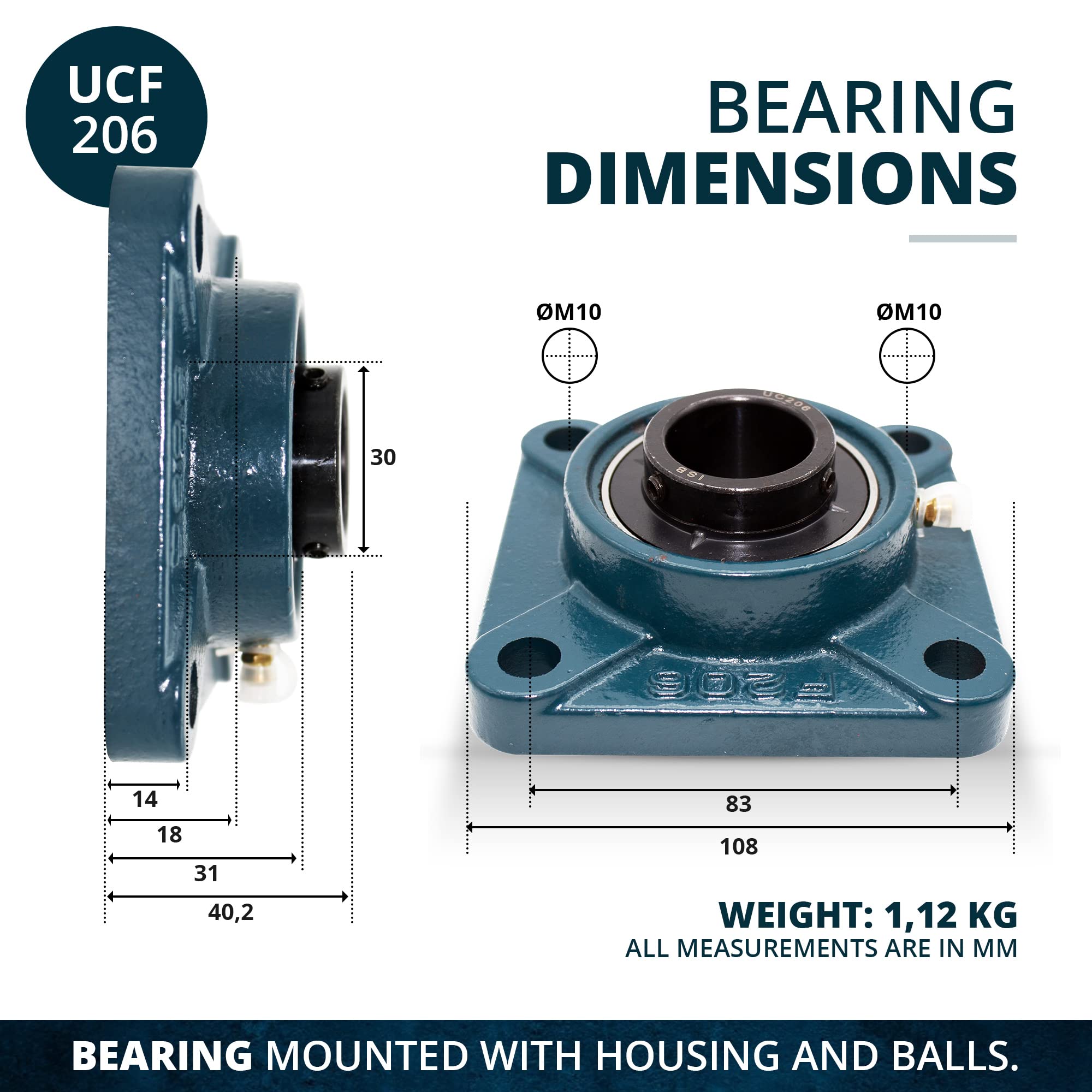

• Type : flange Bearing;Bearing Size : Inner Diameter: 30 mm / 1.18",Outside Diameter: 62 mm / 2.44",Max Thickness: 38.1 mm / 1.5", Min Thickness: 19 mm / 0.75"
• Bearing Block Size(Approx) : 10.6x 4 x 10.6 cm / 4.17" x 1.57" x 4.17" (L*W*H);Mounting Hole Size : 12 x mm / 0.47" x " (L*W)
• Hole Spacing : 83mm / 3.27" (Centre to Centre);Material : Metal
• Net Weight : 1kg;Package Content : 1 x flange Bearing

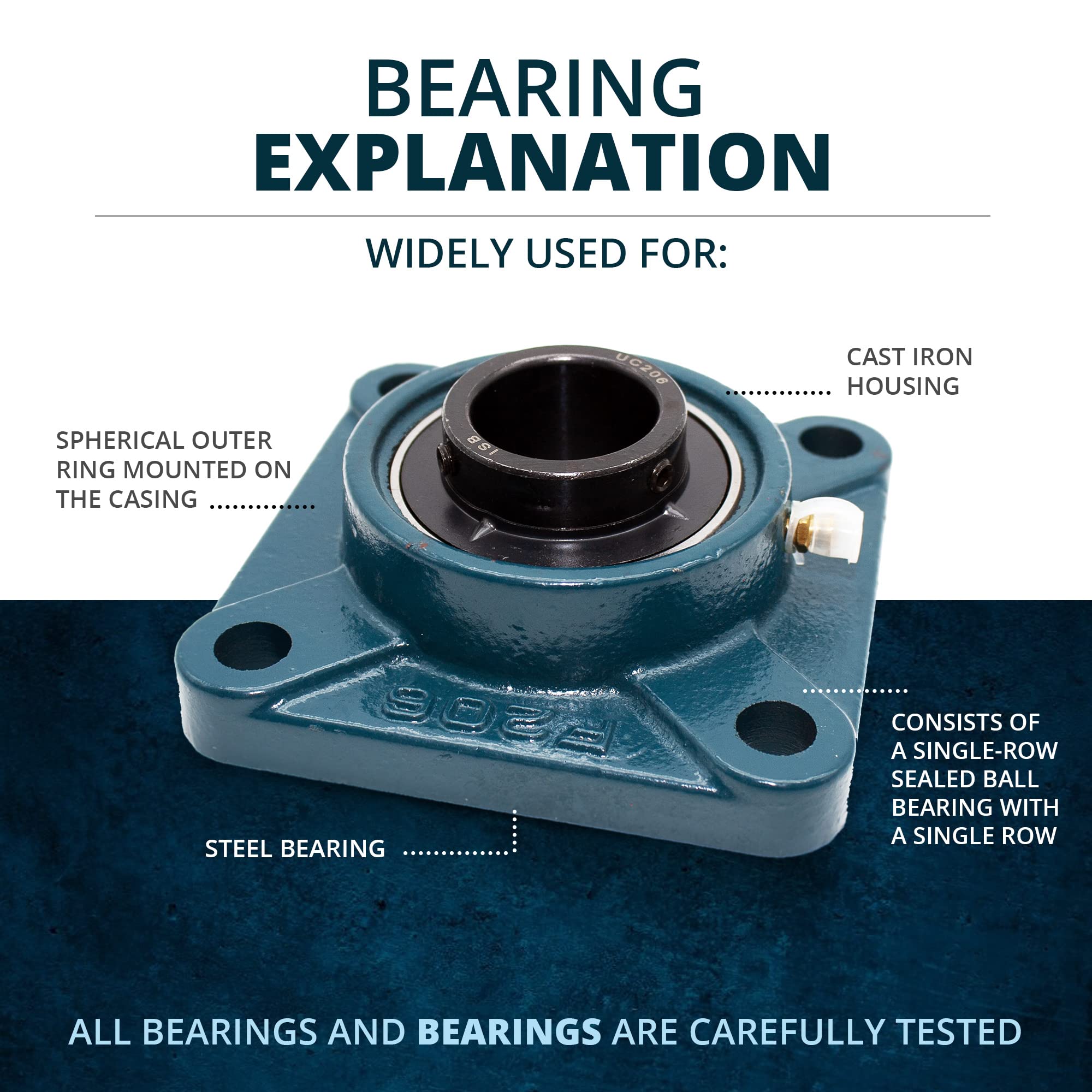

UCF 206/SF 30 flange bearing unit is easy to mount widely used in transportation machinery, mines, metallurgy, reaper, textile machinery, body building equipment, motors, chain belts, chain wheels, and automobiles etc . The insert bearings correspond to 62 series deep groove ball bearing, it is with the same structure, but has wider inner rings. Bearing insert is well protected and can compensate align defects thanks to its spherical outer ring. If necessary it can be replaced very easy.
