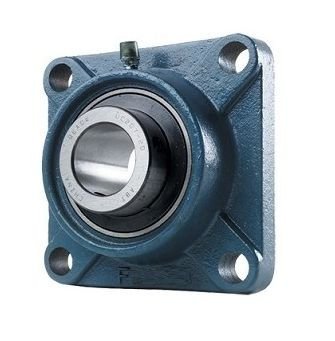

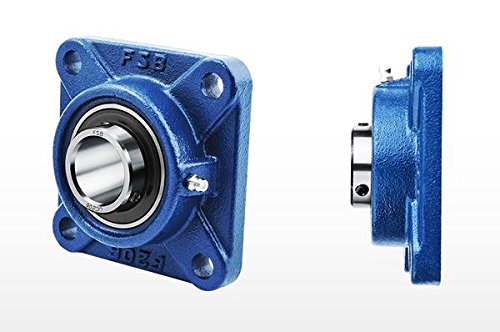

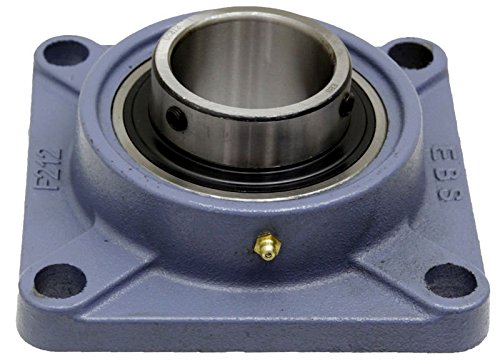

2 PCS - UCF 204 / SF20 204 20mm bore, Cast Iron Flange Bearing Unit Self-aligning Pillow Bearing

• Product Name : Pillow Block Bearing;Bearing Model : UC204;Block Model : F204
• Type : Pillow Block Flange Bearing, four bolt ;Bearing Size : Inner Diameter: 20mm / 0.59",Outside Diameter: 47mm / 1.85",Max Thickness: 31mm / 1.22", Min Thickness: 16mm / 0.63"
• Bearing Block Size(Approx) : 8.6 x 3.3 x 8.6cm / 3.37" x 1.3" x 3.37" (L*W*H);Mounting Hole Size : 12mm / 0.47"
• Hole Spacing : 64mm / 2.52" (Centre to Centre);Material : Metal
• Net Weight : 560g;Package Content : 1 x Pillow Block Flange Bearing

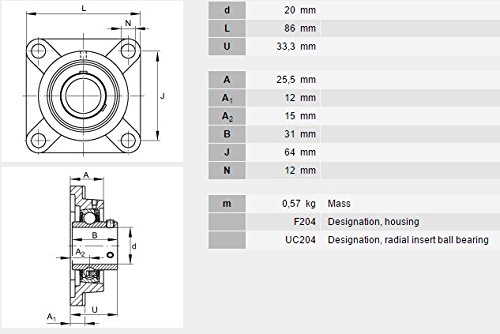

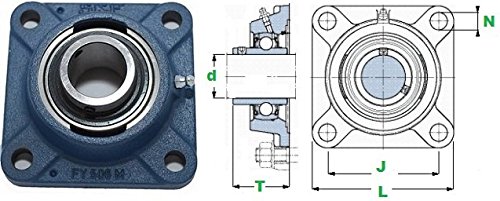

UCF 204 Pillow block flange bearing unit is easy to mount widely used in transportation machinery, mines, metallurgy, reaper, textile machinery, body building equipment, motors, chain belts, chain wheels, and automobiles etc . The insert bearings correspond to 62 series deep groove ball bearing, it is with the same structure, but has wider inner rings. Bearing insert is well protected and can compensate align defects thanks to its spherical outer ring. If necessary it can be replaced very easy. The cast iron housing has a grease nipple for re-lubrication. Type: UCF 204 Shaft Diameter (mm): 20 Length (mm): 86 Width (mm): 33 Height (mm): 86 Shaft mounting: 2 headless screws M6 x 1 Mounting hole spacing for the center (mm):64 Housing Mounting: M10
