OemClima 2 Modes - 3 Port Motorised Valve 12V - Three Port Ball Valve 1/2, 3/4, 1, 1-1/4, 1-1/2 inch (3/4 inch - DN20)

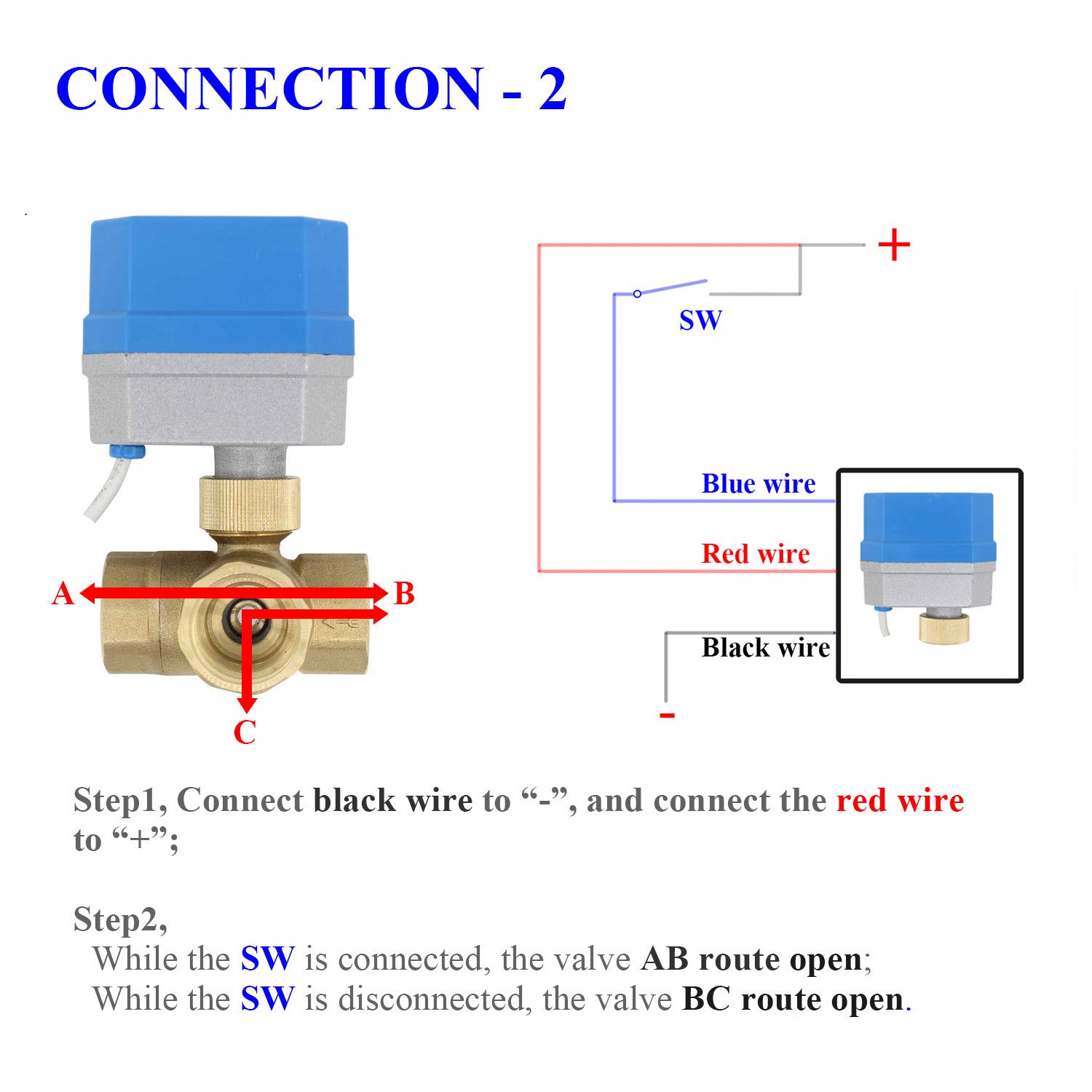

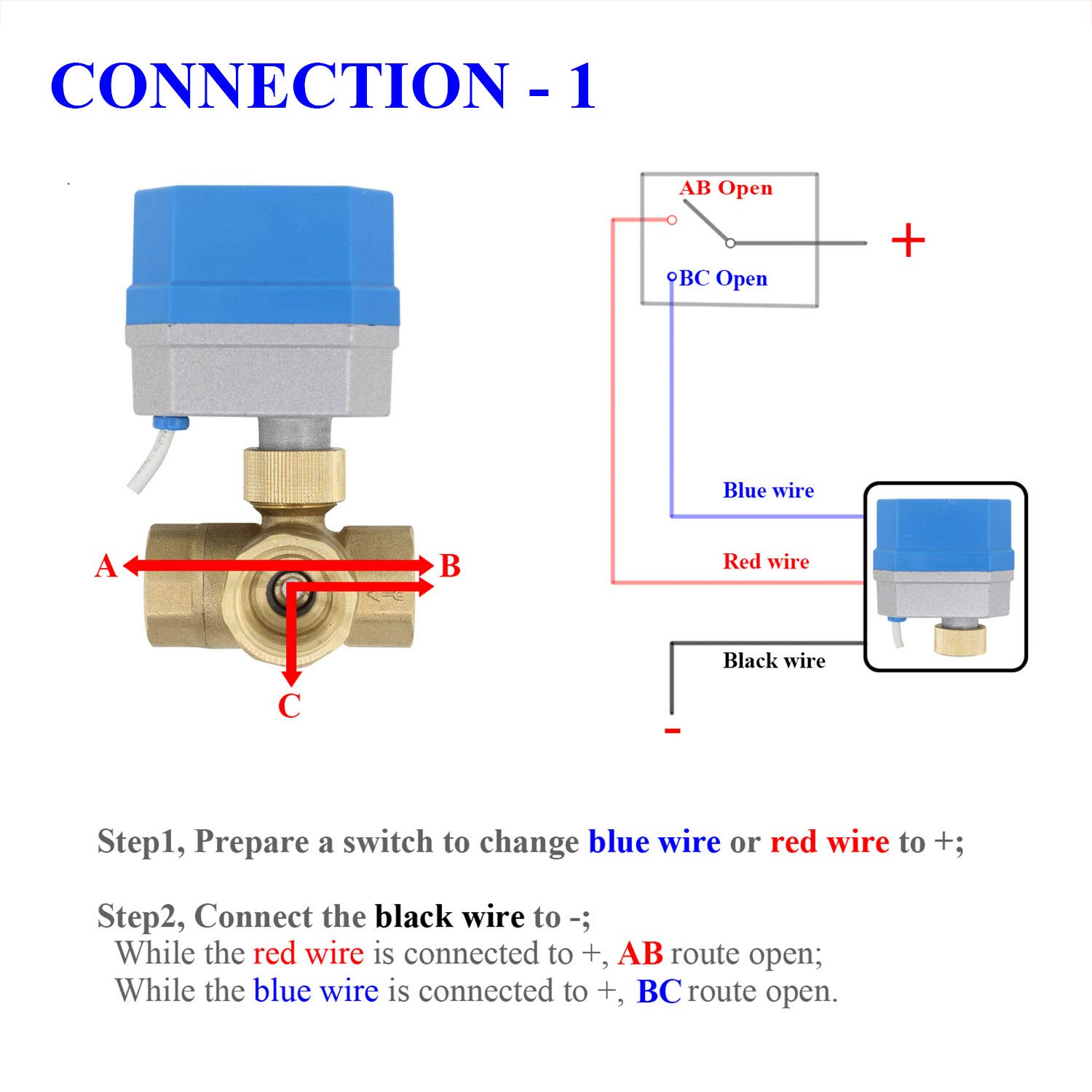

• Note: If you connect wires "-" and "+" in the opposite direction, you will not be able to fully close the valve. You need to find out what the "-" wire is and what the "+" wire is, so connect the black wire with "-" and the blue or red wire with "+". The blue and the red wire can not be connected to "+" at the same time.
• Media temperature: 0-90 ° C; Ambient temperature: 0-60 ° C
• Valve type: T type； Voltage: DC12V;
• Running time: around 15 seconds
• Nominal pressure: 1.6 MPa; Maximum pressure: 1.0 MPa

2 Modes - 3 Port motorised Valve Motorized Valve 3 Way Ball Valve 12v - Three Port Valve 1/2 3/4 1 1-1/4 1-1/2 inch
